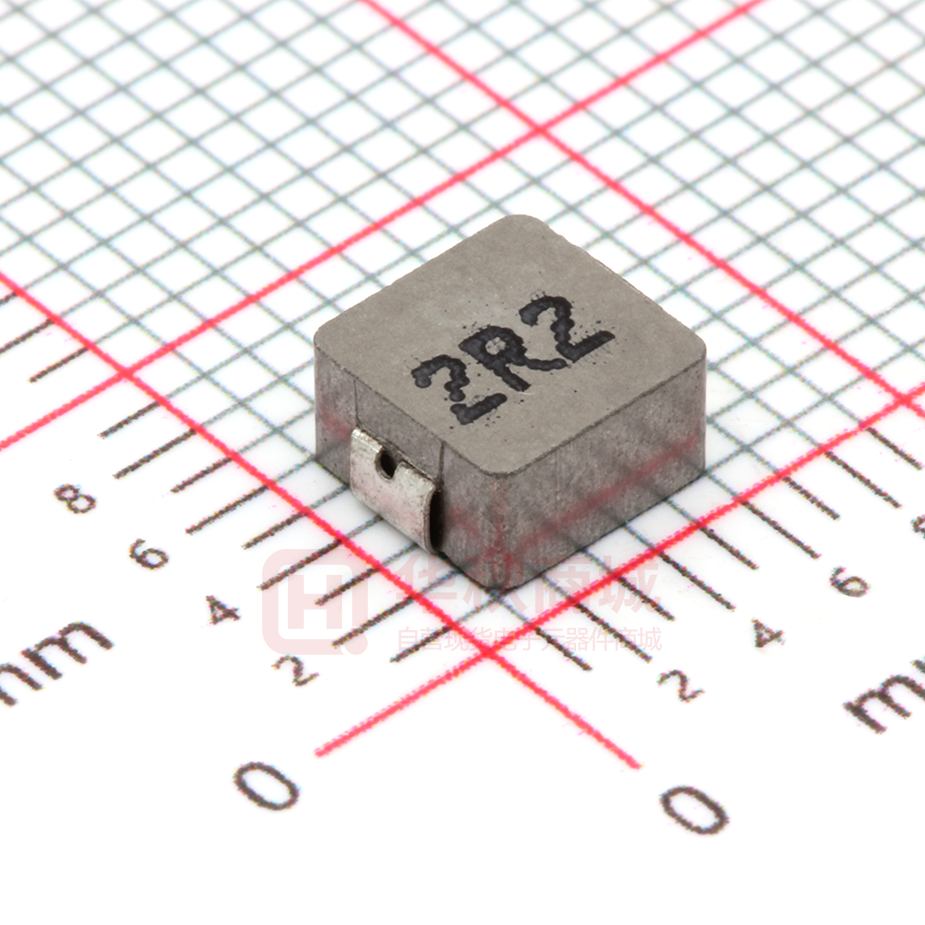

YSPI0530-2R2M

SMD Power Inductors -YSPI0530 Series ■ Features ● Molding Inductor. ● Low Profile,Low Temp. ● Large Current(Over 15A). ● Customize For Different Need. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● General Electronic. ● Video Device,TV,TFT. ● Power Module for PC. ● NB/Lap Top Computer. ● Server,VGA Card/Module. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance：N=±30%,M=±20%，K=±10% 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YSPI0530 Series ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. H Ref. YSPI0530 5.4±0.5 5.2±0.5 3.0 1.0±0.3 2.0±0.5 2.5 7.0 3.0 ■ YSPI0530 Series DC Resistance (mΩ) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YSPI0530-R20□ 0.20 3.0 3.9 13.0 14.5 YSPI0530-R33□ 0.33 5.0 7.0 10.0 15.0 YSPI0530-R47□ 0.47 8.0 14.0 10.0 14.0 YSPI0530-R68□ 0.68 11.0 18.0 8.0 14.0 YSPI0530-1R0□ 1.00 13.0 22.0 7.0 11.0 YSPI0530-1R2□ 1.20 14.0 23.0 6.5 11.0 YSPI0530-1R5□ 1.50 20.0 25.0 6.0 10.0 YSPI0530-2R2□ 2.20 26.5 40.0 5.0 8.0 YSPI0530-3R3□ 3.30 30.0 42.0 4.5 7.0 YSPI0530-4R7□ 4.70 46.0 60.0 4.0 6.0 YSPI0530-5R6□ 5.60 62.0 80.0 3.0 4.0 YSPI0530-6R8□ 6.80 78.0 108 3.0 5.0 YSPI0530-100□ 10.0 115 150 2.5 4.5 YSPI0530-150□ 15.0 190 265 2.1 2.5 YSPI0530-220□ 22.0 230 270 2.0 2.0 Part Number Inductance 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YSPI0530 Series ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YSPI0530 12±0.3 5.1±0.1 5.30±0.1 4.75 5.5±0.1 3.4±0.1 8±0.1 3.2 0.35±0.05 2000 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YSPI0530 330±2.0 12.4±2.00 18.4MAX 11.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YSPI0530 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4-
