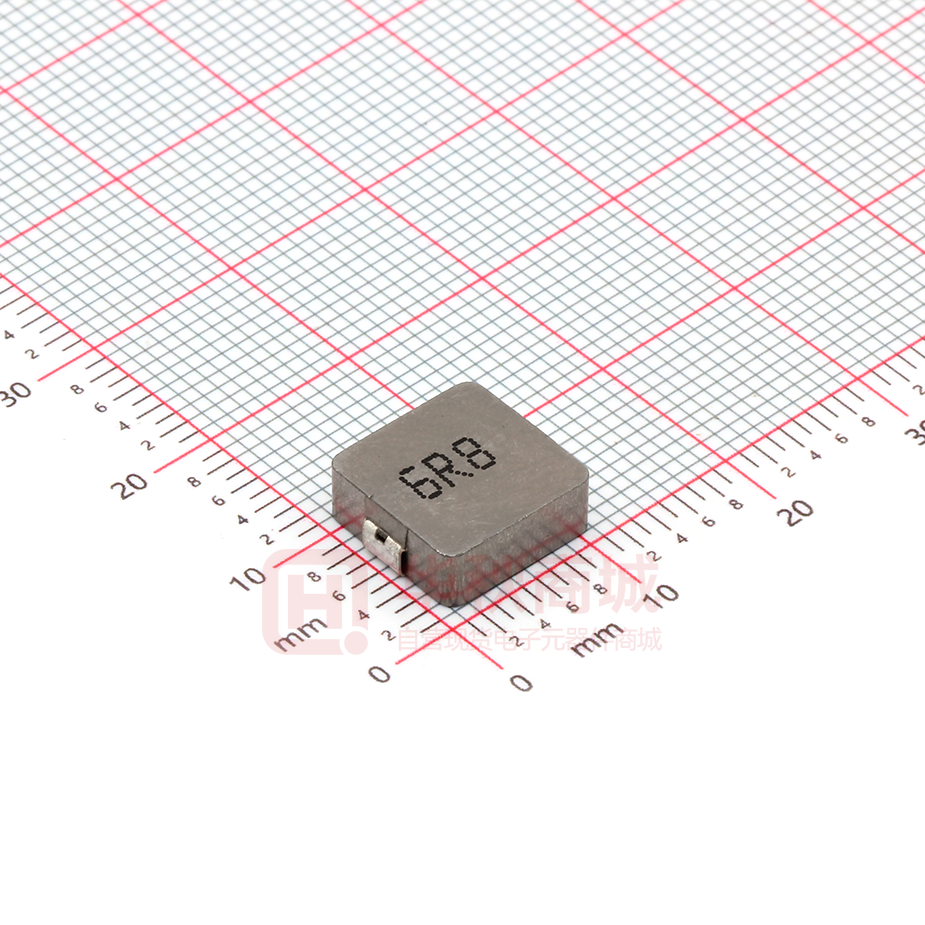

YSPI1040-6R8M

SMD Power Inductors -YSPI1040 Series ■ Features ● Molding Inductor. ● Low Profile,Low Temp. ● Large Current(Over 15A). ● Customize For Different Need. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● General Electronic. ● Video Device,TV,TFT. ● Power Module for PC. ● NB/Lap Top Computer. ● Server,VGA Card/Module. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance：N=±30%,M=±20%，K=±10% 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YSPI1040 Series ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. H Ref. YSPI1040 11.5±0.5 10.0±0.5 4.0 2.0±0.5 3.0±0.5 4.1 13.6 5.4 ■ YSPI1040 Series DC Resistance (mΩ) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YSPI1040-R19□ 0.19 0.70 0.80 38.0 60.0 YSPI1040-R22□ 0.22 0.60 0.80 35.0 45.0 YSPI1040-R36□ 0.36 1.70 2.20 34.0 42.0 YSPI1040-R47□ 0.47 2.60 3.30 33.0 38.0 YSPI1040-R56□ 0.56 2.60 3.30 25.0 33.0 YSPI1040-R68□ 0.68 2.70 3.50 27.0 30.0 YSPI1040-1R0□ 1.00 3.00 3.30 20.0 26.0 YSPI1040-1R5□ 1.50 3.80 4.20 16.0 22.0 YSPI1040-2R2□ 2.20 6.00 7.00 14.0 16.0 YSPI1040-3R3□ 3.30 10.80 11.80 11.0 12.0 YSPI1040-4R7□ 4.70 14.50 19.00 9.0 12.0 YSPI1040-5R6□ 5.60 20.00 23.00 7.5 14.0 YSPI1040-6R8□ 6.80 22.50 25.00 6.0 10 Part Number Inductance 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YSPI1040 Series ■ YSPI1040 Series DC Resistance (mΩ) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YSPI1040-8R2□ 8.20 25.00 30.00 6.0 9.0 YSPI1040-100□ 10.0 27.50 30.00 5.5 7.0 YSPI1040-150□ 15.0 53.00 70.00 5.2 6.0 YSPI1040-220□ 22.0 73.00 92.00 5.0 5.5 YSPI1040-330□ 33.0 136 177 3.2 5.0 YSPI1040-470□ 47.0 145 180 2.8 4.5 YSPI1040-680□ 68.0 176 195 2.5 2.6 YSPI1040-101□ 100 254 300 1.5 2.0 Part Number Inductance ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YSPI1040 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YSPI1040 24±0.3 10.6±0.1 11.45±0.1 10.75 11.5±0.1 4.4±0.1 16±0.1 4.2 0.40±0.05 500 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YSPI1040 330±2.0 24.4±1.5 30.4MAX 23.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YSPI1040 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
