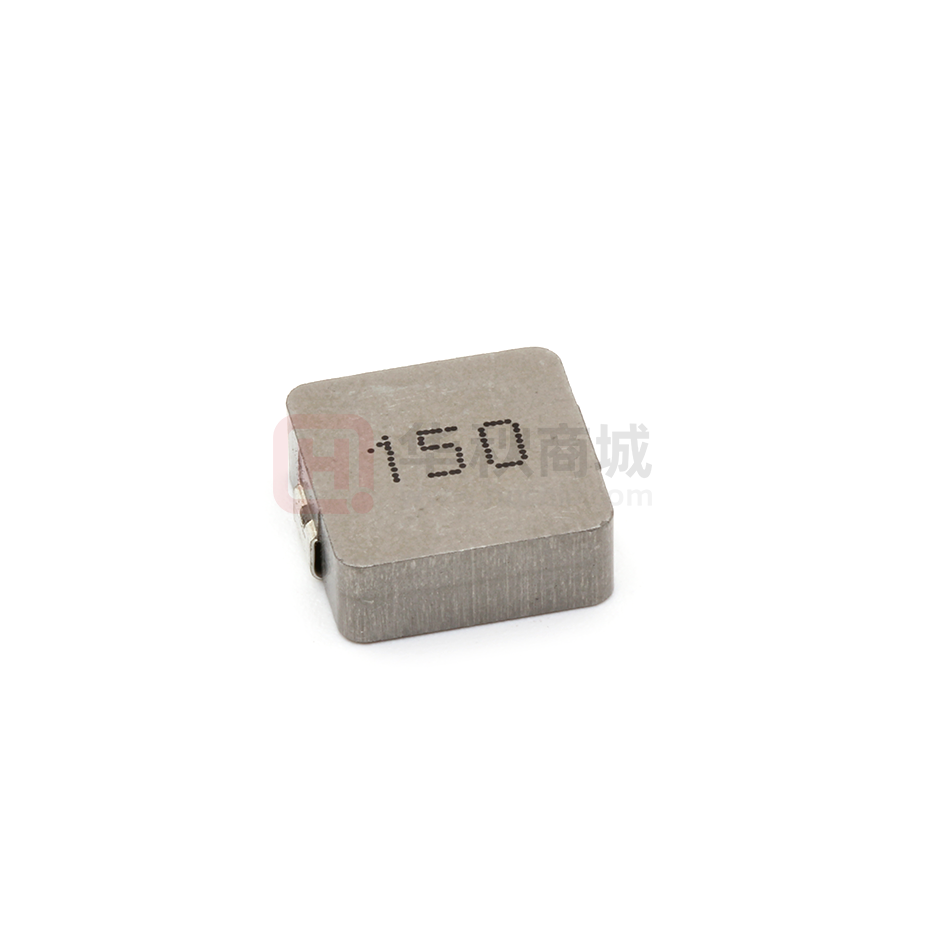

SMD Power Inductors
-YSPI1040 Series
■ Features
● Molding Inductor.
● Low Profile,Low Temp.
● Large Current(Over 15A).
● Customize For Different Need.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● General Electronic.
● Video Device,TV,TFT.
● Power Module for PC.
● NB/Lap Top Computer.
● Server,VGA Card/Module.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance:N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YSPI1040 Series

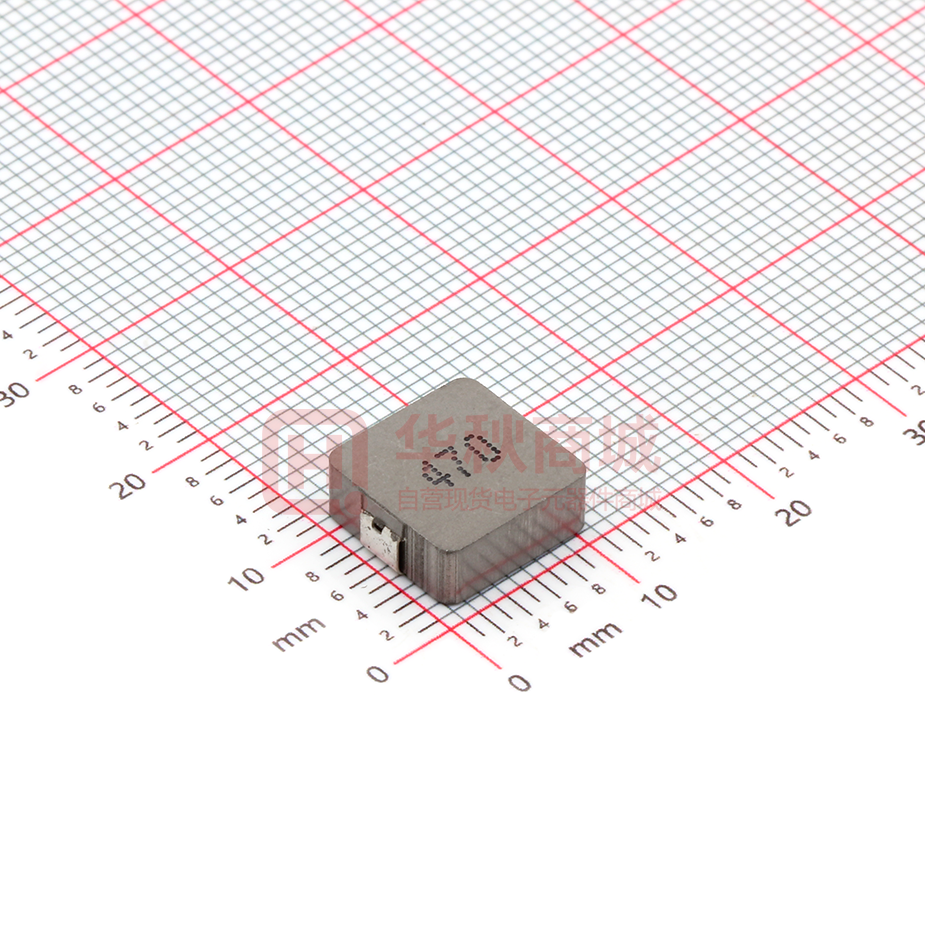

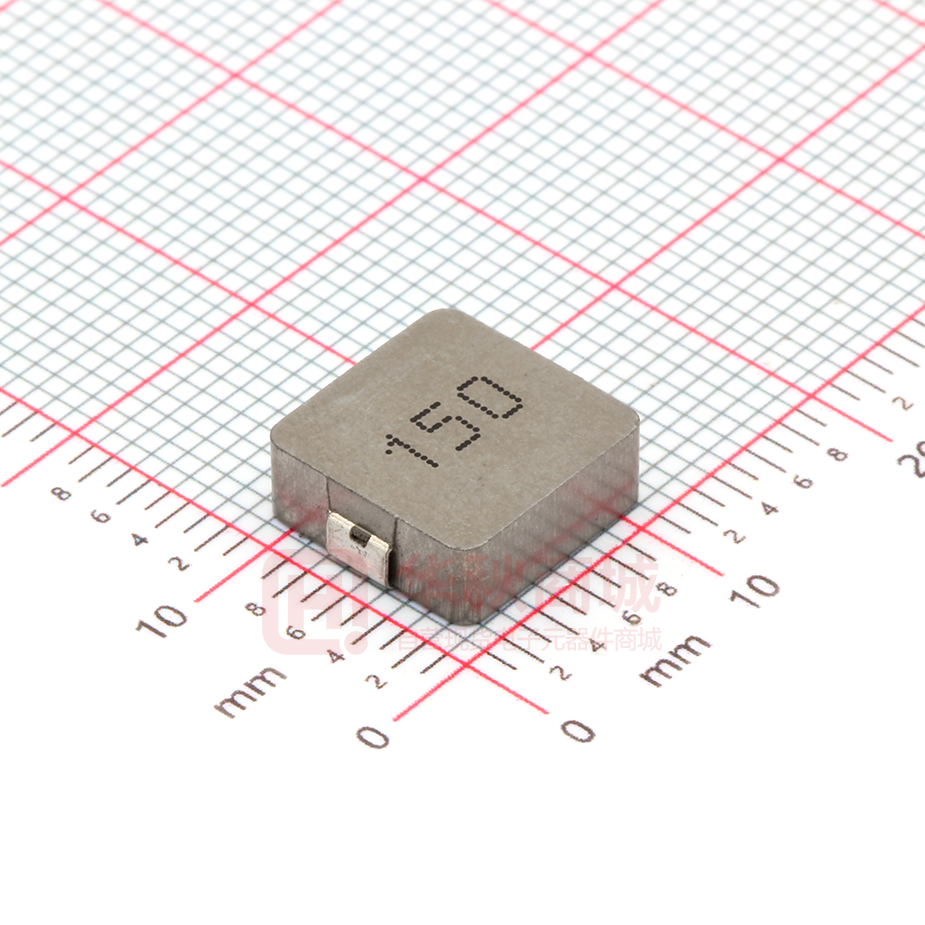

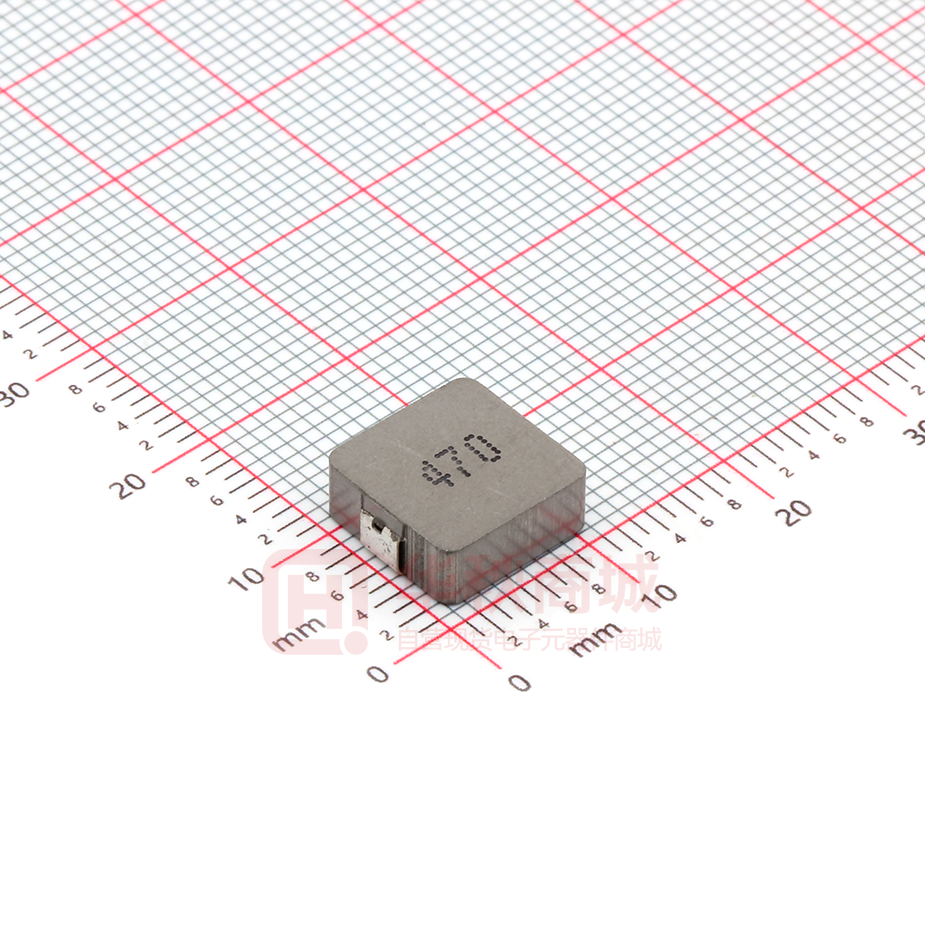

■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C Max.
D
E Ref.
F Ref.
G Ref.
H Ref.
YSPI1040
11.5±0.5
10.0±0.5
4.0
2.0±0.5
3.0±0.5
4.1
13.6
5.4
■ YSPI1040 Series
DC Resistance (mΩ)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YSPI1040-R19□
0.19
0.70
0.80
38.0
60.0
YSPI1040-R22□
0.22
0.60
0.80
35.0
45.0
YSPI1040-R36□
0.36
1.70
2.20
34.0
42.0
YSPI1040-R47□
0.47
2.60
3.30
33.0
38.0
YSPI1040-R56□
0.56
2.60
3.30
25.0
33.0
YSPI1040-R68□
0.68
2.70
3.50
27.0
30.0
YSPI1040-1R0□
1.00
3.00
3.30
20.0
26.0
YSPI1040-1R5□
1.50
3.80
4.20
16.0
22.0
YSPI1040-2R2□
2.20
6.00
7.00
14.0
16.0
YSPI1040-3R3□
3.30
10.80
11.80
11.0
12.0
YSPI1040-4R7□
4.70
14.50
19.00
9.0
12.0
YSPI1040-5R6□
5.60
20.00
23.00
7.5
14.0
YSPI1040-6R8□
6.80
22.50
25.00
6.0
10
Part Number
Inductance
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YSPI1040 Series
■ YSPI1040 Series
DC Resistance (mΩ)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YSPI1040-8R2□
8.20
25.00
30.00
6.0
9.0
YSPI1040-100□
10.0
27.50
30.00
5.5
7.0
YSPI1040-150□
15.0
53.00
70.00
5.2
6.0
YSPI1040-220□
22.0
73.00
92.00
5.0
5.5
YSPI1040-330□
33.0
136
177
3.2
5.0
YSPI1040-470□
47.0
145
180
2.8
4.5
YSPI1040-680□
68.0
176
195
2.5
2.6
YSPI1040-101□
100
254
300
1.5
2.0
Part Number
Inductance
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YSPI1040 Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K Ref
T
MPQ
YSPI1040
24±0.3
10.6±0.1
11.45±0.1
10.75
11.5±0.1
4.4±0.1
16±0.1
4.2
0.40±0.05
500
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YSPI1040
330±2.0
24.4±1.5
30.4MAX
23.9 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YSPI1040 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-5-
