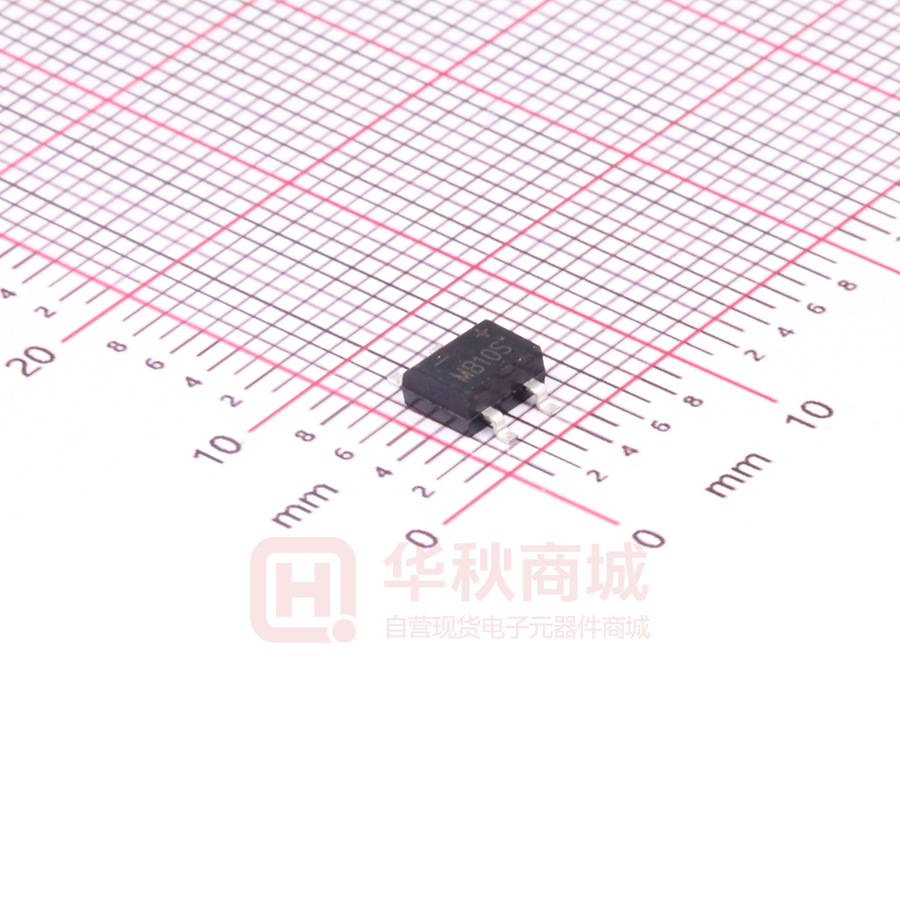

MB10S

Surface Mount Glass Passivated Bridge Rectifier Features •  Rating to 1000V PRV •  Ideal for printed circuit board •  Lead tin plated copper Specifications Reverse Voltage Forward Current : 200 to 600 Volts : 0.8 Amperes Mechanical Data Polarity Weight Mounting Position : Symbol molded on body : 0.0044 ounces, 0.125 grams : Any Maximum Ratings and Electrical Characteristics Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristics Symbol MB05S MB1S MB2S MB4S MB6S MB8S MB10S Max. Recurrent Peak Reverse Voltage Vrrm 50 100 200 400 600 800 1,000 Max. RMS Voltage Vrms 35 70 140 280 420 560 700 Max. DC Blocking Voltage Vdc 50 100 200 400 600 800 1,000 Max. Average Forward Rectified Current (Note 1)  Unit V I(AV) 0.8 Ifsm 30 Max. Instantaneous Forward Voltage at 0.8A DC Vf 1.1 V Max. DC Reverse Current at Ta = 25°C Rated DC Blocking Voltage at Ta = 125°C Ir 5 500 μA Typical Junction Capacitance per Element (Note 2) Cj 15 pF RθJC 75 °C/W -55 to +150 °C at Ta = 40°C Peak Forward Surge Current 8.3ms Single Half Sine-Wave Super Imposed on Rated Load (JEDEC Method) Typical Thermal Resistance (Note 3) Operating Temperature Range Storage Temperature Range A Tj Tstg Notes: 1. Mounted on P.C. board. 2. Measured at 1.0MHz and applied reverse voltage of 4V DC. 3. Thermal resistance junction to case Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page 24/01/20 V1.0 Surface Mount Glass Passivated Bridge Rectifier Ratings and Characteristic Curves Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page 24/01/20 V1.0 Surface Mount Glass Passivated Bridge Rectifier Diagram Dimensions : Inches (Millimetres) Part Number Table Description Part Number MB05S MB1S MB10S Surface Mount Glass Passivated Bridge Rectifiers MB2S MB4S MB6S MB6S MB8S Important Notice : This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019. Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page 24/01/20 V1.0
