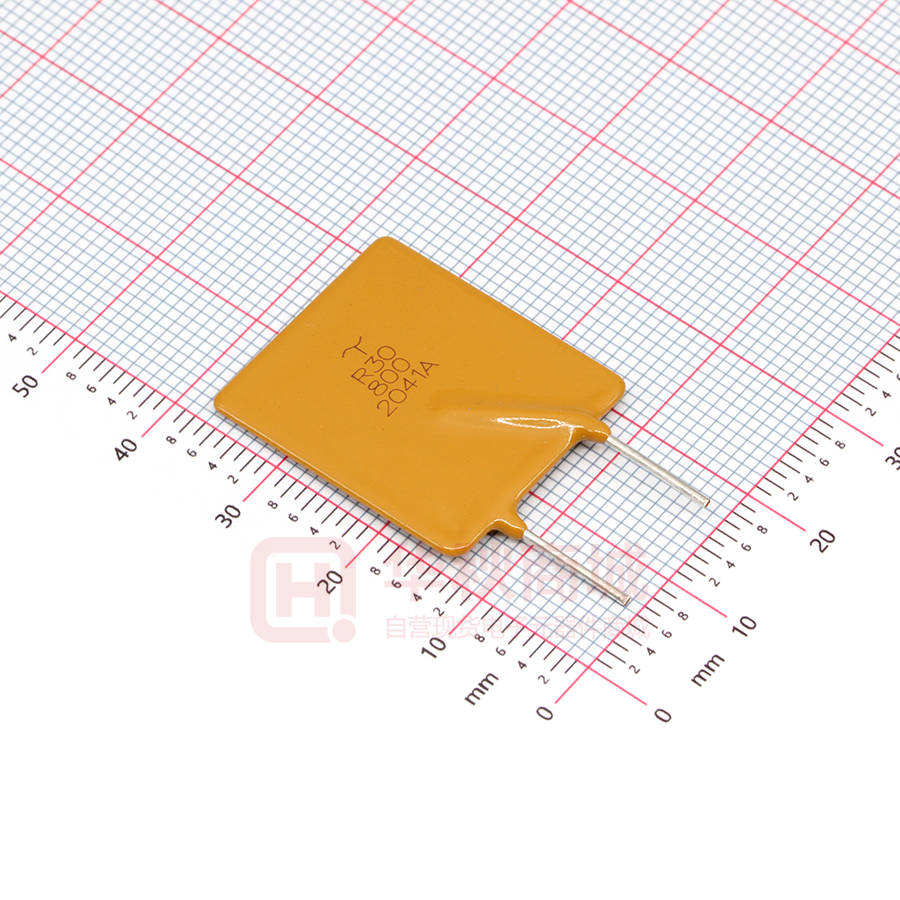

R30-800

Features Applications ■ Radial Leaded Devices Almost anywhere there is a low voltage ■ Cured, flame retardant epoxy polymer power supply, up to 30V and a load to be insulating material meets protected, including: UL 94V-0 requirements ■ Personal computer ■ Bulk packaging,or tape and reel ■ Toys ■ Industrial controls available on most models R30 Series Alpha-Top (Sea & Land Alliance) Electrical Properties Agency Maximum Resistance Pd Time To Trip Approval Model Typ. Current Time Rimin Rimax R1max UL TUV (A) (Sec) (Vdc) (A) (A) (A) (W) (W) (W) (W) R30-030 30 40 0.30 0.60 0.44 8.00 0.3 0.370 0.720 1.080 √ R30-040 30 40 0.40 0.80 0.45 8.00 0.3 0.250 0.430 0.645 √ R30-050 30 40 0.50 1.00 0.46 8.00 0.3 0.150 0.400 0.600 √ R30-065 30 40 0.65 1.30 0.47 8.00 0.4 0.120 0.300 0.450 √ R30-075 30 40 0.75 1.50 0.48 8.00 0.4 0.100 0.250 0.375 √ R30-090 30 40 0.90 1.80 0.6 4.50 5.9 0.070 0.145 0.220 √ √ R30-110 30 40 1.10 2.20 0.7 5.50 6.6 0.050 0.120 0.170 √ √ R30-135 30 40 1.35 2.70 0.8 6.75 7.3 0.040 0.085 0.130 √ √ R30-160 30 40 1.60 3.20 0.9 8.00 8.0 0.030 0.070 0.110 √ √ R30-185 30 40 1.85 3.70 1.0 9.25 8.7 0.030 0.060 0.090 √ √ R30-250 30 40 2.50 5.00 1.2 12.5 10.3 0.020 0.040 0.070 √ √ R30-300 30 40 3.00 6.00 2.0 15.0 10.8 0.020 0.050 0.080 √ √ R30-400 30 40 4.00 8.00 2.5 20.0 12.7 0.010 0.030 0.050 √ √ R30-500 30 40 5.00 10.00 3.0 25.0 14.5 0.010 0.030 0.050 √ √ R30-600 30 40 6.00 12.00 3.5 30.0 16.0 0.005 0.020 0.040 √ √ R30-700 30 40 7.00 14.00 3.8 35.0 17.5 0.005 0.020 0.030 √ √ R30-800 30 40 8.00 16.00 4.0 40.0 18.8 0.005 0.020 0.020 √ √ R30-900 30 40 9.00 18.00 4.2 40.0 20.0 0.005 0.010 0.020 √ √ Ihold = Hold Current : maximum current device will sustain for 4 hours without tripping in 25°C still air. Itrip = Trip Current : minimum current at which the device will trip in 25°C still air. Vmax = Maximum voltage device can withstand without damage at rated current (Imax). Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax). Pd = Power dissipated from device when in the tripped state at 25°C still air. Ri min/max = Minimum/Maximum resistance of device in initial (un-soldered) state. R1 max = Maximum resistance of device at 25°C measured one hour after tripping. CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame. Vmax Imax Ihold Itrip Environmental Specifications Test Conditions Passive aging +85°C, 1000 hrs. Humidity aging +85°C, 85% R.H.,1000 hrs Thermal shock +85°C to -40°C, 20 times Resistance to solvent MIL-STD-202,Method 215 Vibration MIL-STD-202,Method 201 Ambient operating /storage conditions : - 40 °C to +85 °C Maximum surface temperature of the device in the tripped state is 125 °C In case of special use, please contact our engineer Agency Approvals : E201504(Alpha-Top)/E319079(Sea&Land) R 50274672 Regulation/Standard: 2015/863/EU EN14582 R30 Series Alpha-Top (Sea & Land Alliance) Physical Dimensions (Unit: mm) Model R30-030 R30-040 R30-050 R30-065 R30-075 R30-090 R30-110 R30-135 R30-160 R30-185 R30-250 R30-300 R30-400 R30-500 R30-600 R30-700 R30-800 R30-900 A Max. 7.4 7.4 7.4 7.4 7.4 7.4 7.4 8.9 8.9 10.2 11.4 11.4 14.0 14.0 16.5 19.1 21.6 24.1 B Max. 10.2 11.4 11.4 11.4 11.4 12.2 14.2 13.5 15.2 15.7 18.3 18.3 20.1 24.9 24.9 26.7 29.2 29.7 C Typ. 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 10.2 10.2 10.2 10.2 10.2 D Min. 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 E Max. 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 Dimensions A F Max. 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 2.0 2.0 2.0 Lead Style Straight Straight Straight Straight Straight Kink Kink Kink Kink Kink Kink Straight Straight Straight Straight Straight Straight Straight Marking A E A E C B B D R30 135 XXXXY B D D C C F = Trademark R30 = Radial type 30 Vrms 135 = 1.35A hold current XXXX = Date code Y = Factory code Physical Characteristics Lead Material : R30-030 ~ 250: Tin-plated copper-clad steel, 0.205mm2 (24AWG), Φ0.51mm(0.020 in). R30-300 ~ 900: Tin-plated copper, 0.52mm2 (20AWG), Φ0.81mm(0.032 in). Lead Solderability : MIL-STD-202, Method 208 Order Information R30 Radial type 30 V Packing 135 Hold Current (A) K or S R or U S=Straight R=Tape&reel U= Bulk Model R30-030 ~ R30-075 R30-090 ~ R30-250 R30-300 ~ R30-400 leads packaged R30-500 ~ R30-900 K= Kink leads Devices taped with reference EIA468 standard. Reel Q'ty 3000 1500 Bag Q'ty 500 500 500 - 500 R30 Series Alpha-Top (Sea & Land Alliance) Typical Time-To-Trip Curve At 25°C Thermal Derating Curve Derating Curves for R30 Series Average Time Current Curves 9.00A 0.30A 0.40A 0.50A 0.75A TIME IN SECOND 100 0.65A 0.90A 1.10A 10 1.35A 1.60A 1.85A 2.50A 1 3.00A 4.00A 5.00A 0.1 6.00A 7.00A 8.00A 0.01 9.00A 0.1 1 10 CURRENT IN AMPERES 100 180 160 Percentage of Derated Current 0.30A 1000 140 120 100 80 60 40 20 0 -40 -20 0 20 40 60 80 Temperature (°C) Ihold Versus Temperature Model R30-030 R30-040 R30-050 R30-065 R30-075 R30-090 R30-110 R30-135 R30-160 R30-185 R30-250 R30-300 R30-400 R30-500 R30-600 R30-700 R30-800 R30-900 Maximum ambient operating temperature (Tmao) vs. hold current (Ihold) -40°C -20°C 0°C 25°C 40°C 50°C 60°C 70°C 85°C 0.44 0.39 0.35 0.30 0.25 0.23 0.20 0.18 0.16 0.58 0.52 0.46 0.40 0.33 0.31 0.27 0.24 0.21 0.73 0.65 0.58 0.50 0.42 0.38 0.34 0.31 0.26 0.95 0.85 0.75 0.65 0.54 0.50 0.44 0.40 0.34 1.11 0.99 0.88 0.75 0.63 0.58 0.51 0.47 0.40 1.31 1.17 1.04 0.90 0.75 0.69 0.61 0.55 0.47 1.60 1.43 1.27 1.10 0.91 0.85 0.75 0.67 0.57 1.96 1.76 1.55 1.35 1.12 1.04 0.92 0.82 0.70 2.32 2.08 1.84 1.60 1.33 1.23 1.09 0.98 0.83 2.68 2.41 2.13 1.85 1.54 1.42 1.26 1.13 0.96 3.63 3.25 2.88 2.50 2.08 1.93 1.70 1.53 1.30 4.35 3.90 3.45 3.00 2.49 2.31 2.04 1.83 1.56 5.80 5.20 4.60 4.00 3.32 3.08 2.72 2.44 2.08 7.25 6.50 5.75 5.00 4.15 3.85 3.40 3.05 2.60 8.70 7.80 6.90 6.00 4.98 4.62 4.08 3.66 3.12 10.15 9.10 8.05 7.00 5.81 5.39 4.76 4.27 3.64 11.60 10.40 9.20 8.00 6.64 6.16 5.44 4.88 4.16 13.05 11.70 10.35 9.00 7.47 6.93 6.12 5.49 4.68 · Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame. · PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. · Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. · Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC. · Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space.
