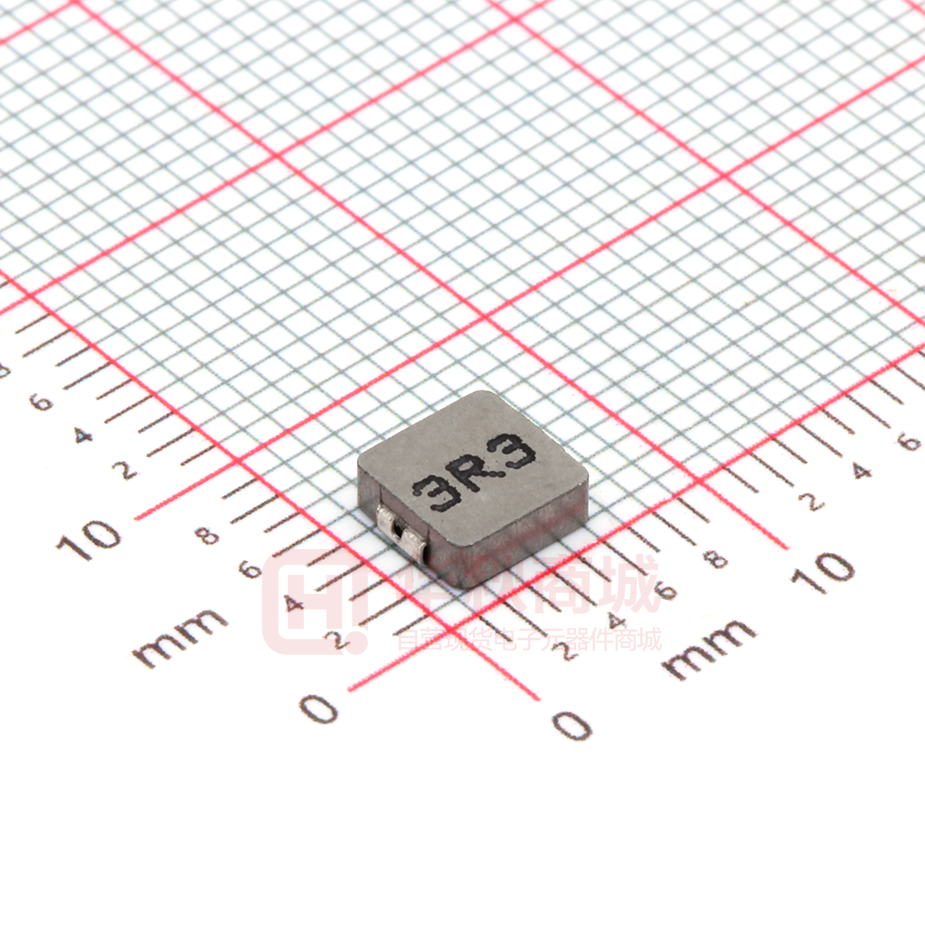

YSPI0520-3R3M

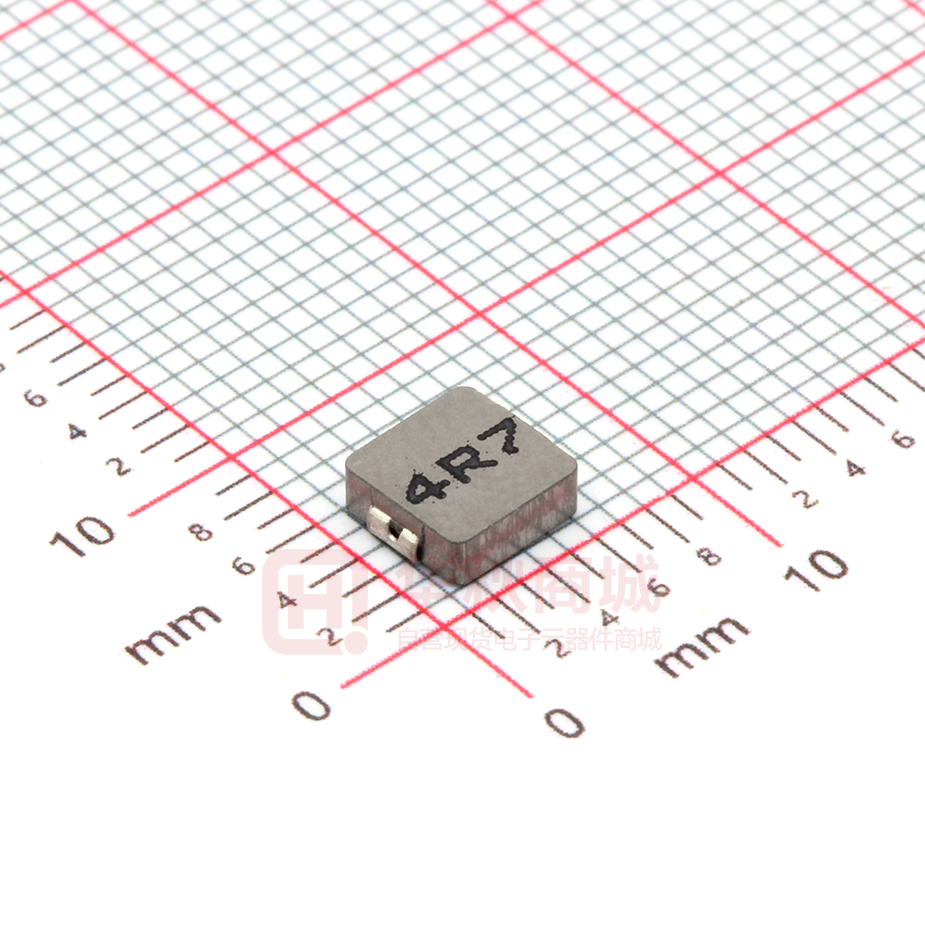

SMD Power Inductors -YSPI0520 Series ■ Features ● Molding Inductor. ● Low Profile,Low Temp. ● Large Current(Over 15A). ● Customize For Different Need. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● General Electronic. ● Video Device,TV,TFT. ● Power Module for PC. ● NB/Lap Top Computer. ● Server,VGA Card/Module. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance：N=±30%,M=±20%，K=±10% 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YSPI0520 Series ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. H Ref. YSPI0520 5.4±0.5 5.2±0.5 2.0 1.0±0.3 2.0±0.5 2.5 7.0 3.0 ■ YSPI0520 Series DC Resistance (mΩ) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YSPI0520-R47□ 0.47 8 10 10.5 14.0 YSPI0520-R68□ 0.68 15 20 5.0 10.0 YSPI0520-1R0□ 1.00 15 21 5.0 8.0 YSPI0520-1R2□ 1.20 17 27 5.0 8.0 YSPI0520-1R5□ 1.50 20 26 5.5 6.5 YSPI0520-2R2□ 2.20 32 42 4.0 6.0 YSPI0520-3R3□ 3.30 44 58 3.5 5.5 YSPI0520-4R7□ 4.70 68 90 3.2 4.5 YSPI0520-5R6□ 5.60 75 97 3.0 4.0 YSPI0520-6R8□ 6.80 107 125 2.8 3.4 YSPI0520-100□ 10.0 170 221 2.3 3.0 Part Number Inductance ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YSPI0520 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YSPI0520 12±0.3 5.1±0.1 5.30±0.1 4.75 5.5±0.1 3.4±0.1 8±0.1 2.1 0.35±0.05 3000 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YSPI0520 330±2.0 12.8±1.50 18.4MAX 11.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YSPI0520 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4-
