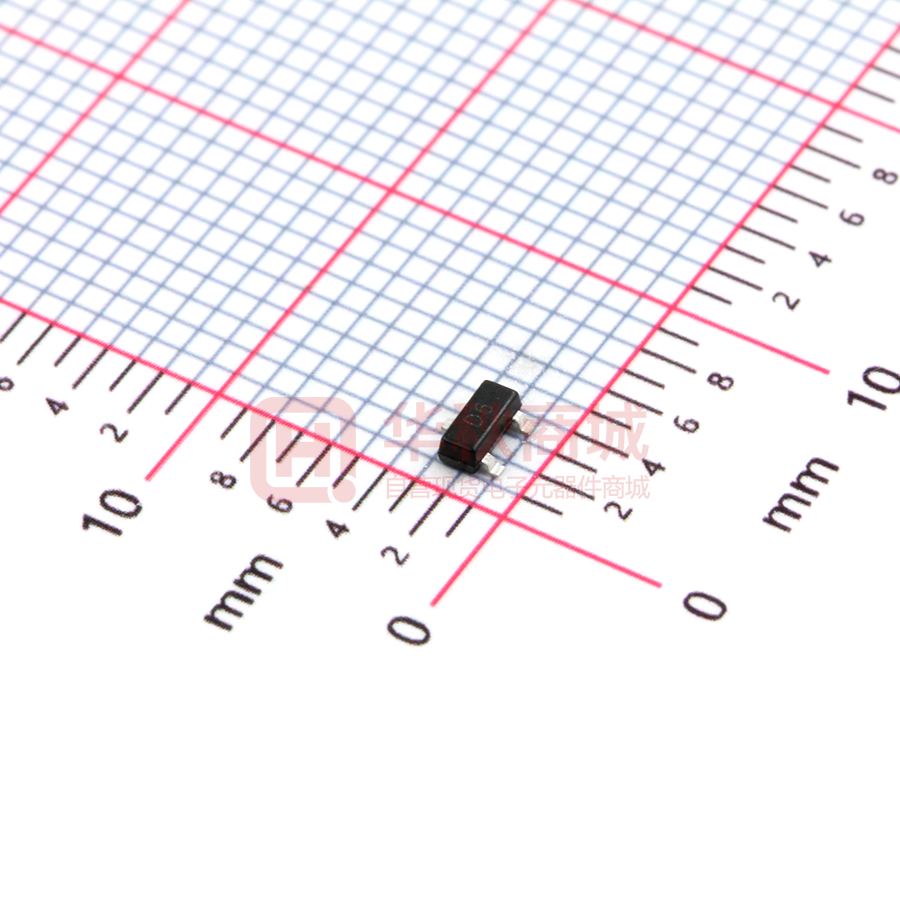

MMBD4148CA

MMBD4148 / SE / CC / CA 1 4148 4148SE 3 3 2 1 4148CC Silicon Epitaxial Planar Switching Diode 4148CA 3 2 1 3 2 1 MMBD4148 Marking Code: 5H MMBD4148SE Marking Code: D4 MMBD4148CC Marking Code: D5 MMBD4148CA Marking Code: D6 SOT-23 Plastic Package 2 Absolute Maximum Ratings (Ta = 25 C) O Parameter Symbol Value Unit VRRM 100 V VR 75 V IF(AV) 200 mA DC Forward Current IFM 600 mA Recurrent Peak Forward Current IFRM 700 mA IFSM A Ptot 1 2 350 Tj 150 O Tstg - 55 to + 150 O Maximum Repetitive Reverse Voltage Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current Total Device Dissipation at t = 1 s at t = 1 μs Operating Junction Temperature Storage Temperature Range mW C C Characteristics at Ta = 25 C O Parameter Forward Voltage at IF = 10 mA Reverse Breakdown Voltage at IR = 100 µA at IR = 5 µA Symbol Min. Max. Unit VF - 1 V V(BR)R 100 75 - V - 25 5 50 nA µA µA Reverse Current at VR = 20 V at VR = 75 V at VR = 20 V, Ta = 150 OC IR Reverse Recovery Time at IF = 10 mA, VR = 6 V, IRR = 1 mA, RL = 100 Ω trr - 4 ns Total Capacitance at VR = 0 V, f = 1 MHz CT - 4 pF Page 1 of 3 6/5/2011 Page 2 of 3 6/5/2011 PACKAGE OUTLINE Plastic surface mounted package; 3 leads Page 3 of 3 SOT-23 6/5/2011
