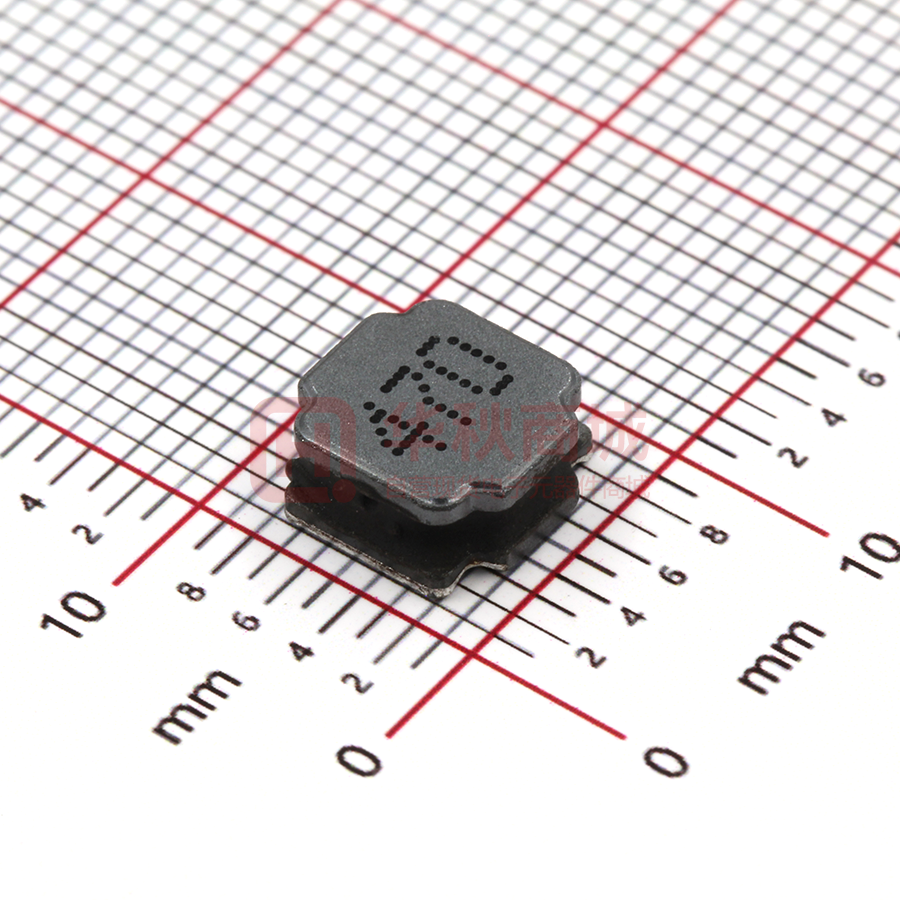

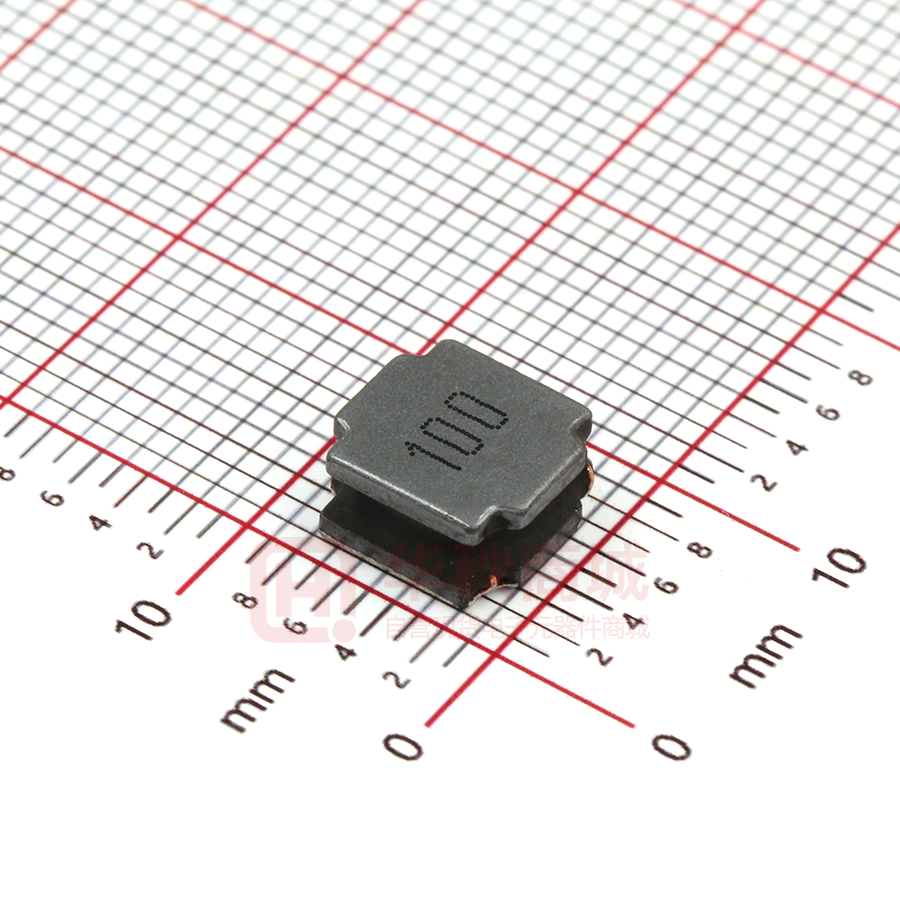

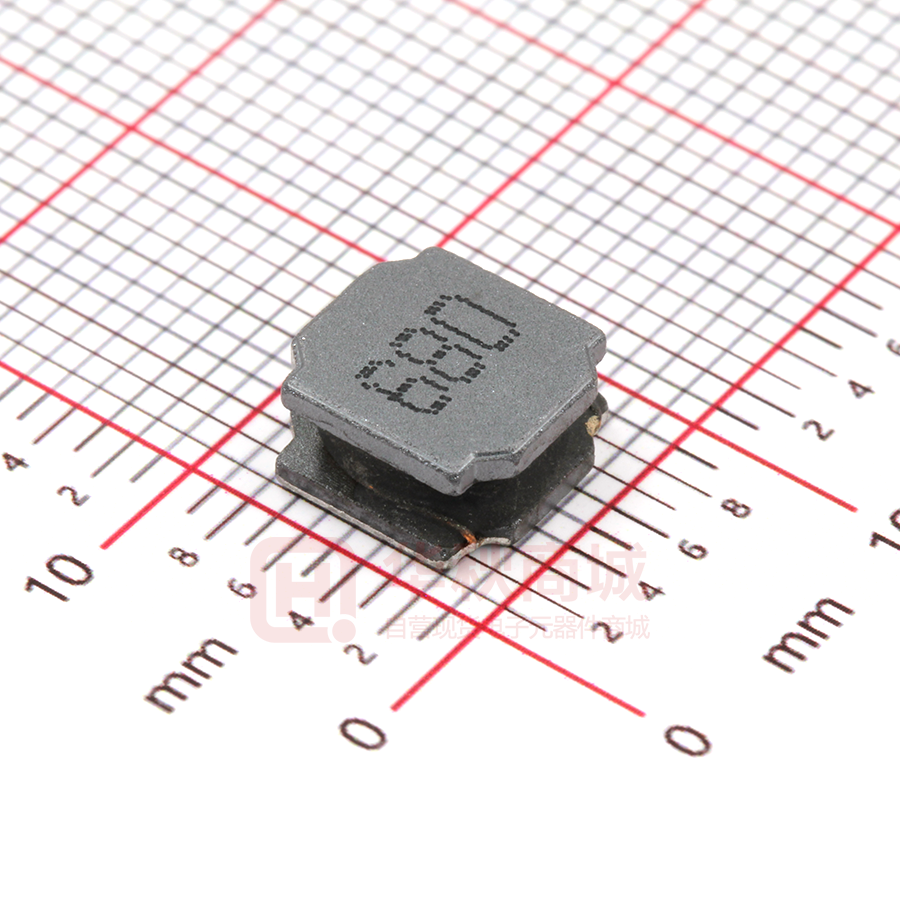

LVS808040-100M-N

Sealed Power Inductors - LVS Series LVS Series LVS series, an automatic assembly constructed power inductor, is shielded with magnetic resin and suitable for the portable DC-DC converter applications. Features Applications  RoHS compliant  LCD TV  Highly accurate dimensions  Monitor  Terminals are highly resistant to external forces  Ap router  Highly reliable in environments of sudden temperature change and  STB and smart phone  Touch panel humidity  Superior EMI characteristics with ultra low radiation comparing to  DSC  Game console and other electronic devices conventional shielded power inductors Product Identification Shape and Dimensions Recommended Pattern Figure 1 Dimensions in mm TYPE FIG A B C Max D H I J LVS201610 1 2.0±0.2 1.6±0.2 1.02 0.6 1.8 0.80 0.8 LVS252010 1 2.5±0.2 2.0±0.2 1.02 0.8 2.0 0.85 0.8 LVS252012 1 2.5±0.2 2.0±0.2 1.20 0.8 2.0 0.85 0.8 Sealed Power Inductors - LVS Series Shape and Dimensions Figure 2 Figure 3 Recommended Pattern Dimensions in mm TYPE FIG A B C D H I J LVS303010 2 3.0±0.2 3.0±0.2 1.02Max. 1.0 3.0 1.0 1.0 LVS303010H 2 3.0±0.2 3.0±0.2 1.02Max. 1.0 3.0 1.0 1.0 LVS303012 2 3.0±0.2 3.0±0.2 1.20Max. 1.0 3.0 1.0 1.0 LVS303012H 2 3.0±0.2 3.0±0.2 1.20Max. 1.0 3.0 1.0 1.0 LVS303015 2 3.0±0.2 3.0±0.2 1.50Max. 1.0 3.0 1.0 1.0 LVS303015H 2 3.0±0.2 3.0±0.2 1.50Max. 1.0 3.0 1.0 1.0 LVS404012 2 4.0±0.2 4.0±0.2 1.20±0.1 1.5 4.2 1.5 1.2 +0.2 -0.30 1.3±0.3 3.7 1.2 1.6 1.4 3.7 1.2 1.6 1.9±0.3 5.7 1.6 2.9 LVS404018 3 4.0±0.2 4.0±0.2 LVS404026 3 4.0±0.2 4.0±0.2 LVS606028 3 6.0±0.2 6.0±0.2 1.8 2.6±0.2 2.8 +0.2 -0.30 Shape and Dimensions Figure 4 Figure 5 Recommended Pattern Dimensions in mm TYPE LVS505020 LVS505040 LVS606020 LVS606045 LVS606045L FIG 4 4 4 5 5 A 5.0±0.2 5.0±0.2 6.0±0.2 6.0±0.2 6.0±0.2 B 5.0±0.2 5.0±0.2 6.0±0.2 6.0±0.2 6.0±0.2 D H I J 2.0 +0.2 -0.30 C 1.8±0.3 4.0 1.5 2.1 4.0 +0.2 -0.30 1.6±0.3 4.0 1.5 2.1 2.0 +0.2 -0.30 1.7±0.3 5.7 1.6 2.9 4.5 +0.2 -0.30 1.8±0.3 5.7 1.6 2.9 4.5 +0.2 -0.30 1.8±0.3 5.7 1.6 2.9 2.3±0.3 7.5 2.1 3.8 2.3±0.3 7.5 2.1 3.8 LVS808040 5 8.0±0.2 8.0±0.2 4.0 +0.2 -0.30 LVS808040L 5 8.0±0.2 8.0±0.2 4.0 +0.2 -0.30 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Part Number (uH) Test Frequency Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) (MHz) Marking LVS201610-1R0□-N 1.0 1 20, 30 0.17 1400(1260) 1600(1440) A LVS201610-1R5□-N 1.5 1 20, 30 0.26 1100(990) 1400(1260) B LVS201610-2R2□-N 2.2 1 20, 30 0.32 1000(900) 1200(1080) C LVS201610-3R3□-N 3.3 1 20, 30 0.51 820(738) 900(810) D LVS201610-4R7□-N 4.7 1 20, 30 0.67 680(612) 800(720) E LVS201610-5R6□-N 5.6 1 20, 30 0.72 650(585) 800(720) F LVS201610-6R8□-N 6.8 1 20, 30 0.97 560(504) 700(630) G LVS201610-100□-N 10 1 20, 30 1.45 470(423) 580(522) H LVS201610-120□-N 12 1 20, 30 1.65 420(378) 420(378) J LVS201610-220□-N 22 1 20, 30 2.90 310(279) 400(360) I  When ordering, please specify tolerance and packaging codes  Tolerance： T =±30% , M = ±20%  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient.  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 100 25 90 220 20 80 220 △ T( ℃ ) L(uH) 70 15 10 100 6R8 5R6 4R 3R 2R 1R 3 5 5 0 0 200 400 600 6R8 5R6 4R7 2R2 1R5 3R3 60 1R0 50 40 30 20 1R0 800 1000 1200 1400 1600 1800 2000 DC Current(m A) 100 10 0 0 300 600 900 1200 DC Current(m A) 1500 1800 2100 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Part Number (uH) Test Frequency Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) (MHz) Marking LVS252010-1R0□-N 1.0 1 20, 30 0.093 2200(1980) 2200(1980) A LVS252010-1R5□-N 1.5 1 20, 30 0.148 1900(1710) 1800(1620) B LVS252010-2R2□-N 2.2 1 20, 30 0.178 1620(1458) 1680(1512) C LVS252010-3R3□-N 3.3 1 20, 30 0.286 1220(1098) 1340(1206) D LVS252010-4R7□-N 4.7 1 20, 30 0.421 1040(936) 1020(918) E LVS252010-5R6□-N 5.6 1 20, 30 0.481 920(828) 940(846) F LVS252010-6R8□-N 6.8 1 20, 30 0.598 900(810) 880(792) G LVS252010-100□-N 10 1 20, 30 0.797 740(666) 820(738) H LVS252010-150□-N 15 1 20, 30 1.450 520(468) 400(360) L LVS252010-220□-N 22 1 20, 30 1.839 500(450) 520(468) I  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  Packaging: Clear tape and reel {standard}  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient.  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 80 25 70 20 60 △ T(℃ ) 220 L(uH) 220 15 10 3R3 1R5 2R2 1R0 50 40 30 100 6R8 5R6 4R7 3R3 2R2 5 6R8 100 5R6 4R7 20 1R5 10 1R0 0 0 0 300 600 900 1200 1500 1800 2100 2400 2700 DC Current(m A) 0 300 600 900 1200 1500 1800 2100 2400 2700 DC Current(m A) Sealed Power Inductors – LVS Series Electrical Characteristics Inductance Part Number (uH) Test Frequency Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) (MHz) Marking LVS252012-1R0□-N 1.0 1 20, 30 0.105 2800(2520) 2200(1980) A LVS252012-1R5□-N 1.5 1 20, 30 0.153 2200(1980) 1860(1674) B LVS252012-2R2□-N 2.2 1 20, 30 0.219 1800(1620) 1700(1530) C LVS252012-3R3□-N 3.3 1 20, 30 0.349 1300(1170) 1200(1080) D LVS252012-4R7□-N 4.7 1 20, 30 0.507 1100(990) 1040(936) E LVS252012-5R6□-N 5.6 1 20, 30 0.525 1100(990) 1000(900) F LVS252012-6R8□-N 6.8 1 20, 30 0.760 940(846) 940(846) G LVS252012-100□-N 10 1 20, 30 0.915 820(738) 840(756) H LVS252012-220□-N 22 1 20, 30 2.110 550(495) 540(486) I  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 25 80 70 220 20 220 15 10 △ T( ℃ ) L(uH) 60 100 6R8 5R6 4R7 3R3 5 5R6 6R8 4R7 3R3 100 2R2 1R5 1R0 50 40 30 20 2R2 1R5 1R0 0 10 0 0 300 600 900 1200 1500 1800 2100 2400 2700 3000 DC Current(m A) 0 300 600 900 1200 1500 DC Current(m A) 1800 2100 2400 Sealed Power Inductors - LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) (MHz) Marking LVS303010-1R0□-N 1.0 1 20, 30 0.063 1300(1170) 2400(2160) 1R0 LVS303010-1R5□-N 1.5 1 20, 30 0.077 1100(990) 2200(1980) 1R5 LVS303010-2R2□-N 2.2 1 20, 30 0.087 960(864) 2000(1800) 2R2 LVS303010-3R3□-N 3.3 1 20, 30 0.127 780(702) 1600(1440) 3R3 LVS303010-4R7□-N 4.7 1 20, 30 0.186 650(585) 1300(1170) 4R7 LVS303010-6R8□-N 6.8 1 20, 30 0.253 560(504) 1000(900) 6R8 LVS303010-100□-N 10 1 20, 30 0.353 430(387) 880(792) 100 LVS303010-220□-N 22 1 20, 30 0.693 310(279) 580(522) 220 LVS303010-470□-N 47 1 20, 30 1.800 210(189) 330(297) 470 LVS303010-221□-N 220 1 20, 30 6.500 82(73.8) 180(162) 221  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Tem perature Change vs. DC Current Inductance vs. DC Current 100 25 90 220 220 70 △ T( ℃ ) L(uH) 100 80 20 15 10 100 3R3 2R2 1R0 1R5 60 50 40 30 6R8 4R7 5 6R8 4R7 20 3R3 2R2 1R5 1R0 0 10 0 0 200 400 600 800 1000 1200 1400 1600 1800 DC Current(m A) 0 400 800 1200 1600 2000 2400 2800 3200 3600 DC Current(m A) Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Part Number (uH) Test Frequency Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) (MHz) Marking LVS303010H-1R0□-N 1.0 1 20, 30 0.060 1800(1620) 2200(1980) 1R0 LVS303010H-1R5□-N 1.5 1 20, 30 0.075 1600(1440) 2100(1890) 1R5 LVS303010H-2R2□-N 2.2 1 20, 30 0.095 1400(1260) 1900(1710) 2R2 LVS303010H-3R3□-N 3.3 1 20, 30 0.140 1000(900) 1300(1170) 3R3 LVS303010H-4R7□-N 4.7 1 20, 30 0.190 850(765) 1200(1080) 4R7 LVS303010H-6R8□-N 6.8 1 20, 30 0.275 720(648) 1000(900) 6R8 LVS303010H-100□-N 10 1 20, 30 0.440 610(549) 860(774) 100 LVS303010H-220□-N 22 1 20, 30 0.800 420(378) 620(558) 220  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 80 25 100 70 20 60 △ T( ℃ ) L(uH) 220 15 10 4R7 2R2 6R8 3R3 1R5 1R0 50 40 30 100 20 6R8 4R7 5 220 3R3 2R2 1R5 1R0 1500 2000 10 0 0 0 500 1000 DC Current(m A) 2500 0 300 600 900 1200 1500 1800 2100 2400 2700 DC Current(m A) Sealed Power Inductors – LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) (MHz) Marking LVS303012-1R0□-N 1.0 1 20, 30 0.048 1600(1440) 2500(2250) 1R0 LVS303012-1R5□-N 1.5 1 20, 30 0.063 1200(1080) 2300(2070) 1R5 LVS303012-2R2□-N 2.2 1 20, 30 0.076 1100(990) 2000(1800) 2R2 LVS303012-3R3□-N 3.3 1 20, 30 0.102 900(810) 1600(1440) 3R3 LVS303012-4R7□-N 4.7 1 20, 30 0.136 750(675) 1500(1350) 4R7 LVS303012-6R8□-N 6.8 1 20, 30 0.182 630(567) 1300(1170) 6R8 LVS303012-100□-N 10 1 20, 30 0.275 520(468) 1000(900) 100 LVS303012-220□-N 22 1 20, 30 0.594 350(315) 650(585) 220  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 25 100 90 20 220 220 70 △ T( ℃ ) L(uH) 100 80 15 10 100 6R8 4R7 3R3 5 6R8 4R7 3R3 2R2 1R5 1R0 60 50 40 30 20 2R2 1R5 1R0 0 10 0 0 200 400 600 800 1000 1200 1400 1600 1800 2000 DC Current(m A) 0 400 800 1200 1600 2000 2400 2800 3200 3600 DC Current(m A) Sealed Power Inductors – LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) (MHz) Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) Marking LVS303012H-1R0□-N 1.0 1 20,30 0.056 1900(1710) 2100(1890) 1R0 LVS303012H-1R5□-N 1.5 1 20,30 0.065 1500(1350) 1850(1665) 1R5 LVS303012H-2R2□-N 2.2 1 20,30 0.080 1400(1260) 1800(1620) 2R2 LVS303012H-3R3□-N 3.3 1 20,30 0.100 1100(990) 1600(1440) 3R3 LVS303012H-4R7□-N 4.7 1 20,30 0.130 990(891) 1400(1260) 4R7 LVS303012H-6R8□-N 6.8 1 20,30 0.190 850(765) 1200(1080) 6R8 LVS303012H-100□-N 10 1 20,30 0.270 720(648) 1000(900) 100 LVS303012H-220□-N 22 1 20,30 0.600 450(405) 630(567) 220  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 90 25 4R7 80 3R3 20 70 △ T( ℃ ) L(uH) 100 60 220 15 10 2R2 6R8 1R0 1R5 50 40 30 100 6R8 5 220 4R7 20 3R3 2R2 1R5 10 1R0 0 0 0 500 1000 1500 2000 DC Current(m A) 2500 3000 0 500 1000 1500 2000 DC Current(m A) 2500 3000 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Part Number (uH) Test Frequency Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) (MHz) Marking LVS303015-1R0□-N 1.0 1 20, 30 0.056 2000(1800) 2800(2520) 1R0 LVS303015-1R5□-N 1.5 1 20, 30 0.074 1600(1440) 2400(2160) 1R5 LVS303015-2R2□-N 2.2 1 20, 30 0.079 1200(1080) 2300(2070) 2R2 LVS303015-3R3□-N 3.3 1 20, 30 0.105 1000(900) 1900(1710) 3R3 LVS303015-4R7□-N 4.7 1 20, 30 0.130 900(810) 1600(1440) 4R7 LVS303015-6R8□-N 6.8 1 20, 30 0.165 730(657) 1300(1170) 6R8 LVS303015-100□-N 10 1 20, 30 0.206 600(540) 1000(900) 100 LVS303015-220□-N 22 1 20, 30 0.501 420(378) 650(585) 220 LVS303015-330□-N 33 1 20, 30 0.600 330(297) 600(540) 330 LVS303015-820□-N 82 1 20, 30 1.600 210(189) 350(315) 820 LVS303015-101□-N 100 1 20, 30 1.800 200(180) 300(270) 101  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 35 100 90 30 80 330 20 220 15 100 220 6R8 70 △ T( ℃ ) L(uH) 25 60 4R7 330 50 3R3 40 2R2 1R5 1R0 30 10 100 20 6R8 5 4R7 3R3 2R2 10 1R5 1R0 0 0 0 300 600 900 1200 1500 DC Current(m A) 1800 2100 2400 0 500 1000 1500 2000 DC Current(m A) 2500 3000 3500 Sealed Power Inductors - LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (mA) Irms (mA) (±%) (Ω) ±30% Typ. (Max) Typ. (Max) (MHz) Marking LVS303015H-1R0□-N 1.0 1 20, 30 0.053 2000(1800) 2100(1890) 1R0 LVS303015H-1R5□-N 1.5 1 20, 30 0.070 1600(1440) 1900(1710) 1R5 LVS303015H-2R2□-N 2.2 1 20, 30 0.075 1500(1350) 1800(1620) 2R2 LVS303015H-3R3□-N 3.3 1 20, 30 0.095 1100(990) 1600(1440) 3R3 LVS303015H-4R7□-N 4.7 1 20, 30 0.117 990(891) 1400(1260) 4R7 LVS303015H-6R8□-N 6.8 1 20, 30 0.160 900(810) 1200(1080) 6R8 LVS303015H-8R2□-N 8.2 1 20, 30 0.200 800(720) 1100(990) 8R2 LVS303015H-100□-N 10 1 20, 30 0.220 720(648) 1000(900) 100 LVS303015H-150□-N 15 1 20, 30 0.290 680(612) 850(765) 150 LVS303015H-220□-N 22 1 20, 30 0.530 480(432) 620(558) 220 LVS303015H-330□-N 33 1 20, 30 0.670 460(414) 500(450) 330 LVS303015H-470□-N 47 1 20, 30 0.960 380(342) 400(360) 470  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 1MHz 200mV  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 80 50 45 70 40 470 △ T( ℃ ) L(uH) 35 30 330 25 20 220 15 150 100 10 5 220 470 330 150 60 50 6R8 100 4R7 3R3 2R2 1R5 1R0 8R2 40 30 20 8R2 6R8 4R7 3R3 2R2 1R5 1500 2000 1R0 0 10 0 0 500 1000 DC Current(m A) 2500 0 500 1000 1500 2000 DC Current(m A) 2500 3000 Sealed Power Inductors – LVS Series Electrical Characteristics Inductance Part Number (uH) Test Frequency Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±30% Typ. (Max) Typ. (Max) (KHz) Marking LVS404012-1R0□-N 1.0 100 30 48 2.50(2.25) 1.70(1.53) 1R0 LVS404012-1R5□-N 1.5 100 30 58 2.10(1.89) 1.60(1.44) 1R5 LVS404012-2R2□-N 2.2 100 20, 30 65 1.70(1.53) 1.50(1.35) 2R2 LVS404012-3R3□-N 3.3 100 20, 30 90 1.30(1.17) 1.40(1.26) 3R3 LVS404012-4R7□-N 4.7 100 20, 30 110 1.10(0.99) 1.20(1.08) 4R7 LVS404012-6R8□-N 6.8 100 20, 30 135 0.90(0.81) 1.05(0.94) 6R8 LVS404012-100□-N 10 100 20, 30 190 0.78(0.70) 0.90(0.81) 100 LVS404012-150□-N 15 100 20, 30 250 0.65(0.58) 0.85(0.76) 150 LVS404012-220□-N 22 100 20, 30 400 0.52(0.46) 0.75(0.67) 220 LVS404012-330□-N 33 100 20, 30 600 0.44(0.39) 0.70(0.63) 330 LVS404012-470□-N 47 100 20, 30 930 0.35(0.31) 0.50(0.45) 470  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A, 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 70 50 45 60 40 150 50 △ T( ℃ ) 35 L(uH) 470 470 30 330 25 20 220 15 150 100 6R8 4R7 10 5 220 100 6R8 2R2 4R7 3R3 1R0 1R5 40 30 20 10 3R3 2R2 1R5 1R0 0 0 0 1 2 DC Current(A) 3 4 0 1 DC Current(A) 2 Sealed Power Inductors - LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±20% Typ. (Max) Typ. (Max) (KHz) Marking LVS404018-1R0□-N 1.0 100 20, 30 32 4.10(3.69) 2.80(2.52) 1R0 LVS404018-1R5□-N 1.5 100 20, 30 40 3.30(2.97) 2.60(2.34) 1R5 LVS404018-2R2□-N 2.2 100 20, 30 60 2.80(2.52) 2.50(2.25) 2R2 LVS404018-2R3□-N 2.3 100 20, 30 60 2.80(2.52) 2.50(2.25) 2R3 LVS404018-3R3□-N 3.3 100 20, 30 70 2.20(1.98) 2.10(1.89) 3R3 LVS404018-3R6□-N 3.6 100 20, 30 75 2.10(1.89) 1.90(1.71) 3R6 LVS404018-3R9□-N 3.9 100 20, 30 75 2.10(1.89) 1.90(1.71) 3R9 LVS404018-4R7□-N 4.7 100 20, 30 90 2.00(1.80) 1.70(1.53) 4R7 LVS404018-6R8□-N 6.8 100 20, 30 110 1.60(1.44) 1.50(1.35) 6R8 LVS404018-100□-N 10 100 20, 30 170 1.40(1.26) 1.20(1.08) 100 LVS404018-150□-N 15 100 20, 30 250 1.00(0.90) 1.00(0.90) 150 LVS404018-220□-N 22 100 20, 30 350 0.90(0.81) 0.85(0.76) 220 LVS404018-330□-N 33 100 20, 30 530 0.80(0.72) 0.70(0.63) 330 LVS404018-470□-N 47 100 20, 30 720 0.70(0.63) 0.56(0.50) 470 LVS404018-680□-N 68 100 20, 30 1000 0.56(0.50) 0.45(0.40) 680 LVS404018-101□-N 100 100 20, 30 1500 0.46(0.41) 0.38(0.34) 101 LVS404018-151□-N 150 100 20, 30 2500 0.35(0.31) 0.30(0.27) 151 LVS404018-221□-N 220 100 20, 30 4000 0.28(0.25) 0.23(0.20) 221  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A, 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 30 70 25 60 220 △ T( ℃ ) L(uH) 15 150 10 100 6R8 4R7 1R0 3R3 2R2 50 220 20 150 100 40 30 20 6R8 4R7 5 3R3 10 2R2 1R0 0 0 0 1 2 3 DC Current(A) 4 5 0 1 2 DC Current(A) 3 4 Sealed Power Inductors – LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±30% Typ. (Max) Typ. (Max) (KHz) Marking LVS404026-1R2□-N 1.2 100 20, 30 30 3.50(3.15) 3.30(2.97) 1R2 LVS404026-3R3□-N 3.3 100 20, 30 45 2.50(2.25) 2.50(2.25) 3R3 LVS404026-4R7□-N 4.7 100 20, 30 60 1.80(1.62) 1.80(1.62) 4R7 LVS404026-220□-N 22 100 20, 30 230 0.86(0.77) 1.00(0.90) 220  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A , 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 25 70 60 20 15 10 4R7 3R3 1R2 40 30 20 4R7 5 220 50 △ T( ℃ ) L(uH) 220 3R3 10 1R2 0 0 0 1 2 3 DC Current(A) 4 5 0 1 2 3 DC Current(A) 4 5 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Part Number (uH) Test Frequency Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±20% Typ. (Max) Typ. (Max) (KHz) Marking LVS505020-1R0□-N 1.0 100 30 21 5.1(4.59) 4.0(3.60) 1R0 LVS505020-1R2□-N 1.2 100 30 21 4.8(4.32) 3.8(3.42) 1R2 LVS505020-1R5□-N 1.5 100 30 26 4.2(3.78) 3.5(3.15) 1R5 LVS505020-2R2□-N 2.2 100 20, 30 35 3.4(3.06) 3.2(2.88) 2R2 LVS505020-3R3□-N 3.3 100 20, 30 48 3.0(2.70) 2.8(2.52) 3R3 LVS505020-4R7□-N 4.7 100 20, 30 60 2.2(1.98) 2.2(1.98) 4R7 LVS505020-5R6□-N 5.6 100 20, 30 82 2.05(1.84) 2.0(1.80) 5R6 LVS505020-6R8□-N 6.8 100 20, 30 90 2.0(1.80) 1.8(1.62) 6R8 LVS505020-100□-N 10 100 20, 30 120 1.6(1.44) 1.6(1.44) 100 LVS505020-150□-N 15 100 20, 30 190 1.3(1.17) 1.2(1.08) 150 LVS505020-220□-N 22 100 20, 30 260 1.0(0.90) 1.0(0.90) 220 LVS505020-330□-N 33 100 20, 30 460 0.8(0.72) 0.75(0.67) 330 LVS505020-470□-N 47 100 20, 30 580 0.65(0.58) 0.65(0.60) 470  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A, 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 60 55 470 50 470 150 330 100 220 6R8 4R7 3R3 2R2 1R5 1R0 40 35 30 △ T( ℃ ) L(uH) 50 45 40 330 25 20 20 220 15 10 5 30 150 100 6R8 4R7 3R3 10 2R2 1R5 1R0 0 0 0 2 4 DC Current(A) 6 0 1 2 3 DC Current(A) 4 5 Sealed Power Inductors - LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±30% Typ. (Max) Typ. (Max) (KHz) Marking LVS505040-1R0□-N 1.0 100 30 14 7.5(6.75) 4.6(4.14) 1R0 LVS505040-1R2□-N 1.2 100 30 15 7.4(6.66) 4.5(4.05) 1R2 LVS505040-1R5□-N 1.5 100 30 16 7.1(6.39) 4.4(3.96) 1R5 LVS505040-2R2□-N 2.2 100 20, 30 21 5.7(5.13) 3.7(3.33) 2R2 LVS505040-3R3□-N 3.3 100 20, 30 26 4.8(4.32) 3.5(3.15) 3R3 LVS505040-4R7□-N 4.7 100 20, 30 32 4.2(3.78) 3.2(2.88) 4R7 LVS505040-6R8□-N 6.8 100 20, 30 50 3.3(2.97) 2.4(2.16) 6R8 LVS505040-100□-N 10 100 20, 30 60 2.8(2.52) 2.2(1.98) 100 LVS505040-150□-N 15 100 20, 30 90 2.3(2.07) 1.8(1.62) 150 LVS505040-220□-N 22 100 20, 30 135 1.8(1.62) 1.4(1.26) 220 LVS505040-270□-N 27 100 20, 30 180 1.6(1.44) 1.2(1.08) 270 LVS505040-330□-N 33 100 20, 30 190 1.5(1.35) 1.1(0.99) 330 LVS505040-470□-N 47 100 20, 30 310 1.2(1.08) 0.9(0.81) 470  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A, 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Tem perature Change vs. DC Current Inductance vs. DC Current 50 70 45 60 470 40 △ T( ℃ ) 30 330 25 270 20 220 15 150 100 6R8 10 5 220 150 100 6R8 4R7 3R3 2R2 1R5 330 270 50 35 L (uH) 470 1R0 40 30 20 4R73R3 10 2R2 1R5 1R0 0 0 0 1 2 3 4 5 6 DC Current(A) 7 8 9 10 0 1 2 3 DC Current(A) 4 5 6 Sealed Power Inductors - LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±30% Typ. (Max) Typ. (Max) (KHz) Marking LVS606020-R50□-N 0.5 100 30 13 8.0(7.20) 5.3(4.77) R50 LVS606020-R90□-N 0.9 100 30 18 6.3(5.67) 4.2(3.78) R90 LVS606020-1R0□-N 1.0 100 30 19 6.2(5.58) 4.1(3.69) 1R0 LVS606020-1R5□-N 1.5 100 20, 30 26 5.0(4.50) 3.6(3.24) 1R5 LVS606020-2R2□-N 2.2 100 20, 30 34 4.2(3.78) 3.2(2.88) 2R2 LVS606020-3R3□-N 3.3 100 20, 30 40 3.2(2.88) 2.7(2.43) 3R3 LVS606020-4R7□-N 4.7 100 20, 30 58 2.5(2.25) 2.2(1.98) 4R7 LVS606020-6R8□-N 6.8 100 20, 30 85 2.2(1.98) 1.8(1.62) 6R8 LVS606020-100□-N 10 100 20, 30 125 2.0(1.80) 1.6(1.44) 100 LVS606020-150□-N 15 100 20, 30 190 1.3(1.17) 1.3(1.17) 150 LVS606020-220□-N 22 100 20, 30 260 1.1(0.99) 1.1(0.99) 220  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A, 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 70 25 4R7 60 220 150 15 150 10 100 1R5 R90 40 30 20 6R8 4R7 5 2R2 3R3 100 220 50 △ T( ℃ ) L(uH) 20 6R8 3R3 10 2R2 1R5 R90 0 0 0 2 4 DC Current(A) 6 8 0 1 2 3 DC Current(A) 4 5 6 Sealed Power Inductors - LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±30% Typ. (Max) Typ. (Max) (KHz) Marking LVS606028-1R0□-N 1.0 100 30 13 7.6(6.84) 5.2(4.68) 1R0 LVS606028-1R5□-N 1.5 100 30 16 6.3(5.67) 4.8(4.32) 1R5 LVS606028-2R2□-N 2.2 100 20, 30 20 5.4(4.86) 4.0(3.60) 2R2 LVS606028-2R7□-N 2.7 100 20, 30 26 4.9(4.41) 3.7(3.33) 2R7 LVS606028-3R3□-N 3.3 100 20, 30 28 4.3(3.87) 3.5(3.15) 3R3 LVS606028-4R7□-N 4.7 100 20, 30 38 3.7(3.33) 3.2(2.88) 4R7 LVS606028-6R0□-N 6.0 100 20, 30 45 3.3(2.97) 2.8(2.52) 6R0 LVS606028-6R8□-N 6.8 100 20, 30 50 3.1(2.79) 2.7(2.43) 6R8 LVS606028-100□-N 10 100 20, 30 65 2.5(2.25) 2.3(2.07) 100 LVS606028-150□-N 15 100 20, 30 95 2.0(1.80) 1.8(1.62) 150 LVS606028-220□-N 22 100 20, 30 135 1.6(1.44) 1.5(1.35) 220 LVS606028-330□-N 33 100 20, 30 220 1.3(1.17) 1.4(1.26) 330 LVS606028-470□-N 47 100 20, 30 320 1.1(0.99) 1.0(0.90) 470 LVS606028-680□-N 68 100 20, 30 420 0.98(0.88) 0.9(0.81) 680 LVS606028-101□-N 100 100 20, 30 600 0.82(0.73) 0.8(0.72) 101  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A, 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 70 25 220 150 6R0 4R7 3R3 20 △ T( ℃ ) L(uH) 1R0 1R5 50 220 15 150 10 100 6R0 4R7 3R3 2R0 5 2R2 100 60 40 30 20 10 1R5 1R0 0 0 0 2 4 6 DC Current(A) 8 10 0 1 2 3 4 DC Current(A) 5 6 7 Sealed Power Inductors - LVS Series Electrical Characteristics Part Number Inductance (uH) Test Frequency Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±30% Typ. (Max) Typ. (Max) (KHz) Marking LVS606045-1R0□-N 1.0 100 20, 30 12 12.2(10.98) 6.5(5.85) 1R0 LVS606045-1R5□-N 1.5 100 30 15 10.4(9.36) 5.9(5.31) 1R5 LVS606045-1R8□-N 1.8 100 20, 30 17 9.6(8.64) 5.6(5.04) 1R8 LVS606045-2R2□-N 2.2 100 20, 30 18.4 8.8(7.92) 5.1(4.59) 2R2 LVS606045-2R3□-N 2.3 100 20, 30 19 8.8(7.92) 5.0(4.50) 2R3 LVS606045-3R0□-N 3.0 100 20, 30 22 7.8(7.02) 4.4(3.96) 3R0 LVS606045-3R3□-N 3.3 100 20, 30 24 7.5(6.75) 4.3(3.87) 3R3 LVS606045-3R6□-N 3.6 100 20, 30 24 7.5(6.75) 4.3(3.87) 3R6 LVS606045-3R9□-N 3.9 100 20, 30 26 7.0(6.30) 4.0(3.60) 3R9 LVS606045-4R5□-N 4.5 100 20, 30 31 6.7(6.03) 3.9(3.51) 4R5 LVS606045-4R7□-N 4.7 100 20, 30 31 6.7(6.03) 3.9(3.51) 4R7 LVS606045-5R1□-N 5.1 100 20, 30 33 6.0(5.40) 3.5(3.15) 5R1 LVS606045-6R3□-N 6.3 100 20, 30 40 5.5(4.95) 3.3(2.97) 6R3 LVS606045-6R8□-N 6.8 100 20, 30 43 5.3(4.77) 3.2(2.88) 6R8 LVS606045-100□-N 10 100 20, 30 57 4.5(4.05) 2.7(2.43) 100 LVS606045-150□-N 15 100 20, 30 80 3.4(3.06) 2.2(1.98) 150 LVS606045-180□-N 18 100 20, 30 100 3.1(2.79) 1.8(1.62) 180 LVS606045-220□-N 22 100 20, 30 125 3.0(2.70) 1.9(1.71) 220 LVS606045-270□-N 27 100 20, 30 160 2.5(2.25) 1.3(1.17) 270 LVS606045-330□-N 33 100 20, 30 165 2.3(2.07) 1.4(1.26) 330 LVS606045-470□-N 47 100 20, 30 245 1.9(1.71) 1.2(1.08) 470 LVS606045-680□-N 68 100 20, 30 330 1.6(1.44) 1.0(0.90) 680 LVS606045-101□-N 100 100 20, 30 500 1.3(1.17) 0.8(0.72) 101 LVS606045-331□-N 330 100 20, 30 1800 0.7(0.63) 0.35(0.31) 331 LVS606045-102□-N 1000 100 20, 30 6000 0.4(0.36) 0.22(0.19) 102  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A, 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Sealed Power Inductors - LVS Series Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Curent 100 80 90 70 80 60 70 680 60 △ T( ℃ ) L(uH) 680 100 101 470 330 150 6R8 4R5 2R3 220 3R0 1R8 101 50 470 40 330 30 220 150 100 20 10 1R0 50 40 . 30 20 6R8 1R8 6 8 1R0 0 10 0 0 1 2 3 4 5 7 9 10 11 12 13 14 15 DC Current (A) 0 1 2 3 4 5 DC Current (A) 6 7 8 Sealed Power Inductors - LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) Max Typ. (Max) Typ. (Max) (KHz) Marking LVS606045L-R50□-N 0.5 100 30 9 11(9.90) 8.0(7.20) R50 LVS606045L-2R2□-N 2.2 100 20, 30 17 6.8(6.12) 5.5(4.95) 2R2 LVS606045L-3R3□-N 3.3 100 20, 30 24 5.5(4.95) 4.7(4.23) 3R3 LVS606045L-4R7□-N 4.7 100 20, 30 30 4.6(4.14) 4.0(3.60) 4R7 LVS606045L-6R8□-N 6.8 100 20, 30 40 4.0(3.60) 3.5(3.15) 6R8 LVS606045L-100□-N 10 100 20, 30 50 3.2(2.88) 3.2(2.88) 100 LVS606045L-150□-N 15 100 20, 30 80 2.6(2.34) 2.5(2.25) 150 LVS606045L-220□-N 22 100 20, 30 120 2.1(1.89) 2.0(1.80) 220 LVS606045L-330□-N 33 100 20, 30 170 1.7(1.53) 1.6(1.44) 330 LVS606045L-101□-N 100 100 20, 30 595 0.95(0.85) 0.92(0.82) 101  When ordering, please specify tolerance and packaging codes  Tolerance : M = ±20% , T = ±30%  L : Agilent/HP 4284A + Agilent/HP 16334A, 100KHz with 1V  Isat & Irms : Agilent/HP 4284A, 100KHz with 1V  Rdc : Digital Milliohm Meter Chroma 16502, or equivalent  Isat for Inductance drop 30% from its value without current  Irms for a 40°C rise above 25°C ambient  Operating temperature range from -40°C to 125°C. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current 70 35 60 330 220 150 330 30 100 6R8 4R7 50 25 △ T( ℃ ) L(uH) Tem perature Change vs. DC Current 40 220 20 15 150 100 10 3R3 2R2 40 30 20 6R8 5 10 4R7 3R3 2R2 0 0 0 2 4 6 DC Current(A) 8 10 0 1 2 3 4 5 DC Current(A) 6 7 8 Sealed Power Inductors - LVS Series Electrical Characteristics Part Number Inductance (uH) Test Frequency Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) ±30% Typ. (Max) Typ. (Max) (KHz) Marking LVS808040-R90□-N 0.9 100 30 7 13.8(12.42) 8.05(7.24) R90 LVS808040-1R0□-N 1.0 100 30 7.5 13.0(11.70) 7.95(7.15) 1R0 LVS808040-1R4□-N 1.4 100 30 9 10.8(9.72) 7.8(7.02) 1R4 LVS808040-1R5□-N 1.5 100 30 9.5 10.08(9.07) 7.7(6.93) 1R5 LVS808040-2R0□-N 2.0 100 20, 30 11 9.6(8.64) 7.4(6.66) 2R0 LVS808040-2R2□-N 2.2 100 20, 30 11.5 9.2(8.28) 7.2(6.48) 2R2 LVS808040-2R5□-N 2.5 100 20, 30 13 8.2(7.38) 6.3(5.67) 2R5 LVS808040-3R3□-N 3.3 100 20, 30 15 7.5(6.75) 6.0(5.40) 3R3 LVS808040-4R7□-N 4.7 100 20, 30 18 6.0(5.40) 5.5(4.95) 4R7 LVS808040-5R6□-N 5.6 100 20, 30 23 5.7(5.13) 5.2(4.68) 5R6 LVS808040-6R8□-N 6.8 100 20, 30 25 5.4(4.86) 5.1(4.59) 6R8 LVS808040-100□-N 10 100 20, 30 38 4.3(3.87) 3.8(3.42) 100 LVS808040-120□-N 12 100 20, 30 45 3.8(3.42) 3.5(3.15) 120 LVS808040-150□-N 15 100 20, 30 50 3.6(3.24) 3.2(2.88) 150 LVS808040-180□-N 18 100 20, 30 68 3.1(2.79) 2.7(2.43) 180 LVS808040-220□-N 22 100 20, 30 80 2.8(2.52) 2.6(2.34) 220 LVS808040-330□-N 33 100 20, 30 110 2.3(2.07) 2.0(1.80) 330 LVS808040-470□-N 47 100 20, 30 160 1.9(1.71) 1.75(1.57) 470 LVS808040-680□-N 68 100 20, 30 240 1.7(1.53) 1.45(1.30) 680 LVS808040-101□-N 100 100 20, 30 340 1.4(1.26) 1.10(0.99) 101 LVS808040-121□-N 120 100 20, 30 425 1.1(0.99) 1.0(0.90) 121 LVS808040-151□-N 150 100 20, 30 480 1.0(0.90) 0.9(0.81) 151 LVS808040-221□-N 220 100 20, 30 670 0.94(0.84) 0.60(0.54) 221 LVS808040-271□-N 270 100 20, 30 900 0.83(0.74) 0.55(0.49) 271 LVS808040-821□-N 820 100 20, 30 2800 0.40(0.36) 0.38(0.34) 821  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4284A+ Agilent/HP16334A, 100KHz, 1V  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 100KHz, 1V  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Sealed Power Inductors - LVS Series Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current 80 35 70 470 680 330 101 60 30 330 △ T( ℃ ) L(uH) Tem perature Change vs. DC Current 40 25 20 220 15 100 5 150 100 6R8 4R7 3R3 2R0 1R4 R90 50 40 30 150 10 220 20 6R8 4R7 3R3 2R0 1R4 10 R90 0 0 0 5 10 DC Current(A) 15 20 0 2 4 6 DC Current(A) 8 10 Sealed Power Inductors - LVS Series Electrical Characteristics Test Inductance Part Number Frequency (uH) Tolerance RDC Isat (A) Irms (A) (±%) (mΩ) Max Typ. (Max) Typ. (Max) (KHz) Marking LVS808040L-1R0□-N 1.0 100 30 10 9.5(8.55) 8.5(7.65) 1R0 LVS808040L-2R2□-N 2.2 100 20,30 12 7.2(6.48) 7.3(6.57) 2R2 LVS808040L-3R3□-N 3.3 100 20,30 19 5.6(5.04) 6.0(5.40) 3R3 LVS808040L-4R7□-N 4.7 100 20,30 22 4.4(3.96) 5.0(4.50) 4R7 LVS808040L-8R2□-N 8.2 100 20,30 37 3.6(3.24) 3.8(3.42) 8R2 LVS808040L-100□-N 10 100 20,30 42 3.1(2.79) 3.5(3.15) 100 LVS808040L-150□-N 15 100 20,30 58 2.5(2.25) 3.0(2.70) 150 LVS808040L-220□-N 22 100 20,30 85 2.0(1.80) 2.5(2.25) 220  When ordering, please specify tolerance and packaging codes  Tolerance： T = ±30% , M = ±20%  L : Agilent/HP4284A+ Agilent/HP16334A, 100KHz, 1V  RDC : Digital Milliohm Meter Chroma 16502, or equivalent  Isat & Irms : Agilent/HP4284A, 100KHz, 1V  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ rise above 25℃ ambient  Operating temperature range from -40℃ to 125℃. (Including self - temperature rise) Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current 70 25 60 △ T( ℃ ) 15 150 10 4R7 220 50 220 20 L(uH) Tem perature Change vs. DC Current 30 100 150 2R2 100 8R2 40 30 20 8R2 4R7 5 10 2R2 0 0 0 2 4 6 DC Current(A) 8 10 0 1 2 3 4 5 DC Current(A) 6 7 8 9 Sealed Power Inductors - LVS Series Packaging Specifications Tape Dimensions Tape Dimensions Figure 1 Figure 2 Reel Dimensions Reel Dimensions Figure 1 Figure 2 Dimensions in mm TYPE Tape Dimensions Fig Reel Dimensions Quantity A0 B0 K0 D E F W P P0 P2 A B C D E PCS / Reel LVS201610 1 1.80 2.20 1.15 1.55 1.75 3.5 8.1 4 4 2 180 60 13 14.4 8.4 2000 LVS252010 1 2.30 2.70 1.15 1.55 1.75 3.5 8.1 4 4 2 180 60 13 14.4 8.4 2000 LVS252012 1 2.30 2.70 1.30 1.55 1.75 3.5 8.1 4 4 2 180 60 13 14.4 8.4 2000 LVS303010 1 3.20 3.20 1.40 1.55 1.75 3.5 8.0 4 4 2 180 60 13 14.4 8.4 2000 LVS303012 1 3.20 3.20 1.40 1.55 1.75 3.5 8.0 4 4 2 180 60 13 14.4 8.4 2000 LVS303015 1 3.15 3.15 1.60 1.55 1.75 3.5 8.0 4 4 2 180 60 13 14.4 8.4 2000 LVS404012 2 4.25 4.25 1.30 1.55 1.75 5.5 12 8 4 2 180 60 13 13.2 - 1000 LVS404018 2 4.25 4.25 2.10 1.55 1.75 5.5 12 8 4 2 180 60 13 13.2 - 800 LVS404026 2 4.25 4.25 3.00 1.55 1.75 5.5 12 8 4 2 180 60 13 13.2 - 500 LVS505020 2 5.25 5.25 2.20 1.55 1.75 5.5 12 8 4 2 330 100 13 13.4 - 2000 LVS505040 2 5.20 5.20 4.20 1.55 1.75 5.5 12 8 4 2 330 100 13 13.4 - 1500 LVS606020 2 6.25 6.25 2.20 1.55 1.75 7.5 16 12 4 2 330 100 13 17.4 - 2000 LVS606028 2 6.25 6.25 3.00 1.55 1.75 7.5 16 12 4 2 330 100 13 17.4 - 1500 LVS606045 2 6.25 6.25 4.65 1.55 1.75 7.5 16 12 4 2 330 100 13 17.4 - 1000 LVS808040 2 8.25 8.25 4.15 1.55 1.75 7.5 16 12 4 2 330 100 13 17.4 - 1000
