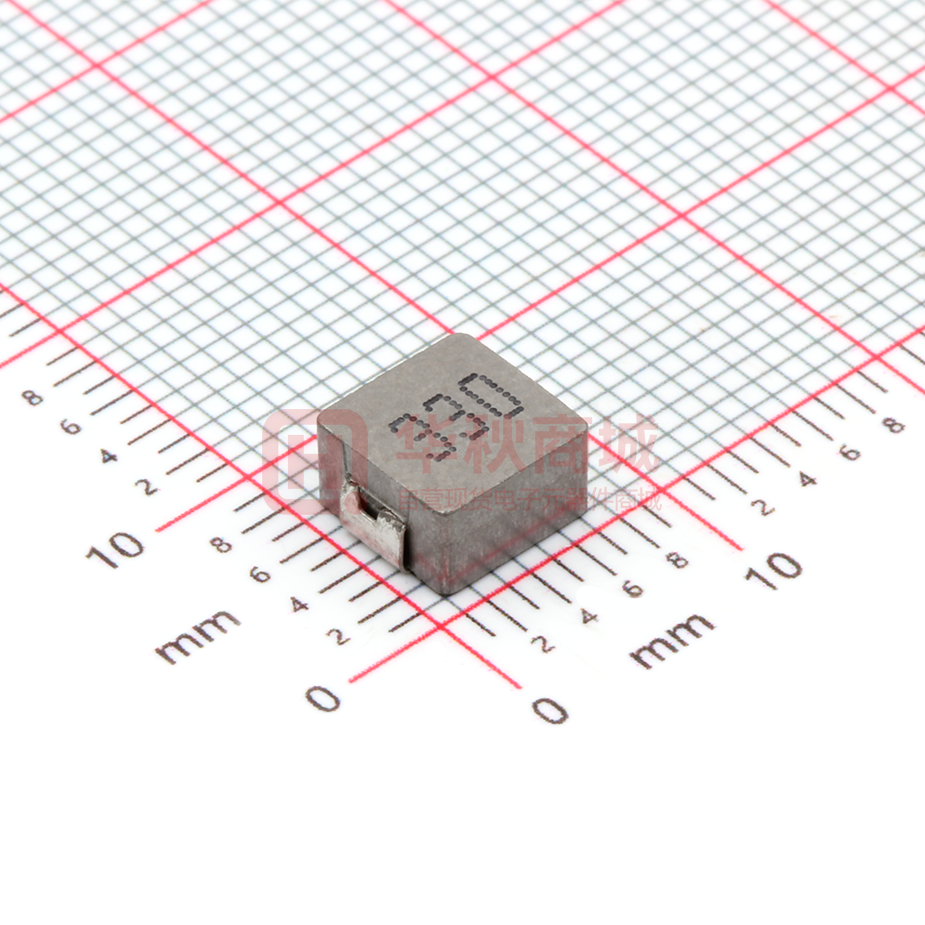

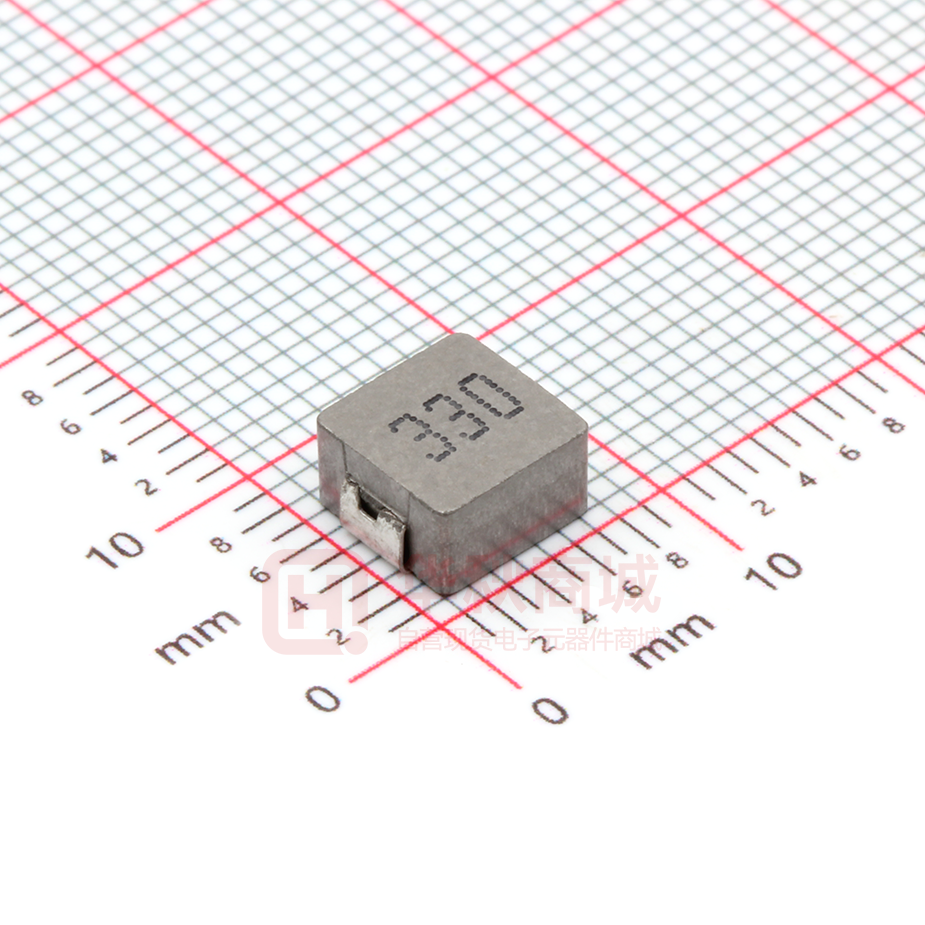

YSPI0740-330M

SMD Power Inductors -YSPI0740 Series ■ Features ● Molding Inductor. ● Low Profile,Low Temp. ● Large Current(Over 15A). ● Customize For Different Need. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● General Electronic. ● Video Device,TV,TFT. ● Power Module for PC. ● NB/Lap Top Computer. ● Server,VGA Card/Module. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance：N=±30%,M=±20%，K=±10% 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YSPI0740 Series ■ Shapes and Dimensions (Unit：mm) TYPE A B C Max. D E Ref. F Ref. G Ref. H Ref. YSPI0740 7.3±0.5 6.6±0.5 4.0 1.5±0.5 3.0±0.3 3.4 7.3 3.7 ■ YSPI0740 Series DC Resistance (mΩ) Heat Rating Saturation (uH) @100KHz Typ. Max. Current (A) Current (A) YSPI0740-1R0□ 1.0 6.6 8.0 12.5 18.0 YSPI0740-2R2□ 2.2 11.0 18.0 9.0 12.0 YSPI0740-3R3□ 3.3 20.0 25.0 7.0 10.0 YSPI0740-4R7□ 4.7 30.0 35.0 6.0 8.0 YSPI0740-5R6□ 5.6 36.5 38.0 5.7 7.0 YSPI0740-6R8□ 6.8 40.6 50.0 5.0 7.0 YSPI0740-100□ 10.0 51.5 62.0 4.5 5.0 YSPI0740-150□ 15.0 86.3 95.0 3.7 4.5 YSPI0740-220□ 22.0 107 125 3.0 4.0 YSPI0740-330□ 33.0 199 220 2.5 3.2 YSPI0740-390□ 39.0 244 280 2.2 2.8 YSPI0740-470□ 47.0 256 298 2.1 2.5 Part Number Inductance ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YSPI0740 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YSPI0740 16±0.3 7.1±0.1 7.30±0.1 6.75 7.5±0.1 4.2±0.1 12±0.1 4.2 0.40±0.05 1000 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YSPI0740 330±2.0 16.4±2.00 22.4MAX 15.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YSPI0740 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4-
