SMD Power Inductors
-YSPI0740 Series
■ Features
● Molding Inductor.
● Low Profile,Low Temp.
● Large Current(Over 15A).
● Customize For Different Need.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● General Electronic.
● Video Device,TV,TFT.
● Power Module for PC.
● NB/Lap Top Computer.
● Server,VGA Card/Module.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance:N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YSPI0740 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C Max.
D
E Ref.
F Ref.
G Ref.
H Ref.
YSPI0740
7.3±0.5
6.6±0.5
4.0
1.5±0.5
3.0±0.3
3.4
7.3
3.7
■ YSPI0740 Series
DC Resistance (mΩ)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)

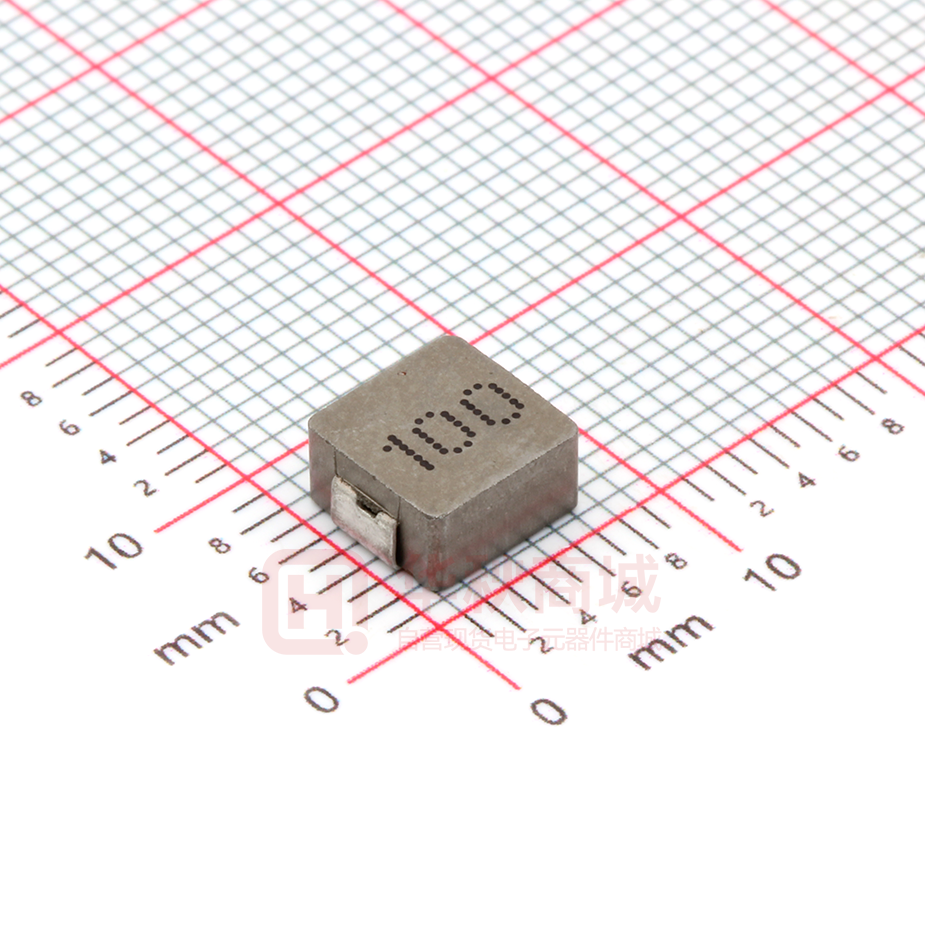

YSPI0740-1R0□
1.0
6.6
8.0
12.5
18.0
YSPI0740-2R2□
2.2
11.0
18.0
9.0
12.0
YSPI0740-3R3□
3.3
20.0
25.0
7.0
10.0
YSPI0740-4R7□
4.7
30.0
35.0
6.0
8.0
YSPI0740-5R6□
5.6
36.5
38.0
5.7
7.0
YSPI0740-6R8□
6.8
40.6
50.0
5.0
7.0
YSPI0740-100□
10.0
51.5
62.0
4.5
5.0
YSPI0740-150□
15.0
86.3
95.0
3.7
4.5
YSPI0740-220□
22.0
107
125
3.0
4.0
YSPI0740-330□
33.0
199
220
2.5
3.2
YSPI0740-390□
39.0
244
280
2.2
2.8
YSPI0740-470□
47.0
256
298
2.1
2.5
Part Number
Inductance
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise
current value.
