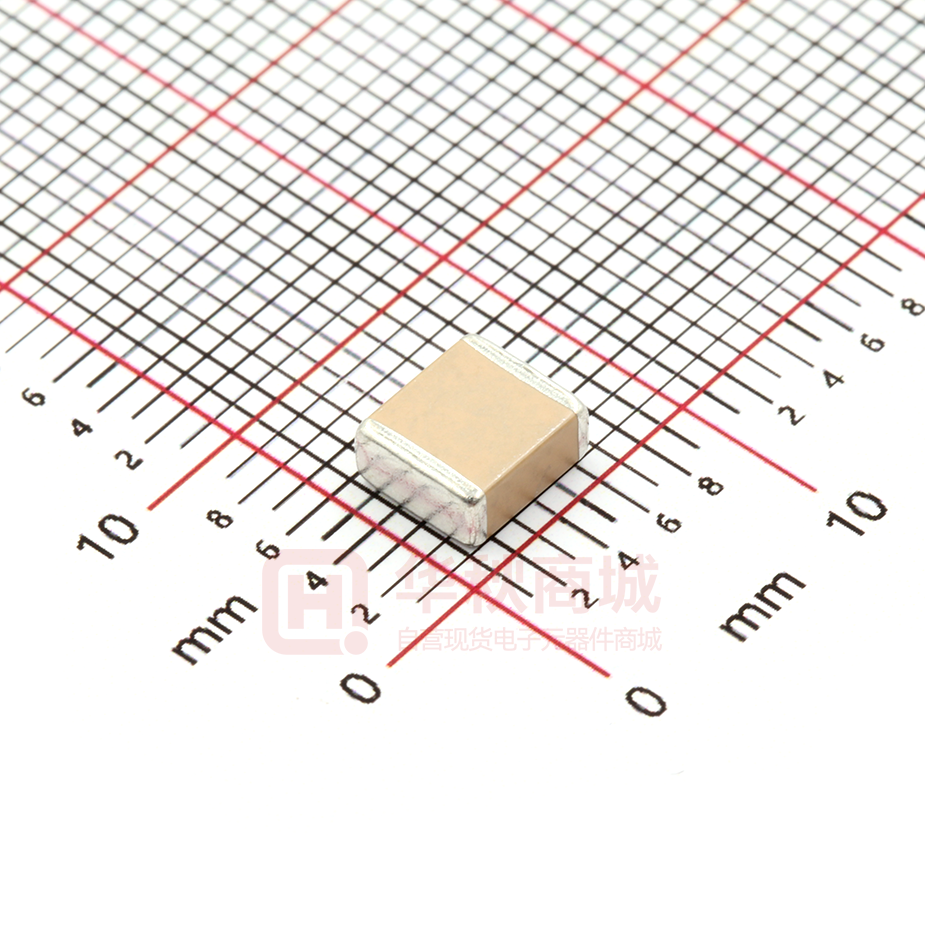

FS55X105K251EGG

信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Tel.：886-3-3224471 Fax：886-3-3212216 Messrs.： ： 一般共用 Date： ： 2017 / 09 / 15 APPROVAL SHEET Product Name ： High Capacitance Multilayer Ceramic Chip Capacitors Part No. ： FS Series Description ： Size ≤2225, Capacitance ≥1µF, UR 0.1µF, 0603≥0.068µF, 1206>1µF, 1210≥2.2µF ≤10% 0805>0.22µF, 1210≥3.3µF 0201(50V), 0603≥0.047µF, 0805≥0.18µF, 1206≥0.47µF, ≤3% 1812≥10µF, 2220≥22µF ≤5% 0201≥0.01uF, 1210≥4.7µF ≤10% 0402≥0.1µF, 0603>0.1µF, 0805≥1µF, 1206≥2.2µF, 1210≥10µF ≤10% 0603≥1µF, 0805≥2.2µF, 1206≥2.2µF, 1210≥10µF ≤5% 0201≥0.01µF, 0805≥1µF, 1210≥10µF ≤7% 0603≥0.33µF, 1206≥4.7µF 0201≥0.1µF, 0402≥0.10µF, 0603≥0.47µF, 0805≥2.2µF, ≤10% 1206≥6.8µF, 1210≥22µF ≤12.5% 0402≥0.47µF 0201≥0.01µF, 0402≥0.033µF, 0603≥0.15µF, 0805≥0.68µF, ≤5% 1206≥2.2µF, 1210≥4.7µF 0201≥0.1uF(0201/X7R≥0.022µF), 0402≥0.22uF, 0603≥0.68µF, ≤10% 0805≥2.2µF, 1206≥4.7µF, 1210≥22µF 0201≥0.012µF, 0402≥0.33µF(0402/X7R≥0.22µF), 0603≥0.33µF, ≤10% 0805≥2.2µF, 1206≥2.2µF, 1210≥22µF ≤15% 0201≥0.1µF, 0402≥1µF 0201≥0.1µF, 0402≥1µF, 0603≥10µF, 0805≥4.7µF, 1206≥47µF, ≤15% 1210≥100µF ≤20% 0402≥2.2µF ----- Prosperity Dielectrics Co., Ltd. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. Page 2 of 16 Rated D.F.≤ ≥50V ≤5% 35V ≤7% Exception of D.F.≤ ≤7% --≤7% 25V ≤5% ≤9% 16V ≤7% (C10µF, 0.5±0.2Vrms, 120Hz±20%. ** Test condition : 0.5±0.2Vrms, 1KHz±10%. X7R : 0805=106(6.3V&10V), 0603=475(6.3V). Q/D.F. X6S : 3. (Dissipation 0201≥104(6.3V&10V),0402≥225(6.3V), Factor) 0402/475(10V), 0603/106(6.3V). X5R : 01R5≥103, 0201≥224(6.3V,10V,16V)#1, 0402≥475(6.3V,16V), 0402≥225(10V), 0603=106(6.3V,10V). Rated D.F.≤ ≥100V ≤2.5% 50V ≤2.5% 35V ≤3.5% 25V ≤3.5% 16V ≤3.5% 10V ≤5% 6.3V ≤10% 4V ≤15% Exception of D.F.≤ ≤3% 1206≥0.47µF ≤5% 0805>0.1µF, 0603≥0.068µF, 1206>1µF, 1210≥2.2µF ≤10% 0805>0.22µF, 1210≥3.3µF 0201(50V), 0603≥0.047µF, 0805≥0.18µF, 1206≥0.47µF, ≤3% 1812≥10µF, 2220≥22µF ≤5% 0201≥0.01uF, 1210≥4.7µF 0402≥0.1µF, 0603>0.1µF, 0805≥1µF, 1206≥2.2µF, ≤10% 1210≥10µF ≤10% 0603≥1µF, 0805≥2.2µF, 1206≥2.2µF, 1210≥10µF ≤5% 0201≥0.01µF, 0805≥1µF, 1210≥10µF ≤7% 0603≥0.33µF, 1206≥4.7µF 0201≥0.1µF, 0402≥0.10µF, 0603≥0.47µF, 0805≥2.2µF, ≤10% 1206≥6.8µF, 1210≥22µF ≤12.5% 0402≥0.47µF 0201≥0.01µF, 0402≥0.033µF, 0603≥0.15µF, 0805≥0.68µF, ≤5% 1206≥2.2µF, 1210≥4.7µF 0201≥0.1uF(0201/X7R≥0.022µF), 0402≥0.22uF, ≤10% 0603≥0.68µF, 0805≥2.2µF, 1206≥4.7µF, 1210≥22µF 0201≥0.012µF, 0402≥0.33µF(0402/X7R≥0.22µF), ≤10% 0603≥0.33µF, 0805≥2.2µF, 1206≥2.2µF, 1210≥22µF ≤15% 0201≥0.1µF, 0402≥1µF 0201≥0.1µF, 0402≥1µF, 0603≥10µF, 0805≥4.7µF, ≤15% 1206≥47µF, 1210≥100µF ≤20% 0402≥2.2µF ----- Y5V Rated Vol. D.F.≤ Exception of D.F.≤ ≤7% 0603≥0.1µF, 0805≥0.47µF, 1206≥4.7µF ≤12.5% 1210≥6.8µF 35V ≤7% ----0402≥0.047µF, 0603≥0.1µF, 0805≥0.33µF, ≤7% 1206≥1µF, 1210≥4.7µF 25V ≤5% 0402≥0.068µF, 0603≥0.47µF, 1206≥4.7µF, ≤9% 1210≥22µF ≤9% 0402≥0.068µF, 0603≥0.68µF 16V ≤7% (C0603) applied perpendicular to the place of substrate and parallel the line joining the center of terminations for 10±1 second. Adhesive 13. Strength of Termination * No remarkable damage or removal of the terminations. * The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1mm per second until the deflection becomes 1mm. * No remarkable damage. 14. Bending Test Dielectric Cap. Change Class II (X7R, X5R, X6S) Within ±12.5% Class II (Y5V) Within ±30% (This capacitance change means the change of capacitance under specified flexure of substrate from the capacitance measured before the test) Unit : mm Vibration 15. Resistance * Vibration frequency : 10~55 Hz/min. * Total amplitude : 1.5mm. * Test time : 6 hrs. (Two hrs each in three mutually perpendicular directions) * No remarkable damage. * Cap. change and D.F. : To meet initial spec. Prosperity Dielectrics Co., Ltd. http://www.pdc.com.tw No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. SPEC. No.： ：FS-000-001-06 Page 10 of 16 9. PACKAGE DIMENSION AND QUANTITY Size 0201(0603) 0402(1005) 0603(1608) 0805(2012) 1206(3216) 1210(3225) 1808(4520) 1812(4532) 1825(4563) 2220(5750) 2225(5763) Thickness (mm)/Symbol 0.30±0.03 0.30±0.05 0.30±0.09 0.50±0.05 0.50 +0.02/-0.05 0.50±0.20 0.50±0.10 0.80±0.07 0.80 +0.15/-0.10 0.50±0.10 0.60±0.10 0.80±0.10 0.85±0.10 1.25±0.10 1.25±0.20 0.80±0.10 0.85±0.10 0.95±0.10 1.15±0.15 1.25±0.10 1.60±0.20 1.60 +0.30/-0.10 0.85±0.10 0.95±0.10 1.25±0.10 1.60±0.20 2.00±0.20 2.50±0.30 1.25±0.10 1.60±0.20 2.00±0.20 1.25±0.10 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 L L L N Q K U S B U A X T C I X T M J C E P T M C E F G C E F C E F G H E F G H E F G H E F G H Paper tape 7” reel 15k 15k 15k 10k 10k 10k 4k 4k 4k 4k 4k 4k 4k 4k 4k - 13” reel 70k 50k 50k 15k 15k 15k 15k 15k 15k 15k 15k - 7” reel 3k 3k 3k 3k 3k 2k 2k 3k 3k 3k 2k 1k 1k 2k 2k 1k 1k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k Plastic tape 13” reel 10k 10k 10k 10k 10k 10k 9k 10k 10k 10k 6k 6k 10k 8k 6k 5k 3k Unit : pcs Prosperity Dielectrics Co., Ltd. http://www.pdc.com.tw No.220-1, Sec. 2, Nanshan Rd., Lujhu, Taoyuan 33860, Taiwan, R.O.C. SPEC. No.： ：FS-000-001-06 Page 11 of 16 9. PACKAGE DIMENSION AND QUANTITY 9.1. PAPER TAPE DIMENSIONS 9.2. EMBOSSED TAPE DIMENSIONS Fig. 9.1 The dimension of paper tape Fig. 9.2 The dimension of plastic tape Size Chip Thickness A0 0201 0402 0.30±0.03 0.50±0.10 0.80±0.07 0.80 +0.15/-0.1 0.80±0.10 0.39±0.07 0.70±0.2 1.00 +0.05/-0.1 1.02 +0.05/-0.1 1.50±0.10 1.25±0.10 1.25±0.20
