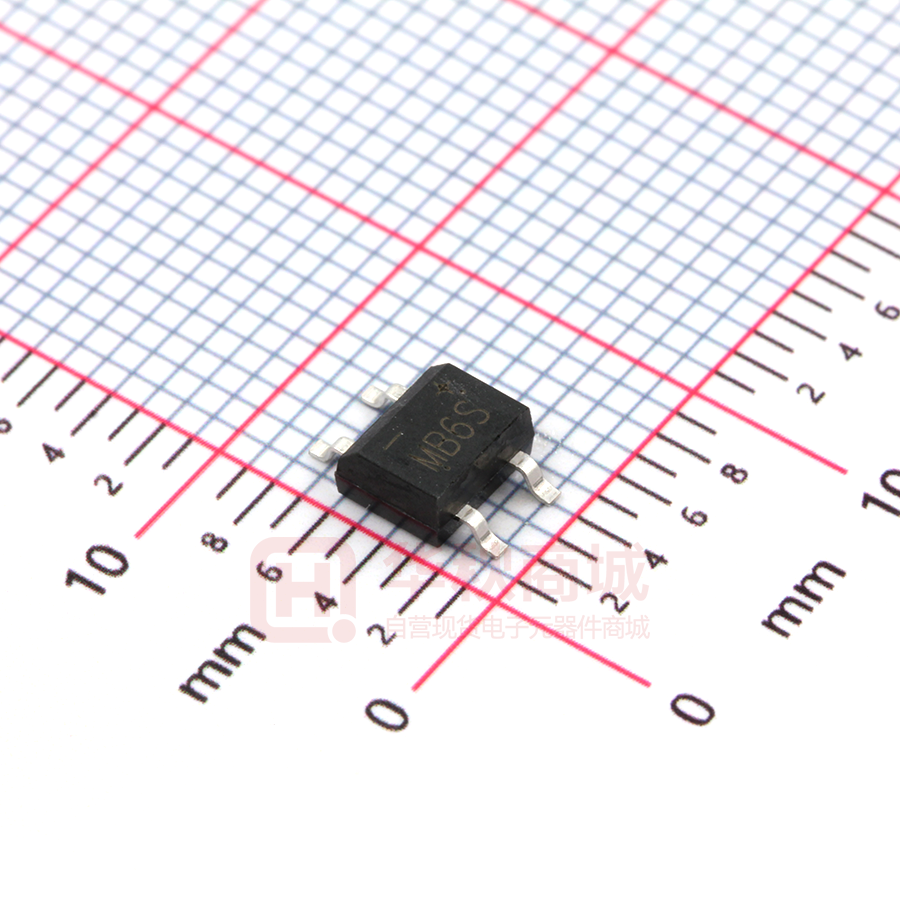

MB6S

MB1S THRU MB10S Voltage Range - 100 to 1000 V olts Current - 0.8 Ampere SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS Features PINNING PIN DESCRIPTION  Ideal for printed circuit board 1 Input Pin（~）  Reliable low cost construction utilizing molded plastic technique 2 Input Pin（~）  High temperature soldering guaranteed: 260°/10 seconds at 5 lbs., (2.3kg) tension 3 Output Anode（+） 4 Output Cathode（-） MBS  Small size, simple installation  High surge current capability 3 4 Mechanical Data MBxxS 1     2 Case : JEDEC MBS Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any  Weight : 0.008 ounce, 0.22 grams Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS MB1S MB2S MB4S MB6S MB8S MB10S UNITS Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM VRMS VDC 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V Maximum average forward rectified current at TC=30 On glass-epoxy P.C.B. On aluminum substrate IF(AV) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward at=0.4A voltage drop per leg TA=25°C Maximum DC reverse current at rated DC blocking voltage TA=125°C 0.5 A 0.8 IFSM 30 A VF 1.0 V IR 5 0.5 uA mA CJ 13 PF Typical thermal resistance RθJC 70 °C/W Operating temperature range TJ TSTG -55 to +150 -55 to +150 °C °C Typical junction capacitance storage temperature range (Note 3) NOTES:1.On glass epoxy P.C.B. mounted on 0.05x0.05''(1.3x1.3mm) pads 2.On aluminum substrate P.C.B. with on area of 0.8''x0.8''(20x20mm) mounted on 0.05X0.05''(1.3X1.3mm) solder pad 3.Measured at 1.0MHz and applied reverse voltage of 4.0 volts. www.tw-gmc.com 1 MB1S THRU MB10S Voltage Range - 100 to 1000 V olts Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 1.2 1.0 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 1.0 1.5 2.0 Peak Forward Surage Current (A) 80 100 100 120 140 T J =25°C 10 0.1 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 1.0 10 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 100 Number of C cles www.tw-gmc.com 60 1 0.5 Instaneous Forward Voltage (V) 1 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 0.01 0.0 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 10 Current - 0.8 Ampere 2 100 MB1S THRU MB10S Voltage Range - 100 to 1000 V olts Current - 0.8 Ampere PACKAGE OUTLINE Plastic surface mounted package; 4 leads MBS A ∠ALL ROUND C a L1 L d HE e D e E MBS mechanical data A C D E HE d e L L1 a max 2.6 0.22 5.0 4.1 7.0 2.7 0.7 1.7 1.1 0.2 min 2.2 0.15 4.5 3.6 6.4 2.3 0.5 1.3 0.5 max 102 8.7 197 161 276 106 28 67 43 min 94 5.9 177 142 252 91 20 51 20 UNIT ∠ mm 7° mil 6.0 236 2.5 100 0.9 35 2.4 94 www.tw-gmc.com mm Unit ： (mil) 3 8
