BAT54C

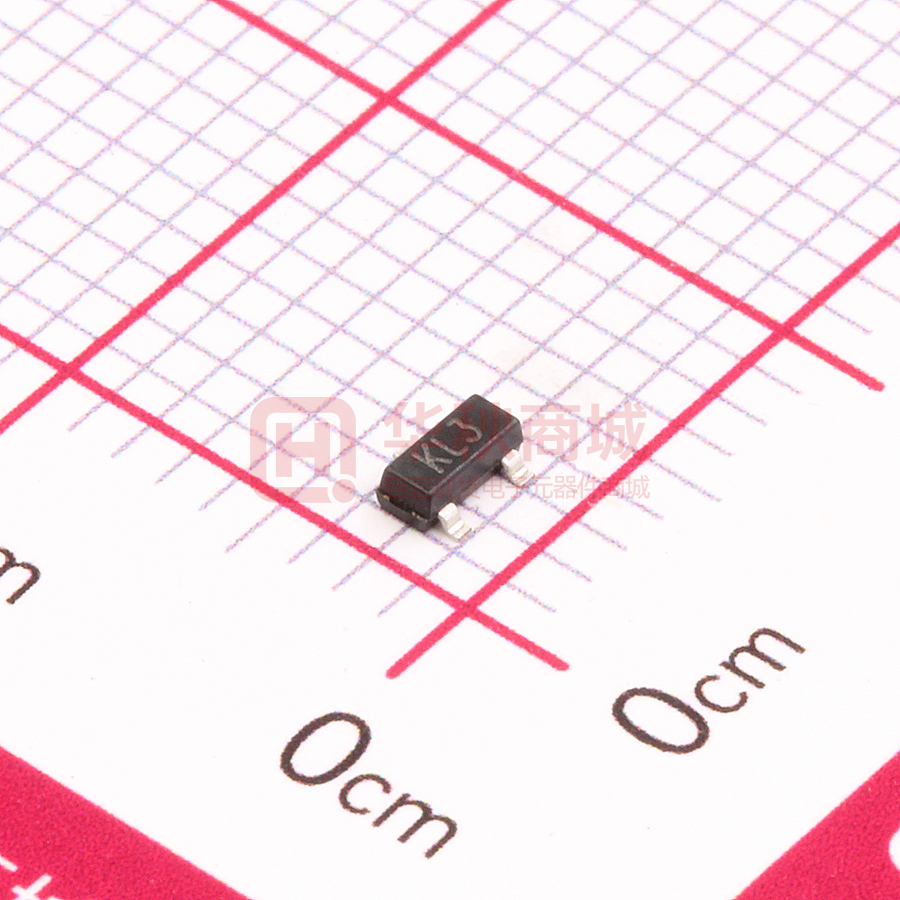

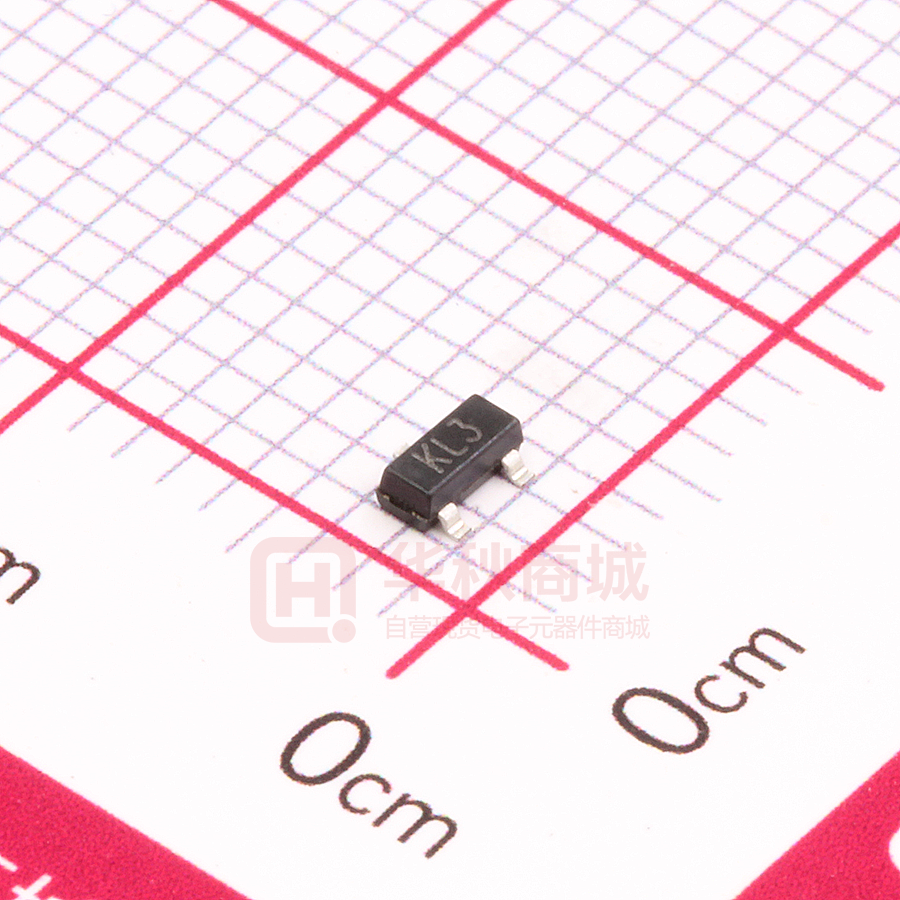

BAT54... BAT54Ă SCHOTTKY DIODES SOT-23 FEA785(6 Extremely Fast Switching Speed BAT54 MARKING: KL1 BAT54A MARKING: KL2 BAT54C MARKING: KL3 BAT54S MARKING: KL4 Maximum Ratings @TA=25Я Parameter Symbol Peak Repetitive Peak reverse voltage VRRM Working Peak Reverse Voltage VRWM Limits Unit 30 V Reverse Breakdown Voltage VR Forward Continuous Current IFM 200 mA Power Dissipation PD 200 mW TSTG -55-150 Я Storage temperature Electrical Characteristics @TA=25Я Parameter Reverse Breakdown Voltage Symbol Min. V (BR)R 30 Typ. Max. Unit Conditions V IR=100ȝA VF1 0.24 V IF=0.1mA VF2 0.32 V IF=1mA VF3 0.40 V IF=10mA VF4 0.50 V IF=30mA VF5 1 V IF=100mA Reverse current IR 2 ȝA VR=25V Diode Capacitance CD 10 pF VR=1V,f=1MHz Reverse Recovery Time trr 5 nS Forward voltage IF=IR=10mA www.tw-gmc.com 1 Irr=0.1XIR,RL=100Ÿ BAT54... IF, INSTANTANEOUS FORWARD CURRENT (A) Pd, POWER DISSIPATION (mW) 7\SLFDO&KDUDFWHULVWLFV 200 100 0 0 50 25 75 100 125 1 0.1 TA = 125ºC TA = 75ºC 0.01 TA = 25ºC TA = 0ºC 0.001 TA = -40ºC 0.0001 0 TA, AMBIENT TEMPERATURE (° C) Fig. 1 Power Derating Curve 0.4 0.2 0.8 0.6 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Forward Characteristics 100 1000 VR = 25V TA = 125ºC 10 100 TA = 75ºC 1 10 TA = 25ºC 0.1 TA = 0ºC 1 0.01 0.1 0 50 100 150 Tj, JUNCTION TEMPERATURE (° C) Fig. 3, Typical Reverse Characteristics www.tw-gmc.com 0.001 0 5 10 15 20 25 30 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 4 Typical Reverse Characteristics 2 BAT54... PACKAGE OUTLINE Plastic surface mounted package; 3 leads www.tw-gmc.com SOT-23 3
