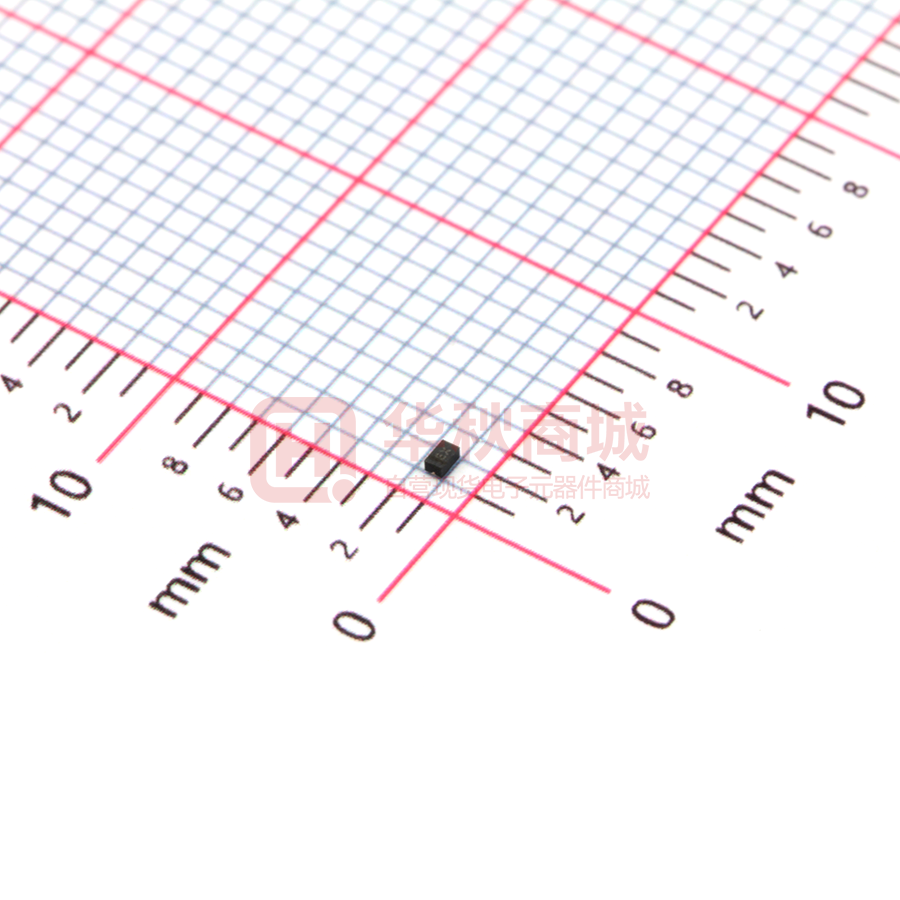

ESD9X5VU-2/TR

ESD9X5VU ESD9X5VU 1-Line, Uni-directional, Ultra-low Capacitance http//:www.sh-willsemi.com Transient Voltage Suppressor Descriptions The ESD9X5VU is a Uni-directional transient voltage suppressor (TVS) which provides a very high level protection for sensitive electronic components that may be subjected to electrostatic discharge (ESD). It is designed to replace multilayer varistors (MLV) in consumer equipment FBP-02C (Bottom View) applications such as mobile phone, notebook, PAD, STB, LCD TV etc. The ESD9X5VU incorporates one pair of ultra-low capacitance steering diodes plus a TVS diode. The ESD9X5VU may be used to provide ESD protection up to ±20kV (contact and air discharge) according Pin1 Pin2 to IEC61000-4-2, and withstand peak pulse current up to 4A for 8/20μs pulse according to IEC61000-4-5. Circuit diagram The ESD9X5VU is available in FBP-02C package. Standard products are Pb-free and Halogen-free. Features Pin1  Stand-off voltage: 5V max.  Transient protection for each line according to IEC61000-4-2 (ESD): ±20kV (contact and air discharge) IEC61000-4-4 (EFT): 40A (5/50ns) Ultra-low capacitance: CJ = 0.5pF typ.  Ultra-low leakage current: IR
