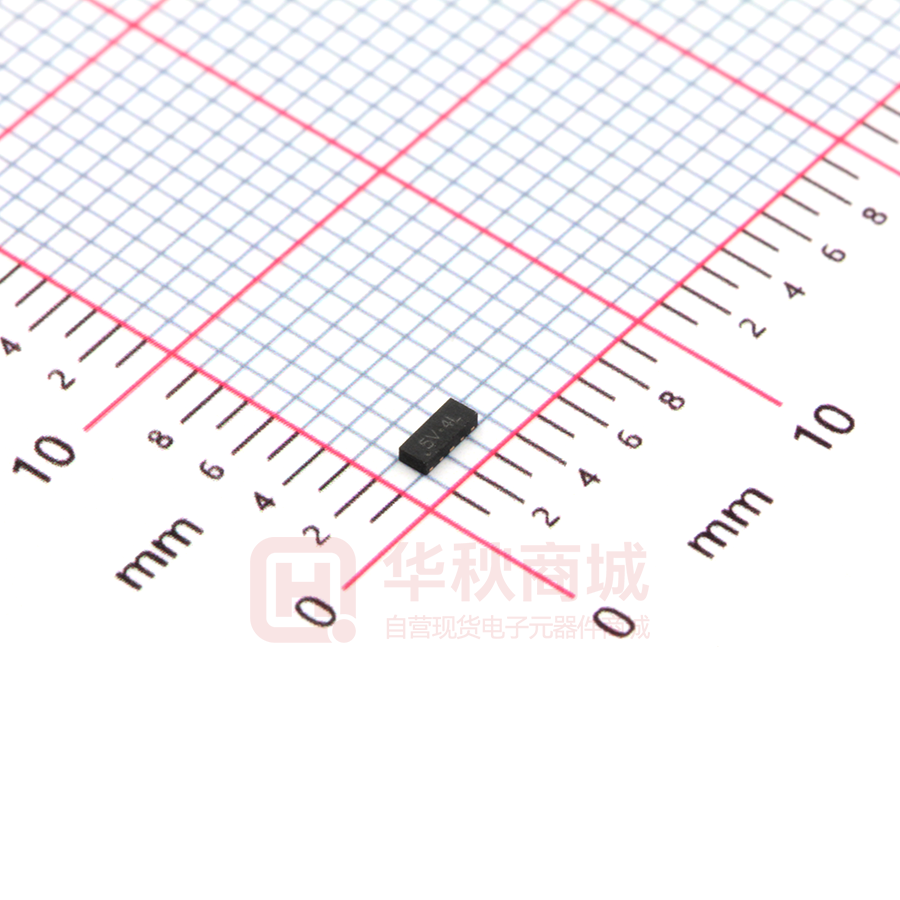

ESD5344D-10/TR

ESD5344D ESD5344D 4-Lines, Uni-directional, Ultra-low Capacitance http//:www.sh-willsemi.com Transient Voltage Suppressors Descriptions The ESD5344D is an ultra-low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces. It has been specifically designed to protect sensitive electronic components which are connected to data DFN2510-10L (Bottom view) and transmission lines from over-stress caused by ESD NC (Electrostatic Discharge). The ESD5344D incorporates four pairs of NC GND NC NC 10 9 8 7 6 1 2 3 4 5 ultra-low capacitance steering diodes plus a TVS diode. I/O1 I/O2 GND I/O3 I/O4 The ESD5344D may be used to provide ESD protection up to ±20kV (contact discharge) according to IEC61000-4-2, and withstand peak pulse current up to 4A (8/20μs) according to IEC61000-4-5. 1 2 4 5 The ESD5344D is available in DFN2510-10L package. Standard products are Pb-free and Halogen-free. 3, 8 Pin configuration (Top view) Features  Stand-off voltage: 5V max.  Transient protection for each line according to 10 IEC61000-4-2 (ESD): ±20kV (contact discharge) 1 IEC61000-4-4 (EFT): 40A (5/50ns) IEC61000-4-5 (surge): 4A (8/20μs) Ultra-low capacitance: CJ = 0.4pF typ.  Ultra-low leakage current: IR
