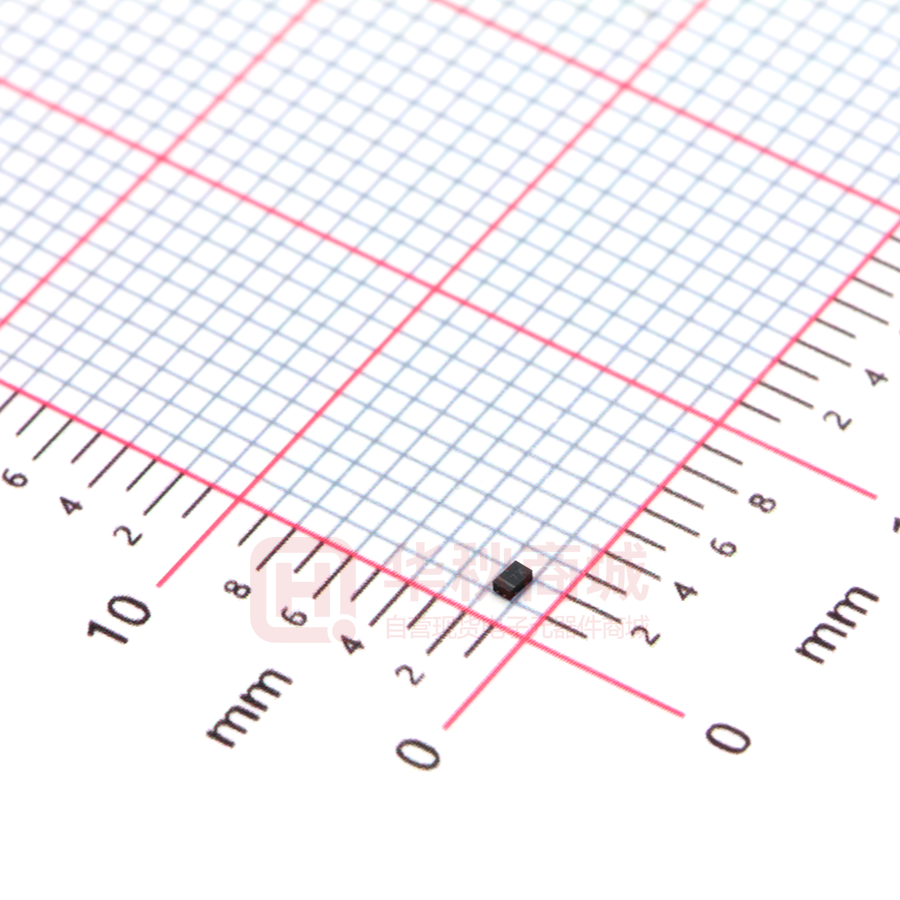

ESD5341N-2/TR

ESD5341N ESD5341N 1-Line, Uni-directional, Low Capacitance http//:www.sh-willsemi.com Transient Voltage Suppressor Descriptions The ESD5341N is a low capacitance TVS (Transient Voltage Suppressor) designed to protect high speed data interfaces. It has been specifically designed to protect sensitive electronic components which are connected to data and transmission lines from over-stress DFN1006-2L (Bottom View) caused by ESD (Electrostatic Discharge). The ESD5341N incorporates one pair of low capacitance steering diodes plus a TVS diode. The ESD5341N may be used to provide ESD protection up to Pin1 Pin2 ±20kV (contact discharge) according to IEC61000-4-2, and withstand peak pulse current up to 4A (8/20μs) according to IEC61000-4-5. Circuit diagram The ESD5341N is available in DFN1006-2L package. Standard products are Pb-free and Halogen-free. Features  Stand-off voltage: 5V max.  Transient protection for each line according to Pin1 * = Month code ( A~Z) IEC61000-4-4 (EFT): 40A (5/50ns) Marking (Top View) IEC61000-4-5 (surge): 4A (8/20μs)  Low capacitance: CJ = 1.0pF typ.  Ultra-low leakage current: IR
