ESD5302F
ESD5302F
http//:www.sh-willsemi.com
2-Lines, Uni-directional, Ultra-low Capacitance
Transient Voltage Suppressors
Descriptions
The ESD5302F is an ultra-low capacitance TVS (Transient
Voltage Suppressor) array designed to protect high speed
data interfaces. It has been specifically designed to protect
sensitive electronic components which are connected to data
SOT-23 (Top View)
and transmission lines from over-stress caused by ESD
(Electrostatic Discharge).
2
The ESD5302F incorporates two pairs of ultra- low
capacitance steering diodes plus a TVS diode.
The ESD5302F may be used to provide ESD protection up to
±20kV
(contact
and
air
discharge)
according
to
3
IEC61000-4-2, and withstand peak pulse current up to 4A
(8/20μs) according to IEC61000-4-5.

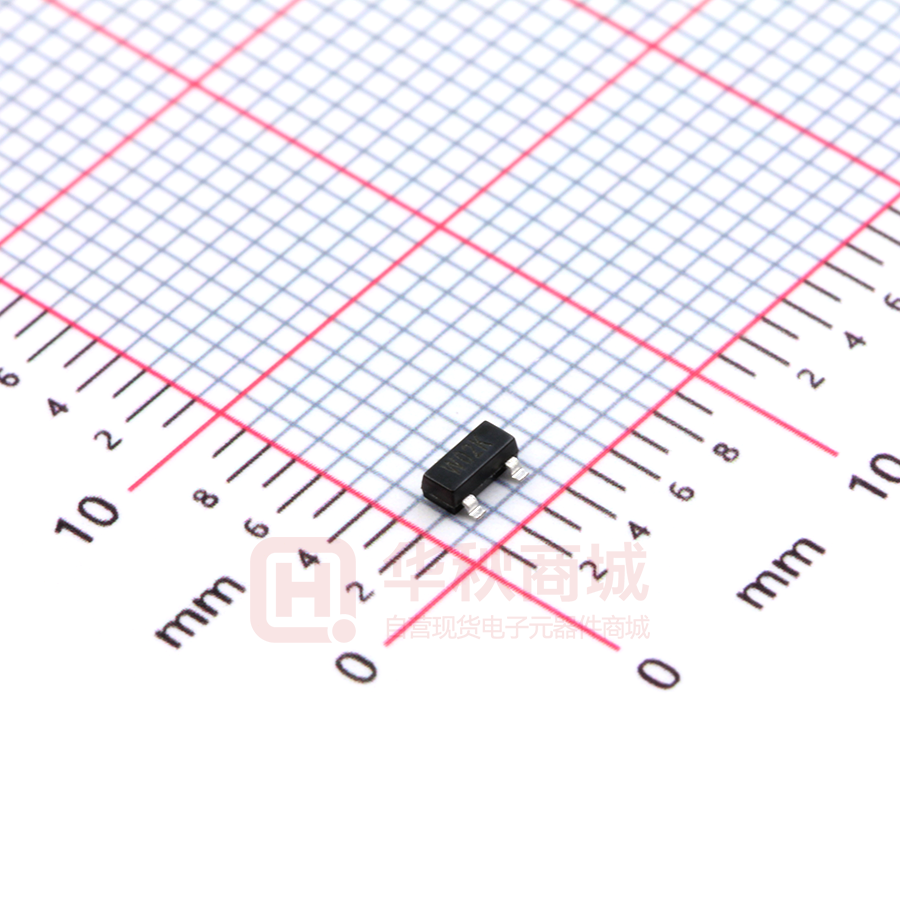

The ESD5302F is available in SOT-23 package. Standard
products are Pb-free and Halogen-free.
1
Features
Circuit diagram
GND
Stand-off voltage: 5V Max
Transient protection for each line according to
3
IEC61000-4-2 (ESD): ±20kV (contact and air discharge)
W02*
IEC61000-4-4 (EFT): 40A (5/50ns)
IEC61000-4-5 (surge): 4A (8/20μs)
1
2
Ultra-low capacitance: CJ = 0.4pF typ.
I/O1
I/O2
Ultra-low leakage current: IR
