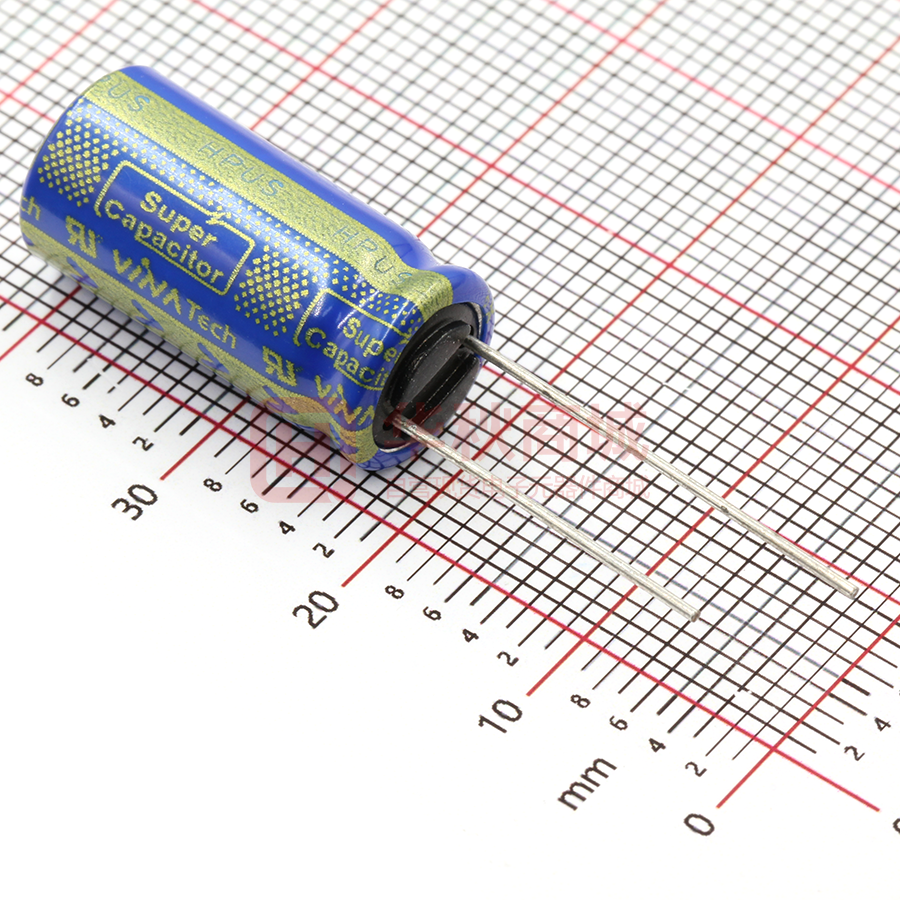

VEC3R0705QG

EDLC 3.0V 7F FEATURES Electric double layer capacitor Higher power density with ultra low ESR Semi-permanent, quick charge and discharge than batteries Suitable for short-term peak power assistance application UL and ISO/TS certificated, RoHS compliant Radial design with lead terminal type 2015-12-01 DIMENSIONS Dimensions in mm L ± 1.5 d ± 0.1 20.0 Φ0.6 D +1.0 Max Φ10.0 Dimens P ± 0.5 5.0 This drawing is not to be scaled. SPECIFICATIONS Part Number Rated Voltage, VR Rated Capacitance AC ESR 1kHz (V) (F) (mΩ) VEC 3R0 705 QG 3.0 7. 65.00 * Maximum Current: 1 second discharge to ½ ·V R DC IR Maximum Current Leakage Current Stored Energy Dimension DxL Weight (mΩ) (A) (㎃) (J) (mm) (g) 110.00 5.5 0.021 31.5 10.0 x 20.0 2.2 * Leakage Current: After 72hours at VR and 25℃ 2015-12-01 08:59:05 Item Characteristics Rated Voltage(VR) 3.0V Capacitance Tolerance -10 ~ 30% Remarks |Δcap| ≤ 30% of initial value at 25℃ Operating Temperature (Tmin ~ Tmax) -40 ~ +65℃ Storage Temperature -40 ~ 70℃ |ΔESR| ≤ 100% of specified value at 25℃ After 1,000 hours application of VR at Tmax |Δcap| ≤ 30% of initial value at 25℃ Cycle Life 500,000 cycles |ΔESR| ≤ 100% of specified value at 25℃ Cycles from VR to ½ ·VR under constant current at 25℃ |Δcap| ≤ 10% of initial value at 25℃ Shelf Life 2 years |ΔESR| ≤ 50% of specified value at 25℃ Without electrical charge under Tmax Tel: +82-31-455-3064 E-mail: hycap@vina.co.kr Web: www.vina.co.kr Design and specifications are subjected to change without notice. version 9.1 on November 23, 2015
