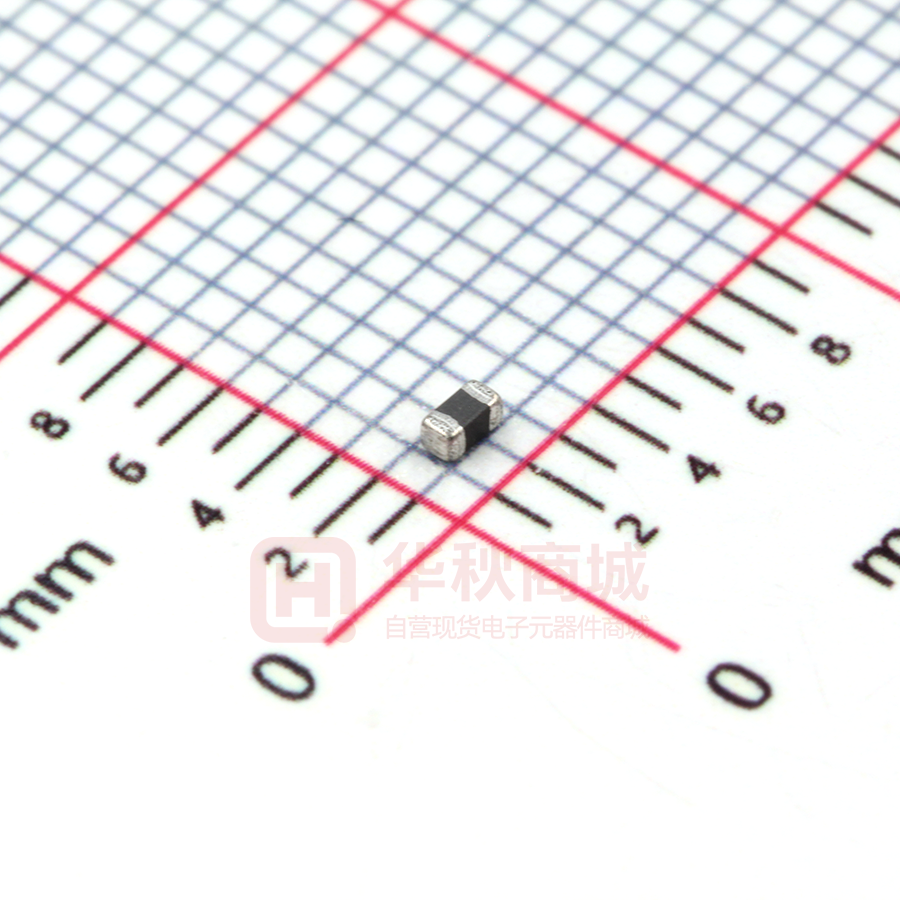

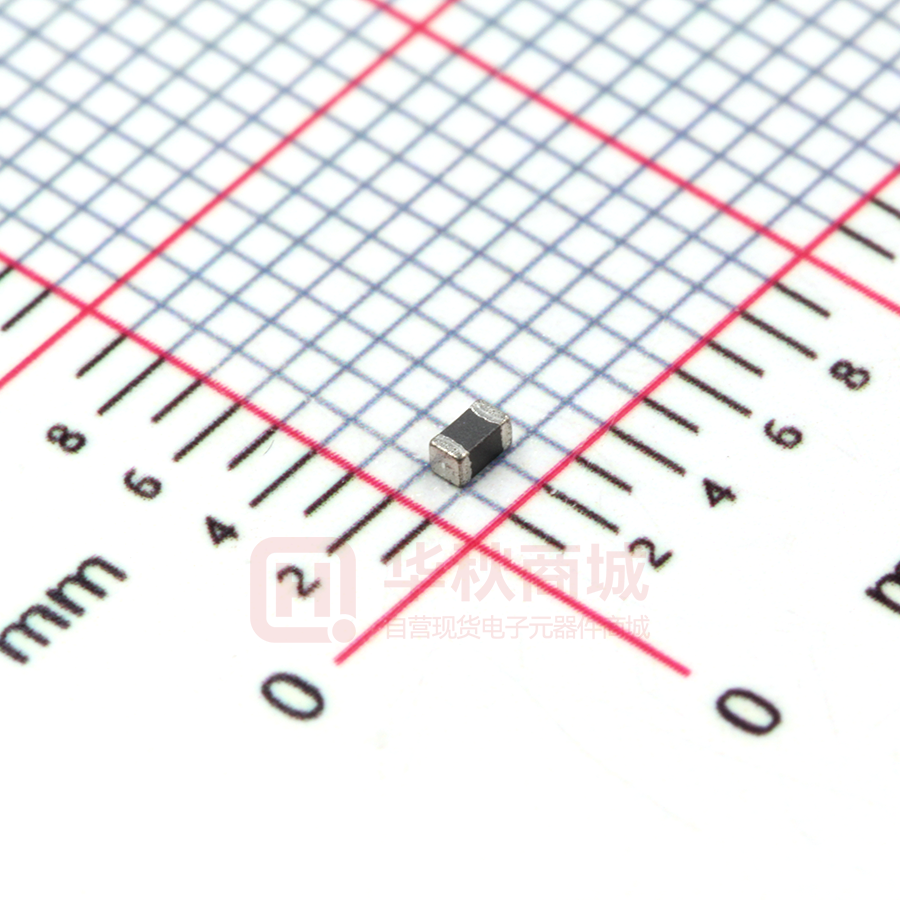

WLBD1608HCU601TH

Approval Sheet WLBD1005 - 4532 HC ( High Current Series ) Chip Bead *Contents in this sheet are subject to change without prior notice. Page 1 of 16 ASC_ WLBD1005 -4532 HC Series Jan - 2021 Approval Sheet FEATURES 1. 2. Combination of high frequency noise suppression with capability of handing high current The current rating up to 6 Amps with low DCR APPLICATIONS 1. 2. High current DC power lines Circuits where a stable ground in unavailabl SHAPE and DIMENSION E T W L TYPE 1005 (EIA 0402) *1608 (EIA 0603) *2012 (EIA 0805) 3216 (EIA 1206) 3225 (EIA 1210) 4516 (EIA 1806) 4532 (EIA 1812) L 1.00±0.10 1.60±0.15 2.00±0.20 3.20±0.20 3.20±0.20 4.50±0.25 4.50±0.25 W 0.50±0.10 0.80±0.15 1.25±0.20 1.60±0.20 2.50±0.20 1.60±0.20 3.20±0.25 T 0.50±0.10 0.80±0.15 & 0.60±0.15 0.90±0.20 & 1.25±0.2 1.10±0.20 1.30±0.20 1.60±0.20 1.50±0.25 E 0.25±0.10 0.30±0.20 0.50±0.30 0.50±030 0.50±0.30 0.60±0.40 0.60±0.40 mm Unit Ordering Information WL Product Code WL: Inductor BD Series 1005 - 4532 Dimensions JIS: (EIA) BD: Chip Bead. 1005 :(0402) 1608: (0603) 2012: (0805) HC U 300 T/P H/L Series extension Tolerance Value Packing Code Refer to characteristic U: ±25% 300 =30 OHM T = 7" H: High current 601 =600 OHM Paper Tape L: Low DCR 102 =1000OHM P = 7” 3216: (1206) Plastic Tape 3225: (1210) 4516: (1806) 4532: (1812) Page 2 of 16 ASC_ WLBD1005 -4532 HC Series Jan - 2021 Approval Sheet PART NUMBER AND CHARACTERISTICS TABLE WLBD1005- 2012 HC_H series Rated Current (mA) max. Walsin Part Number Impedance (Ω) +/-25% WLBD1005HCU100TH 10 100 0.09 2000 WLBD1005HCU300TH 30 100 0.04 3000 WLBD1005HCU330TH 33 100 0.04 3000 WLBD1005HCU600TH 60 100 0.07 2500 WLBD1005HCU121TH 100 Test Frequency (MHz) 0.15 DC Resistance (Ω) max. WLBD1608HCU300TH 120 Impedance (Ω) +/-25% 30 100 0.04 1500 Rated Current (mA) max. 3000 WLBD1608HCU600TH 60 100 0.04 3000 WLBD1608HCU800TH 80 100 0.04 3000 WLBD1608HCU121TH 120 100 0.07 2500 WLBD1608HCU221TH 220 100 0.09 2000 WLBD1608HCU301TH 300 100 0.09 2000 WLBD1608HCU471TH 470 100 0.20 1000 WLBD1608HCU601TH 600 100 0.20 1000 WLBD1608HCU102TH 100 0.25 Test Frequency (MHz) DC Resistance (Ω) max. WLBD2012HCU300TH 1000 Impedance (Ω) +/-25% 30 100 0.015 800 Rated Current (mA) max. 6000 WLBD2012HCU310TH 31 100 0.015 6000 WLBD2012HCU400TH 40 100 0.03 4000 WLBD2012HCU600TH 60 100 0.04 3000 WLBD2012HCU800TH 80 100 0.02 5000 WLBD2012HCU121TH 120 100 0.02 5000 WLBD2012HCU181TH 180 100 0.03 4000 WLBD2012HCU221TH 220 100 0.04 3000 WLBD2012HCU301TH 300 100 0.09 2000 WLBD2012HCU331TH 330 100 0.09 2000 WLBD2012HCU331TL 330 100 0.07 2500 Walsin Part Number Walsin Part Number Test Frequency (MHz) DC Resistance (Ω) max. WLBD2012HCU601TH 600 100 0.09 2000 **WLBD2012HCU102TH 1000 100 0.09 2000 WLBD2012HCU152TH 1500 100 0.3 1500 Test Level 250 mV •HP4291B RF IMPEDANCE / MATERIAL ANALYZER Test Instruments •HP4338A/B MILLIOHMMETER •Agilent 8720ES S-PARAMETER NETWORK ANALYZER •HP6632B SYSTEM DC POWER SUPPLY Page 3 of 16 ASC_ WLBD1005 -4532 HC Series Jan - 2021 Approval Sheet PART NUMBER AND CHARACTERISTICS TABLE WLBD3216- 4532 HC_H series 100 DC Resistance (Ω) max. 0.015 Rated Current (mA) max. 6000 100 0.015 6000 4000 Test Frequency (MHz) WLBD3216HCU300PH Impedance (Ω) +/-25% 30 WLBD3216HCU500PH 50 Walsin Part Number WLBD3216HCU800PH 80 100 0.03 WLBD3216HCU121PH 120 100 0.015 6000 WLBD3216HCU601PH 600 100 0.07 2500 WLBD3216HCU122PH 1200 100 0.2 1000 Walsin Part Number Impedance (Ω) +/-25% Test Frequency (MHz) DC Resistance (Ω Ω) max. Rated Current (mA) max. WLBD3225HCU600PH 60 100 0.15 1500 WLBD3225HCU102PH 50 WLBD4516HCU600PH 1000 Impedance (Ω) +/-25% 60 Test Frequency (MHz) 100 0.09 DC Resistance (Ω Ω) max. 0.015 2000 Rated Current (mA) max. 6000 WLBD4516HCU720PH 72 100 0.015 6000 WLBD4516HCU181PH 180 100 0.02 3500 WLBD4516HCU851PH 850 100 0.15 1500 Walsin Part Number Impedance (Ω) +/-25% Test Frequency (MHz) DC Resistance (Ω Ω) max. Rated Current (mA) max. WLBD4532HCU800PH 80 100 0.01 9000 WLBD4532HCU121PH 120 100 0.015 6000 WLBD4532HCU601PH 600 50 0.04 3000 WLBD4532HCU132PH 1300 60 0.04 3000 Walsin Part Number Test Level 250 mV •HP4291B RF IMPEDANCE / MATERIAL ANALYZER Test Instruments •HP4338A/B MILLIOHMMETER •Agilent 8720ES S-PARAMETER NETWORK ANALYZER •HP6632B SYSTEM DC POWER SUPPLY GENERAL TECHNICAL DATA 1. Operating temperature range : - 55℃ ~ +125℃ 2. Storage Condition : Less than 40℃ and 70% RH 3. Storage Time: 12 months(Size:1005 above) 4. Soldering method: Reflow or Wave Soldering 5. ** The thickness 1.25 ± 0.2mm / MOQ= 3K reel Page 4 of 16 ASC_ WLBD1005 -4532 HC Series Jan - 2021 Approval Sheet PART NUMBER AND CHARACTERISTICS TABLE WLBD1005- 1608 HC_L series ( Low DCR Type) Rated Current (mA) Max. 85℃ ℃ 125℃ ℃ Walsin Part Number Impedance (Ω) +/-25% Test Frequency (MHz) DC Resistance (Ω) Max. WLBD1005HCU330TL 33 100 0.022 3000 1700 WLBD1005HCU600TL 60 100 0.032 2500 1400 WLBD1005HCU800TL 80 100 0.038 2300 1300 WLBD1005HCU121TL 120 100 0.055 2000 1100 WLBD1005HCU181TL 180 100 0.090 1500 800 WLBD1005HCU221TL 220 100 0.100 1400 800 WLBD1005HCU331TL 330 100 0.150 1200 700 WLBD1005HCU471TL 470 100 0.200 1000 600 WLBD1005HCU601TL 600 100 0.230 900 500 Walsin Part Number Impedance (Ω) +/-25% Test Frequency (MHz) DC Resistance (Ω Ω) Max. **WLBD1608HCU260TL 26 100 0.007 6000 4000 **WLBD1608HCU300TL 30 100 0.010 5000 3000 **WLBD1608HCU700TL 70 100 0.022 3500 2000 **WLBD1608HCU101TL 100 100 0.030 3000 1900 **WLBD1608HCU121TL 120 100 0.030 3000 1900 WLBD1608HCU221TL 220 100 0.050 2200 1500 WLBD1608HCU331TL WLBD1608HCU471TL 330 470 100 100 0.080 0.130 1700 1500 1200 1000 WLBD1608HCU601TL 600 100 0.150 1300 1000 Test Level Rated Current (mA) Max. 85℃ ℃ 125℃ ℃ 250 mV •HP4991A RF Impedance / Material Analyzer Test Instruments •HP4338A/B Milliohm meter •Agilent 5071C S-Parameter Network Analyzer •HP6632B System DC Power Supply GENERAL TECHNICAL DATA 1. Operating temperature range：- 55℃ ~ +125℃ 2. Storage Condition：Less than 40℃ and 70% RH 3. Storage Time：6 months(Size:0603&1005) 12 months(Size:1608 above) 4. Soldering method：Reflow 5. ** The thickness 0.6mm 6. In operating temperature exceeding +85℃,derating of current is set according to the operating temperature graph as follows Page 5 of 16 ASC_ WLBD1005 -4532 HC Series Jan - 2021 Approval Sheet Land Patterns for Reflow Soldering Solder Land Information Unit: mm (inches) Size A B C 1005 0.4 (0.016) 1.2 ~1.4 (0.047 ~0.055) 0.5 (0.020) 1608 0.7 (0.028) 1.8~ 2.0 (0.071~ 0.079) 0.7 (0.028) 2012 1.2 (0.047) 3.0 ~4.0 (0.118 ~0.157) 1.0 (0.039) 3216 2.0 (0.079) 4.2 ~5.2 (0.165 ~0.205) 1.2 (0.047) 3225 2.0 (0.079) 4.2 ~5.2 (0.165 ~0.205) 3.4 (0.134) 4516 3.0 (0.118) 5.5~6.5 (0.217 ~0.256) 1.2 (0.047) 4532 3.0 (0.118) 5.5 ~6.5 (0.217 ~0.256) 4.22 (0.166) RECOMMENDED SOLDERING CONDITIONS Page 6 of 16 ASC_ WLBD1005 -4532 HC Series Jan - 2021 Approval Sheet RELIABILITY AND TEST CONDITION Test item Test Condition Criteria Temperature Cycle Temperature : -55 ~ +125℃ Cycle : 100 cycles Dwell time : 30minutes Measurement : at ambient temperature 24 hours after test completion No mechanical damage Impedance value should be within ± 20 % of the initial value Operational Life Temperature : 125℃ ± 5℃ Test time : 1000 hours Apply current : full rated current Measurement : at ambient temperature 24 hours after test completion No mechanical damage Impedance value should be within ± 20 % of the initial value Rated Current Test Apply current : full rated current / 5min Temperature rise should be less than 40℃ Biased Humidity Temperature : 40℃ ± 2℃ Humidity : 90 ~ 95 % RH Test time : 1000 hours Apply current : full rated current Measurement : at ambient temperature 24 hours after test completion No mechanical damage Impedance value should be within ± 20 % of the initial value Resistance to Solder Heat Solder temperature : 260 ± 5℃ Flux : Rosin DIP time : 10 ± 1 sec More than 95 % of terminal electrode should be covered with new solder No mechanical damage Impedance value should be within ± 20 % of the initial value Adhesive Test Reflow temperature : 245℃ It shall be Soldered on the substrate applying direction paralle1 to the substrate Apply force(F) : 5 N Test time : 10 sec No mechanical damage Soldering the products on PCB after the pulling test force > 5 N Temperature : 93℃ Test time : 4 hours(WLCM1005) Others : 8 hours Steam Aging Test Solder temperature : 235 ± 5℃ Flux : Rosin DIP time : 5 ± 1 sec Page 7 of 16 ASC_ WLBD0603-4516 HC Series More than 95 % of terminal electrode should be covered with new solder Jan - 2021 Approval Sheet Bead 1005- Impedance Frequency Characteristics (Typical) WLBD1005HCU100TH WLBD1005HCU600TH WLBD1005HCU330TH WLBD1005HCU121TH Bead 1608- Impedance Frequency Characteristics (Typical) WLBD1608HCU300TH WLBD1608HCU800TH Page 8 of 16 ASC_ WLBD0603-4516 HC Series WLBD1608HCU600TH WLBD1608HCU121TH Jan - 2021 Approval Sheet WLBD1608HCU221TH WLBD1608HCU471TH WLBD1608HCU301TH WLBD1608HCU601TH WLBD1608HCU102TH Bead 2012- Impedance Frequency Characteristics(Typical) WLBD2012HCU300TH WLBD2012HCU310TH Page 9 of 16 ASC_ WLBD0603-4516 HC Series WLBD2012HCU400TH Jan - 2021 Approval Sheet WLBD2012HCU600TH WLBD2012HCU800TH WLBD2012HCU181TH WLBD2012HCU121TH WLBD2012HCU221TH WLBD2012HCU331TH * *WLBD2012HCU102TH Page 10 of 16 WLBD2012HCU301TH WLBD2012HCU601TH WLBD2012HCU152TH ASC_ WLBD0603-4516 HC Series Jan - 2021 Approval Sheet Bead 3216- Impedance Frequency Characteristics(Typical) WLBD3216HCU300PH WLBD3216HCU800PH WLBD3216HCU601PH WLBD3216HCU500PH WLBD3216HCU121PH WLBD3216HCU122PH Bead 3225- Impedance Frequency Characteristics(Typical) WLBD3225HCU600PH Page 11 of 16 ASC_ WLBD0603-4516 HC Series WLBD3225HCU102PH Jan - 2021 Approval Sheet Bead 4516- Impedance Frequency Characteristics (Typical) WLBD4516HCU600PH WLBD4516HCU720PH WLBD4516HCU181PH WLBD4516HCU851PH Bead 4532- Impedance Frequency Characteristics (Typical) WLBD4532HCU800PH WLBD4532HCU601PH Page 12 of 16 ASC_ WLBD0603-4516 HC Series WLBD4532HCU12PH WLBD4532HCU132PH Jan - 2021 Approval Sheet Bead 1005L- Impedance Frequency Characteristics (Typical) WLBD1005HCU330TL WLBD1005HCU600TL WLBD1005HCU800TL WLBD1005HCU181TL WLBD1005HCU331TL WLBD1005HCU121TL WLBD1005HCU221TL WLBD1005HCU471TL WLBD1005HCU601TL Page 13 of 16 ASC_ WLBD0603-4516 HC Series Jan - 2021 Approval Sheet Bead 1608L- Impedance Frequency Characteristics (Typical) WLBD1608HCU260TL WLBD1608HCU700TL WLBD1608HCU121TL WLBD1608HCU331TL WLBD1608HCU300TL WLBD1608HCU101TL WLBD1608HCU221TL WLBD1608HCU471TL WLBD1608HCU601TL Page 14 of 16 ASC_ WLBD0603-4516 HC Series Jan - 2021 Approval Sheet Packaging Specification Reel Dimension Unit: mm Reel Packaging Quantity PART SIZE (EIA SIZE) 1005 (0402) 1608 (0603) 2012 (0805) **2012(T12) (0805) 3216 (1206) 3225 (1210) 4516 (1806) 4532 (1812) 7” REEL Qty (Pcs) 10,000 4,000 4,000 3,000 3,000 2,000 2,000 1,000 inner box 5 reels 5 reels 5 reels 5 reels 5 reels 5 reels 4 reels 4 reels Page 15 of 16 ASC_ WLBD0603-4516 HC Series Jan - 2021 Approval Sheet TAPE AND REEL SPECIFICATIONS PAPER CARRIER TAPE AND REEL SPECIFICATIONS PLASTIC CARRIER Unit: mm Size 4532 4516 3225 3216 2012(T:12) 1608 (T:06) 1005 Symbol PLASTIC PLASTIC PLASTIC PLASTIC PAPER PAPER PAPER W 12.0±0.10 11.7~12.3 7.70~8.30 7.90~8.30 8.00±0.10 8.00±0.10 P 8.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 2.00±0.05 E 1.75±0.10 1.75±0.10 1.75±0.10 1.75±0.10 1.75±0.10 1.75±0.10 1.75±0.05 F 5.50±0.05 5.50±0.05 3.50±0.05 3.50±0.05 3.50±0.10 3.50±0.10 3.50±0.05 D 1.55±0.05 1.55±0.05 1.55±0.05 1.55±0.05 1.56±0.10 1.55±0.05 D1 1.50~1.75 1.50~1.75 0.95~1.20 0.95~1.20 NA (0.95~1.2) NA NA Po 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 4.00±0.10 Po10 40.0±0.20 40.0±0.20 40.0±0.20 40.0±0.20 40.0±0.20 NA NA P2 2.00±0.05 2.00±0.05 2.00±0.05 2.00±0.05 2.00±0.10 2.00±0.10 2.00±0.05 Ao 3.66±0.10 1.83±0.10 2.57±0.10 1.85±0.10 Bo 4.95±0.10 4.85±0.10 3.40±0.10 3.43±0.10 Ko(T) 1.83±0.10 1.83±0.10 1.32±0.10 1.22±0.10 t 0.23±0.10 0.29±0.10 0.25±0.10 0.25±0.10 Page 16 of 16 8.00±0.10 (7.9~8.3) 1.56±0.10 (1.50±0.05) 1.50±0.05 1.05±0.05 (1.42±0.1) (0.97±0.05) 2.30±0.05 1.85±0.05 (2.26±0.1) (1.80±0.05) 0.95±0.05 0.95±0.05 (1.3±0.1) (0.75±0.05) NA(0.23±0.1) NA ASC_ WLBD0603-4516 HC Series 0.62±0.03 1.12±0.03 0.60±0.03 NA Jan - 2021
