XL-TD1608UYC

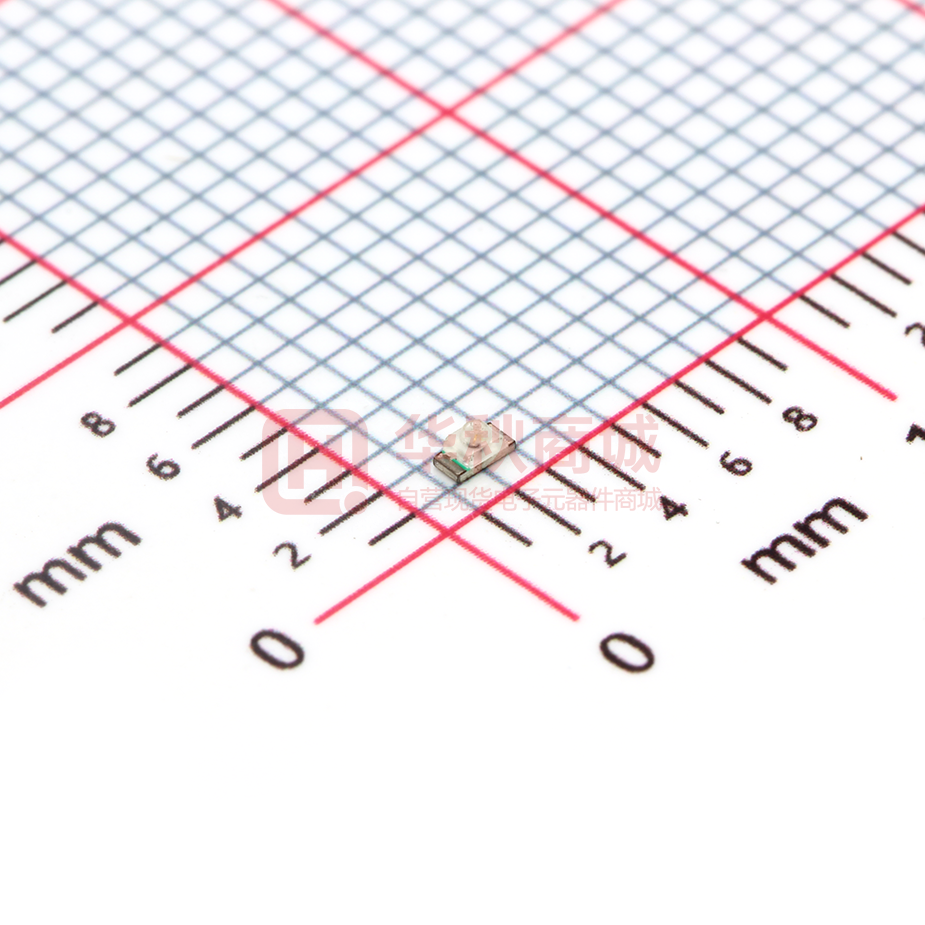

XL-TD1608UYC Technical Data Sheet 0603 黄色球头贴片式发光二极管 haracteristics * 外观尺寸（L/W/H）:1.6*0.8*0.95mm Qutline Dimensions(L / w / h): 1.6 x 0 . 8 x 0.95 mm * 发光角度：35度 Wide viewing angle ：35° * 发光颜色及胶体: 黄色/白色胶体 Luminous color and colloid: Yellow / white colloid * 非常适合背光和指示灯 Ideal for backlight and indicator * 各种颜色和镜头类型可供选择 Various colors and lens types available * 包装：3000个/卷 Package ：3000PCS/reel * 环保工艺符合ROHS要求 Environmental protection products Complied With ROHS Directive * EIA规范标准包装 EIA standard packaging * 适用于SMT贴片自动化生产 Suitable for SMT automatic production * 低功耗，宽视角 Low power consumption ；wide viewing angle roduct application * 医用设备：内窥镜、血氧仪 Medical equipment: endoscope、oximeter * 汽车电子： 背光按键灯、指示灯 Automotive electronics: backlight key light、 indicator light * 工业产品：电子仪表盘、工业设备 Industrial products: electronic instrument panel、industrial equipment * 智能家居： 白色家电、数码管LED Smart home: white appliances, nixie tube LED * 通讯产品： 手机按键灯、路由器、电视盒 Communication products: mobile phone button lamp, router 1 Catalogue Electrical Characteristics........................................................................................................................... 3 Typical Characteristic Curves....................................................................................................................4 Reliability Test Items And Conditions.......................................................................................................5 Outline Dimensions.....................................................................................................................................6 Packaging.......................................................................................................................................................7 Guideline for Soldering.............................................................................................................................. 9 Precautions....................................................................................................................................................11 2 Electrical Characteristics （温度=25℃） Absolute Maximum Ratings (Temperature=25°C): 符号 Symbol 参数名称 Parameter 正向工作电流 Forward working current 正向峰值电流 Pulse forward current 功率消耗 Power Dissipation 反向电压 Reverse voltage 储存环境温度 Storage ambient temperature 最大绝对额定值 Absolute Maximum Rating Yellow 单位 Unit IF 30 mA IFP 80 mA PD 75 mW VR 5 V Tstg -40ºC To +85ºC °C 注：1/10占空比，0.1ms脉冲宽度。Note：1/10 Duty Cycle，0.1ms Pulse Width Electro-Optical Charasteristics (Temperature=25°C): 符号 Symbol peak D 1/2 C VF IR 参数 Parameter 峰值波长 Peak Wavelength 主导波长 Dominant Wavelength 谱线半宽 Spectral Line Half-width 电容 Capacitance 正向电压 Forward Voltage 反向电流 Reverse Curren 装置 Device Yellow Yellow Yellow Yellow Yellow Yellow 典型值 Typ 最大值 Max 单位 Unit 586 592 nm IF=20mA - - nm IF=20mA - - nm IF=20mA - pF VF=0V;f=1MHz 2.3 V IF=20mA 2 uA VR = 7V 20 1.9 - - 试验条件Test Conditions 评论：如果需要特殊分拣（例如，基于正向电压、发光强度或波长的装箱），典型的分拣过程的准确度如下： Remarks:If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength), the typical accuracy of the sorting process is as follows: 1.波长：+/-1nm Wavelength: +/-1nm 2.发光强度：+/-15% Luminous Intensity: +/-15% 3.正向电压：+/-0.1V Forward Voltage: +/-0.1V 注：精度可能取决于分拣参数 Note: Accuracy may depend on the sorting parameters 选择指南 Selection Guide 零件号Part No. XL-TD1608UYC 掷骰子 Dice YELLOW (GaAsP/GaP) 镜头类型 LensType WATER CLEAR 亮度Iv (mcd) @ 20mA 最小Min. 典型Typ. 200 发光角度Viewing Angle 2 1/2 400 35 注： 2 1/2是与光学中心线的角度，其中发光强度为光学中心线值的1/2。 Note: 2 1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. 3 典型特性曲线 Typical Characteristics Curves 4 Reliability Test Items And Conditions 不良数量 /抽样 Bad quantity/s ampling 序号 Order number 试验项目 Test time 参考标准 Reference standard 试验条件 Condition of experiment 持续时间 Duration 取样数 Sampli ng number 1 温度循环 Temperatur e cycle JEITA ED4701 -40℃～25℃～100℃～ 25℃ 30 分钟 5 分钟 30 分钟 5 分钟 循环 100 回合Cycle it for 100 rounds 50 0/50 2 冷热冲击 Hot and cold impact MIL-STD202G -40℃～100℃ 15 分钟 15 分钟 循环 500 回合Cycle it for 500 rounds 50 0/50 高温储存 Hightemperature storage 低温储存 Low temperature storage 常温寿命 试验 Normal temperature life trial JEITA ED4701 200 201 Ta=100℃ 1000 小 时 1000hours 50 0/50 JEITA ED4701 200 201 Ta=-40℃ 1000 小 时 1000hours 50 0/50 - Ta=25±5℃ IF=20mA 1000 小 时 1000hours 50 0/50 Ta=60℃ RH=85% IF=20mA 1000 小 时 1000hours 50 0/50 Tsol=235℃±5℃,5秒 使用助焊剂 Use solder 焊接一次 ，5 秒 Welded once, for 5 seconds 10 0/10 Tsol=250℃,10 秒 预处理pretreatment： 35℃ 95%RH 96小时 焊接二次 ，每次 10 秒Weleld twice for 10 seconds each 10 0/10 3 4 5 6 高温高湿 试验High temperature and high humidity trial 7 可焊性 (回流焊 )Solderabil ity (reflow soldering) 8 耐焊性 (回流焊 )Soldering resistance (reflow soldering) - JEITA ED4701 300 303 JEITA ED4701 300 301 5 Outline Dimension Suggest Soldering Pad Dimensions 备注（Note）： 1.单位：mm Unit: mm 2.公差： 如无特别标注则为±0.10mm Tolerance: ± 0.10mm unless otherwise specified 6 1 Packaging (1) 编带包装 Fabric with packaging 卷轴尺寸 Scroll size 7 2 Packaging (2) 8 1 Guideline for Soldering (1) 1. Hand Soldering 推荐使用功率低于 20W 的烙铁，焊接时烙铁的温度必须保持在 300℃以下，且每个电极只能进行一次焊 接，每次焊接的持续时间不得超过 3 秒。 人手焊接过程中的不慎操作易引起 LED 产品的损坏，应当小心谨慎。 A soldering iron of less than 20W is recommended to be used in Hand Soldering. Please keep the temperature of the soldering iron under 300℃ while soldering. Each terminal of the LED is to go for less than 3 second and for one time only. Be careful because the damage of the product is often started at the time of the hand soldering. 2. 推荐使用以下无铅回流焊接温度图进行。 Reflow Soldering: Use the conditions shown in the under Figure ofPb-Free Reflow Soldering. 回流焊接Reflow soldering 手工焊接Hand welding 有铅 Lead Solder 无铅 Lead-free Solder 温度Temperature 预热温度Pre-heat 140 ~ 160°C 180 ~ 200°C 预热时间Pre-heat time 120 sec. Max. 120 sec. Max. 焊接时间 Soldering time 峰值温度Peak temperature 230°C Max. 260°C Max. 焊接时间Soldering time 10 sec. Max. 10 sec. Max. 条件Condition 参考下图 参考下图 有铅回焊（Lead Solder） 350°C Max. 3 sec. Max. (onetime only) 无铅回焊（Lead-Free Solder） · 回流焊接最多只能进行两次。 Reflow soldering should not be done more than two times. · 在回流焊接升温过程中，请不要对 LED 施加任何压力。 Stress on the LEDs should be avoided during heating in soldering process. · 在焊接完成后，待产品温度下降到室温之后，再进行其他处理。 After soldering, do not deal with the product before its temperature drop down to room temperature. 9 2 Guideline for Soldering (2) 3. Cleaning 在焊接后推荐使用酒精进行清洗，在温度不高于 30℃的条件下持续 3 分钟， 不高于 50℃的条件下持续 30 秒。使用其他类似溶剂清洗前，请先确认使用的溶剂不会对 LED 的封装和环氧树脂部分造成损伤。 超声波清洗也是有效的方法，一般最大功率不应超过 300W ，否则可能对 LED 造成损伤。请根据具体的 情况预先测试清洗条件是否会对 LED 造成损伤。 It is recommended that alcohol be used as a solvent for cleaning after soldering. Cleaning is to go under 30℃ for 3 minutes or 50℃ for 30 seconds. When using other solvents, it should be confirmed beforehand whether the solvents will dissolve the package and the resin or not. Ultrasonic cleaning is also an effective way for cleaning. But the influence of Ultrasonic cleaning on LED depends on factors such as ultrasonic power. Generally, the ultrasonic power should not be higher than 300W. Before cleaning, a pretest should be done to confirm whether any damage to LEDs will occur. 此一般指导原则并不适用于所有 PCB 设计和焊接设备的配置。具体工艺受到诸多因素的影响， 请根据特定的PCB设计和焊接设备来确定焊接方案。 Note: This general guideline may not apply to all PCB designs and configurations of all soldering equipment. The technics in practise is influenced by many factors, it should be specialized base on the PCB designs and configurations of the soldering equipment.. 10 1 Precautions (1) 1. Storage · 本产品使用密封防潮抗静电袋包装，并附有干燥剂，未开封的产品有一年的保存时间。 Moisture proof and anti-electrostatic package with moisture absorbent material is used, to keep moisture to a minimum. · 开封前，产品须存放在温度不高于 30℃，湿度不高于 60%RH 的环境中。 Before opening the package, the product should be kept at 30℃ or less and humidity less than 60% RH, and be used within a year. · 开封后，产品须存放在温度不高于 30℃，湿度不高于 10%RH 的环境中，且应该在 168 小时（7 天） 内使 用完。建议工作环境为温度不高于 30℃，湿度不高于 60%RH。 After opening the package, the product should be stored at 30℃ or less and humidity less than 10%RH, and be soldered within 168 hours (7 days). It is recommended that the product be operated at the workshop condition of 30℃ or less and humidity less than 60%RH. · 对于尚未焊接的 LED，如果吸湿剂或包装失效，或者产品没有符合以上有效存储条件，烘焙可以起到一定 的性能恢复效果。烘焙条件： （60±5）℃，持续 24 小时。 If the moisture absorbent material has fade away or the LEDs have exceeded the storage time, baking treatment should be performed based on the following condition: (60±5)℃ for 24 hours. 2. Static Electricity 静电和电涌会导致产品特性发生改变，例如正向电压降低等，如果情况严重甚至会损毁产品。所以在使用时必须采 取有效的防静电措施。 所有相关的设备和机器都应该正确接地，同时必须采取其他防止静电和电涌的措施。 使用防静电手环，防静电垫子，防静电工作服、工作鞋、手套，防静电容器，都是有效的防止静电和电涌的措施。 Static electricity or surge voltage damages the LEDs. Damaged LEDs will show some unusual characteristic such as the forward voltage becomes lower, or the LEDs do not light at the low current. even not light. All devices, equipment and machinery must be properly grounded. At the same time, it is recommended that wrist bands or anti-electrostatic gloves, anti-electrostatic containers be used when dealing with the LEDs. 11 2 Precautions (2) 3. Design Consideration 设计电路时，通过 LED 的电流不能超过规定的最大值，同时，还需使用保护电阻，否则，微小的电压变 化将会引起较大的电流变化，可能导致产品损毁。 建议使用以下（A）电路，该电路能够很好的调节通过每个 LED 的电流； 不推荐使用（B）电路，该电路 在持续的电压驱动下，LED 的正向电压（VF ）发生变化，电流会随之而发生变化，可能使某些 LED 承受高于 规定的电流值。 In designing a circuit, the current through each LED must not exceed the absolute maximum rating specified for each LED. In the meanwhile, resistors for protection should be applied, otherwise slight voltage shift will cause big current change, burn out may happen. It is recommended to use Circuit A which regulates the current flowing through each LED rather than Circuit B. When driving LEDs with a constant voltage in Circuit B, the current through the LEDs may vary due to the variation in Forward Voltage (VF) of the LEDs. In the worst case, some LED may be subjected to stresses in excess of the Absolute Maximum Rating. (A) (B) LED 的特性容易因为自身的发热和环境的温度的改变而发生改变。温度的升高会降低 LED 的发光效率、 影响发光颜色等，所以在设计时应充分考虑散热的问题。 Thermal Design is paramount importance because heat generation may result in the Characteristics decline, such as brightness decreased, Color changed and so on. Please consider the heat generation of the LEDs when making the system design. 12 3 Precautions (3) 4. Others 直接用手拿取产品不但会污染封装树脂表面，也可能由于静电等因素导致产品性能的改变。过度的压力也 直接影响封装内部的管芯和金线，因此请勿对产品施加过度压力，特别当产品处于高温状态下，例如在回 可能 流焊接过 程中。 When handling the product, touching the encapsulant with bare hands will not only contaminate its surface, but also affect on its optical characteristics. Excessive force to the encapsulant might result in catastrophic failure of the LEDs due to die breakage or wire deformation. For this reason, please do not put excessive stress on LEDs, especially when the LEDs are heated such as during Reflow Soldering. LED 的环氧树脂封装部分相当脆弱，请勿用坚硬、尖锐的物体刮、擦封装树脂部分。在用镊子夹取的时 候也应当小心注意。 The epoxy resin of encapsulant is fragile, so please avoid scratch or friction over the epoxy resin surface. While handling the product with tweezers, do not hold by the epoxy resin, be careful. 5. Safety Advice For Human Eyes LED 发光时，请勿直视发光光源，特别是对于一些光强较高的 LED ，强光可能伤害你的眼睛。 Viewing direct to the light emitting center of the LEDs, especially those of great Luminous Intensity, will cause great hazard to human eyes. Please be careful. 13
