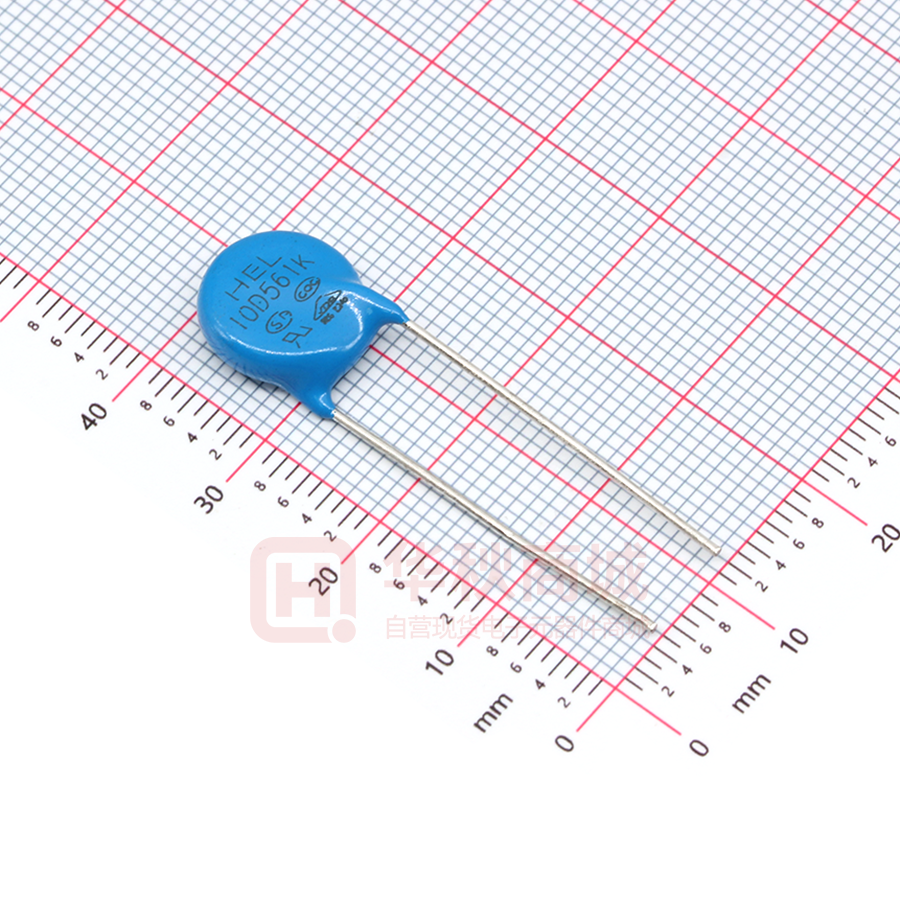

10D561K

Metal Oxide Varistors 10D Series Circuit Protection System Specifications are subject to change without notice. Metal Oxide Varistors - 10D Series Features • Wide operating voltage (V1mA) range from 18V to 1800V. • Fast responding to transient over-voltage. • Large absorbing transient energy capability. • Low clamping ratio and no following-on current. General Information • Transistor, diode, IC, thyristor or triac semiconductor protection • Surge protection in consumer electronics • Surge protection in industrial electronics • Surge protection in electronic home appliances, gas and petroleum appliances • Relay and electromagnetic valve surge absorption General Characteristics • No Radioactive Material Storage Temperature: -40 ºC to +125ºC • Operating Temperature: -40ºC to +85ºC • Body: Nickel Plated • Leads: Surface-mount, Axial Devices: Tin Plated • Devices with No Leads: Nickel Plated Product Name 1 Element Diameter 0 D Type D: Disk S: Square Circuit Protection System 4 7 1 K J Nominal Varistor Voltage Varistor Voltage Tolerance Surge Series 471=47*101V K = ±10 % No Suffix:Standard Type J:High Surge Type Specifications are subject to change without notice. Page:1 Metal Oxide Varistors - 10D Series Electriacl Characteristics Type Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage VAC(V) VDC(V) V1mA(V) IP(A) VC(V) Withstanding Surge Current High Surge Standard High Surge (J) (W) @1KHz(pf) 36 500 1000 2.1 3.0 0.05 5600 5 43 500 1000 2.5 5.0 0.05 4500 5 53 500 1000 3.0 6.0 0.05 3700 High Surge 10D180K 10D180KJ 11 14 18(15~21.6) 5 10D220K 10D220KJ 14 18 22(19.5~26) 10D270K 10D270KJ 17 22 27(24~30) I(A) (J) Typical Capacitance (Reference) Standard Standard I(A) Maximum Energy Rated (10/1000μs) Power 10K330K 10K330KJ 20 26 33(29.5~36.5) 5 66 500 1000 4.0 7.0 0.05 3000 10D390K 10D390KJ 25 31 39(35~43) 5 77 500 1000 4.6 9.0 0.05 2400 10D470K 10D470KJ 30 38 47(42~54) 5 93 500 1000 5.5 11.0 0.05 2100 10D560K 10D560KJ 35 45 56(50~62) 5 100 500 1000 7.0 13.0 0.05 1800 10D680K 10D680KJ 40 56 68(61~75) 5 135 500 1000 8.2 15.0 0.05 1500 10D820K 10D820KJ 50 65 82(74~90) 25 135 2500 3500 12.0 17.0 0.4 1200 10D101K 10D101KJ 60 85 100(90~110) 25 165 2500 3500 15.0 18.0 0.4 1000 10D121K 10D121KJ 75 100 120(108~132) 25 200 2500 3500 18.0 21.0 0.4 830 10D151K 10D151KJ 95 125 150(135~165) 25 250 2500 3500 22.0 25.0 0.4 670 10D181K 10D181KJ 115 150 180(162~198) 25 300 2500 3500 27.0 30.0 0.4 560 10D201K 10D201KJ 130 170 200(180~220) 25 340 2500 3500 30.0 35.0 0.4 500 10D221K 10D221KJ 140 180 220(198~242) 25 360 2500 3500 32.0 39.0 0.4 450 10D241K 10D241KJ 150 200 240(216~264) 25 395 2500 3500 35.0 42.0 0.4 420 10D271K 10D271KJ 175 225 270(243~297) 25 455 2500 3500 40.0 49.0 0.4 370 10D301K 10D301KJ 190 250 300(270~330) 25 500 2500 3500 40.0 54.0 0.4 330 10D331K 10D331KJ 210 275 330(297~363) 25 550 2500 3500 40.0 58.0 0.4 300 10D361K 10D361KJ 230 300 360(324~396) 25 595 2500 3500 43.0 65.0 0.4 280 10D391K 10D391KJ 250 320 390(351~429) 25 650 2500 3500 47.0 70.0 0.4 260 10D431K 10D431KJ 275 350 430(387~473) 25 710 2500 3500 60.0 80.0 0.4 230 10D471K 10D471KJ 300 385 470(423~517) 25 775 2500 3500 65.0 85.0 0.4 210 10D511K 10D511KJ 320 415 510(459~561) 25 845 2500 3500 70.0 90.0 0.4 200 10D561K 10D561KJ 350 460 560(504~616) 25 925 2500 3500 70.0 92.0 0.4 180 10D621K 10D621KJ 385 505 620(558~682) 25 1025 2500 3500 70.0 95.0 0.4 160 10D681K 10D681KJ 420 560 680(612~748) 25 1120 2500 3500 70.0 98.0 0.4 150 10D751K 10D751KJ 460 615 750(675~825) 25 1240 2500 3500 70.0 100.0 0.4 130 10D781K 10D781KJ 485 640 780(702~858) 25 1290 2500 3500 80.0 105.0 0.4 130 10D821K 10D821KJ 510 670 820(738~902) 25 1355 2500 3500 85.0 110.0 0.4 120 10D911K 10D911KJ 550 745 910(819~1001) 25 1500 2500 3500 93.0 130.0 0.4 110 10D102K 10D102KJ 625 825 1000(900~1100) 25 1650 2500 3500 102.0 140.0 0.4 100 10D112K 10D112KJ 680 895 1100(990~1210) 25 1815 2500 3500 115.0 155.0 0.4 90 10D182K 10D182KJ 1000 1465 1800(1620~1980) 25 2970 2500 3500 133.0 250.0 0.4 70 Circuit Protection System Specifications are subject to change without notice. Page:2 Metal Oxide Varistors - 10D Series Electrical Ratings Circuit Protection System Specifications are subject to change without notice. Page:3 Metal Oxide Varistors - 10D Series Package Dimensions (Unit:mm) H1 L1 K
