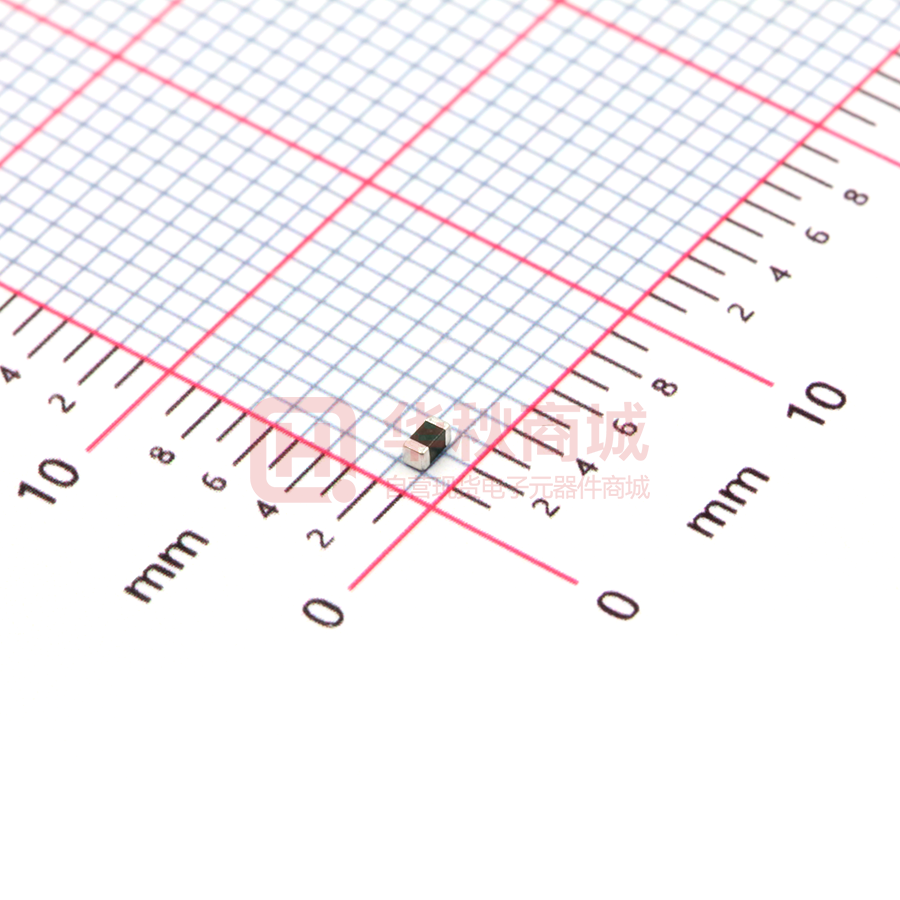

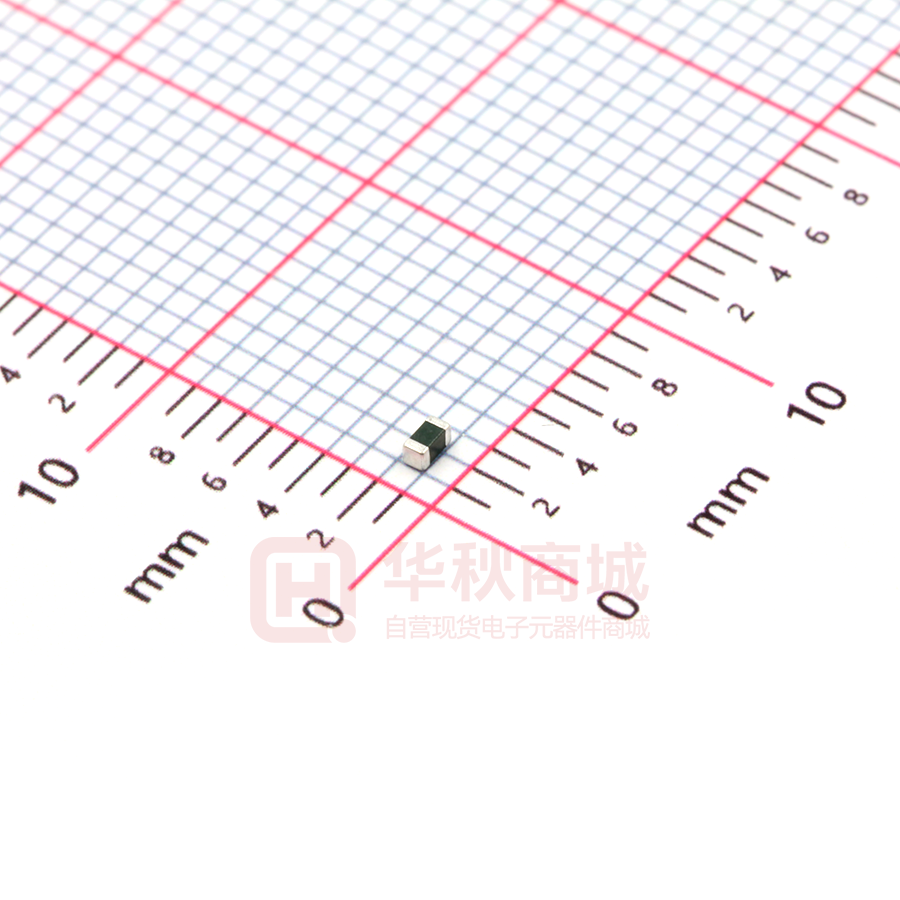

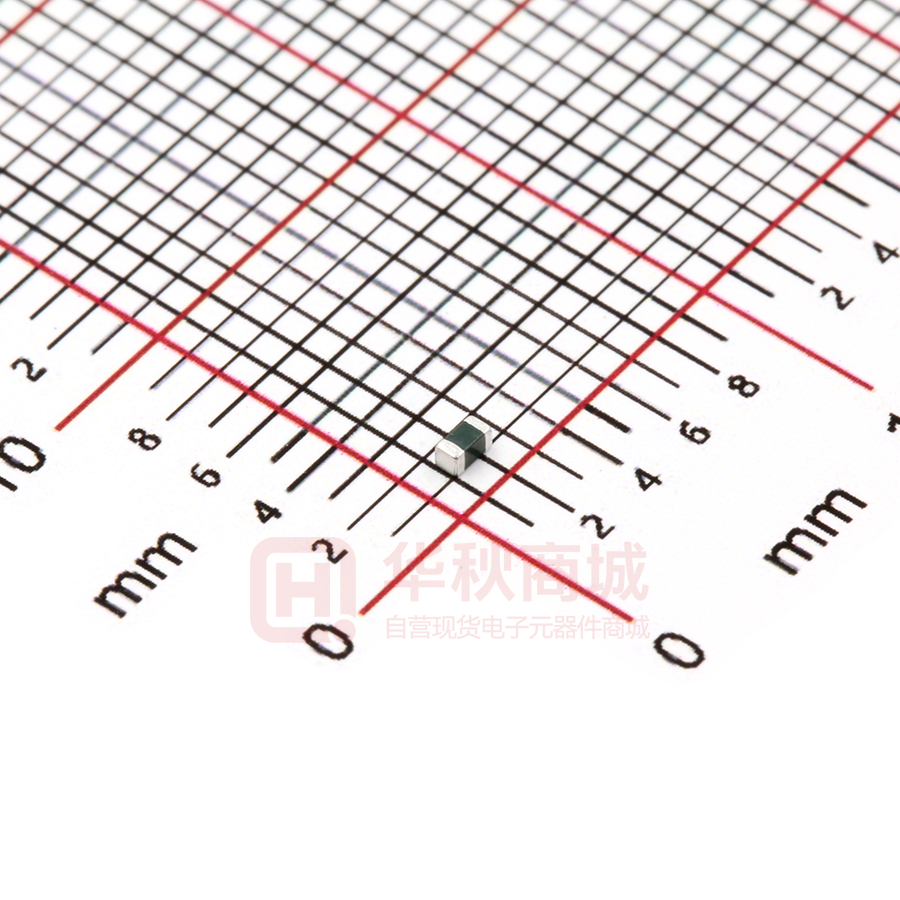

0603ESDA-18N

0603ESDA-XXN ESD Protection Diode »Features ■ ■ ■ ■ ■ ■ ■ ■ 0603inch/ 1608mm foot print Ideal ESD protection for high frequency, low voltage applications. Exceeds testing requirements outlined in IEC 61000-4-2 Ultra low capacitance (1.5pF typ.) Very low leakage current Fast response time Bi-directional MSL 3 »Applications ■ ■ High Speed Data Ports ( USB 2.0, IEEE 1394 ) Computers & Peripherals ( Cell phone, PDA, HDTV, DVD players ) »Mechanical Data ■ Surface mount ■ RoHS Compliant »Schematic & PIN Configuration Revision 2018 www.born-tw.com 1/6 0603ESDA-XXN »Absolute Maximum Rating Rating Symbol Value Units VESD 15 8 kV Lead Soldering Temperature TL 260(10seconds) ℃ Operating Temperature TO -55 to + 125 ℃ Storage Temperature Tstg -40 to + 125 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Conditions »Electrical Characteristics 0603ESDA-05N Parameter Symbol Conditions Min Typical Continuous Operating Voltage VDC Trigger Voltage VT IEC61000-4-2 8KV contact discharge Leakage Current IL VDC=5V,T=25 ℃ Clamping Voltage VC IEC61000-4-2 8KV contact discharge 65 Capacitance CP Measured at 10MHz 1.5 ESD Pulse Withstand Pulses IEC61000-4-2 8KV contact discharge Max Units 5.0 V 140 V 500 nA 100 V pF 1000 0603ESDA-09N Parameter Symbol Conditions Min Typical Continuous Operating Voltage VDC Trigger Voltage VT IEC61000-4-2 8KV contact discharge Leakage Current IL VDC=9V,T=25 ℃ Clamping Voltage VC IEC61000-4-2 8KV contact discharge 65 Capacitance CP Measured at 10MHz 1.5 ESD Pulse Withstand Revision 2018 Pulses IEC61000-4-2 8KV contact discharge www.born-tw.com Max Units 9.0 V 140 V 500 nA 100 V pF 1000 2/6 0603ESDA-XXN 0603ESDA-12N Parameter Symbol Conditions Min Typical Continuous Operating Voltage VDC Trigger Voltage VT IEC61000-4-2 8KV contact discharge Leakage Current IL VDC=12V,T=25 ℃ Clamping Voltage VC IEC61000-4-2 8KV contact discharge 65 Capacitance CP Measured at 10MHz 1.5 ESD Pulse Withstand Pulses IEC61000-4-2 8KV contact discharge Max Units 12.0 V 140 V 500 nA 100 V pF 1000 0603ESDA-14N Parameter Symbol Conditions Min Typical Continuous Operating Voltage VDC Trigger Voltage VT IEC61000-4-2 8KV contact discharge Leakage Current IL VDC=14V,T=25 ℃ Clamping Voltage VC IEC61000-4-2 8KV contact discharge 65 Capacitance CP Measured at 10MHz 1.5 ESD Pulse Withstand Pulses IEC61000-4-2 8KV contact discharge Max Units 14.0 V 140 V 500 nA 100 V pF 1000 0603ESDA-18N Parameter Symbol Conditions Min Typical Continuous Operating Voltage VDC Trigger Voltage VT IEC61000-4-2 8KV contact discharge Leakage Current IL VDC=18V,T=25 ℃ Clamping Voltage VC IEC61000-4-2 8KV contact discharge 65 Capacitance CP Measured at 10MHz 1.5 ESD Pulse Withstand Revision 2018 Pulses IEC61000-4-2 8KV contact discharge www.born-tw.com Max Units 18.0 V 140 V 500 nA 100 V pF 1000 3 /6 0603ESDA-XXN 0603ESDA-24N Parameter Symbol Conditions Min Typical Continuous Operating Voltage VDC Trigger Voltage VT IEC61000-4-2 8KV contact discharge Leakage Current IL VDC=24V,T=25 ℃ Clamping Voltage VC IEC61000-4-2 8KV contact discharge 65 Capacitance CP Measured at 10MHz 1.5 ESD Pulse Withstand Revision 2018 Pulses IEC61000-4-2 8KV contact discharge www.born-tw.com Max Units 24.0 V 140 V 500 nA 100 V pF 1000 4 /6 0603ESDA-XXN »ESD Wave From »Electrical Characteristics IPP 100% 90% SEVERITY LEVEL AIR DIRCHARGE DIRECT DISCHARGE 1 2KV 2KV 2 4KV 4KV 3 8KV 6KV 4 15KV 8KV IEC61000-4-2 compliant ESD current pulse waveform 10% tr = 0.7 ns to 1ns t 30 ns 60 ns »Environment Reliability Test Characteristic Test Method and Description High Temperature Storage The specimen shall be subjected to 125±2℃ for 1000±2 hours without load and then stored at room temperature and normal humidity for one or two hours. The change of varistor voltage shall be within 10%. Temperature Cycle The temperature cycle of specified temperature shall be repeated five times and then stored at room temperature and normal humidity for one or two hours. The change of varistor voltage shall be within 10% and mechanical damage shall be examined. High Temperature Load Damp Heat Load/ Humidity Load Low Temperature Storage Revision 2018 Step Temperature Period 1 -40±3℃ 30±3min 2 room temperature 1 hour 3 125±3℃ 30±3min 4 room temperature 1 hour After being continuously applied the maximum allowable voltage at 85±2℃ for 1000±2 hours, the specimen shall be stored at room temperature and normal humidity for one or two hours. The change of varistor voltage shall be within 10%. The specimen should be subjected to 40±2℃ and 90~95% RH, the maximum allowable voltage applied for 1000±2 hours and then stored at room temperature and normal humidity for one or two hours. The change of varistor voltage shall be within 10%. The specimen should be subjected to -40±2℃ for 1000±2 hours without load and then stored at room temperature and normal humidity for one or two hours. The change of varistor voltage shall be within 10%. www.born-tw.com 5 /6 0603ESDA-XXN »Soldering Parameters Peak Temp 260℃(3~10sec) 250 Peak Temp 245 ℃ (10~20sec) Temperature ( ℃ ) 225 200 175 150 125 100 Pre-Heat 175 ℃ (60~120sec) 75 25 01:00:00 02:00:00 03:00:00 04:00:00 Time (min) ☆ IR reflow Pb free process suggestion profile (1) The solder recommend is Sn96.5/Ag3.5 and thickness recommend as shown in table 5.3 (2) Ramp-up rate (217℃ to peak) +3℃/second max. (3) Temp. maintain at 175±25℃ 180 seconds max. (4) Temp. maintain above 217℃ 60~150 seconds »Outline Drawing-0603 L Unit: Millimeters Dimension Min. Typ. Max. L 1.45 1.60 1.75 W 0.70 0.80 0.90 P 0.20 0.30 0.40 W P Bottom view H 0.90 H Side view »Ordering information Order code 0603ESDA-XXN Revision 2018 Package 0603 Base qty 4k www.born-tw.com Delivery mode Tape and reel 6/6
