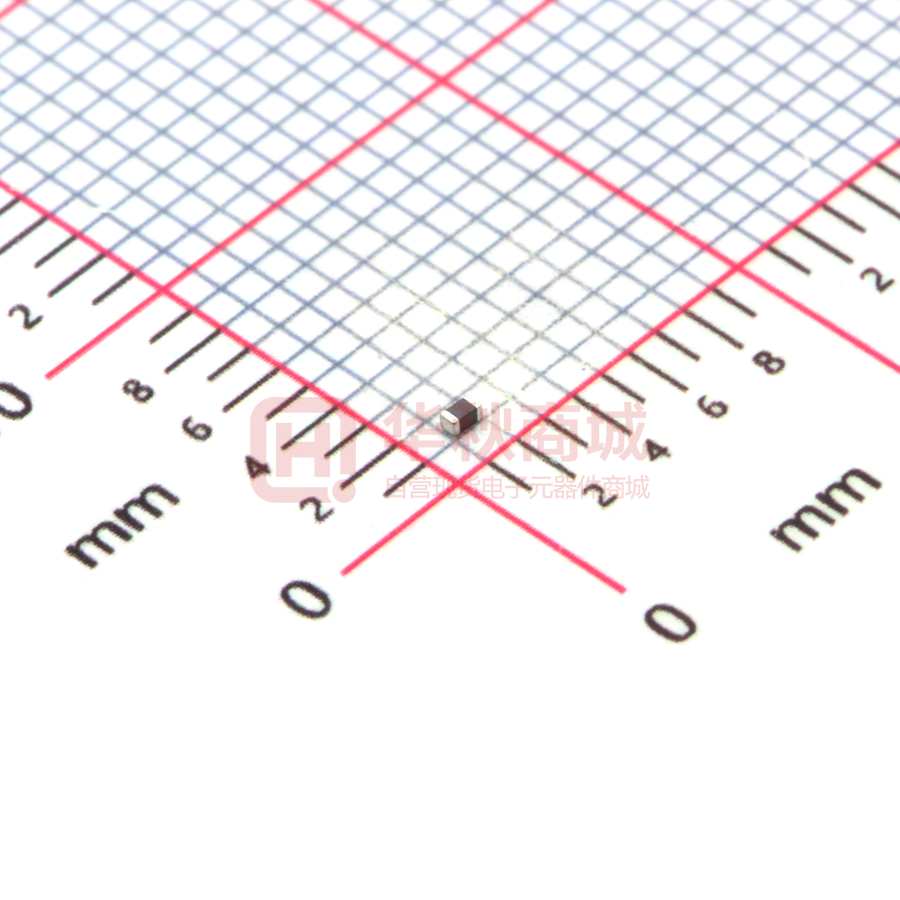

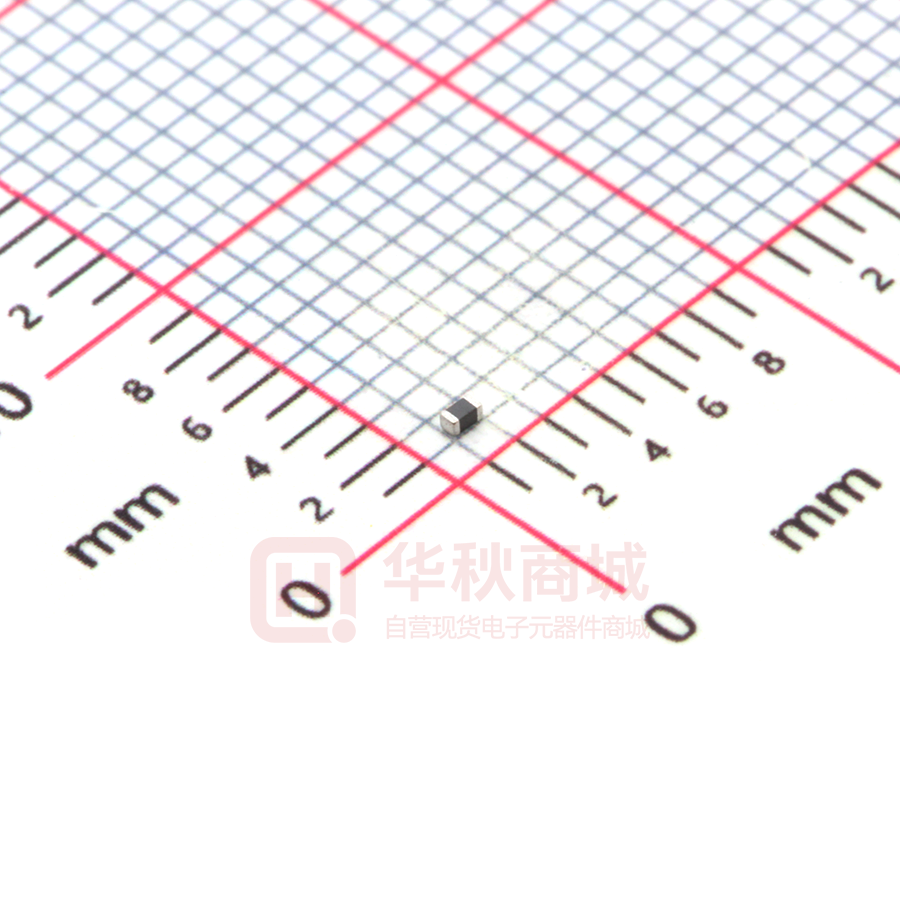

SBY100505T-102Y-N

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BBSY/BBBK Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Multilayer Ferrite Chip Beads Multilayer Ferrite Chip Beads Chilisin offers a wide range of multi-layered ferrite chip beads with various sizes, frequency characteristics, and impedance values for EMI solutions. These ferrite formulas are used to compose seven types of EMI suppression chip beads: SB, GB, PB, UPB, NB, HF, and VPB series. Product Identification  Product symbol: SB, GB, PB, UPB, NB, HF, VPB  Packaging: T：Tape and Reel；B：Bulk  Tolerance: Y = ± 25%; M = ± 20%; T:±30%  Note: RoHS Compliant Shape and Dimensions Recommended Pattern Dimensions in mm Dimensions in mm TYPE A B C D TYPE A B C 060303 0.60.03 0.300.03 0.30.03 0.150.05 060303 0.2 ~ 0.3 0.75 ~ 1.05 0.3 100505 1.00.10 0.500.10 0.50.10 0.250.10 100505 0.4 1.2 ~ 1.4 0.5 160805 1.60.15 0.800.15 0.50.15 0.30.2 160805 0.7 ~ 0.8 1.8 ~ 2.0 0.6 ~ 0.8 160808 1.60.15 0.800.15 0.80.15 0.30.2 160808 0.7 ~ 0.8 1.8 ~ 2.0 0.6 ~ 0.8 201209 2.00.20 1.250.20 0.90.20 0.50.3 201209 1.0 ~ 1.2 2.6 ~ 4.0 1.0 ~ 1.2 321611 3.20.20 1.600.20 1.10.20 0.50.3 321611 2.0 4.2 ~ 5.2 1.2 ：SBY / SBJ / NB / PB ：UPB ：SBY / SBJ / NB / PB / UPB / HF ：SBK / SBJ / GB / PB / NB / UPB / VPB ：SBK / GB / PB / UPB ：SBY / SBK / PBY / UPB Dimension Conversion Code Dimension in mm (AxBxC) EIA 060303 0.6X0.3X0.3 0201 100505 1.0X0.5X0.5 0402 160805 1.6x0.8x0.5 0603 160808 1.6x0.8x0.8 0603 201209 2.0x1.2x0.9 0805 321611 3.2x1.6x.1.1 1206 ＊ Don’t apply narrower pattern than listed above to PBY and UPB. Narrow pattern might cause excessive heat or open circuit. SMD Multilayer Ferrite Chip Beads – SBY/SBK Series Electrical Characteristics Impedance Test Frequency RDC Rated current (Ω±25%) (MHz) (Ω) Max (mA) Max SBY060303T-100Y-N 10 100 0.1 500 SBY060303T-600Y-N 60 100 0.4 200 SBY060303T-121Y-N 120 100 0.5 200 SBY060303T-241Y-N 240 100 0.8 200 SBY060303T-601Y-N 600 100 1.5 100 Part Number Note: When ordering, please specify tolerance code. Tolerance : Y=±25%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Rate Current：Applied the current to coils, the temperature rise shall not be more than 30℃  Measure Equipment： Z：HP4291A RDC：HP4338B or CHEN HWA 502 Test Instruments：Agilent E4991A Impedance / Material Analyzer 120 12 Z 8 6 X 4 200 100 Z 80 60 40 20 2 R 0 1 10 1000 10 10 100 1000 R 1 X 100 FREQUENCY (MHz) RDC
