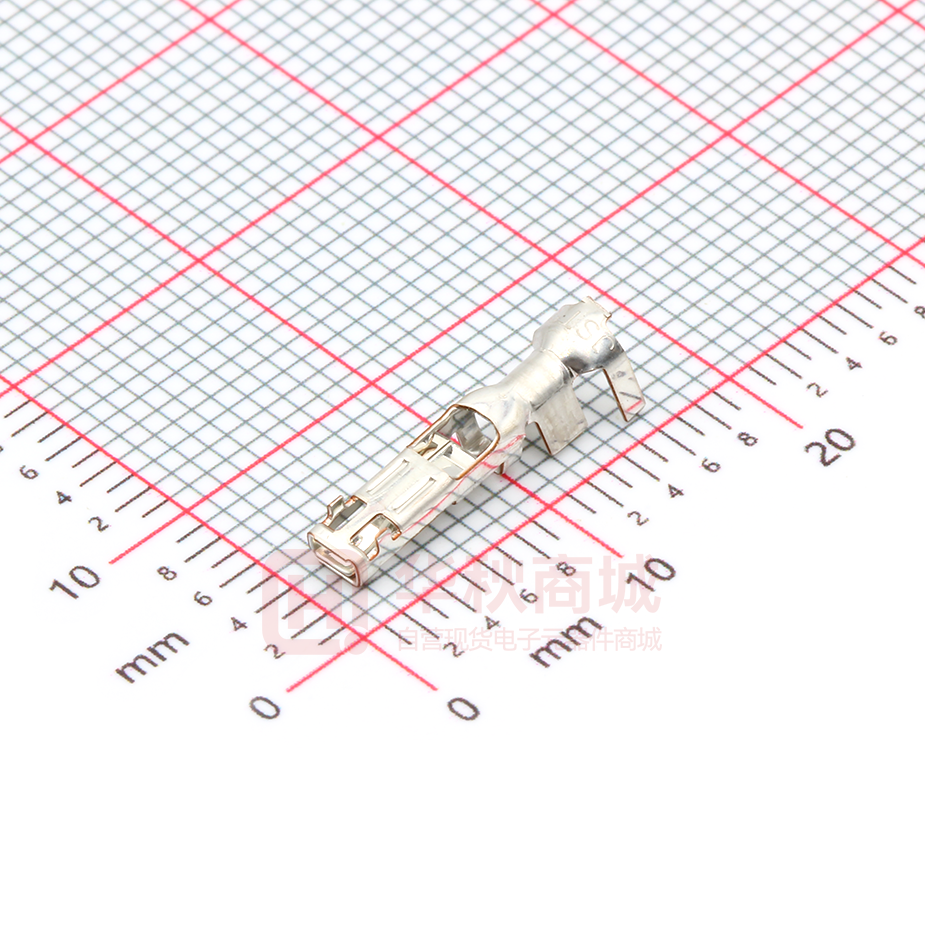

SYF-41T-P0.5A

VYH CONNECTOR 6.5mm pitch/Disconnectable Crimp style connectors Specifications ––––––––––––––––––– • Current rating: 15 A AC, DC (2 circuits/ AWG #14) • Voltage rating: 300 V AC, DC • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max. • Insulation resistance: 1,000 MΩ min. • Withstanding voltage: 1,500 VAC/minute • Applicable wire: AWG #26 to #14 • Applicable PC board thickness: 1.6 mm Note: The current rating differs depending on the number of circuits and the wire size used in each connector. The table below lists the current rating as a function of the number of circuits and the wire size. Current unit:A Circuits 2 3 4 6 This VYH connector is designed for wireto-board 6.5 mm pitch connector corresponding to large current. Secondary retainer, which prevents from insufficient insertion of contact and coming off contact, may use and large current circuit can be connected certainly and safely. ＃14 ＃16 ＃18 15 14 13 12 10 9 9 8 7 6 6 5 Wire size(AWG) ＃20 ＃22 5 4 4 3 ＃24 4 4 4 3 ＃26 3 3 3 2 2 2 2 2 Note: Do not branch in parallel current which exceeds the rated current (e.g. more than 15 A in the case of 2 circuits with AWG #14). If branched in parallel, current imbalance or other problems may develop. If it is absolutely necessary to branch such a large current in parallel, design the circuits without causing any imbalance and provide an extra margin for each circuit. * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. * Compliant with RoHS. Standards –––––––––––––––––––––– • Corresponding to large current • Misinsertion prevention • Housing lance for contact retention • Secondary retainer 0 Recognized E60389 1 Certified LR70035705 2R50036139 PC board layout and Assembly layout Double-row type Single-row type （10.8） （16.95） φ1.4 ＋0.1 0 （φ3.3） (Land) Connector outline Circuit No.1 φ1.4 ＋0.1 0 （24） （24） 8.4 ±0.05 2 8.4 Connector outline Circuit No.1 6.5 2 ±0.05 4.5 （φ3.3） (Land) （3.2） （16.4） ±0.05 6.5 ±0.05（3.6） ±0.05 ±0.05 4.5 ±0.05 （2.9） 6.5 (4.5) （3.2） φ1.4 ＋0.1 0 （25.8） A φ1.4 ＋0.1 0 ±0.05 （2.9） （25.8） A ±0.05 Note: 1. The above figure is the figure viewed from the connector mounting side . 2. Tolerances are non-cumulative: ±0.05 mm for all centers. 3. Hole dimensions differ according to the type of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details. 1 VYH CONNECTOR Contact SVYF type 2.8 2.8 14.2 2.4 SYF-01T-P0.5A SYF-41T-P0.5A SYF-61T-P0.5A *SVYF-41T-P0.5A-13.5 *SVYF-61T-P0.5A Insulation O.D. (mm) Q't y/ reel 0.13∼0.5 26∼20 1.3∼2.5 4,000 0.5∼1.25 20∼16 2.0∼3.4 4,000 0.75∼2.0 18∼14 2.1∼3.4 2,000 0.5∼1.25 20∼16 2.0∼3.4 4,000 0.75∼2.0 18∼14 2.1∼3.6 2,000 Material and Finish 2 Copper alloy, tin-plated (reflow treatment) 1.8 1.8 2.4 Crimping machine Crimp applicator *MKS-SC-YL ― SC/SYF/M-01-05 APLSC SYF/M01-05 ― ― MK/SYF/M-61-05 APLMK SYF/M61-05 MKS-L SVYF-61T-P0.5A Crimp applicator with dies MK/SYF/M-61-05 APLMK SYF/M61-05 MKS-L AP-K2N Applicator Dies MK/SYF/M-01-05 APLMK SYF/M01-05 MKS-L SYF-01T-P0.5A SYF-61T-P0.5A AWG# 14.2 2 Contact Applicable wire mm2 Model No. ― RoHS compliance Note: 1. SVYF type contact was developed only for VYH connector in order to improve the prevention of prying. 2. Retainer cannot be used when using 41 type contact AWG#16 and 61 type contact. 3. *Marked product is not TÜV approved. Crimping machine Crimp applicator Contact MKS-L SYF-41T-P0.5A AP-K2N *MKS-SC-YL MKS-L SVYF-41T-P0.5A-13.5 ― Applicator Dies Crimp applicator with dies MK/SYF/M-41-05 APLMK SYF/M41-05 SC/SYF/M-41-05 APLSC SYF/M41-05 MK/SVYF-41-05-13.5 APLMK SVYF41-05-13.5 ― ― Note: *Strip-crimp applicator ― ― Housing Single-row type Type B A 9.4 6.5 1 Singlerow type Circuits Model No. 2 VYHP-02V VYHP-03V VYHP-04V VYHP-04VD VYHP-06VD 3 4 Doublerow type 4 6 Dimensions (mm) Q’ty/ bag A B 6.5 12.3 400 13.0 18.8 300 19.5 25.3 200 6.5 12.3 200 13.0 18.8 150 20.4 Material PA 66, UL94V-0, natural (white) RoHS compliance Double-row type 16.4 B A 20.4 6.5 2 VYH CONNECTOR Shrouded header Single-row type Type 10.8 B B02B-VYHSK-1 B03B-VYHSK-1 B04B-VYHSK-1 B04B-VYHSK-D-1 B06B-VYHSK-D-1 2 Singlerow type A 6.5 3 4 4 6 15.5 Doublerow type Type B 300 19.5 25.3 200 6.5 12.3 200 13.0 18.8 150 Dimensions (mm) Q’ty/ box A B Model No. Circuits 16.4 B02B-VYHSK-M-1 B03B-VYHSK-M-1 B04B-VYHSK-M-1 B04B-VYHSK-DM-1 B06B-VYHSK-DM-1 2 A Singlerow type 6.5 3 4 15.5 Doublerow type 4 6 6.5 12.3 400 13.0 18.8 300 19.5 25.3 200 6.5 12.3 200 13.0 18.8 150 1.5 Material and Finish Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment) Wafer: Glass-filled PA66, UL94V-0, natural (ivory) 3.8 2 400 18.8 RoHS compliance This product displays (LF)(SN) on a label. 4.5 Double-row type 1.2 12.3 Material and Finish 1.5 2 6.5 13.0 Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment) Wafer: Glass-filled PBT, UL94V-0, natural (white) 3.8 1.2 Dimensions (mm) Q’ty/ box A B Model No. Circuits 4.5 6.5 RoHS compliance This product displays (LF)(SN) on a label. 6.5 Retainer Circuits Model No. 2 VYHS-02V-S VYHS-03V-S VYHS-04V-S 3 4 6.5 10.3 4,000 16.8 3,000 19.5 23.3 2,000 A L JST Material B Q'ty/ bag 13.0 Glass-filled PBT, UL94V-0, natural (white) RoHS compliance ¨ V approved. Note: Not TU 3 Dimensions (mm) A B
