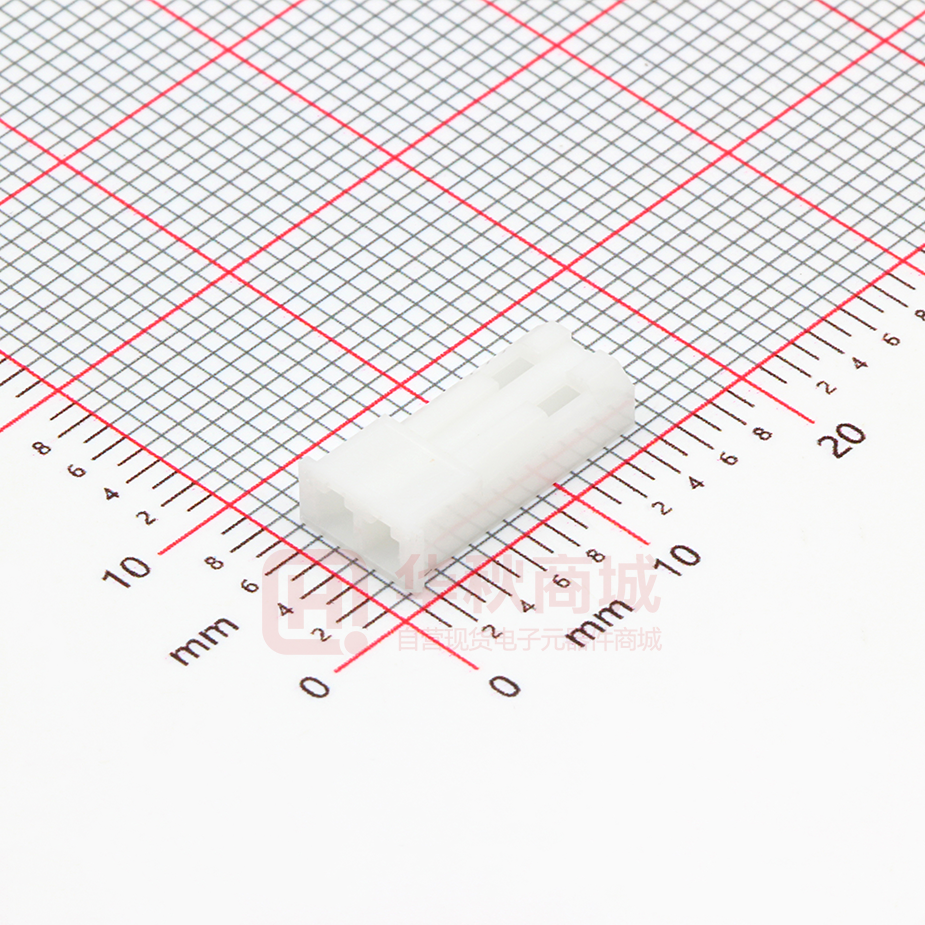

Crimp 2.5mm RCY CONNECTOR Disconnectable Crimp style Wire-to-wire connectors pitch Features –––––––––––––––––––––––– • Use of a free spring contact for superb creep characteristics The contact section features a free spring contact construction, which effectively minimizes stress (creep) caused by repeated insertion and removal at high temperatures. Connector insertion and removal is also smooth, ensuring stable connection performance. • Compact design The RCY connector is designed to be compact. When mated, its overall length is just 23.3mm and its thickness is 4.0mm. • Housing lock Because a lock is provided inside the housing, external force is not applied to the lock. The RCY connector is a compact, 2.5mm pitch wire-to-wire connector for use with a variety of circuits, from signal circuits to power supply circuits, in electrical equipment which is becoming more and more compact. The employment of a free spring contact method ensures stable contact performance, and superb working efficiency of insertion and removal. Specifications ––––––––––––––––––– • Current rating: 3A AC, DC max. • Voltage rating: 250V AC, DC max. • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/10m Ω max. After environmental testing/20m Ω max. • Insulation resistance: 500M Ω min. • Withstanding voltage: 1,500V AC/minute • Applicable wire: AWG #28 to #22 0.08 to 0.33mm2 * Compliant with RoHS. * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. Note: The current rating varies depending on the wire size used in each connector. The table below lists the current rating as a function of the wire size. Current unit: A Circuits 2 Wire size (AWG) #22 #24 #26 #28 3 2 1 0.5 Standards –––––––––––––––––––––– 0 1 Recognized E60389 Certified LR20812 1 RCY CONNECTOR Contact–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Socket contact 1.1 1.7 Pin contact 11 15.8 1.8 2 2 1.7 0.64 1.7 Pin contact SYM-001T-P0.6 Q´ty / reel Applicable wire Model No. Socket contact mm2 AWG # Insulation O.D. (mm) SYF-001T-P0.6 0.08 to 0.33 28 to 22 1.2 to 1.8 Pin contact Socket contact 8,500 7,500 Material and Finish Phosphor bronze, tin-plated (reflow treatment) RoHS compliance SYF-001T-P0.6 displays (LF)(SN) on a label. Note: Contact JST for brass products. Housing ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Plug housing (for socket contact) 6.3 5.3 2.5 6.7 5.9 1 2 2.5 2 1 Receptacle housing (for pin contact) 4.3 9.5 Model No. Circuits 2 13 3.2 19 Q´ty / bag Material Receptacle housing Plug housing SYR-02T SYP-02T-1 PA 66, UL94V-2, red 1,000 SYR-02TV SYP-02TV-1 PA 66, UL94V-0, white (natural) 1,000 RoHS compliance Assembly layout––––––––––––––––––––– Crimping machine, Applicator ––––––––– Contact 23.3 Crimping machine Crimp applicator MKS-L, MSK-LS SYM-001T-P0.6 4 AP-K2N SYF-001T-P0.6 Note: *Strip-crimp applicator 2 Applicator Dies Crimp applicator with dies MK/SYM-001-06 APLMK SYM001-06 *MKS-SC SC/SYM-001-06 APLSC SYM001-06 MKS-L MK/SYF-001-06 APLMK SYF001-06 – – –
