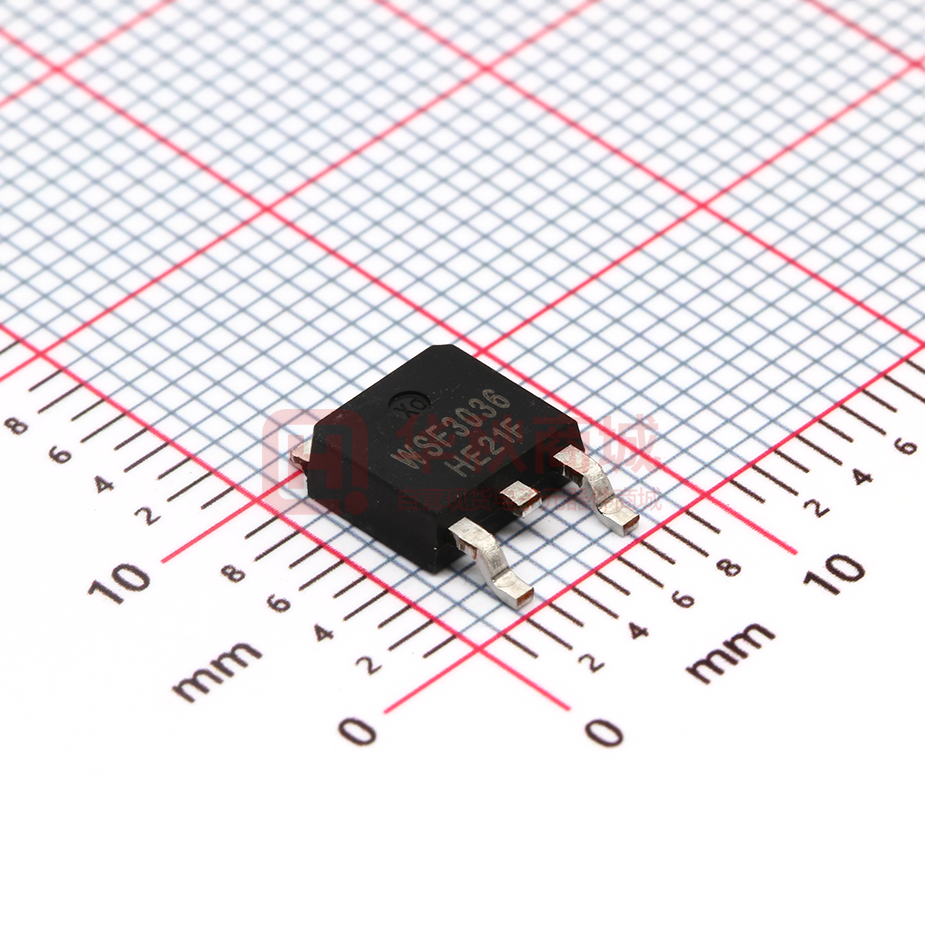

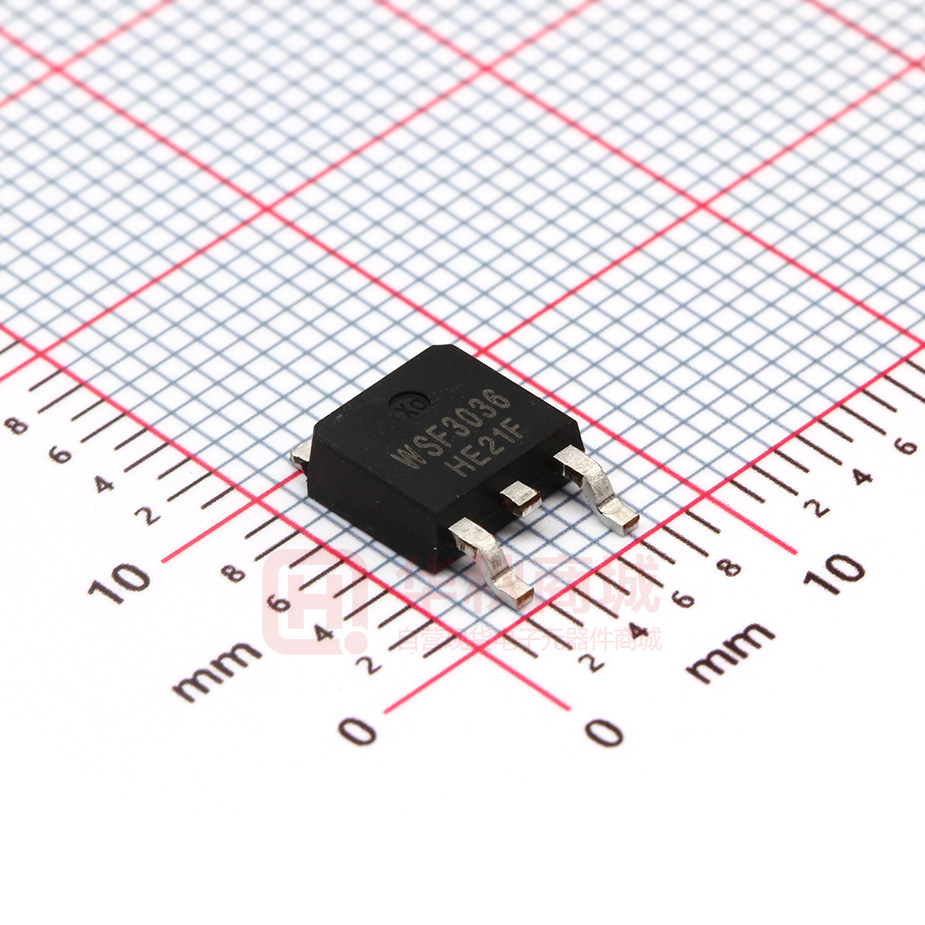

WSF3036

WSF3036 N-Ch MOSFET General Description Product Summery The WSF3036 is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . BVDSS RDSON ID 30V 16mΩ 36A Applications The WSF3036 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability approved. z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Power System Features z Load Switch z Advanced high cell density Trench technology TO-252 Pin Configuration z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings Symbol Parameter VDS VGS ID@TC=25℃ ID@TC=100℃ IDM Rating Units Drain-Source Voltage 30 V Gate-Source Voltage ±20 V 1 36 A 1 26 A 58 A Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current 2 3 EAS Single Pulse Avalanche Energy 70 mJ IAS Avalanche Current 20 A Total Power Dissipation 22 W TSTG Storage Temperature Range -55 to 150 ℃ TJ Operating Junction Temperature Range -55 to 150 ℃ PD@TC=25℃ 4 Thermal Data Symbol RθJA RθJA RθJC www.winsok.tw Parameter Typ. 1 Thermal Resistance Junction-Ambient (
