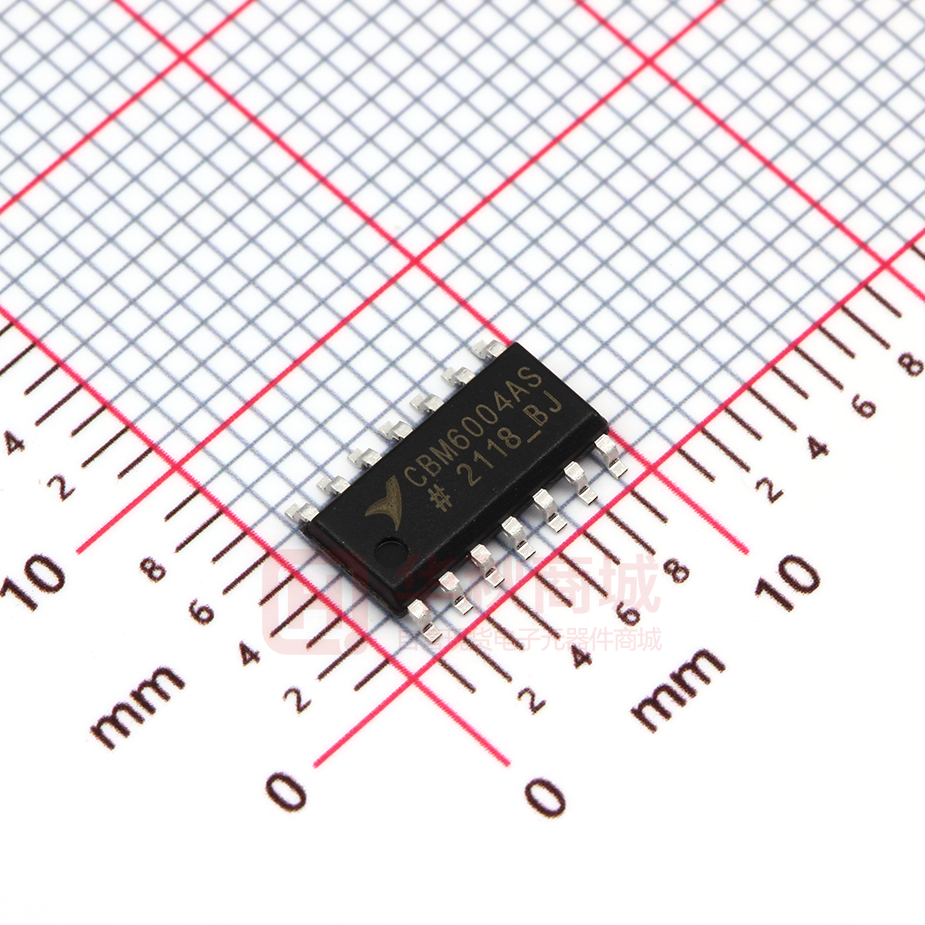

CBM6004AS14

CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION Features  Description Single-Supply Operation from +1.8V ~ The CBM6001 family have a high +6V gain-bandwidth product of 1MHz, a slew rate  Rail-to-Rail Input / Output of 0.8V/μs, and a quiescent current of 75  Gain-Bandwidth Product: 1MHz (Typ.) μA/amplifier at 5V. The CBM6001 family is  Low Input Bias Current: 1pA (Typ.) designed to provide optimal performance in  Low Offset Voltage: 3.5mV (Max.) low voltage and low noise systems. They  Quiescent Current: 75µA per Amplifier provide rail-to-rail output swing into heavy (Typ.) loads. The input common mode voltage  Embedded RF Anti-EMI Filter rangeμ includes ground, and the maximuμm  Operating Temperature: -40°C ~ +125°C input offset voltage is 3.5mV for CBM6001  Small Package: family. They are specified over the extended CBM6001 Available in SOT23-5 and industrial SC70-5 Packages +125℃ ). The operating range is from 1.8V to CBM6002 Available in SOP-8 and MSOP-8 6V. The CBM6001 single is available in Green Packages SC70-5 and SOT23-5 packages. The CBM6002 CBM6004 Available in SOP-14 and dual is available in Green SOP-8 and MSOP-8 TSSOP-14 Packages packages. The CBM6004 Quad is available in ASIC Input or Output Amplifier  Sensor Interface  Medical Communication  Smoke Detectors  Audio Output  Piezoelectric Transducer Amplifier  Medical Instrumentation  Portable Systems range (-40℃ Green SOP-14℃ and TSSO℃P-14 packages. Application  temperature 1 www.corebai.com to CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION PIN CONFIGURATION Figure 1. Pin Assignment Diagram 2 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION ABSOLUTE MAXIMUM RATINGS Condition Min Max Power Supply Voltage (VDD to VSS) -0.5V +7.5V Analog Input Voltage (IN+ or IN-) VSS-0.5V VDD+0.5V PDB Input Voltage VSS-0.5V +7V -45℃ +125℃ Operating Temperature Range Junction Temperature +160℃ Storage Temperature Range -55℃ Lead Temperature (soldering, 10sec) +150℃ +260℃ Package Thermal Resistance (TA=+25℃) SOP-8, θJA 125℃/W MSOP-8, θJA 216℃/W SOT23-5, θJA 190℃/W SC70-5, θJA 333℃/W ESD Susceptibility HBM 6KV MM 400V Note: Stress greater than those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions outside those indicated in the operational sections of this specification are not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. 3 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION ELECTRICAL CHARACTERISTICS At VS = +5V, RL = 100kΩ connected to VS/2, and VOUT = VS/2, unless otherwise noted. CBM6001/CBM6002/CBM6004 PARAMETER SYMBOL CONDITIONS TYP +25℃ MIN/MAX OVER TEMPERATURE +25℃ -40℃ to +85℃ UNITS MIN/MAX INPUT CHARACTERISTICS Input Offset Voltage Vos VCM = VS/2 0.8 3.5 5.6 mV MAX Input Bias Current IB 1 pA TYP Input Offset Current IOS 1 pA TYP -0.1 to +5.6 V TYP Common-Mode Voltage Range VCM VS = 5.5V VS = 5.5V, VCM = Common-Mode Rejection Ratio CMRR 70 -0.1V to 4V RL = 5kΩ, VO = Gain AOL +0.1V to +4.9V Drift dB 68 56 55 80 70 70 dB MIN RL = 10kΩ,VO = 100 +0.1V to +4.9V Input Offset Voltage 62 MIN VS = 5.5V, VCM = -0.1V to 5.6V Open-Loop Voltage 62 ∆VOS/∆T 94 85 2.7 µV/℃ TYP OUTPUT CHARACTERISTICS VOH RL = 100kΩ 4.997 4.980 4.970 V MIN Output Voltage Swing VOL RL = 100kΩ 5 20 30 mV MAX from Rail VOH RL = 10kΩ 4.992 4.970 4.960 V MIN VOL RL = 10kΩ 8 30 40 mV MAX 84 60 45 75 60 45 mA MIN 1.8 1.8 V MIN 6 6 V MAX 60 58 dB MIN Output Current ISOURCE ISINK RL = 10Ω to VS/2 POWER SUPPLY Operating Voltage Range Power Supply Rejection PSRR VS = +2.5V to +6V, 82 4 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION Ratio Quiescent Current / Amplifier VCM = +0.5V IQ 75 110 125 μA MAX 1 MHz TYP 0.8 V/µs TYP 5.3 µs TYP 2.6 µs TYP DYNAMIC PERFORMANCE (CL = 100pF) Gain-Bandwidth Product GBP Slew Rate SR Settling Time to 0.1% tS G = +1, 2V Output Step G = +1, 2V Output Step Overload Recovery Time NOISE PERFORMANCE Voltage Noise Density en f = 1kHz 27 f = 10kHz 20 nV/ nV/ t t TYPICAL CHARACTERISTICS 5 www.corebai.com TYP TYP CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION At TA=+25℃, Vs=5V, RL=100KΩ connected to VS/2 and VOUT= VS/2, unless otherwise noted. TYPICAL CHARACTERISTICS 6 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION At TA=+25℃, Vs=5V, RL=100KΩ connected to VS/2 and VOUT= VS/2, unless otherwise noted. APPLICATION NOTES Sise 7 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION CBM6001 family series op amps are unity-gain stable and suitable for a wide range of general-purpose applications. The small footprints of the CBM6001 family packages save space on printed circuit boards and enable the design of smaller electronic products. Power Supply Bypassing and Board Layout CBM6001 family series operates from a single 1.8V to 6V supply or dual ±0.9V to ±3V supplies. For best performance, a 0.1µF ceramic capacitor should be placed close to the VDD pin in single supply operation. For dual supply operation, both VDD and VSS supplies should be bypassed to ground with separate 0.1µF ceramic capacitors. Low Supply Current The low supply current (typical 75µA per channel) of CBM6001 family will help to maximize battery life. They are ideal for battery powered systems. Operating Voltage CBM6001 family operates under wide input supply voltage (1.8V to 6V). In addition, all temperature specifications apply from -40℃ to +125℃. Most behavior remains unchanged throughout the full operating voltage range. These guarantees ensure operation throughout the single Li-Ion battery lifetime. Rail-to-Rail Input The input common-mode range of CBM6001 family extends 100mV beyond the supply rails (VSS-0.1V to VDD+0.1V). This is achieved by using complementary input stage. For normal operation, inputs should be limited to this range. Rail-to-Rail Output Rail-to-Rail output swing provides maximum possible dynamic range at the output. This is particularly important when operating in low supply voltages. The output voltage of CBM6001 family can typically swing to less than 10mV from supply rail in light resistive loads (>100kΩ), and 60mV of supply rail in moderate resistive loads (10kΩ). Capacitive Load Tolerance The CBM6001 family is optimized for bandwidth and speed, not for driving capacitive loads. Output capacitance will create a pole in the amplifier’s feedback path, leading to excessive peaking and potential oscillation. If dealing with load capacitance is a requirement of the application, the two strategies to consider are (1) using a small resistor in series with the amplifier’s output and the load capacitance and (2) reducing the bandwidth of the amplifier’s feedback loop by increasing the overall noise gain. Figure 2 shows a unity gain follower using the series resistor strategy. The resistor isolates the output from the capacitance and, more importantly, creates a zero in the feedback path that compensates for the pole created by the output capacitance. 8 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION Figure 2. Indirectly Driving a Capacitive Load Using Isolation Resistor The bigger the RISO resistor value, the more stable VOUT will be. However, if there is a resistive load RL in parallel with the capacitive load, a voltage divider (proportional to RISO/RL) is formed, this will result in a gain error. The circuit in Figure 3 is an improvement to the one in Figure 2. RF provides the DC accuracy by feed-forward the VIN to RL. CF and RISO serve to counteract the loss of phase margin by feeding the high frequency component of the output signal back to the amplifier’s inverting input, thereby preserving the phase margin in the overall feedback loop. Capacitive drive can be increased by increasing the value of CF. This in turn will slow down the pulse response. Figure 3. Indirectly Driving a Capacitive Load with DC Accuracy 9 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION Typical Application Circuits Differential amplifier The differential amplifier allows the subtraction of two input voltages or cancellation of a signal common the two inputs. It is useful as a computational amplifier in making a differential to single-end conversion or in rejecting a common mode signal. Figure 4. shown the differential amplifier using CBM6001 family. Figure 4. Differential Amplifier 锨῜ = 锨῜ = If the resistor ratios are equal (i.e. R1=R3 and R2=R4), then Low Pass Active Filter The low pass active filter is shown in Figure 5. The DC gain is defined by –R2/R1. The filter has a -20dB/decade roll-off after its corner frequency ƒC=1/(2πR3C1). Figure 5. Low Pass Active Filter 10 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION Instrumentation Amplifier The triple CBM6001 family can be used to build a three-op-amp instrumentation amplifier as shown in Figure 6. The amplifier in Figure 6 is a high input impedance differential amplifier with gain of R2/R1. The two differential voltage followers assure the high input impedance of the amplifier. Figure 6. Instrument Amplifier 11 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION PACKAGE OUTLINE DIMENSIONS SOT23-5 Symbol Dimensions In Millimeters Dimensions Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950 BSC 0.037 BSC e1 1.900 BSC 0.075BSC L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 12 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION MSOP-8 Symbol Dimensions In Millimeters Dimensions Inches Min Max Min Max A 0.820 1.100 0.032 0.043 A1 0.020 0.150 0.001 0.006 A2 0.750 0.950 0.030 0.037 b 0.250 0.380 0.010 0.015 c 0.090 0.230 0.004 0.009 D 2.900 3.100 0.114 0.122 E 2.900 3.100 0.114 0.122 E1 4.750 5.050 0.187 0.199 e 0.650 BSC 0.026 BSC L 0.400 0.800 0.016 0.031 θ 0° 6° 0° 6° 13 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION TSSOP-14 Symbol Dimensions In Millimeters Min TYP A Max 1.200 A1 0.050 A2 0.900 b 0.200 0.280 c 0.100 0.190 D 4.860 4.960 5.060 E 6.200 6.400 6.600 E1 4.300 4.400 4.500 e L 0.150 1.000 1.050 0.650 BSC 0.450 0.600 L1 1.000 REF L2 0.250 BSC R 0.090 θ 1° 0.750 8° 14 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION SOIC-8(SOP8) Symbol Dimensions In Millimeters Dimensions Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.330 0.510 0.013 0.020 c 0.170 0.250 0.006 0.010 D 4.700 5.100 0.185 0.200 E 3.800 4.000 0.150 0.157 E1 5.80 6.200 0.228 0.244 e 1.270 BSC 0.050 BSC L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 15 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION SOIC-14(SOP14) Symbol Dimensions In Millimeters Dimensions Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.250 1.650 0.049 0.065 A3 0.550 0.750 0.022 0.030 b 0.360 0.490 0.014 0.019 D 8.530 8.730 0.336 0.344 E 5.800 6.200 0.228 0.244 E1 3.800 4.000 0.150 0.157 e L 1.270 BSC 0.450 0.050 BSC 0.800 0.018 0.032 L1 1.040 REF 0.040 REF L2 0.250 BSC 0.010 BSC R 0.070 0.003 R1 0.070 0.003 h 0.300 0.500 0.012 0.020 θ 0° 8° 0° 8° 16 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION SC70-5 Symbol Dimensions In Millimeters Dimensions Inches Min Max Min Max A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 C 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e e1 0.650 TYP 1.200 L 0.026TYP 1.400 0.047 0.525 REF 0.055 0.021 REF L1 0.260 0.460 0.010 0.018 θ 0° 8° 0° 8° 17 www.corebai.com CBM6001-CBM6002-CBM6004 OPERATION INSTRUCTION PACKAGE/ORDERING INFORMATION MODEL CBM6001 CHANNEL Single CBM6002 Dual CBM6004 Quad ORDER NUMBER PACKAGE DESCRIPTION PACKAGE OPTION MARKING INFORMATION CBM6001AC5 SC70-5 Tape and Reel,3000 6001 CBM6001AST5 SOT23-5 Tape and Reel,3000 6001 CBM6001YSC5 SC70-5 Tape and Reel,3000 6001Y CBM6001YST5 SOT23-5 Tape and Reel,3000 6001Y CBM6002AS8 SOP-8 Tape and Reel,2500 CBM6002 CBM6002AMS8 MSOP-8 Tape and Reel,3000 CBM6002 CBM6004ATS14 TSSOP-14 Tape and Reel,3000 CBM6004 CBM6004AS14 SOP-14 Tape and Reel,2500 CBM6004 18 www.corebai.com
