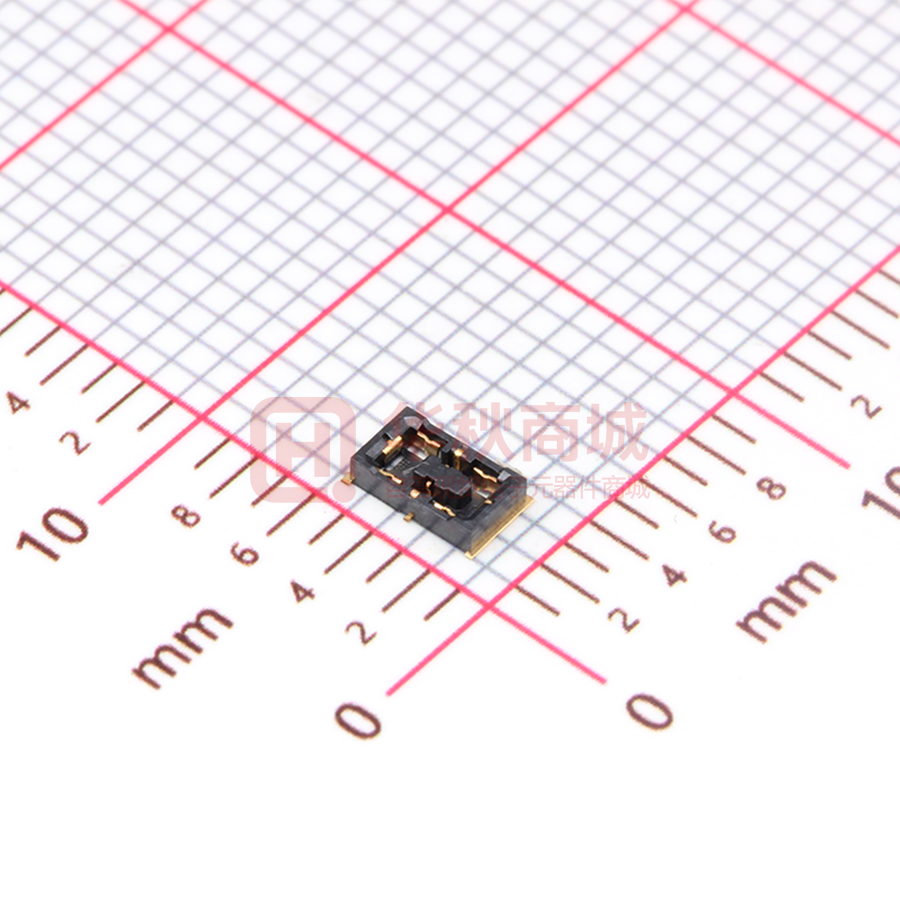

BM22-4S-V(51)

4A Micro Hybrid FPC-to-Board Connectors BM22 Series 2.64mm 4.65mm(DF57H-4pos) Dec.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 63% Reduction in footprint (Compared to the dimensions of Hirose’s W-to-B DF57H) 4.24mm ■Features 6.5mm(DF57H-4pos) 1. 4A current rating The space-saving design utilizes two power contacts that can carry up to 4A of current, and signal contacts that can also carry 0.3A of current. This is all delivered in a small connector that features a small mounting depth of 2.64mm. (Fig.1) Fig.1 Vacuum Pick-up Area 0.7mm 0.72mm 2. Two point contact structure The structure utilizes two points on each contact to ensure a secure connection for both types of contacts (power and signal). (Fig.2.3) 3. Good mating operability The connector contributes to the enhanced mating operability by giving a click feeling which is effective in preventing incomplete mating, and mating selfalignment of 0.3mm which is secured by the guide ribs. Fig.2 Mating Cross-Section Diagram Two-Point Contact Structure Signal Contact Two-Point Contact Structure Power Contact Fig.3 In cases where the application will demand a high level of reliability, such as automotive, please contact a company representative for further information. 2015.6 ② 1 BM22 Series●4A Micro Hybrid FPC-to-Board Connectors ■Product Specifications Ratings Current rating Voltage rating Operating Storage Power contact : 4A -35 to 85°C (Note 1) -10 to 60ç (Note 2) temperature range Signal contact : 0.3A temperature range Operating Storage 50V AC/DC 20 to 80% 40 to 70% (Note 2) humidity range humidity range Item 1. Insulation resistance Specification Conditions Minimum of 100Mø Measured at 100V DC Dec.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 2. Withstanding voltage No flashover or insulation breakdown Conduct 150V AC for 1 minute 3. Contact resistance Signal contact : Max of 50mø Power contact : Max of 30mø Measured at 20mV AC, 1kHz, 1mA 4. Vibration No electrical discontinuity of 1µs or longer Frequency : 10 to 55Hz, single amplitude of 0.75mm, 10 cycles in each of 3 axis directions for 5 minutes / cycle 5. Humidity Contact resistance : Signal contact Max of 50mø Power contact Max of 30mø Insulation resistance : Min of 50Mø 96 hours at a temperature of 40 ±2ç and a humidity range from 90 to 95% 6. Temperature cycle Contact resistance : Signal contact Max of 50mø Power contact Max of 30mø Insulation resistance : Min of 100Mø -55ç : 30 minutes ➝ 85°C : 30 minutes, 5 cycles 7. Durability Contact resistance : Signal contact Max of 50mø Power contact Max of 30mø 10 mating cycles 8. Solder Heat Resistance No signs of melting or deformity on the molded resin parts and no negative effects on performance. Reflow : according to the Recommended Solder Profile Hand soldering : Soldering iron temperature 350ç, no more than 3 seconds of contact Note 1 : Includes temperature rise caused by current flow. Note 2 : The term "storage" here refers to products stored for a long period prior to board mounting and use. The operating temperature and humidity range covers the non-energized condition of connectors after board mounting and the temporary storage conditions during transportation, etc. ■Material Product Part Material Finish UL standard Insulator LCP Black UL94V-0 Contacts Copper alloy Gold plated ---------- Receptacle / Header ■Product Number Structure ●Receptacles / Headers BM 22 − * S − V (51) ❶ ❷ ❸ ❶ Series name : BM 22 / BM 22L ❷ Number of contacts : 4 (2 for signal and 2 for power) 6 (4 for signal and 2 for power) ❸ Connector type : S : Receptacle P : Header 2 ❹ ❺ ❹ Termination type V : Straight SMT ❺ Gold plated specification and packaging status (51) : Gold plate thickness 0.05µm Embossed tape packaging (10,000pcs/reel) (53) : Gold plate thickness 0.05µm Embossed tape packaging (1,000pcs/reel) BM22 Series●4A Micro Hybrid FPC-to-Board Connectors SIGNAL CONTACT No.3 ■Receptacles A SIGNAL CONTACT No.4 D 0.15 2.64 POWER CONTACT No.1 0.25 SIGNAL CONTACT No.6 SIGNAL CONTACT No.5 0.9 POWER CONTACT No.2 A B±0.02 0.25MIN 2.04MIN ＊ 1.04MAX 0.25±0.02 D±0.02 0.28MAX 0.27±0.02 2.94±0.02 ＋0.05 C MAX 2.94  0  0 2 −0.05 0.45±0.02 1.38±0.02 0.25±0.02 D±0.02 *: No conductive trace area (No of routing different circuit; however the same circuit that is connected to the footprint is allowed, and soldering resist must be applied over the trace.) HRS No. No. of Contacts A B C D BM22-4S-V(51) Part No. 677-1002-6 51 4 4.24 4.54 0.8 ----- BM22-6S-V(51) 677-1004-1 51 6 4.64 4.94 1.2 0.4 Note: This product is packaged on reels; please place your orders for full reel quantities. A ■Headers B SIGNAL CONTACT No.4 C F SIGNAL CONTACT No.3 2.64 0.15 POWER CONTACT No.2 A POWER CONTACT No.1 SIGNAL CONTACT No.5 SIGNAL CONTACT No.6 0.75 Recommended PCB layout Part No. 0 F±0.02 2.94  0 0.25±0.02 0.25±0.02 2.94±0.02 E±0.02 F±0.02 ＋0.05 D±0.02 E±0.02 1.78±0.02 Recommended metal mask dimensions (mask thickness: 100 µm) D±0.02 1.28 −0.05 Dec.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. B±0.02 0.6±0.02 2.14±0.02 Recommended metal mask dimensions (mask thickness: 100 µm) Recommended PCB layout HRS No. No. of Contacts A B C D E F BM22L-4P-V(51) 677-1006-7 51 4 3 2.3 1.2 2.6 0.9 ----- BM22L-6P-V(51) 677-1007-0 51 6 3.4 2.7 1.6 3.0 1.3 0.4 Note: This product is packaged on reels; please place your orders for full reel quantities. 3 BM22 Series●4A Micro Hybrid FPC-to-Board Connectors Embossed Tape Dimensions (complies with JIS C 0806) ●Reel dimensions '&#*¤& &#&'¤%#&* 9 %#(¤%#& %#..¤%#&* %#' ¢-%¤& ¢(-%¤' &' &'¤%#( JcgZZa^c\Y^gZXi^dc %• 9 %• φ&#*[ZZY]daZY^VbZiZg 8 9"9 '¤%#* &' *#*¤%#& %#- &¤ 8 %#& % EgdYjXiaVWZa 8"8 (¤ )¤%#& ¢& '¤%#& &#,*¤%#& ●Reel dimensions )¤%#& 4 ¢-%¤& &,#*¤%#* %#(¤%#& ●Header ¢&#* ¢(-%¤' &+¤%#( 6 7 JcgZZa^c\Y^gZXi^dc ¢' Dec.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ,#*¤%#& ¢&#*[ZZY]daZY^VbZiZg %• 7"7 '¤%#* &' 7 EgdYjXiaVWZa 6"6 %• 6 %#& % %#&¤ ¢' ¢&#* &' )¤%#& '¤%#& )¤%#& φ& (¤ %#' &#,*¤%#& ●Receptacle &(#*¤%#* &,#*¤& BM22 Series●4A Micro Hybrid FPC-to-Board Connectors Usage Recommendations 1.Recommended Soldering Profile B6M'*% '*% IZbeZgVijgZ （） ''%î '%% L^i]^c+%hZXdcYh &-%î &*% .%∼&'%hZX Dec.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. &%% *% Gddb iZbeZgVijgZ % *% &%% &*% '%% '*% (%% =ZVii^bZhZX [Condition] 1. Peak temperature 2. Heat section 3. Preheat section 4. Number of reflow cycles : Maximum of 250ç : 220ç min., within 60 seconds : 150 to 180ç, 90 to 120 seconds : Maximum of 2 cycles Note 1: The temperature represents the PCB surface temperature in the vicinity of the connector lead section. Note 2: For the use of Nitrogen reflow, mount the connectors with an oxygen density of 1,000 ppm or higher. Consult Hirose for the condition less than 1,000 ppm. 2. Recommended manual soldering condition Soldering iron temperature: 340 ±10°C, soldering time: within 3 seconds 3. Recommended stencil thickness and open area ratio to PCB pattern area Thickness: 0.1 mm Open area ratio: 85% for signal contact, and 60% for power contact on the Receptacle side. 70% for both contacts on the Plug side 4. Board warpage Maximum of 0.02 mm in the center of the connector, while using both ends of the connector as reference point 5. Cleaning conditions We do not recommend cleaning these connectors. Cleaning them may alter the mating/un-mating operations. If you do clean them, make sure you test that these operations have not been compromised prior to use. 6. Precautions ●Do not mate or un-mate these connectors until they are mounted, failure to follow this precaution can lead to deformation or damage to these connectors. ●Provide another form of support to the PCB, this connector was not designed to be the main form of support. ●When mating/un-mating this connector, do not apply excessive twisting forces onto the connector. These forces can damage the contacts and alter its performance. ●Do not apply excessive amounts of flux as it may cause the flux to wick. ●There may be a slight variance in the color of the molding between production lots; this variance will not affect the performance of the connector. ●Refer to the next page for the handling precautions when mating and un-mating these connectors. ●If the connector becomes disconnected due to impact, a fall or a counterforce to the FPC, it may be necessary to hold the connector in place with an addition to the device’s case or other cushioning material to hold the connector in place. 5 BM22 Series●4A Micro Hybrid FPC-to-Board Connectors Handling Precautions when Mating Connectors BM22-S-V Dec.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. BM22L-P-V Prior to mating, locate the guidance ribs and align the header. Do not apply excessive force during the mating process as it may damage the contacts. Incorrect Incorrect When the connector has been correctly aligned, the header will be parallel to the receptacle. An even force can now be applied to the header to mate it with the receptacle until it is fully mated. 6 BM22 Series●4A Micro Hybrid FPC-to-Board Connectors Handling Precautions when Un-mating Connectors BM22-S-V Dec.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. BM22L-P-V To un-mate this connector, lift evenly across the header. Make sure that each side of the connector stays parallel to the other. Correct Correct If circumstances prevent the connectors from staying parallel to each other, then one side may be lifted as shown in the diagram. This method is only approved if the connector is mounted onto an extremely rigid circuit board. If the board were to warp during this process it may result in damage to the connector or its solder joints. Pitch orientation Correct Corner orientation Incorrect Do not try to disconnect these connectors by pulling on one side or a single corner, or to un-mate it when it is hasn’t been securely mounted onto a rigid FPC. These actions may lead to deformities and ultimately a damaged connector. Prior to the mounting of these connectors we recommend that you check the rigidity of your FPC to ensure that it meets the standards needed to support these connectors. If the FPC is not strong enough by itself, a stiffener may be applied. If the FPC has a low rigidity the connector may break (as shown in the illustration to the left). We recommend a backing of no less than 0.3 mm of glass epoxy and 0.2 mm of stainless material. 7 Dec.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. BM22 Series●4A Micro Hybrid FPC-to-Board Connectors USA: HIROSE ELECTRIC (U.S.A.), INC. HEADQUARTERS 2688 Westhills Court, Simi Valley, CA 93065-6235 Phone : +1-805-522-7958 Fax : +1-805-522-3217 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. SAN JOSE OFFICE 3255 Scott Boulevard, Building 7, Suite 101 Santa Clara, CA 95054 Phone : +1-408-253-9640 Fax : +1-408-253-9641 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. CHICAGO OFFICE 580 Waters Edge Lane, Suite 205 Lombard IL 60148 Phone : +1-630-282-6701 Mail : inquiries@hirose.com http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. DETROIT OFFICE (AUTOMOTIVE) 17197 N. Laurel Park Drive, Suite 253, Livonia, MI 48152 Phone : +1-734-542-9963 Fax : +1-734-542-9964 http://www.hirose.com/us/ THE NETHERLANDS: HIROSE ELECTRIC EUROPE B.V. Hogehillweg #8 1101 CC Amsterdam Z-O Phone : +31-20-6557460 Fax : +31-20-6557469 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. GERMAN BRANCH Herzog-Carl-Strasse 4 D-73760 Ostfildern (Scharnhauser Park) Phone : +49-711-4560-02-1 Fax : +49-711-4560-02-299 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. NUERNBERG OFFICE Muggenhofer Str. 136 90429 Nuernberg Phone : +49-911 32 68 89 63 Fax : +49-911 32 68 89 69 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. HANOVER OFFICE Bayernstr. 3, Haus C 30855 Langenhagen, Germany Phone : +49-511 97 82 61 30 Fax : +49-511 97 82 61 35 http://www.hirose.com/eu/ FRANCE: HIROSE ELECTRIC EUROPE B.V. PARIS OFFICE Regus La Garenne Colombes,Place de La Belgique, 71 Boulevard National La Garenne Colombes, 92250, France Phone : +33 (0) 1 7082 3170 Fax : +33 (1) 7082 3101 http://www.hirose.com/eu/ UNITED KINGDOM: HIROSE ELECTRIC EUROPE BV (UK BRANCH) 4 Newton Court, Kelvin Drive, Knowlhill, Milton Keynes, MK5 8NH Phone : +44-1908 202050 Fax : +44-1908 202058 http://www.hirose.com/eu/ CHINA: HIROSE ELECTRIC (SHANGHAI) CO., LTD. 1601, Henderson Metropolitan, NO.300, East Nanjing Road, Huangpu District, Shanghai, China 200001 Phone : +86-21-6391-3355 Fax : +86-21-6391-3335 http://www.hirose.com/cn/ CHINA: HIROSE ELECTRIC (SHANGHAI) CO.,LTD. BEIJING BRANCH A1001, Ocean International Center, Building 56# East 4th Ring Middle Road, ChaoYang District, Beijing, 100025 Phone : +86-10-5165-9332 Fax : +86-10-5908-1381 http://www.hirose.com/cn/ CHINA: HIROSE ELECTRIC TECHNOLOGIES (SHENZHEN) CO., LTD. Room 09-13, 19/F, Office Tower Shun Hing Square, Di Wang Commercial Centre, 5002 Shen Nan Dong Road, Shenzhen City, Guangdong Province, 518008 Phone : +86-755-8207-0851 Fax : +86-755-8207-0873 http://www.hirose.com/cn/ HONG KONG: HIROSE ELECTRIC HONGKONG TRADING CO., LTD. Room 1001, West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Phone : +852-2803-5338 Fax : +852-2591-6560 http://www.hirose.com/hk/ TAIWAN: HIROSE ELECTRIC TAIWAN CO., LTD. 103 8F, No.87, Zhengzhou Rd., Taipei Phone : +886-2-2555-7377 Fax : +886-2-2555-7350 http://www.hirose.com/tw/ KOREA: HIROSE KOREA CO., LTD. 250, Huimanggongwon-ro, Siheung-si, Gyeonggi-do, Korea, 429-849 Phone : +82-31-496-7000,7124 Fax : +82-31-496-7100 http://www.hirose.co.kr/ SINGAPORE: INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. DELHI LIAISON OFFICE HIROSE ELECTRIC SINGAPORE PTE. LTD. 10 Anson Road #26-16, International Plaza Office NO.519, Regus-Green Boulevard, Level5, Tower C, Sec62, Plot B-9A, Block B, Noida, 201301, Uttar Pradesh, India 079903, Singapore Phone : +91-12-660-8018 Phone : +65-6324-6113 Fax : +91-120-4804949 Fax : +65-6324-6123 http://www.hirose.com/sg/ http://www.hirose.com/sg/ INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. BANGALORE LIAISON OFFICE Unit No-403, 4th Floor, No-84, Barton Centre, Mahatma Gandhi (MG) Road, Bangalore 560 001, Karnataka, India Phone : +91-80-4120 1907 Fax : +91-80-4120 9908 http://www.hirose.com/sg/ MALAYSIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. 1-10-07, Suntech @ Penang Cybercity (1164),Lintang Mayang Pasir 3,11950, Bayan Baru, Penang, Malaysia. Phone : +604-619-2564 Fax : +604-619-2574 http://www.hirose.com/sg/ ® 8 THAILAND: HIROSE ELECTRIC SINGAPORE PTE. LTD. BANGKOK OFFICE (REPRESENTATIVE OFFICE) Unit 4703, 47th FL., 1 Empire Tower, South Sathorn Road, Yannawa, Sathorn, Bangkok 10120 Thailand Phone : +66-2-686-1255 Fax : +66-2-686-3433 http://www.hirose.com/sg/ 6-3,Nakagawa Chuoh-2-Chome,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN TEL: +81-45-620-3526 Fax: +81-45-591-3726 http://www.hirose.com http://www.hirose-connectors.com The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use. The contents of this catalog are current as of date of 06/2015. Contents are subject to change without notice for the purpose of improvements.
