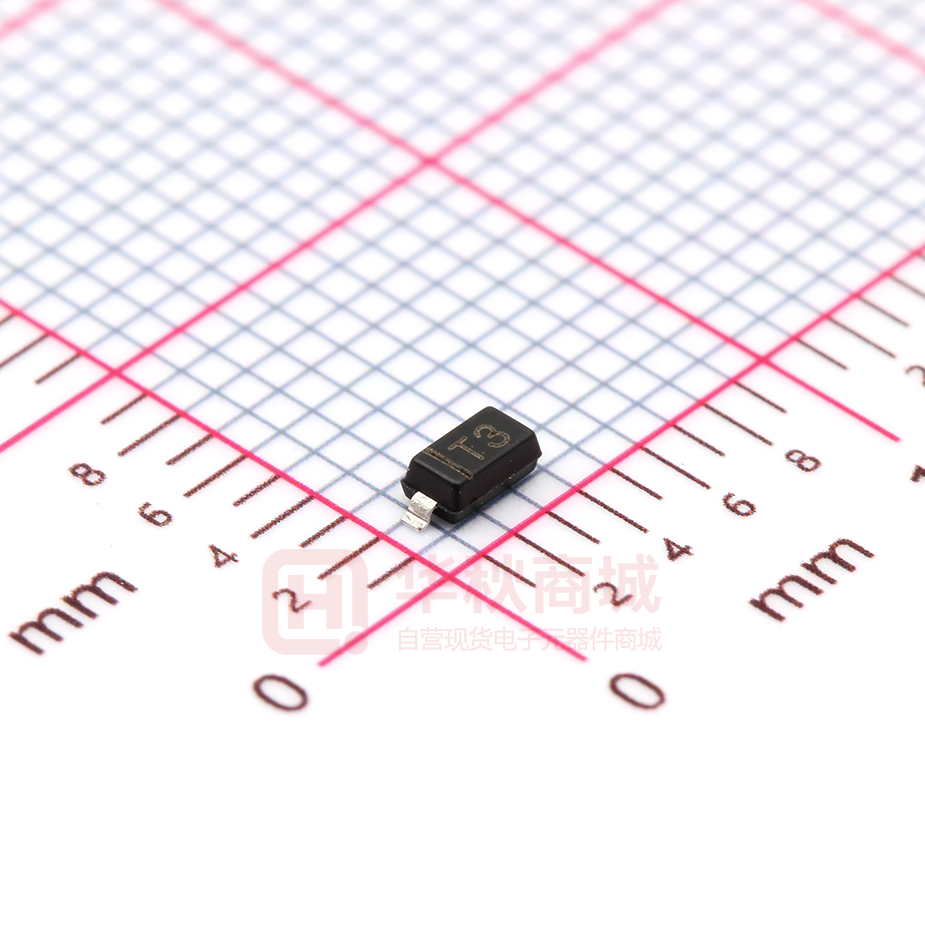

BAV21W

BAV19W-BAV21W Surface mount switching diode FEATURES z Fast Switching Speed. z Surface Mount Package Ideally Suited For Automatic Insertion. z For General Purpose Switching Applications. APPLICATIONS SOD-123 z Surface mount fast switching diode. MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol BAV19W BAV20W BAV21W Unit Non-Repetitive Peak Reverse Voltage VRM 120 200 250 V Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage VRRM VRWM VR 100 150 200 V RMS Reverse Voltage VR(RMS) 71 106 141 V Average Rectified Output Current Io 200 mA Non-Repetitive Peak Forward Surge Current @t=1.0 μs @t=1.0 s IFSM 2.5 0.5 A Power Dissipation Pd 250 mW Thermal Resistance Junction to Ambient Air RθJA 500 ℃/W Operating and Storage Temperature Rage Tj,TSTG -65 to +150 ℃ www.slkormicro.com 1 BAV19W-BAV21W PACKAGE OUTLINE Characteristic Symbol Reverse Breakdown Voltage BAV19W BAV20W BAV21W V(BR)R Maximum Forward Voltage VF1 VF2 Min Max 120 200 250 1.0 1.25 - Unit Test Condition V IR=100uA V IF=100mA IF=200mA IR - 0.1 μA VR=100V VR=150V VR=200V Junction Capacitance Cj - 5.0 pF VR=0,f=1.0MHz Reverse Recovery Time trr - 50 ns IF=IR=30mA, Irr=0.1×IR,RL=100Ω Reverse Current BAV19W BAV20W BAV21W TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified www.slkormicro.com 2 BAV19W-BAV21W PACKAGE OUTLINE Plastic surface mounted package SOD-123 K SOD-123 B C A D H E J Dim Min Max A 1.4 1.8 B 2.55 2.85 C 1.15 Typical D 0.55 Typical E 0.3 0.4 H 0.02 0.10 J K 0.1 Typical 3.55 3.85 All Dimensions in mm www.slkormicro.com 3
