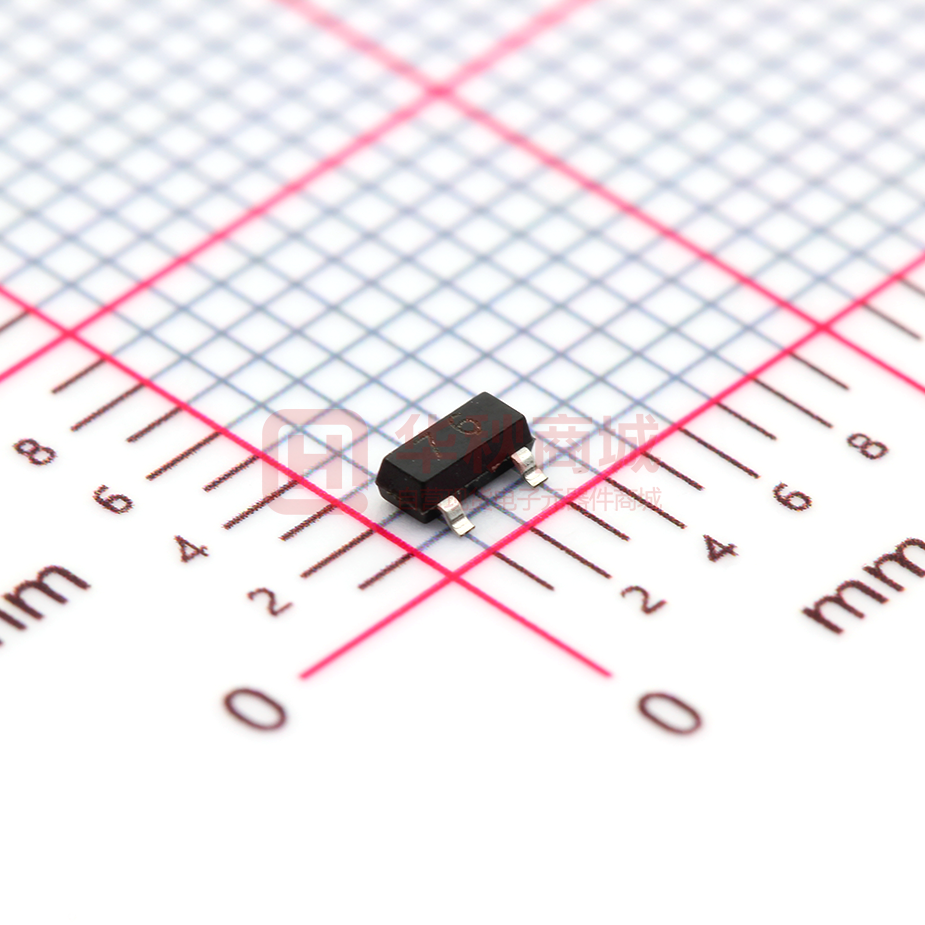

BAS70
SCHOTTKY BARRIER DIODE
627
)($785(6
Low turn-on voltage
z
Fast switching
Also available in lead free version
z
z
BAS70 Marking: 73
BAS70-04 Marking: 74
BAS70-05 Marking: 75
BAS70-06 Marking: 76
0$;,0805$7,1*6#7D Я
6\PERO
3DUDPHWHU
9DOXH
8QLW
95
DC Voltage
70
V
,)
Forward Continuous Current
70
mA
IFSM
Non-Repetitive Peak Forward Surge Current @ t = 8.3ms
100
mA
3'
Power Dissipation
200
mW
RθJA
Thermal Resistance Junction to Ambient
500
Я/W
7-
Junction Temperature
125
Я
Storage Temperature
-55~+150
Я
7VWJ
(/(&75,&$/&+$5$&7(5,67,&67D ЯXQOHVVRWKHUZLVHVSHFLILHG
3DUDPHWHU
5HYHUVHEUHDNGRZQYROWDJH
6\PERO
V(BR)
7HVW FRQGLWLRQV
IR= 10µA
0LQ
0D[
70
8QLW
V
5HYHUVHYROWDJHOHDNDJ HFXUUHQW
IR
VR=50V
100
nA
)RUZDUG YROWDJH
VF
IF=1mA
IF=15mA
410
1000
mV
'LRGHFDS DFLWDQFH
CD
VR=0V f=1MHz
2
pF
5HYHUHVUHFRYHU\WLPH
trr
5
ns
www.slkormicro.com
IF=IR=10mA,Irr=0.1xIR,
RL=100Ω
1
BAS70
Forward
100
Characteristics
Pulsed
Ta=100℃
(uA)
REVERSE CURRENT IR
a
T
IF
=1
00
℃
(mA)
10
FORWARD CURRENT
Characteristics
Reverse
10
Pulsed
T=
a 2
5℃
1
0.1
0.01
0.0
0.2
0.4
0.6
FORWARD VOLTAGE
0.8
VF
0.1
Ta=25℃
0.01
1.0
0
10
20
(V)
30
40
REVERSE VOLTAGE
50
60
70
(V)
VR
Power Derating Curve
Capacitance Characteristics
3.0
1
300
Ta=25℃
250
(mW)
PD
2.0
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
f=1MHz
2.5
1.5
1.0
150
100
50
0.5
0.0
200
0
5
10
REVERSE VOLTAGE
www.slkormicro.com
15
VR
0
20
0
25
50
2
100
75
AMBIENT TEMPERATURE
(V)
Ta
(℃ )
125
BAS70
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
www.slkormicro.com
3
Dimensions In Millimeters
Min
Max
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950 TYP
1.800
2.000
0.550 REF
0.300
0.500
0°
8°
Dimensions In Inches
Min
Max
0.035
0.045
0.000
0.004
0.035
0.041
0.012
0.020
0.003
0.006
0.110
0.118
0.047
0.055
0.089
0.100
0.037 TYP
0.071
0.079
0.022 REF
0.012
0.020
0°
8°
