6K832768F12UB

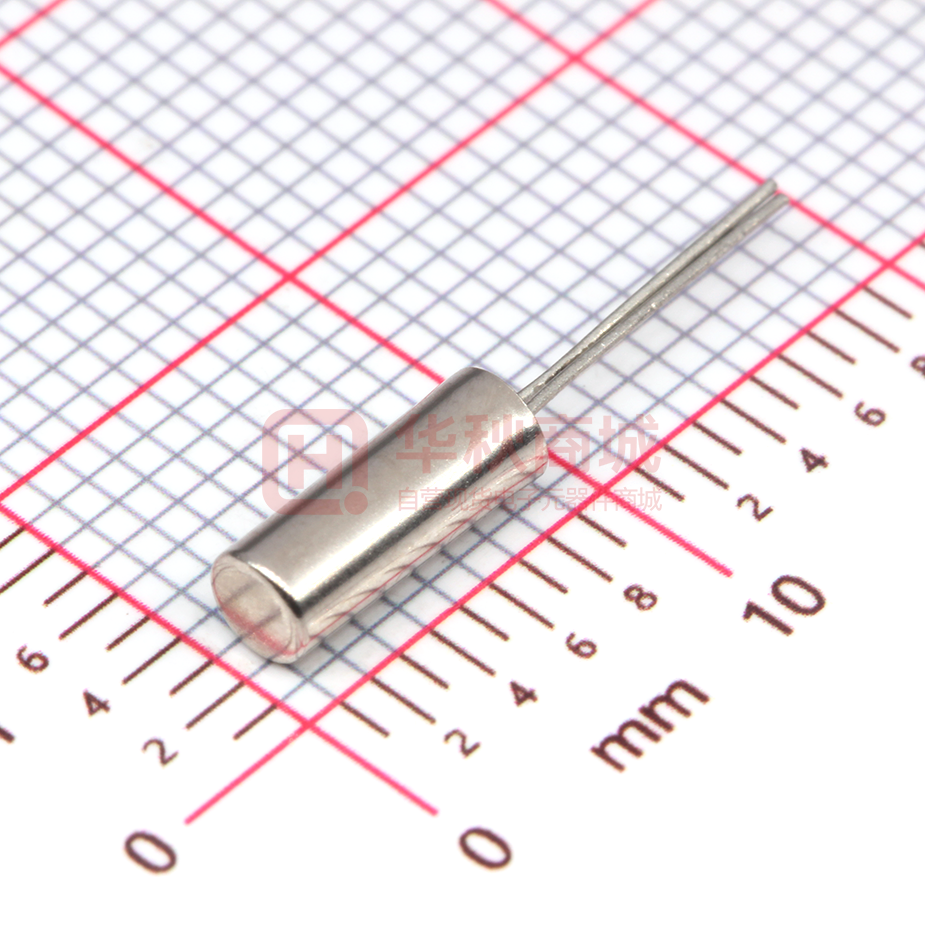

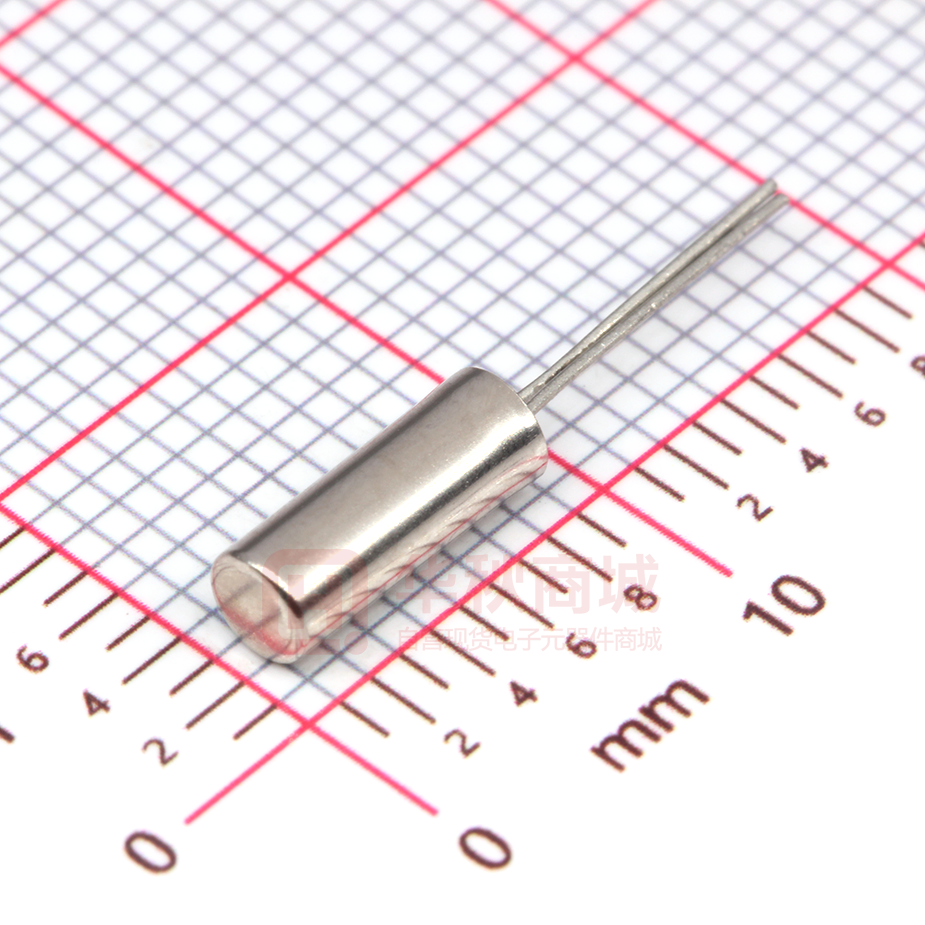

CRYSTAL RESONANCER SERIES 6K8 / 3X8MM TUNING FORK WATCH CRYSTAL 深圳市晶科鑫实业有限公司 Shenzhen Crystal Technology Industrial Co., Ltd APPROVAL SHEET CUSTOMER P/N: TYPE: DESCRIPTION： P N/ SJK： SMD CRYSTAL 圆柱 JU3*8 32.768KHZ MSL： -40~85℃ 6K832768F12U ENVIRONMENTAL： ■RoHS REVISION： 12.5PF ±20PPM A1 ■REACH ■HF □PAHS 2015-4-8 □other MOQ：500pcs Levels 1 SIGNATURE SUPPLIER Issue Check CUSTOMER Approve QA SJK 18682088994 （Mr.Huang） Signature FAE_EMAIL sjk-fae@q-crystal.com Date Date Check Approve： □accept Approve □unaccepted Note: Tel：0755-88352810-837(Mr.huang) Fax：0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 1 /4 CRYSTAL RESONANCER SERIES 6K8 / 3X8MM TUNING FORK WATCH CRYSTAL 1. FEATURE Small size ⚫ 2. APPLICATIONS ⚫ ⚫ Microprocessor Systems Consumer Electronics 3. ELECTRICAL SPECIFICATIONS Frequency 32.768KHz Frequency Tolerance (at 25°C) ±20ppm Load Capacitance(CL) 12.5PF ESR 35 KΩ Max Turnover Temperature 25 ± 2°C Frequency Temperature Curve -0.04ppm/°C² MAX Operating Temperature Range -40 °C to +85°C Storage Temperature Range -40 °C to +85 °C Shunt Capacitance (C0) 0.9pF Typ Dynamic Capacitance (C1) 2.0fF Typ Driver Level (Typical) 1 µW Max Insulation Resistance 100MΩ MIN at DC100V±15V Aging @25°C 1st year (Max) ±3ppm/year max REMARK: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER. Tel：0755-88352810-837(Mr.huang) Fax：0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 2 /4 CRYSTAL RESONANCER SERIES 6K8 / 3X8MM TUNING FORK WATCH CRYSTAL 4. FREQUENCY VS TEMPERATURE CURVE 5. PACKING AND DIMENSIONS (Units: mm) 6. OSCILLATION CIRCUIT Tel：0755-88352810-837(Mr.huang) Fax：0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 3 /4 CRYSTAL RESONANCER SERIES 6K8 / 3X8MM TUNING FORK WATCH CRYSTAL 7. Environment-proof ・Mechanical property No Item Specifications Conditions 1 High temperature storage △f/f =±5 × 10-6 After storage under 85℃ for 500 hrs, 1 measure at room temperature. 2 Low temperature storage △f/f =±5 × 10-6 3 High temperature and high △f/f =±5 × 10-6 humidity storage 4 Thermal shock resistance △f/f =±5 × 10-6 5 Mechanical shock resistance △f/f =±5 × 10-6 6 Vibration resistance △f/f =±5 × 10-6 7 Resistance to soldering heat △f/f =±5 × 10-6 8 Tensile strength of lead wire △f/f =±5 × 10-6 9 Bending strength of lead wire △f/f =±5 × 10-6 After storage under -40℃ for 500hrs, measure at room temperature After storage under 60 ℃ ±2 ℃ , 90 to95% RH for 500 hrs, measure at room temperature。 Measured at room temperature after20 cycles. -25℃⇔+80℃ for 30 minutes. Measure after free drop of the RESONATOR three times from the height of 75cm onto a wooden board. Amplitude 1.5mm and 10～60Hz with cycle time 2～3 minutes in 3 direction (X,Y,and Z axis)each for 2 hrs. Measured at room temperature after immersing the lead wire in a soldering bath of 300℃±10℃ for 5 seconds up to a position where it is2mm away from the root of the plug. Apply a load of 500g for 30 seconds in the lead wire's axial direction. Bending cycle : 0゜→ 45゜→ 0゜→ 45゜→ 0゜ Solderability of lead wire A minimum 95% Apply resin-flux contained-solder to a of the area to be soldering iron of 280 ℃ ±5 ℃ for 5 2 coated with seconds. solder 10 Note: 1. The adove tests no. 1 to 9 must be conducted independently (not series tests) 2. *1: Measure after 24 hours soak at room temperature . 3. *2: Measure after 2 hours soak at room temperature . 8. Precautions (1) Temperature for soldering the lead wire shall not exceed 300℃ and the soldering time shall be within 5 seconds. (2) Position to be soldered : Solder only the position where the lead wire is1.0mm away from the glass seal. Do not solder the case. (3) Cutting, bending and correction of lead wire: The glass seal shall be free of any crack or other damage which may deteriorate the characteristics of RESONATORS. Tel：0755-88352810-837(Mr.huang) Fax：0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 4 /4 1 1 1 2 2 1 2 2
