WSD30140DN56
N-Ch MOSFET
Product Summery
General Description
The WSD30140DN56 is the highest performance
trench N-Ch MOSFET with extreme high
celldensity ,which provide excellent RDSON and gate
charge for most of the synchronous buck converter
applications .
BVDSS
RDSON
ID
30V
1.7mΩ
85A
Applications
The WSD30140DN56 meet the RoHS and Green
Product requirement , 100% EAS guaranteed
with full function reliability approved.
z High Frequency Point-of-Load Synchronous
Buck Converter
z Networking DC-DC Power System
Features
z Power Tool Application
z Advanced high cell density Trench technology

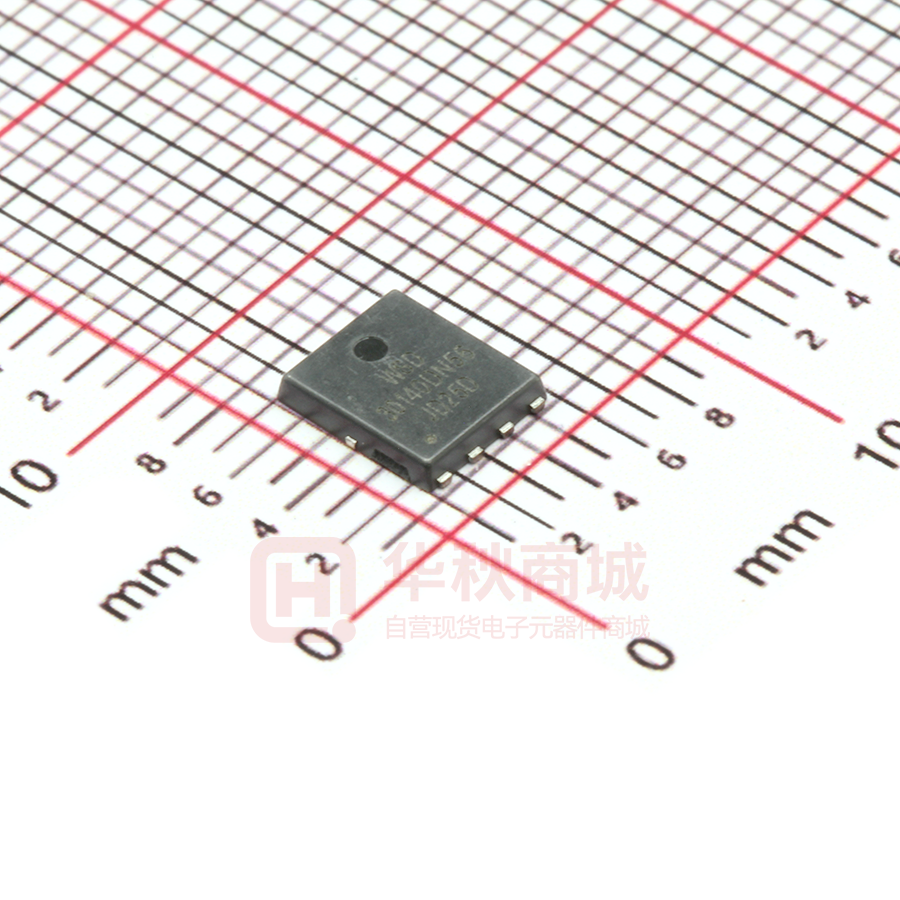

DFN5X6-8 Pin Configuration
z Super Low Gate Charge
z Excellent CdV/dt effect decline
z 100% EAS Guaranteed
z Green Device Available
Absolute Maximum Ratings
Symbol
Parameter
Rating
Units
VDS
Drain-Source Voltage
30
V
VGS
Gate-Source Voltage
ID@TC=25℃
ID@TC=70℃
IDM
±20
V
1,7
85
A
1,7
65
A
300
A
W
Continuous Drain Current, VGS @ 10V
Continuous Drain Current, VGS @ 10V
Pulsed Drain Current
2
PD@TC=25℃
Total Power Dissipation
50
TSTG
Storage Temperature Range
-55 to 150
℃
TJ
Operating Junction Temperature Range
-55 to 150
℃
4
Thermal Data
Symbol
Parameter
Typ.
RθJA
Thermal Resistance Junction-Ambient
RθJC
1
www.winsok.tw
Thermal Resistance Junction-Case
Page 1
1
Max.
Unit
---
55
℃/W
---
1.5
℃/W
Rev 1: May.2019
WSD30140DN56
N-Ch MOSFET
Electrical Characteristics (TJ=25 ℃, unless otherwise noted)
Symbol
BVDSS
Min.
Typ.
Max.
Unit
VGS=0V , ID=250uA
30
---
---
V
Reference to 25℃ , ID=1mA
---
0.02
---
V/℃
---
1.7
2.4
2.5
3.3
Parameter
Conditions
Drain-Source Breakdown Voltage
△BVDSS/△TJ BVDSS Temperature Coefficient
RDS(ON)
Static Drain-Source On-Resistance2
VGS(th)
Gate Threshold Voltage
VGS=10V , ID=20A
VGS=4.5V , ID=15A
VGS=VDS , ID =250uA
1.2
1.7
2.5
VDS=24V , VGS=0V , TJ=25℃
---
---
1
VDS=24V , VGS=0V , TJ=55℃
---
---
5
mΩ
V
uA
IDSS
Drain-Source Leakage Current
IGSS
Gate-Source Leakage Current
VGS=±20V , VDS=0V
---
---
±100
nA
gfs
Forward Transconductance
VDS=5V , ID=20A
---
90
---
S
Qg
Total Gate Charge (4.5V)
---
26
---
Qgs
Gate-Source Charge
---
9.5
---
Qgd
Gate-Drain Charge
---
11.4
---
Turn-On Delay Time
---
11
---
Td(on)
Tr
Td(off)
Tf
Ciss
VDS=15V , VGS=4.5V , ID=20A
nC
Rise Time
VDD=15V , VGEN=10V ,
---
6
---
Turn-Off Delay Time
RG=3Ω, RL=0.75Ω.
---
38.5
---
---
10
---
---
3000
---
---
1280
---
---
160
---
Min.
Typ.
Max.
Unit
VG=VD=0V , Force Current
---
---
85
A
VGS=0V , IS=A , TJ=25℃
---
---
1.2
V
Fall Time
Input Capacitance
VDS=15V , VGS=0V , f=1MHz
Coss
Output Capacitance
Crss
Reverse Transfer Capacitance
ns
pF
Diode Characteristics
Symbol
IS
VSD
Parameter
Conditions
1,6
Continuous Source Current
2
Diode Forward Voltage
A: The value of RθJA is measured with the device mounted on 1in2 FR-4 board with 2oz. Copper, in a still air environment
with TA=25°C. The value in any given application depends on the user's specific board design.
B: Repetitive rating, pulse width limited by junction temperature.
C: The current rating is based on the t≤ 10s junction to ambient thermal resistance rating.
www.winsok.tw
Page 2
Rev 1: May.2019
WSD30140DN56
N-Ch MOSFET
Typical Characteristics
www.winsok.tw
Page 3
Rev 1: May.2019
WSD30140DN56
N-Ch MOSFET
www.winsok.tw
Page 4
Rev 1: May.2019
