SS52B THRU SS5200B
Reverse Voltage - 20 to 200 Volts
Forward Current - 5.0 Ampere
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Features

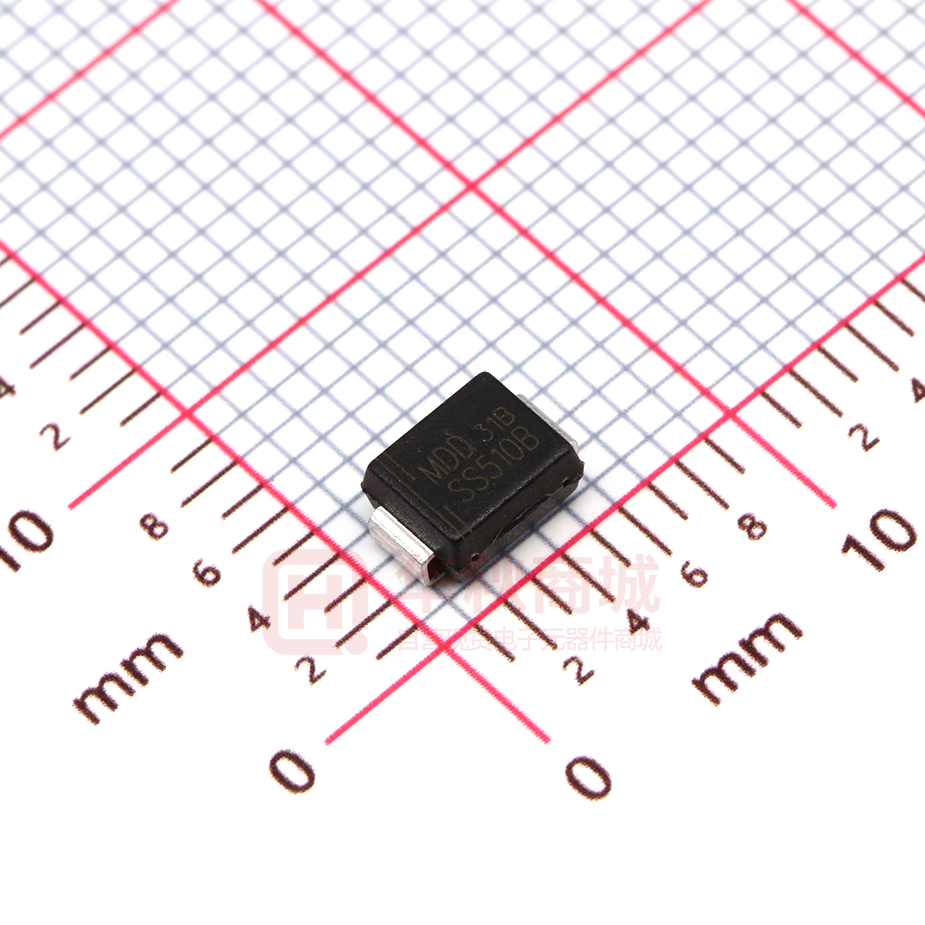

DO-214AA/SMB
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Metal silicon junction,majority carrier conduction
Low power loss,high efficiency
0.155(3.94)
0.130(3.30)
0.086 (2.20)
0.071 (1.80)
Built-in strain relief,ideal for automated placement
0.185(4.70)
0.160(4.06)
High forward surge current capability
High temperature soldering guaranteed:
0.012(0.305)
0.006(0.152)
250 °C/10 seconds at terminals
0.096(2.44)
0.084(2.13)
0.060(1.52)
0.030(0.76)
0.008(0.203)MAX.
Mechanical Data
0.220(5.59)
0.200(5.08)
Case: JEDEC DO-214AA/SMB molded plastic body
Terminals: Solderable per MIL-STD-750,Method 2026
Polarity: Color band denotes cathode end Mounting
Position: Any
Weight : 0.003 ounce, 0.095 grams
Dimensions in inches and (millimeters)
Maximum Ratings And Electrical Characteristics
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameter
SYMBOLS
Marking Code
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage
Maximum DC blocking voltage
VRMS
VDC
Maximum average forward rectified current
at TL(see fig.1)
SS52B
SS53B
SS54B
SS55B
SS56B
SS58B
SS510B SS5150B SS5200B
MDD
SS52B
MDD
SS53B
MDD
SS54B
MDD
SS55B
MDD
SS56B
MDD
SS58B
MDD
SS510B
MDD
SS5150B
MDD
SS5200B
20
14
20
30
21
30
40
28
40
50
35
50
60
42
60
80
56
80
100
70
100
150
105
150
200
140
200
UNITS
V
V
V
I(AV)
5.0
A
8.3ms single half sine-wave
superimposed onrated load (JEDEC Method)
IFSM
150
A
Maximum instantaneous forward voltage at 5.0A
VF
Peak forward surge current
Maximum DC reverse current
at rated DCblocking voltage
TA=25℃
TA=125℃
Typical junction capacitance (NOTE 1)
IR
0.55
0.70
10
20
CJ
200
RJA
50.0
Operating junction temperature range
TJ
TSTG
V
0.2
Typical thermal resistance (NOTE 2)
Storage temperature range
0.95
0.85
0.5
-50 to +125
2.0
mA
pF
℃/W
-50 to +150
-50 to +150
℃
℃
Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.P.C.B. mounted with 0.2x0.2 ”(5.0x5.0mm) copper pad areas
DN:T20825A0
http://www.microdiode.com
Rev:2020A1
Page :1
SS52B THRU SS5200B
Reverse Voltage - 20 to 200 Volts
Forward Current - 5.0 Ampere
FIG. 1- FORWARD CURRENT DERATING CURVE
5.0
4.0
Single Phase
Half Wave 60Hz
Resistive or
inductive Load
3.0
2.0
SS52B-SS56B
SS58B-SS5200B
1.0
0
0
25
50
75
100
125
150
PEAK FORWARD SURGE CURRENT,
AMPERES
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
Typical Characterisitics
FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
150
120
90
60
30
175
0
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
1
10
AMBIENT TEMPERATURE, C
INSTANTANEOUS FORWARD
CURRENT,AMPERES
TJ=25 C
10.0
1
SS52B-SS54B
SS55B-SS56B
SS58B-SS5150B
SS5200B
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT,
MILLIAMPERES
FIG. 3-TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
50
0.1
100
10
TJ=100 C
1
TJ=75 C
0.1
0.01
TJ=25 C
0.001
0.01
100
NUMBER OF CYCLES AT 60 Hz
0
20
40
60
80
100
PERCENT OF PEAK REVERSE VOLTAGE,%
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
INSTANTANEOUS FORWARD VOLEAGE,
VOLTS
1000
TJ=25 C
100
10
0.1
1.0
10
100
REVERSE VOLTAGE,VOLTS
FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE
TRANSIENT THERMAL IMPEDANCE,
C/W
JUNCTION CAPACITANCE, pF
FIG. 5-TYPICAL JUNCTION CAPACITANCE
2000
100
10
1
0.1
0.01
0.1
1
10
100
t,PULSE DURATION,sec.
The curve above is for reference only.
http://www.microdiode.com
Rev:2020A1
Page :2
SS52B THRU SS5200B
Reverse Voltage - 20 to 200 Volts
Forward Current - 5.0 Ampere
Packing information
unit:mm
P0
P1
Item
Symbol
Tolerance
SMB
Carrier width
Carrier length
Carrier depth
Sprocket hole
13" Reel outside diameter
13" Reel inner diameter
Feed hole diameter
Sprocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Overall tape thickness
Tape width
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
Reel width
W1
0.1
0.1
0.1
0.05
2.0
min
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.3
1.0
3.81
5.41
2.42
1 50
.
330.00
50.00
13.00
1.75
5.55
8.00
4.00
2.00
0.30
12.00
12.30
d
E
F
B
A
W
P
D2
T
D1
C
W1
D
Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above.
Reel packing
PACKAGE
REEL SIZE
REEL
(pcs)
COMPONENT
SPACING
(mm)
BOX
(pcs)
INNER
BOX
(mm)
REEL
DIA,
(mm)
SMB
13"
3,000
4.0
6,000
190*190*41
330
CARTON
SIZE
(mm)
365*365*360
CARTON
(pcs)
48,000
APPROX.
GROSS WEIGHT
(kg)
14.0
Suggested Pad Layout
Unit (inch)
Symbol
Unit (mm)
A
2.8
0.110
B
0.094
C
2.4
4.6
0.181
D
2.2
0.086
E
7.0
0.276
Important Notice and Disclaimer
Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and
specifications at any time without notice. Customers should obtain and confirm the latest product information and
specifications before final design,purchase or use.
Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application
assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with
products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Microdiode
Electronics (Jiangsu).
Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support
devices or systems without express written approval of Microdiode Electronics (Jiangsu).
http://www.microdiode.com
Rev:2020A1
Page :3
