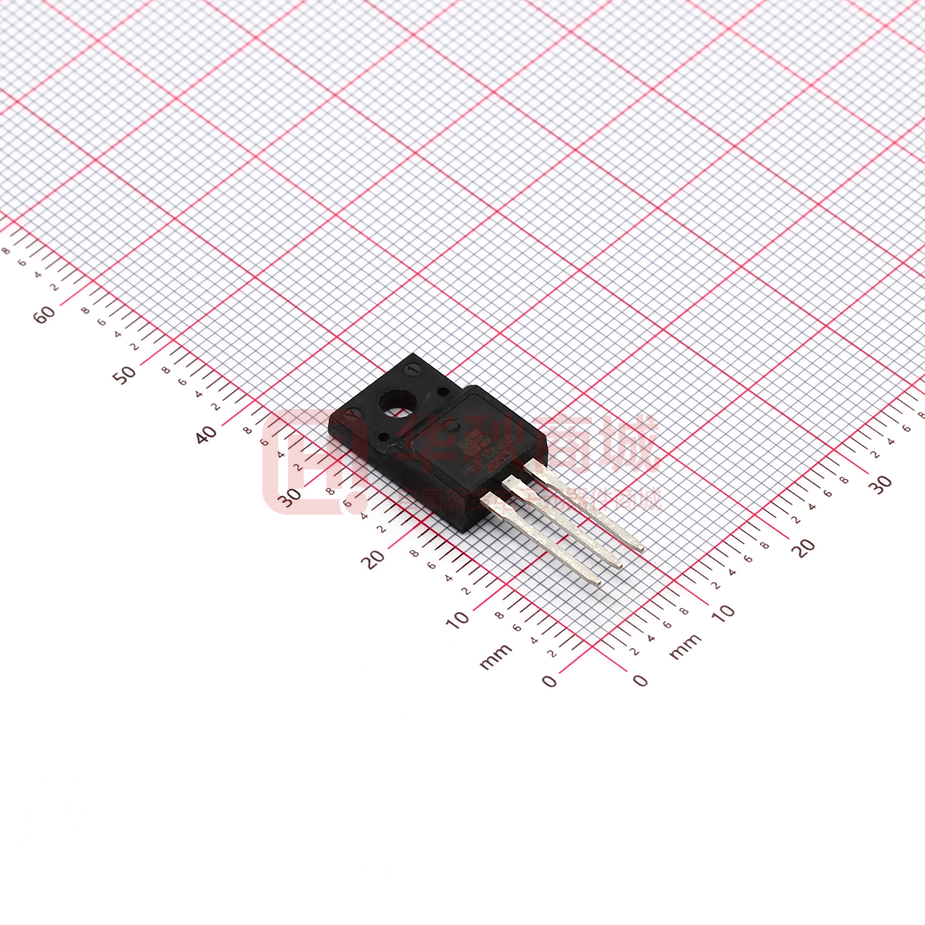

HFF10N65
650V N-Channel MOSFETs
withstand high energy pulse in the avalanche and
Features
650V,10A, RDS(ON) =0.8Ω@VGS = 10V
Improved dv/dt capability
Fast switching
100% EAS Guaranteed
Green Device Available
commutation mode. These devices are well suited
for high efficiency fast switching applications.
Product Summary
Applications
Networking
Load Switch
LED applications
Quick Charger
General Description
These N-Channel enhancement mode power field
effect transistors are using trench DMOS
BVDSS
650V
technology. This advanced technology has been
RDSON
0.8ohm
ID
10A
especially tailored to minimize on-state resistance,
provide superior switching performance, and
Absolute Maximum Ratings Tc =25℃ unless otherwise noted
Parameter
Symbol
Rating
Unit
Drain-Source Voltage
VDS
650
V
Gate-Source Voltage
VGS
±30
V
ID@Tc=25℃
10
A
ID@Tc=100℃
6.3
A
IDM
40
A
Single Pulse Avalanche Energy
EAS
500
mJ
Single Pulse Avalanche Current
IAS
10
A
Power Dissipation-
Derate above 25℃
0.31
W/℃
Power Dissipation
TC=25℃
125
TJ
-55 to 150
W
℃
TSTG
-55 to 150
℃
Continuous Drain Current
Pulsed Drain Current
Operating Junction Temperature
Storage Temperature
Thermal Resistance
Parameter
Symbol
Min.
Typ.
Max.
Unit
Thermal resistance, junction - case
RthJC
---
---
0.8
℃/W
Thermal Resistance Junction to ambient
RthJA
---
---
65
℃/W
Soldering temperature, wave soldering for 10s
Tsold
---
---
265
℃
1
HFF10N65
650V N-Channel MOSFETs
Electronic Characteristics TJ =25℃ unless otherwise noted
Off Characteristics
Parameter
Condition
Drain-Source Breakdown Voltage
VGS =0V, ID =250uA
Drain-Source Leakage Current
Gate- Source Leakage Current
Symbol
Min.
Typ.
Max.
Unit
BVDSS
650
700
---
V
---
---
1
---
---
10
IGSS
---
---
±100
nA
Symbol
Min.
Typ.
Max.
Unit
VDS=650V, VGS =0V
IDSS
VDS=520V, VGS =0V
VGS=±30V, VDS =0V
uA
On Characteristics
Parameter
Condition
Static Drain-source On Resistance
VGS=10V, ID=5A
RDS(ON)
---
0.75
0.8
Ω
Gate Threshold Voltage
VGS =VDS, ID=250uA
2.0
3.0
4.0
V
Forward Transconductance
VDS =40V, ID=10A
VGS(TH)
gFS
---
2.5
---
S
Symbol
Min.
Typ.
Max.
Unit
Dynamic and switching Characteristics
Parameter
Condition
Total Gate Charge
VDS=520V
Qg
---
21
---
Gate-Source Charge
VGS=10V
Qgs
---
7.5
---
Gate-Drain Charge
ID=10A
Qgd
---
6
---
Turn-On Delay Time
VDD=300V
Td(on)
---
38
---
Rise Time
VGS=10V
Tr
---
70
---
Turn-Off Delay Time
RG=25Ω
Td(off)
---
53
---
Fall Time
ID=10A
Tf
---
35
---
Input capacitance
VDS=25V
Ciss
---
1120
---
Output capacitance
VGS=0V
Coss
---
130
---
Reverse transfer capacitance
F=1MHz
Crss
---
4.9
---
Gate resistance
VDS=0V,VGS=0V,F=1MHz
Rg
---
1.2
2.4
Ω
Symbol
Min.
Typ.
Max.
Unit
nC
ns
F
P
Drain-Source Diode Characteristics and Maximum Ratings
Parameter
Condition
Diode Forward Voltage
VGS=0V,IS=10A
VSD
---
0.72
1.4
V
Reverse Recovery Time
IF=10A, dI/dt=40A/μs,
VDS=100V
trr
---
491
---
nS
Qrr
---
2296
---
nC
Reverse Recovery Charge
Note:
1. Repetitive Rating: Pulsed width limited by maximum junction temperature.
2. VDD=650V, VGS=10V, L=1mH,IAS=10A.,RG=25 ,Starting TJ=25℃.
3. The data tested by pulsed, pulse width ≦ 300us, duty cycle ≦ 2%.
4. Essentially independent of operating temperature.
2
HFF10N65
650V N-Channel MOSFETs
ID , Continuous Drain Current (A)
N
or
m
al
iz
ed
O
n
R
es
is
ta
nc
e
TC , Case Temperature (℃)
Continuous Drain Current vs. TC
Fig.2
TJ , Junction Temperature (℃)
Normalized Vth vs. TJ
Fig.4
Qg , Gate Charge (nC)
Gate Charge Waveform
ID , Continuous Drain Current (A)
Normalized Thermal Response (RθJC)
Fig.3
TJ , Junction Temperature (℃)
Normalized RDSON vs. TJ
VGS , Gate to Source Voltage (V)
Normalized Gate Threshold Voltage (V)
Fig.1
VDS , Drain to Source Voltage (V)
Fig.6 Maximum Safe Operation Area
Square Wave Pulse Duration (s)
Fig.5 Normalized Transient Impedance
3
HFF10N65
650V N-Channel MOSFETs
VDS
EAS=
90%
Td(on)
Tr
Ton
Fig.7
Td(off)
LxI
2
AS
2
x
BVDSS
BVDSS-VDD
BVDSS
VDD
IAS
10%
VGS
1
Tf
Toff
VGS
Switching Time Waveform
Fig.8
4
EAS Waveform
HFF10N65
650V N-Channel MOSFETs
TO220F PACKAGE INFORMATION
Symbol
A
A1
A2
B1
B2
B3
C
C1
C2
D
D1
D2
K
E1
E3
E4
DIA
Dimensions In Millimeters
Min
Max
9.860
10.460
6.900
7.100
3.100
3.500
9.500
9.900
4.500
4.900
6.480
6.880
3.100
3.500
12.270
12.870
12.580
13.380
2.490
2.590
1.070
1.470
0.700
0.900
2.900
3.300
2.340
2.740
0.400
0.600
2.560
2.960
1.45
1.55
5
Dimensions In Inches
Min
Max
0.389
0.411
0.272
0.279
0.123
0.137
0.375
0.389
0.178
0.192
0.256
0.271
0.123
0.137
0.484
0.506
0.496
0.526
0.099
0.101
0.043
0.057
0.028
0.035
0.115
0.129
0.093
0.107
0.016
0.023
0.101
0.116
0.058
0.061
