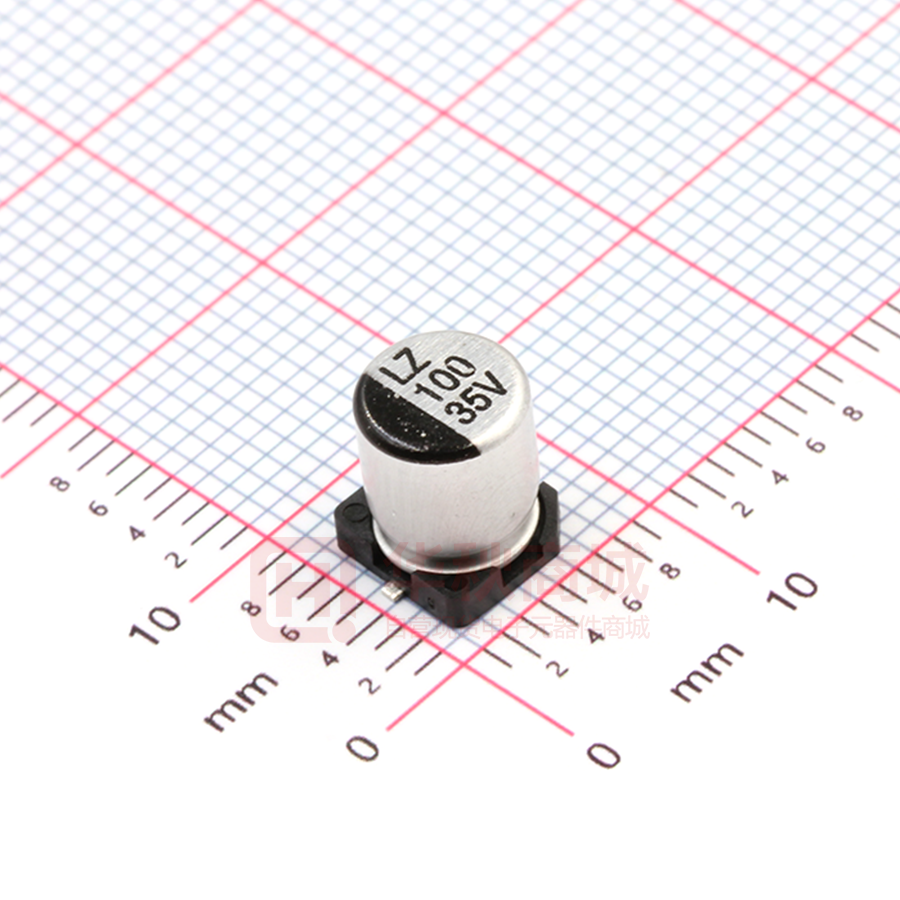

LZ1V101M-CRE77

LZ Series LOW IMPEDANCE 低阻抗品  Low impedance with temperature range -55 ~ +105C 低阻抗和適用於 -55 ~ +105°C 的溫度範圍  Load life of 1000 ~ 2000 hours 負荷壽命 1000 ~ 2000 小時  Comply with the RoHS directive 符合 RoHS 指令 LZ KZ Low Impedance 低阻抗化  SPECIFICATIONS 特性表 Items 項目 Characteristics Operation Temperature Range 使用温度範圍 Voltage Range 額定工作電壓範圍 Capacitance Range 靜電容量範圍 主要特性 -55 ~ +105°C 6.3 ~ 63V 1 ~ 4700μF Capacitance Tolerance 靜電容量允許偏差 ±20% at 120Hz, 20°C Leakage Current 漏電流 Leakage current (4~10) ≦0.01CV or 3μA, whichever is greater (after 2 minutes application of rated voltage) Leakage current (12.5~16) ≦0.03CV or 4μA, whichever is greater (after 1 minute application of rated voltage) 漏電流 (4~10) ≦0.01CV 或 3μA，取較大值（施加額定工作電壓 2 分鐘後） 漏電流 (12.5~16) ≦0.03CV 或 4μA，取較大值（施加額定工作電壓 1 分鐘後） Measurement frequency 測試頻率: 120Hz, Temperature 温度: 20°C Rated Voltage (V) 額定工作電壓 Dissipation Factor (tan ) 損耗角正切 tan δ (max.) 最大損耗角正切 4~10 12.5~16 6.3 0.22 0.26 10 0.19 0.22 16 0.16 0.18 25 0.14 0.16 35 0.12 0.14 50 0.12 0.12 Measurement frequency 測試頻率: 120Hz Rated Voltage (V) 額定工作電壓 Z(-25°C) / Z(20°C) 4~10 Impedance Ratio Z(-55°C) / Z(20°C) 阻抗比 Z(-25°C) / Z(20°C) ZT/Z20 (max.) 12.5~16 Z(-55°C) / Z(20°C) Stability at Low Temperature 低溫特性 6.3 2 5 3 10 10 2 4 3 8 16 2 4 2 6 25 2 3 2 4 35 2 3 2 3 50 2 3 2 3 After 2000 hrs. (1000 hrs. for 4~6.35.4) application of the rated voltage at 105°C, they meet the characteristics listed below. 在 105°C 環境中施加額定工作電壓 2000 小時（4~6.35.4 為 1000 小時）後，電容器的特性符合下表的要求。 Load Life 高溫負荷特性 Shelf Life 高溫貯存特性 Capacitance Change 靜電容量變化率 Dissipation Factor 損耗角正切 Leakage Current 漏電流 Within 20% of initial value 初始值的20%以內 200% or less of initial specified value 不大於規範值的 200% initial specified value or less 不大於規範值 After leaving capacitors under no load at 105°C for 1000 hours, they meet the specified value for load life characteristics listed above. 在 105°C 環境中無負荷放置 1000 小時後，電容器的特性符合高溫負荷特性中所列的規定值。 After reflow soldering and restored at room temperature, they meet the characteristics listed below. 經過回流焊並冷卻至室溫後，電容器的特性符合下表的要求。 Resistance to Soldering Heat 耐焊接熱特性 Marking 標示 Capacitance Change 靜電容量變化率 Dissipation Factor 損耗角正切 Leakage Current 漏電流 Black print on the case top. Within 10% of initial value 初始值的10%以内 initial specified value or less 不大於規範值 initial specified value or less 不大於規範值 鋁殼頂部黑字印刷。  DRAWING (Unit: mm) 外形圖 *1. Voltage mark for 6.3V is [6V] 6.3V 的產品標識為 [6V] *2. Applicable to 6.37.7 適用於6.37.7 *3. Applicable to 810.5~10 適用於810.5~10 *4. Applicable to 12.5~16 適用於12.5~16 NOTE: All designs and specifications are for reference only and are subject to change without prior notice. If any doubt about safety for your application, please contact us immediately for technical assistance before purchase. 注: 以上所提供的設計及特性參數僅供參考，任何修改不作預先通知。如果在使用上有疑問，請在採購前與我們聯繫，以便提供技術上的協助。 -1- LZ Series  DIMENSIONS (Unit: mm) 尺寸表 D x L 4 x 5.4 5 x 5.4 6.3 x 5.4 6.3 x 7.7 8 x 6.2 8 x 10.5 10 x 10.5 10 x 12.5 12.5 x 13.5 12.5 x 16 A 1.9 2.2 2.6 2.6 3.3 3.2 3.2 3.2 4.7 4.7 5.5 B 4.3 5.3 6.6 6.6 8.3 8.3 10.3 10.3 13.0 13.0 17.0 17.0 16 x 16.5 C 4.3 5.3 6.6 6.6 8.3 8.3 10.3 10.3 13.0 13.0 E  0.2 1.0 1.3 2.2 2.2 2.2 3.1 4.4 4.4 4.4 4.4 6.7 L 5.4 5.4 5.4 7.7 6.2 10.5 10.5 13.5 13.5 16.0 16.5  DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT & IMPEDANCE 規格尺寸及最大允許紋波電流及阻抗值 WV Code 代碼 F 10 6.3 10 16 0J 1A 1C 100 15 150 22 220 33 330 47 470 68 680 100 101 150 151 4 x 5.4 3.0 60 5 x 5.4 (4 x 5.4) 5 x 5.4 (4 x 5.4) 6.3 x 5.4 (5 x 5.4) 6.3 x 5.4 (5 x 5.4) 6.3 x 7.7 (6.3 x 5.4) 1.8 (3.0) 1.8 (3.0) 1.0 (1.8) 1.0 (1.8) 0.6 (1.0) 95 (60) 95 (60) 140 (95) 140 (95) 230 (140) 5 x 5.4 (4 x 5.4) 5 x 5.4 (4 x 5.4) 6.3 x 5.4 (5 x 5.4) 1.8 (3.0) 1.8 (3.0) 1.0 (1.8) 95 (60) 95 (60) 140 (95) 6.3 x 5.4 1.0 140 6.3 x 7.7 (6.3 x 5.4) 6.3 x 7.7 (6.3 x 5.4) 0.6 (1.0) 0.6 (1.0) 230 (140) 230 (140) 4 x 5.4 3.0 60 5 x 5.4 (4 x 5.4) 5 x 5.4 (4 x 5.4) 6.3 x 5.4 (5 x 5.4) 6.3 x 5.4 (5 x 5.4) 6.3 x 7.7 (6.3 x 5.4) 6.3 x 7.7 (6.3 x 5.4) 1.8 (3.0) 1.8 (3.0) 1.0 (1.8) 1.0 (1.8) 0.6 (1.0) 0.6 (1.0) 95 (60) 95 (60) 140 (95) 140 (95) 230 (140) 230 (140) 6.3 x 7.7 0.6 230 8 x 10.5 (6.3 x 7.7) (8 x 6.2) 10 x 10.5 (8 x 10.5) 10 x 10.5 (8 x 10.5) 0.30 (0.6) (0.6) 0.15 (0.30) 0.15 (0.30) 450 (230) (230) 670 (450) 670 (450) 220 221 6.3 x 7.7 (6.3 x 5.4) 0.6 (1.0) 230 (140) 6.3 x 7.7 0.6 230 330 331 6.3 x 7.7 0.6 230 8 x 10.5 0.30 450 470 471 8 x 10.5 0.30 450 8 x 10.5 0.30 450 680 681 8 x 10.5 0.30 450 10 x 10.5 0.15 670 10x 10.5 0.15 670 10 x 10.5 (8 x 10.5) 10 × 12.5 (10 × 10.5) 12.5 × 13.5 (10 × 12.5) 12.5 × 16 (12.5 × 13.5) 0.15 (0.30) 0.13 (0.15) 0.11 (0.13) 0.09 (0.11) 670 (450) 750 (670) 820 (750) 950 (820) 10 x 10.5 0.15 670 10 x 10.5 0.15 670 12.5 × 13.5 (10 × 12.5) 0.11 (0.13) 820 (750) 12.5 × 13.5 0.11 820 0.08 (0.09) 1260 (950) 0.08 1260 16 × 16.5 0.08 1260 1000 1500 102 152 2200 222 3300 332 4700 472 WV Code 代碼 F 12.5 × 16 0.09 950 16 × 16.5 (12.5 × 16) 16 × 16.5 0.08 1260 16 x 16.5 16 × 16.5 0.08 1260 25 35 50 1E 1V 1H 1 010 4 x 5.4 3.0 60 4 x 5.4 5.0 30 1.5 1R5 4 x 5.4 3.0 60 4 x 5.4 5.0 30 2.2 2R2 4 x 5.4 3.0 60 4 x 5.4 5.0 30 3.3 3R3 4 x 5.4 3.0 60 4 x 5.4 5.0 30 4.7 4R7 4 x 5.4 3.0 60 5 x 5.4 3.0 50 6.8 6R8 4 x 5.4 3.0 60 5 x 5.4 1.8 95 6.3 x 5.4 2.0 70 10 100 5 x 5.4 (4 x 5.4) 1.8 (3.0) 95 (60) 5 x 5.4 (4 x 5.4) 1.8 (3.0) 95 (60) 6.3 x 5.4 2.0 70 15 150 6.3 x 5.4 1.8 95 5 x 5.4 1.8 95 6.3 x 5.4 2.0 70 6.3 x 5.4 (5 x 5.4) 6.3 x 5.4 (5 x 5.4) 6.3 x 7.7 (6.3 x 5.4) 1.0 (1.8) 1.0 (1.8) 0.6 (1.0) 140 (95) 140 (95) 230 (140) 6.3 x 5.4 (5 x 5.4) 1.0 (1.8) 140 (95) 6.3 x 7.7 (6.3 x 5.4) 1.0 (2.0) 120 (70) 6.3 x 5.4 1.0 140 6.3 x 7.7 1.0 120 6.3 x 7.7 (6.3 x 5.4) 0.60 (1.0) 230 (140) 6.3 x 7.7 1.0 120 8 x 10.5 0.60 300 22 220 33 330 4 x 5.4 3.0 60 47 470 68 680 6.3 x 7.7 0.6 230 6.3 x 7.7 0.60 230 100 101 6.3 x 7.7 0.6 230 8 x 10.5 (6.3 x 7.7) 0.30 0.6 450 (260) 150 151 8 x 10.5 (6.3 x 7.7) 0.30 (0.6) 450 (230) 8 x 10.5 0.30 450 8 x 10.5 0.60 300 10 x 10.5 0.30 500 Case size DL(mm) 尺寸 Ripple current Impedance () at (mA rms) at 105C 20C 100KHz 100KHz 阻抗值 紋波電流 NOTE: All designs and specifications are for reference only and are subject to change without prior notice. If any doubt about safety for your application, please contact us immediately for technical assistance before purchase. 注: 以上所提供的設計及特性參數僅供參考，任何修改不作預先通知。如果在使用上有疑問，請在採購前與我們聯繫，以便提供技術上的協助。 -2- LZ Series  DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT & IMPEDANCE 規格尺寸及最大允許紋波電流及阻抗值 F 220 WV Code 代碼 221 25 35 1E 8 x 10.5 50 1V 0.30 450 10 x 10.5 (8 x 10.5) 0.15 (0.30) 1H 670 (450) 330 331 10 x 10.5 (8 x 10.5) 0.15 (0.30) 670 (450) 10 x 10.5 0.15 670 470 471 10 x 10.5 0.15 670 10 x 10.5 0.15 670 680 681 10 x 12.5 0.13 750 1000 102 16 × 16.5 (12.5 × 13.5) 0.08 (0.11) 1260 (820) 12.5 × 13.5 (10 × 12.5) 16 × 16.5 (12.5 × 16) 0.11 (0.13) 0.08 (0.09) 820 (750) 1260 (950) 1500 152 12.5 × 16 0.09 950 16 × 16.5 0.08 1260 2200 222 16 × 16.5 0.08 1260 10 x 10.5 0.30 500 16 × 16.5 (12.5 × 13.5) (10 × 12.5) 16 × 16.5 (12.5 × 16) 0.12 (0.20) (0.25) 0.12 (0.15) 1060 (650) (580) 1060 (700) 16 × 16.5 0.12 1060 Case size DL(mm) 尺寸 Impedance () at 20C 100KHz 阻抗值 Ripple current (mA rms) at 105C 100KHz 紋波電流  FREQUENCY COEFFICIENT OF ALLOWABLE RIPPLE CURRENT 紋波電流頻率補償系數 Frequency 頻率 4 ~ 10 Coefficient 系數 12.5 ~ 16 50Hz 120Hz 300Hz 1KHz 10KHz~ 1 ~ 68F 0.35 0.50 0.64 0.83 1.00 100 ~ 2200F 0.40 0.55 0.70 0.85 1.00 ~ 680F 0.45 0.65 0.80 0.90 1.00 1000 ~ 4700F 0.65 0.85 0.95 1.00 1.00  Taping specifications are given in page 10. 編帶標準請參閱第 10 頁。  Please refer to page 11 for the minimum package quantity. 最小包裝數量請參閱第 11 頁。 NOTE: All designs and specifications are for reference only and are subject to change without prior notice. If any doubt about safety for your application, please contact us immediately for technical assistance before purchase. 注: 以上所提供的設計及特性參數僅供參考，任何修改不作預先通知。如果在使用上有疑問，請在採購前與我們聯繫，以便提供技術上的協助。 -3-
