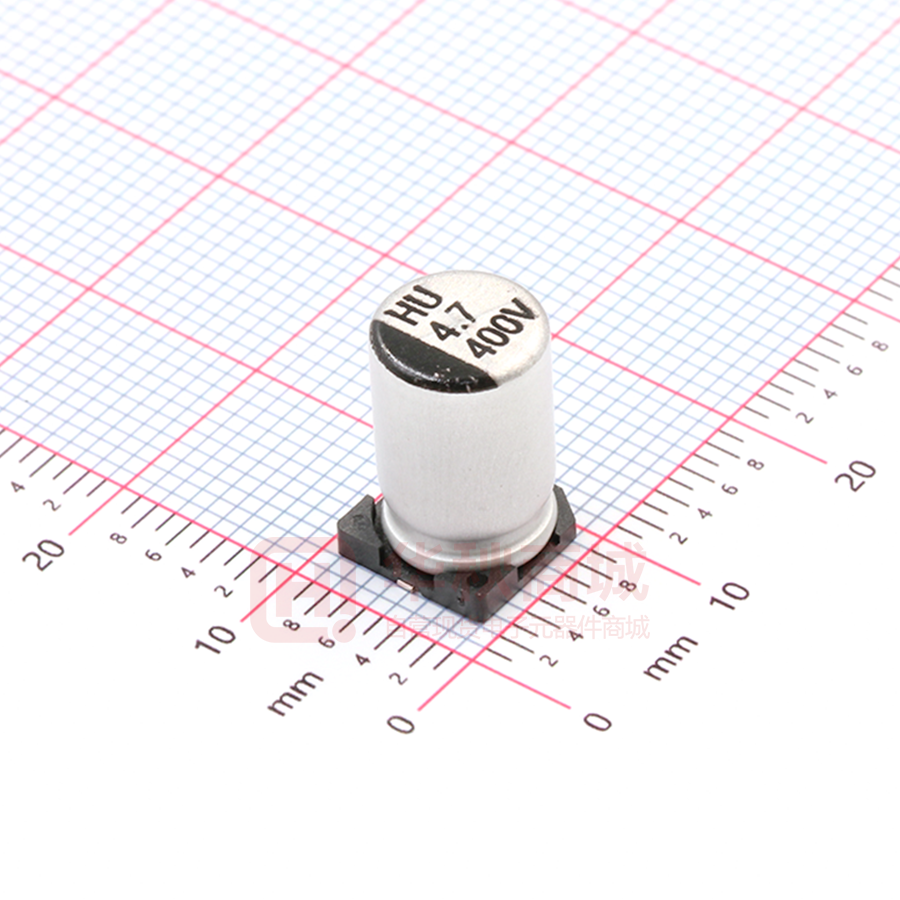

HU Series
HIGH VOLTAGE, LONG LIFE
高壓長壽命品
VL
Operating with wide temperature range -40~+105C
適用於 -40~+105°C 的寬溫範圍
Load life of 5000 hours
負荷壽命 5000 小時
Comply with the RoHS directive
符合 RoHS 指令
Higher Voltage,
Long Life
高壓長壽命化
HU
SPECIFICATIONS 特性表
Items 項目
Characteristics
主要特性
Operation Temperature Range 使用温度範圍 -40 ~ +105°C
CHIP TYPE
貼片式
ltage Range
額定工作電壓範圍
Capacitance Range
靜電容量範圍
Capacitance Tolerance
靜電容量允許偏差
3.3 ~ 47μF
±20% at 120Hz, 20°C
Leakage Current
漏電流
Leakage current 0.04CV + 100μA, whichever is greater (after 2 minutes application of rated voltage)
漏電流 0.04CV + 100μA,取較大值(施加額定工作電壓 2 分鐘後)
Dissipation Factor (tan )
損耗角正切
Measurement frequency 測試頻率: 120Hz, Temperature 温度: 20°C
Rated Voltage (V) 額定工作電壓
160 ~ 250
tan δ (max.) 最大損耗角正切
0.15
400, 500
0.20
Measurement frequency 測試頻率: 120Hz
Stability at Low Temperature
低溫特性
HU
160 ~ 450V
Rated Voltage (V) 額定工作電壓
160 ~ 250
Impedance Ratio 阻抗比 Z(-25°C) / Z(20°C)
Z(-40°C) / Z(20°C)
ZT/Z20 (max.)
400, 500
3
6
6
10
After 5000 hours application of the rated voltage at 105°C, they meet the characteristics listed below.
在 105°C 環境中施加額定工作電壓 5000 小時後,電容器的特性符合下表的要求。
Load Life
高溫負荷特性
Shelf Life
高溫貯存特性
Capacitance Change 靜電容量變化率
Within 20% of initial value 初始值的20%以內
Dissipation Factor 損耗角正切
200% or less of initial specified value 不大於規範值的 200%
Leakage Current 漏電流
initial specified value or less 不大於規範值
After leaving capacitors under no load at 105°C for 1000 hours, they meet the specified value for load life
characteristics listed above.
規定值。
在 105°C 環境中無負荷放置 1000 小時後,電容器的特性符合高溫負荷特性中所列的
After reflow soldering and restored at room temperature, they meet the characteristics listed below.
經過回流焊並冷卻至室溫後,電容器的特性符合下表的要求。
Capacitance Change 靜電容量變化率
Resistance to Soldering Heat
耐焊接熱特性
Leakage Current 漏電流
Marking
標識
Within 10% of initial value 初始值的10%以内
Dissipation Factor 損耗角正切
Black print on the case top.
initial specified value or less 不大於規範值
initial specified value or less 不大於規範值
鋁殼頂部黑字印刷。
DRAWING (Unit: mm) 外形圖
A pressure relief vent is attached to products over D=8
D=8 以上產品有緩壓防爆閥
NOTE: All designs and specifications are for reference only and are subject to change without prior notice. If any doubt about safety for your application, please
contact us immediately for technical assistance before purchase.
注: 以上所提供的設計及特性參數僅供參考,任何修改不作預先通知。如果在使用上有疑問,請在採購前與我們聯繫,以便提供技術上的協
34
HU Series
DIMENSIONS (Unit: mm) 尺寸表
D x L
6.3 x 10.5
8 x 10.5
8 x 12.5
10 x 12.5
12.5 x 13.5
12.5 x 16
A
2.6
3.2
3.2
3.2
4.7
4.7
B
6.6
8.4
8.4
10.4
13.0
13.0
C
6.6
8.4
8.4
10.4
13.0
13.0
E 0.2
1.9
3.1
3.1
4.7
4.7
4.7
L
10.5
10.5
13.5
13.5
13.5
16.0
2.2
2R2
200
250
400
450
2C
2D
2E
2G
2W
6.3 × 10.5
20
6.3 × 10.5
23
6.3 × 10.5
30
3.3
3R3
6.3 × 10.5
23
6.3 × 10.5
30
8 × 10.5
35
4.7
4R7
6.3 × 10.5
30
8 × 10.5
35
8 × 12.5
40
6.8
6R8
8 × 10.5
35
8 × 10.5
40
10 × 12.5
45
10
100
10 × 12.5
45
10 × 12.5
80
10 × 12.5
105
22
220
12.5 × 13.5
85
12.5 × 13.5
110
12.5 × 16
180
33
330
12.5 × 13.5
95
12.5 × 16
220
47
470
12.5 × 16
6.3 × 10.5
30
8 × 12.5
38
10 × 12.5
(40)
8 × 12.5
40
(10 × 12.5)
(50)
10 × 12.5
50
(10 × 12.5) (45)
12.5 × 13.5
85
10 × 12.5
40
10 × 12.5
40
10 × 12.5
50
12.5 × 13.5
65
12.5 × 13.5
85
Case size
尺寸
260
Case size DL(mm), ripple current (mA rms) at 105C, 120Hz
Ripple
current
紋波電流
尺寸DL(mm),紋波電流(mA rms)於 105C, 120Hz
FREQUENCY COEFFICIENT OF ALLOWABLE RIPPLE CURRENT 紋波電流頻率補償系數
Frequency
頻率
50Hz
120Hz
300Hz
1KHz
10KHz~
Coefficient
系數
0.80
1.00
1.25
1.40
1.60
Taping specifications are given in page 10 “Taping Specifications”.
編帶標準請參閱第 10 頁“編帶標準”。
Please refer to page 11 “Package Quantity” for the minimum package quantity.
最小包裝數量請參閱第 11 頁“包裝數量”。
NOTE: All designs and specifications are for reference only and are subject to change without prior notice. If any doubt about safety for your application, please
contact us immediately for technical assistance before purchase.
注: 以上所提供的設計及特性參數僅供參考,任何修改不作預先通知。如果在使用上有疑問,請在採購前與我們聯繫,以便提供技術上的協助。
35
CHIP TYPE
F
160
HU
WV
Code
代碼
貼片式
DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT 規格尺寸及最大允許紋波電流
