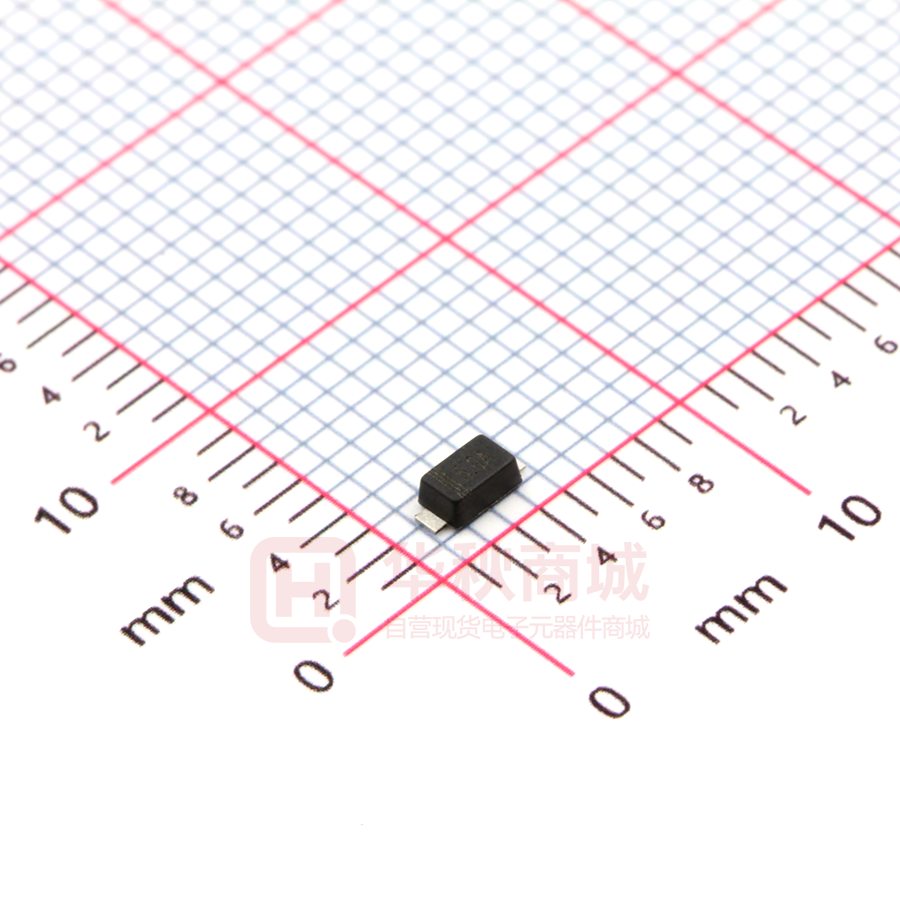

SMFJ5.0A

SMFJ5.0A

  • 厂商:

    RUILON(瑞隆源)

  • 封装:

    SMF(SOD-123FL)

  • 描述:

    TVS二极管 VRWM=5V VBR(Min)=6.4V VC=9.2V IPP=21.7A Ppp=200W SOD123FL

  • 数据手册
  • 价格&库存
SMFJ5.0A 数据手册
Transient Voltage Suppressors SMFJ Series Circuit Protection System Revision:DEC-16 Transient Voltage Suppressors - SMFJ Series Features • Fast response time • Built-in strain relief • Low incremental surge resistance • Matte tin lead–free Plated • Halogen ree and RoHS compliant • For surface mounted applications to optimize board space • Compatible with industrial standard package SOD-123FL • ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2) • EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4) • 200W peak pulsepower capability at 10/1000μs waveform,repetition rate (duty cycle): 0.01% Cathode • High temperature soldering : 260°C/ 40 seconds at terminals BI Anode UNI Description The SMFJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. SOD-123FL package is 50% smaller in footprint when compare to SMA package and deliverying low height profile (1.1mm) in the industry. Mechanical Characteristics Rating Symbol Value Units Peak Pulse Power Dissipation at TA=25ºC by 10/1000µs (Note 1) PPPM 200 W Thermal Resistance Junction- to- Ambient RθJA 220 °C/W Thermal Resistance Junction- to- Lead RθJL 100 °C/W TJ,TSTG -55°C to 150°C °C Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse, per Fig. 4 and derated above TA=25ºC per Fig. 3 Circuit Protection System Revision:DEC-16 Page:1 Transient Voltage Suppressors - SMFJ Series Electriacl Characteristics Type Number Marking Reverse Stand-Off Voltage Breakdown Voltage Test Current Max Clamping Voltage 10/1000µs Peak Pulse Current 10/1000µs Reverse Leakage VRWM VBR @IT IT VC@IPP IPP IR@VRWM UNI BI UNI BI V Min(V) Max(V) mA V A µA SMFJ5.0A SMFJ5.0CA 5.0A 5.0CA 5.0 6.40 7.25 10 9.20 21.7 400 SMFJ6.0A SMFJ6.0CA 6.0A 6.0CA 6.0 6.67 7.67 10 10.3 19.4 400 SMFJ6.5A SMFJ6.5CA 6.5A 6.5CA 6.5 7.22 8.30 10 11.2 17.9 250 SMFJ7.0A SMFJ7.0CA 7.0A 7.0CA 7.0 7.78 8.95 10 12.0 16.7 100 SMFJ7.5A SMFJ7.5CA 7.5A 7.5CA 7.5 8.33 9.58 1 12.9 15.5 50 SMFJ8.0A SMFJ8.0CA 8.0A 8.0CA 8.0 8.89 10.23 1 13.6 14.7 25 SMFJ8.5A SMFJ8.5CA 8.5A 8.5CA 8.5 9.44 10.82 1 14.4 13.9 10 SMFJ9.0A SMFJ9.0CA 9.0A 9.0CA 9.0 10.00 11.50 1 15.4 13.0 5.0 SMFJ10A SMFJ10CA 10A 10CA 10.0 11.10 12.80 1 17.0 11.8 2.5 SMFJ11A SMFJ11CA 11A 11CA 11.0 12.20 14.00 1 18.2 11.0 2.5 SMFJ12A SMFJ12CA 12A 12CA 12.0 13.30 15.30 1 19.9 10.1 2.5 SMFJ13A SMFJ13CA 13A 13CA 13.0 14.40 16.50 1 21.5 9.30 1 SMFJ14A SMFJ14CA 14A 14CA 14.0 15.60 17.90 1 23.2 8.60 1 SMFJ15A SMFJ15CA 15A 15CA 15.0 16.70 19.20 1 24.4 8.20 1 SMFJ16A SMFJ16CA 16A 16CA 16.0 17.80 20.50 1 26.0 7.70 1 SMFJ17A SMFJ17CA 17A 17CA 17.0 18.90 21.70 1 27.6 7.20 1 SMFJ18A SMFJ18CA 18A 18CA 18.0 20.00 23.30 1 29.2 6.80 1 SMFJ20A SMFJ20CA 20A 20CA 20.0 22.20 25.50 1 32.4 6.20 1 SMFJ22A SMFJ22CA 22A 22CA 22.0 24.40 28.00 1 35.5 5.60 1 SMFJ24A SMFJ24CA 24A 24CA 24.0 26.70 30.70 1 38.9 5.10 1 SMFJ26A SMFJ26CA 26A 26CA 26.0 28.90 33.20 1 42.1 4.80 1 SMFJ28A SMFJ28CA 28A 28CA 28.0 31.10 35.80 1 45.4 4.40 1 SMFJ30A SMFJ30CA 30A 30CA 30.0 33.30 38.30 1 48.4 4.10 1 SMFJ33A SMFJ33CA 33A 33CA 33.0 36.70 42.20 1 53.3 3.80 1 SMFJ36A SMFJ36CA 36A 36CA 36.0 40.00 46.00 1 58.1 3.40 1 SMFJ40A SMFJ40CA 40A 40CA 40.0 44.40 51.10 1 64.5 3.10 1 SMFJ43A SMFJ43CA 43A 43CA 43.0 47.80 54.90 1 69.4 2.90 1 SMFJ45A SMFJ45CA 45A 45CA 45.0 50.00 57.50 1 72.7 2.80 1 SMFJ48A SMFJ48CA 48A 48CA 48.0 53.30 61.30 1 77.4 2.60 1 SMFJ51A SMFJ51CA 51A 51CA 51.0 56.70 65.20 1 82.4 2.40 1 Circuit Protection System Revision:DEC-16 Page:2 Transient Voltage Suppressors - SMFJ Series Electriacl Characteristics Type Number Marking Reverse Stand-Off Voltage Breakdown Voltage Test Current Max Clamping Voltage 10/1000µs Peak Pulse Current 10/1000µs Reverse Leakage VRWM VBR @IT IT VC@IPP IPP IR@VRWM UNI BI UNI BI V Min(V) Max(V) mA V A µA SMFJ54A SMFJ54CA 54A 54CA 54.0 60.00 69.00 1 87.1 2.30 1 SMFJ58A SMFJ58CA 58A 58CA 58.0 64.40 74.10 1 93.6 2.10 1 SMFJ60A SMFJ60CA 60A 60CA 60.0 66.70 76.70 1 96.8 1.80 1 SMFJ64A SMFJ64CA 64A 64CA 64.0 71.10 81.80 1 103.0 1.70 1 SMFJ70A SMFJ70CA 70A 70CA 70.0 77.80 89.50 1 113.0 1.50 1 SMFJ75A SMFJ75CA 75A 75CA 75.0 83.30 95.80 1 121.0 1.40 1 SMFJ78A SMFJ78CA 78A 78CA 78.0 86.70 99.70 1 126.0 1.40 1 SMFJ85A SMFJ85CA 85A 85CA 85.0 94.40 108.20 1 137.0 1.30 1 SMFJ90A SMFJ90CA 90A 90CA 90.0 100.00 115.50 1 146.0 1.20 1 SMFJ100A SMFJ100CA 100A 100CA 100.0 111.00 128.00 1 162.0 1.10 1 SMFJ110A SMFJ110CA 110A 110CA 110.0 122.00 140.50 1 177.0 1.00 1 SMFJ120A SMFJ120CA 120A 120CA 120.0 133.00 153.00 1 193.0 0.90 1 SMFJ130A SMFJ130CA 130A 130CA 130.0 144.00 165.50 1 209.0 0.80 1 SMFJ150A SMFJ150CA 150A 150CA 150.0 167.00 192.50 1 243.0 0.70 1 SMFJ160A SMFJ160CA 160A 160CA 160.0 178.00 205.00 1 259.0 0.70 1 SMFJ170A SMFJ170CA 170A 170CA 170.0 189.00 217.50 1 275.0 0.60 1 SMFJ180A SMFJ180CA 180A 180CA 180.0 198.00 230.40 1 292.0 0.60 1 SMFJ190A SMFJ190CA 190A 190CA 190.0 209.00 243.20 1 308.0 0.50 1 Notes: For bidirectional type having VRWM of 10V and less, the IR limit is double. Circuit Protection System Revision:DEC-16 Page:3 Transient Voltage Suppressors - SMFJ Series I-VI-VCurve Characteristics Curve Characteristics BR V VBR Vc V VRR Vc Bi-directional II pp IIpp BR V VBR Vc V VRR Vc V V IIRR V VFF IITT IITT IIRR IIRR IITT VRRV BR Vc VBR Vc V V V pp IIpp pp IIpp PP PPM Peak Pulse Power Dissipation -- Max power dissipation PPM PPM Peak Pulse Power Dissipation -- Max power dissipation VV Stand-off Voltage -- Maximum voltage that can be applied to the TVS without operation RR R Stand-off Voltage -- Maximum voltage that can be applied to the TVS without operation Breakdown Voltage -- Maximum voltage that flows thoughthe TVS at a specified test current (ITT) VV BR BR test current (IT) BR Breakdown Voltage -- Maximum voltage that flows though the TVS at a specified VV Clamping Voltage -- Peak--voltage across the suppressor a specified Ippm (peakIppm impulse current) CC C Clamping Voltage Peak measured voltage measured across theat TVS at a specified (peak impulse current) IRIRR Reverse Leakage Current -- Current at VRR Reverse Leakage Current -- measured Current measured at VR VV Forward Voltage Drop Drop for Uni-directional Forward Voltage for Uni-directional FF F Ratings and Characteristic Curves (TAA=25°C =25°C unless unless otherwise otherwise noted) noted) (T Figure 1 - TVS Transients Clamping Waveform Figure 2 - Peak Pulse Power Rating 1000 1000 PPPM -Peak Pulse Power (kW) PPM Voltage Transients Transients Voltage Voltage Across Across TVS TVS Voltage Voltage or Current P6KESeries Series P6KE Uni-directional Current Through Through TVS TVS Current 100 100 10 10 11 0.1 0.1 0.000001 0.000001 Time Time Circuit Protection System 0.00001 0.00001 0.0001 0.0001 0.001 0.001 -Pulse Width Width (Sec.) (Sec.) ttdd-Pulse Revision:DEC-16 Page:4 Transient Voltage Suppressors - SMFJ Series Ratings and Characteristic Curves (TA=25°C unless otherwise noted) (Continued) Figure 3 - Pulse Derating Curve Figure 4 - Pulse Waveform - 10/1000 µ S 150 IPPM - Peak Pulse Cur rent, % IRSM Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % 100 80 60 40 20 0 0 25 50 75 100 125 150 tr=10µsec Half Value IPPM IPPM ( ) 2 50 10/1000µsec. Waveform as defined by R.E.A TA-Ambient temperature (ºC) td 0 1.0 2.0 3.0 4.0 t-Time (ms) Figure 5 - Steady State Power Dissipation Derating Curve Figure 6 - Forward Voltage 0.9 Vf - Typical forward dropped voltage 1.50 PM(AV), Steady State Power Dissipation (W) Peak Value IPPM 100 0 175 T J =25°C Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM 1.25 1.00 0.75 0.50 0.25 0 0 25 50 75 100 125 TL - Tab temperature (ºC) 150 175 0.8 0.7 0.6 0.5 0.4 0 -55 10 75 140 Temperature (ºC) Figure 7 - C j vs. Working Peak Reverse Voltage 10000 1000 Cj (pf) Measured@Vr=0v 100 10 1 Measured@50%Vr 10 100 Vbr - Reverse breakdown voltage Circuit Protection System Revision:DEC-16 Page:5 Transient Voltage Suppressors - SMFJ Series Soldering Parameters Pre Heat - Temperature Min (Ts(min)) 150°C - Temperature Max (Ts(min)) 200°C - Time (min to max) (t s) 60-180 secs 3°C/second max TS(max) to TA - Ramp-up Rate 3°C/second max - Temperature (TA) (Liquidus) Ramp-down Ts(min) ts Preheat Time (t) 260+0/-5 °C Time within 5°C of actual peak Temperature (tp) Environmental Specifications 20-40 seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max. Do not exceed 280°C Physical Specifications JEDEC SOD-123FL molded plastic body over passivated junction. Polarity Color band denotes the cathode except Bipolar. Termina Matte Tin axial leads, solderable per JESD22-B102D. E Case High Temp. Storage JESD22-A103 HTRB JESD22-A108 Temperature Cycling JESD22-A104 MSL JEDEC-J-STD-020, Level 1 H3TRB JESD22-A101 RSH JESD22-A111 Flow/Wave Soldering Peak Temperature : 265°C Dipping Time : Dimensions 10 seconds Soldering : 1 time D C Mounting P ad L ayout E G H A B A E E B F A E 1.3 (0.051) 1.4 (0.055) D E E C F G H G H 1.6 (0.062) Max3.9 2.50 2.90 3.40Inches 3.90 A Min Min 2.50 0.70 Millimeters 1.50 D C Max MaxE D Min 2.90 0.1222 2.5 B 0.1339 0.1535 C 0.0275 G 0.0472 3.40 D 0.051 0.0787 H E 0.0138 0.0354 F 0.0020 0.0039 B F G G 1.3 (0.051) H H 3.40 0.70 1.50 0.35 0.05 E F 3.90 F 1.20 G 0.7 2.00 H 0.90 0.26 1.5 0.35 0.05 0.70 Min Max 0.35 1.50 0.0984 3.1 0.35 0.1339 0.05 3.90 0.05 0.0275 0.00 1.2 0.00 0.0591 2.0 0.95 0.95 0.0138 0.90 0.0020 0.26 0.00 0.0039 0.10 0.00 0.0000 0.10 0.95 1.10 0.0374 0.0374 0.0433 0.95 1.35 0.0000 1.4 (0.055) Mounting P ad L ayout 1.6 (0.062) Min 3.40 0.0984 E Mounting P ad L ayout Mounting P ad L ayout 1.3 (0.051) B A D F 1.6 (0.062) A C E G H D C Inches DIM 1.4 (0.055) 1.3 (0.051) Dimensions A B C E D F G H 1.4 (0.055) Circuit Protection System Ma 2.50 Millimeters 2.9 Millimeters B Dimensions F Min A C B C Millimeters Dimensions B 1.6 (0.062) Dimensions SOD-123FL A Ts(max) 60-150 seconds Peak Temperature (TP) D tL 217°C - Time (min to max) (t s) Critical Z one TL to TP Ramp-up TL Average ramp up rate (Liquidus Temp (TA) to peak Reflow tp TP Lead-free assembly Temperature (T) Reflow Condition Revision:DEC-16 Page:6 1.2 2.0 1.20 Max 2.000.9 0.1142 0.900.2 0.1535 0.26 0.0472 0.1 0.10 0.0787 1.101.1 0.0354 0.0102 0.0039 0.0433 M 2. 3. 0. 1. 0. 0. 0. 0. Transient Voltage Suppressors - SMFJ Series Product Name S M F Series code Part Marking System J x x DC Spark-over Voltage x C Cathode band A (for Uni-directional products only) Blank:UniDirectional XXX C:Bi-Directional 5% Voltage Tolerance Marking code Packaging Part Number Component Package Quantity Packaging Option Packaging Specification SMFJxxxXX SOD-123FL 3000 Tape & Ree EIA STD RS-481 Tape and Reel Specification 0.157 (4.0) Cathode 0.31 (8.0) 0.157 (4.0) 13.0 (330) 0.80 (20.2) Arbor Hole Dia. 0.059 DIA (1.5) Cover tape Dimensions are in inches (and millimeters). Direction of Feed 0.33 (8.5) 0.157 (4.0) Cathode 0.47 (12.0) 0.157 (4.0) 13.0 (330) Circuit Protection 0.80 (20.2) Arbor Hole Dia. System 0.49 (12.5 0.059 DIA (1.5) Cover tape Dimensions are in inches (and millimeters). Direction of Feed Revision:DEC-16 Page:7
