SRV05

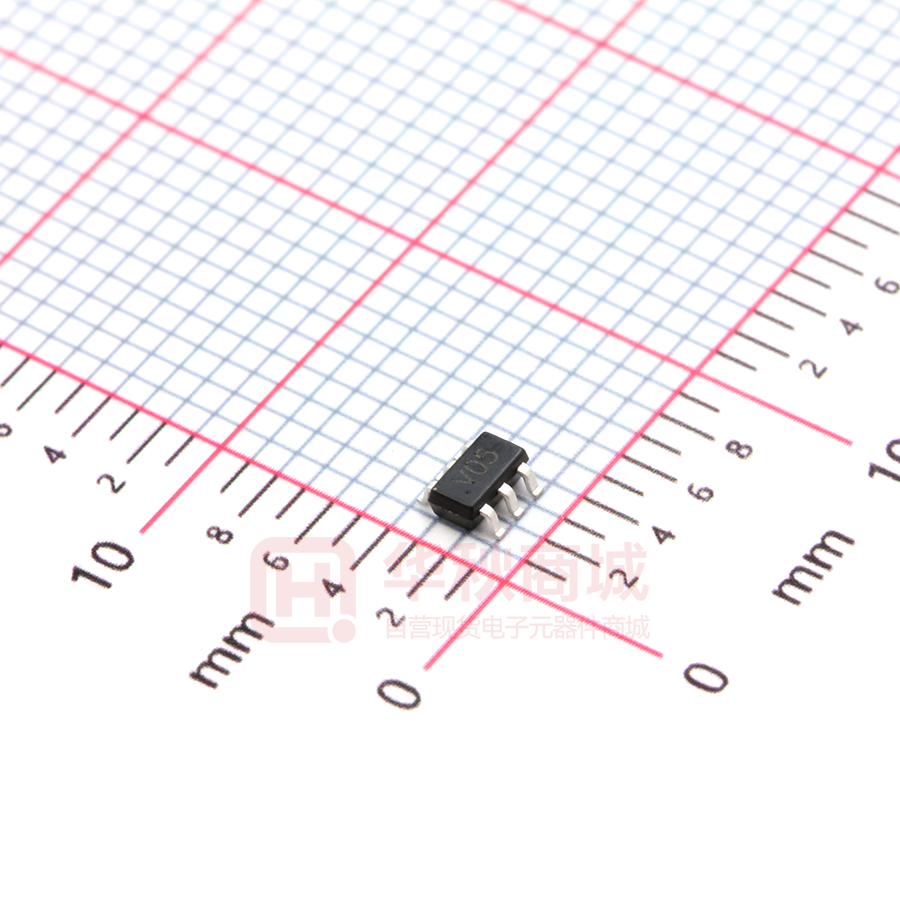

SRV05 4-CHANNEL LOW CAPACITANCE ESD PROTECTION DIODES ARRAY Features Marking: V05 SOT23-6L  Protects 4 I/O Lines   Low Working Voltage: 5 V Low Clamping Voltage  Low Capacitance: 0.6pF (I/O to GND)   Response time is typically < 1 ns IEC61000−4−2 (ESD) ±20 kV (air), ±15 kV (contact)  IEC61000−4−5 (Surge) 4 A (I/O to GND)  IEC61000−4−5 (Surge) 17 A (VDD to GND)  RoHS compliant Applications  USB 3.0  HDMI 1.3  SATA and eSATA  DVI  IEEE 1394  PCI Express  Portable Electronics  Notebooks Pin Configuration Absolute maximum ratings Parameter Symbol Rating Unit Peak pulse power (tp = 8/20μs) Ppk 84 W Peak pulse current (tp = 8/20μs) IPP 6 A ESD according to IEC61000-4-2 air discharge VESD ESD according to IEC61000-4-2 contact discharge Junction temperature TJ Operation temperature TOP Storage temperature TSTG Lead temperature www.tw-gmc.com TL 1 ±20 ±15 kV 125 o -40 to 85 o -55 to 150 o 260 o C C C C SRV05 Electrical Characteristics (TA=25℃ unless otherwise specified) Electrical Characteristics (TA=25℃ unless otherwise specified) Paramete Symbol Min Typ Max Unit VRWM -- -- 5 V VBR 6.5 -- 8.5 V IT=1mA Leakage Current ILeak IR -- -- 100 nA VRWM=5V Clamping Voltage（I/O-GND） VC -- -- 13 V IPP=4A,Tp=8/20μs Clamping Voltage(VDD-GND) VC -- -- 19 V IPP=17A,Tp=8/20μs CJ -- 0.6 0.7 pF VR=0V, f=1MHz CJ -- 0.3 0.4 pF VR=0V, f=1MHz Reverse Working Voltage Breakdown Voltage Junction Capacitance (I/O to GND) Junction Capacitance % of Rated Power or IPP (I/O to I/O ) 110 110 100 100 90 90 80 80 70 70 60 60 50 50 40 40 30 30 20 20 10 10 0 Test Condition Waveform Parameters: tr = 8µs td = 20µs e-t td = IPP/2 0 0 25 50 75 100 125 150 0 o Ambient Temperature - TA ( C) 10 15 20 Time (µs) Power Derating Curve www.tw-gmc.com 5 Pulse Waveform 1 2 25 30 SRV05 SOT23-6L Package outline Symbol Dimensions Min Typ Max A 1.050 1.100 1.150 A1 0.000 0.050 0.100 L1 0.300 0.400 0.500 C 0.100 0.150 0.200 D 2.820 2.920 3.020 E 1.500 1.600 1.700 E1 2.650 2.800 2.950 B 1.800 1.900 2.000 B1 www.tw-gmc.com (mm) 0.950 Typ L2 0.300 0.450 0.600 O 0º 4º 8º 1 3
