Approval sheet
MULTILAYER CERAMIC ANTENNA
RFANT Pb free Series – RoHS Compliance
Halogens Free Product
2.4 GHz ISM Band Working Frequency
P/N: RFANT5220110A0T
*Contents in this sheet are subject to change without prior notice.
Page 1 of 9
ASC_RFANT5220110A0T_V13
Sep. 2012
Approval sheet
FEATURES
3
1.

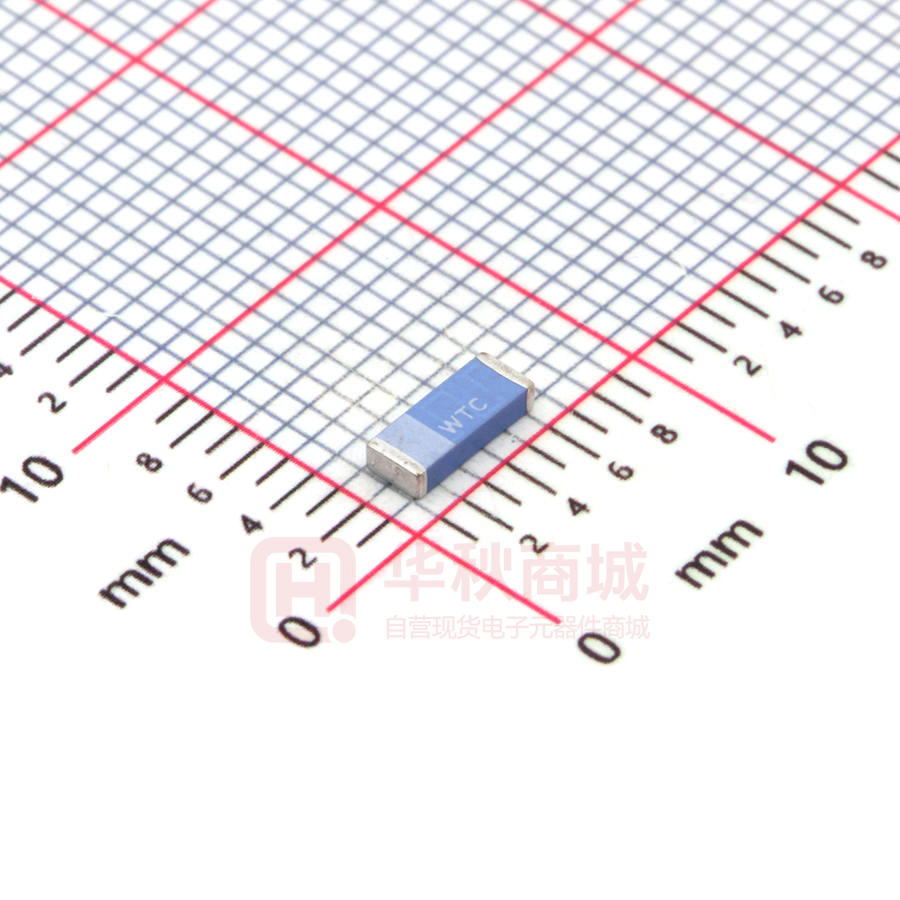

Surface Mounted Devices with a small dimension of 5.2 x 2.0 x 1.1 mm meet future miniaturization trend.
2.
Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as
well as beautifying the housing of final product.
3.
High Stability in Temperature / Humidity Change
APPLICATIONS
1.
Bluetooth
2.
Wireless LAN
3.
HormRF
4.
ISM band 2.4GHz wireless applications
DESCRIPTION
Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as
TM
shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth typically located on this unlicensed
frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has
been designed to a typical 150MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic)
technology and superior product design via 3D EM Simulation Skill.
3
This antenna has a rectangular ceramic body with a tiny dimension of 5.2x 2.0 x 1.1 mm meet the future SMT automation
and miniaturization requirements on modern portable devices.
CONSTRUCTION
Soldering
terminal
Identification
mark
C
WT
Feeding
DIMENSIONS
Figure
Page 2 of 9
Symbol
Dimension
L
5.20 ± 0.20 mm
W
2.00 ± 0.20 mm
T
1.15 ± 0.10 mm
A
0.40 ± 0.25 mm
ASC_RFANT5220110A0T_V13
Sep. 2012
Approval sheet
SOLDER LAND PATTERN DESIGN
Figure
ELECTRICAL CHARACTERISTICS
RFANT5220110A0T
Specification
Working Frequency Range
2.4 GHz ~ 2.5GHz
Gain
2 dBi (Typical)
VSWR
2 max.
Polarization
Linear
Azimuth Bandwidth
Omni-directional
Impedance
50Ω
Rated Power (max.)
3 Watts
Maximum Input Power
5 Watts for 5 minutes
Operation Temperature
-40˚C ~ +85˚C
Remark: The specification is defined based on the test board dimension as in below
Page 3 of 9
ASC_RFANT5220110A0T_V13
Sep. 2012
Approval sheet
Antenna on Test Board ( FR4 Thickness 0.8mm)
3.3mm
1.5mm
2.5mm
Empty Area
18x9 mm
WTC
Empty Area
1mm
18mm
50Ω
Ω Feed
line
GROUND
30x18 mm
Antenna S11 on Test Board
Bandwidth >150MHz
Page 4 of 9
ASC_RFANT5220110A0T_V13
Sep. 2012
Approval sheet
RADIATION PATTERN
Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT5220110A0T
antenna was measured based on the PCB size and installation position as shown in the below figure Test Board
WTC
Empty Area
WTC
Z
Y
X
Y
Z
GROUND
30x18 mm
X
Vertical
Horizontal
Y
Y
Y-Z
Plane
Average
Gain=
-0.82 dBi
z
z
Peak Gain= -5.42 dBi
Average Gain=-8.98 dBi
Peak Gain = 1.69 dBi
Average Gain =-3.22 dBi
X-Z
Plane
z
Average
Gain=-0.91
dBi
z
X
X
Peak Gain= -5.97 dBi
Average Gain=-3.24dBi
Peak Gain= 2.66 dBi
Average Gain= -8.61 dBi
X
X-Y
Plane
X
Average
Gain=
-0.68 dBi
Y
Y
Peak Gain= -5.97 dBi
Average Gain=-3.12 dBi
Page 5 of 9
Peak Gain= 2.59 dBi
Average Gain= -9.24 dBi
ASC_RFANT5220110A0T_V13
Sep. 2012
Approval sheet
RELIABILITY TEST
Test item
Test condition / Test method
Specification
Solderability
JIS C 0050-4.6
*Solder bath temperature:235 ± 5°C
At least 95% of a surface of each terminal
JESD22-B102D
*Immersion time:2 ± 0.5 sec
electrode must be covered by fresh solder.
*Solder:Sn3Ag0.5Cu for lead-free
Leaching
*Solder bath temperature:260 ± 5°C
Loss of metallization on the edges of each
of metallization)
*Leaching immersion time:30 ± 0.5 sec
electrode shall not exceed 25%.
IEC 60068-2-58
*Solder : SN63A
(Resistance to dissolution
Resistance to soldering heat
*Preheating temperature:120~150℃,
No mechanical damage.
JIS C 0050-5.4
Samples shall satisfy electrical specification
1 minute.
*Solder temperature:270±5°C
*Immersion time:10±1 sec
after test.
Loss of metallization on the edges of each
electrode shall not exceed 25%.
*Solder:Sn3Ag0.5Cu for lead-free
Measurement to be made after keeping at
room temperature for 24±2 hrs
Drop Test
JIS C 0044
*Height:75 cm
No mechanical damage.
*Test Surface:Rigid surface of concrete or
Samples shall satisfy electrical specification
after test.
steel.
*Times:6 surfaces for each units;2 times
for each side.
Adhesive Strength
of Termination
JIS C 0051- 7.4.3
*Pressurizing force:
5N(≦0603);10N(>0603)
No remarkable damage or removal of the
termination.
*Test time:10±1 sec
Bending test
The middle part of substrate shall be
No mechanical damage.
JIS C 0051- 7.4.1
pressurized by means of the pressurizing
Samples shall satisfy electrical specification
rod at a rate of about 1 mm/s per second
after test.
until the deflection becomes 1mm/s and
then pressure shall be maintained for 5±1
sec.
Measurement to be made after keeping at
room temperature for 24±2 hours
Page 6 of 9
ASC_RFANT5220110A0T_V13
Sep. 2012
Approval sheet
Temperature cycle
JIS C 0025
1.
30±3 minutes at -40°C±3°C,
No mechanical damage.
2.
10~15 minutes at room temperature,
Samples shall satisfy electrical specification
3.
30±3 minutes at +85°C±3°C,
4.
10~15 minutes at room temperature,
after test.
Total 100 continuous cycles
Measurement to be made after keeping at
room temperature for 24±2 hrs
Vibration
JIS C 0040
*Frequency:10Hz~55Hz~10Hz(1min)
No mechanical damage.
*Total amplitude:1.5mm
Samples shall satisfy electrical specification
*Test times:6hrs.(Two hrs each in three
after test.
mutually perpendicular directions)
High temperature
JIS C 0021
*Temperature:85°C±2°C
No mechanical damage.
*Test duration:1000+24/-0 hours
Samples shall satisfy electrical specification
Measurement to be made after keeping at
after test.
room temperature for 24±2 hrs
Humidity
(steady conditions)
*Humidity:90% to 95% R.H.
No mechanical damage.
*Temperature:40±2°C
Samples shall satisfy electrical specification
JIS C 0022
*Time:1000+24/-0 hrs.
after test.
Measurement to be made after
keeping at room temperature for 24±2
hrs
※ 500hrs measuring the first data then
1000hrs data
Low temperature
JIS C 0020
*Temperature:-40°C±2°C
No mechanical damage.
*Test duration:1000+24/-0 hours
Samples shall satisfy electrical specification
Measurement to be made after keeping at
after test.
room temperature for 24±2 hrs
Page 7 of 9
ASC_RFANT5220110A0T_V13
Sep. 2012
Approval sheet
SOLDERING CONDITION
Typical examples of soldering processes that provide reliable joints without any damage are given in Fig 2
Fig 2. Infrared soldering profile
ORDERING CODE
RF
Walsin
RF device
ANT
522011
0
Product code
Dimension code
Unit of
dimension
ANT : Antenna
Per 2 digits of
Length, Width,
Thickness :
0 : 0.1 mm
A
0
T
Application
Specification
Packing
A : 2.4GHZ ISM
Band
Design Code
T : 7” Reeled
1 : 1.0 mm
e.g. :
522011 =
Length 52,
Width 20,
Thickness 11
Minimum Ordering Quantity:
2000 pcs per reel.
PACKAGING
Plastic Tape specifications (unit :mm)
Index
Dimension (mm)
Index
Dimension (mm)
Page 8 of 9
Ao
Bo
ΦD
T
W
2.40 ± 0.10
5.50 ± 0.10
1.55 ± 0.05
1.20 ± 0.10
12.0 ± 0.10
E
F
Po
P1
P2
1.75 ± 0.10
5.50 ± 0.10
4.00 ± 0.10
4.00 ± 0.10
2.00 ± 0.10
ASC_RFANT5220110A0T_V13
Sep. 2012
Approval sheet
Reel dimensions
C
Index
Dimension (mm)
A
B
A
B
C
Φ178
Φ60.0
Φ13.5
Typing Quantity: 2000 pieces per 7” reel
CAUTION OF HANDLING
Limitation of Applications
Please contact us before using our products for the applications listed below which require especially high reliability for the
prevention of defects, which might directly cause damage to the third party’s life, body or property.
(1) Aircraft equipment
(2) Aerospace equipment
(3) Undersea equipment
(4) Medical equipment
(5) Disaster prevention / crime prevention equipment
(6) Traffic signal equipment
(7) Transportation equipment (vehicles, trains, ships, etc.)
(8) Applications of similar complexity and /or reliability requirements to the applications listed in the above.
Storage condition
(1) Products should be used in 6 months from the day of WALSIN outgoing inspection, which can be
confirmed.
(2) Storage environment condition.
Products should be storage in the warehouse on the following conditions.
Temperature
: -10 to +40°C
Humidity
: 30 to 70% relative humidity
Don’t keep products in corrosive gases such as sulfur. Chlorine gas or acid or it may cause oxidization of
electrode, resulting in poor solderability.
Products should be storage on the palette for the prevention of the influence from humidity, dust and son on.
Products should be storage in the warehouse without heat shock, vibration, direct sunlight and so on.
Products should be storage under the airtight packaged condition.
Page 9 of 9
ASC_RFANT5220110A0T_V13
Sep. 2012
