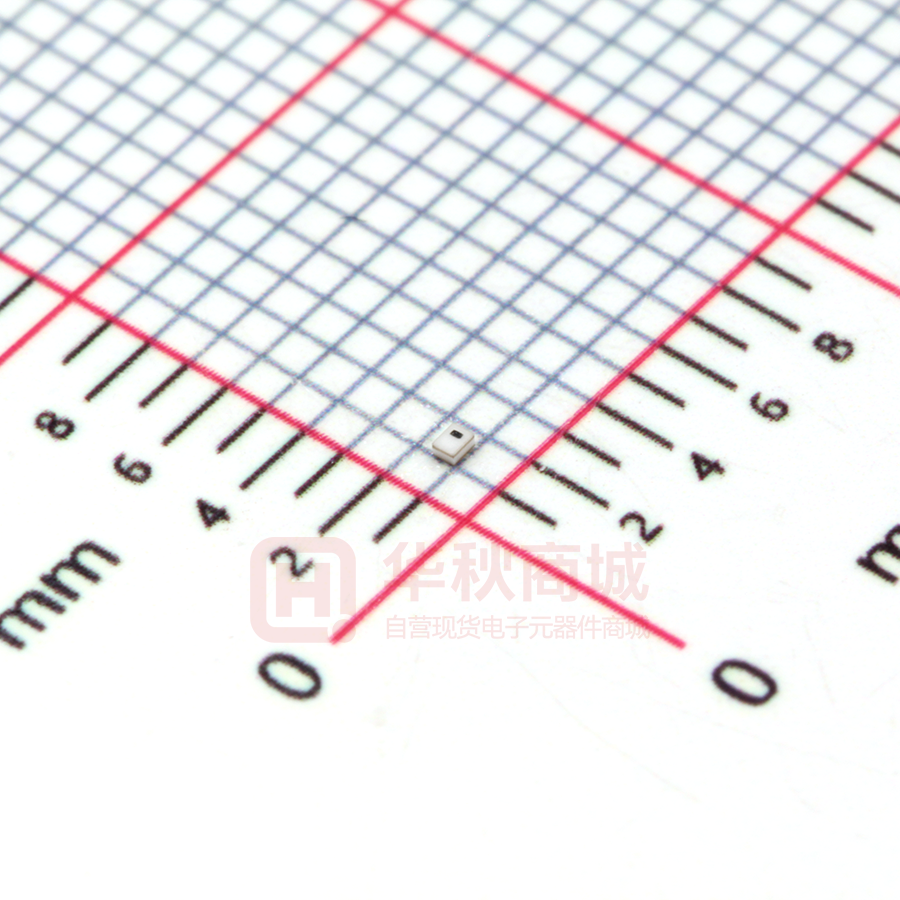

TFCPL0605030L18A1U

Approval sheet TFCPL0605 Series – RoHS Compliance Dual-band COUPLER Halogens Free Product 2.4GHz/ 5GHz Dual Band RF Application P/N: TFCPL0605030L18A1U *Contents in this sheet are subject to change without prior notice. Page 1 of 8 ASC_TFCPL0605030L18A1U_V08 Jul. 2017 Approval sheet FEATURES 1. Miniature footprint: 0.65 X 0.50 X 0.35 mm 2. Low Profile Thickness 3. Low Insertion loss and high isolation 3 APPLICATIONS 1. W-LAN 2.4GHz/ 5GHz working frequency CONSTRUCTION Top view P4 P3 P1 PIN Connection PIN Connection P1 Coupling P3 Output P2 Terminate P4 Input P2 DIMENSIONS Figure Symbol Dimension (mm) L 0.65 ± 0.04 W 0.50 ± 0.04 T 0.35 ± 0.05 A 0.20 ± 0.04 B 0.20 ± 0.04 C 0.025 ± 0.025 D 0.10 ± 0.04 E 0.25 ± 0.04 F 0.025 ± 0.025 Top view Side view Side view Bottom view Page 2 of 8 ASC_TFCPL0605030L18A1U_V08 Jul. 2017 Approval sheet ELECTRICAL CHARACTERISTICS Item Specification Frequency range 2400 to 2500 MHz 4900 to 5850 MHz 0.50 dB max.( 0.25 dB Typ.) at +25C 0.50 dB max.( 0.35 dB Typ.) at +25C 0.55 dB max. at -40C ~ +85C 0.55 dB max. at -40C ~ +85C Coupling Factor 19.0 ± 1.5 dB 12.5 ± 1.5 dB Directivity 15 dB min. 15 dB min. 1.3 max. 1.3 max. 50 Ω 50 Ω Insertion Loss VSWR Impedance Moisture sensitivity levels MSL is LEVEL 1 (Refer to : IPC/JEDEC J-STD-020) Operating & Storage Condition (Component) Operation Temperature Range: -40C ~ +85C Storage Temperature Range: -40C ~ +85C Storage Condition before Soldering (Included packaging material) Storage Temperature Range: +5 ~ +40 ℃ Humidity: 30 to 70% relative humidity TYPICAL ELECTRICAL PERFORMANCE Page 3 of 8 ASC_TFCPL0605030L18A1U_V08 Jul. 2017 Approval sheet SOLDER LAND PATTERN Figure Unit : mm Line width to be designed to match 50 Ω characteristic impedance, depending on PCB material and thickness. Page 4 of 8 ASC_TFCPL0605030L18A1U_V08 Jul. 2017 Approval sheet RELIABILITY TEST Test condition / Test method Test item Solderability *Solder bath temperature：235  5C Specification At least 95% of a surface of each terminal JIS C 0050-4.6 *Immersion time：2  0.5 sec electrode must be covered by fresh solder. JESD22-B102D Solder：Sn3Ag0.5Cu for lead-free Leaching *Solder bath temperature：260  5C (Resistance to *Leaching immersion time：30  0.5 sec dissolution of Loss of metallization on the edges of each electrode shall not exceed 25%. Solder : SN63A metallization) IEC 60068-2-58 Resistance to soldering *Preheating temperature：120~150℃, No mechanical damage. 1 minute. Electrical specification shall satisfy the *Solder temperature：2705C descriptions in electrical characteristics under heat JIS C 0050-5.4 *Immersion time：101 sec the operational temperature range within -40 ~ 85°C. Solder：Sn3Ag0.5Cu for lead-free Loss of metallization on the edges of each Measurement to be made after keeping at electrode shall not exceed 25%. room temperature for 242 hrs Drop Test JIS C 0044 *Height：75 cm No mechanical damage. Customer’s specification. *Test Surface：Rigid surface of concrete or Electrical specification shall satisfy the steel. *Times：6 surfaces for each units；2 times for each side. Vibration JIS C 0040 descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. *Frequency：10Hz~55Hz~10Hz(1min) No mechanical damage. *Total amplitude：1.5mm Electrical specification shall satisfy the *Test times：6hrs.(Two hrs each in three mutually perpendicular directions) descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Adhesive Strength of Termination JIS C 0051- 7.4.3 *Pressurizing force： 2N(≦0603 ; 1.6 x 0.8 mm)； No remarkable damage or removal of the termination. 10N(>0603 ; 1.6 x 0.8 mm) *Test time：5±1 sec Bending test JIS C 0051- 7.4.1 The middle part of substrate shall be No mechanical damage. pressurized by means of the pressurizing rod Electrical specification shall satisfy the at a rate of about 1 mm/s per second until the descriptions in electrical characteristics under deflection becomes 1mm/s and then pressure the operational temperature range within -40 shall be maintained for 51 sec. ~ 85°C. Measurement to be made after keeping at room temperature for 242 hours Page 5 of 8 ASC_TFCPL0605030L18A1U_V08 Jul. 2017 Approval sheet Temperature cycle JIS C 0025 1. 303 minutes at -40C3C, No mechanical damage. 2. 10~15 minutes at room temperature, Electrical specification shall satisfy the 3. 303 minutes at +85C3C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Measurement to be made after keeping at room temperature for 242 hrs High temperature JIS C 0021 *Temperature：85C2C No mechanical damage. *Test duration：1000+24/-0 hours Electrical specification shall satisfy the Measurement to be made after keeping at room temperature for 242 hrs descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Humidity (steady conditions) *Humidity：90% to 95% R.H. No mechanical damage. *Temperature：402C Electrical specification shall satisfy the JIS C 0022 *Time：1000+24/-0 hrs. Measurement to be made after keeping at room temperature for 242 hrs descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. ※ 500hrs measuring the first data then 1000hrs data Low temperature JIS C 0020 *Temperature：-40C2C No mechanical damage. *Test duration：1000+24/-0 hours Electrical specification shall satisfy the Measurement to be made after keeping at room temperature for 242 hrs descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Page 6 of 8 ASC_TFCPL0605030L18A1U_V08 Jul. 2017 Approval sheet SOLDERING CONDITION Typical examples of soldering processes that provide reliable joints without any damage are given in Fig 2, Fig 2. Infrared soldering profile ORDERING CODE CPL 060503 Walsin TF Product Code Dimension code 0 TF:Thin film CPL:Coupler Per 2 digits of Length, Width, Thickness : L Unit of dimension 0 : 0.1 mm 18A1U Application Specification L: 2.4/ 5.2/ 5.8GHz Triple Band Design Code 1 : 1.0 mm e.g. : 060503 = Length 06, Width 05, Thickness 03 Minimum Ordering Quantity: 4000 pcs per reel. PACKAGING Paper Tape specifications (unit :mm) Index Dimension (mm) Index Dimension (mm) Page 7 of 8 Ao Bo D T W 0.62  0.10 0.80  0.10 1.55  0.05 0.43  0.10 8.0  0.10 E F Po P1 P2 1.75  0.05 3.50  0.05 4.00  0.10 2.00  0.05 2.00  0.05 ASC_TFCPL0605030L18A1U_V08 Jul. 2017 Approval sheet Reel dimensions C Index A Φ178.0 Dimension (mm) B Φ60.0 A B C Φ13.0 Taping Quantity: 4000 pieces per 7” reel CAUTION OF HANDLING Limitation of Applications Please contact us before using our products for the applications listed below which require especially high reliability for the prevention of defects, which might directly cause damage to the third party’s life, body or property. (1) (2) (3) (4) (5) (6) (7) (8) Aircraft equipment Aerospace equipment Undersea equipment Medical equipment Disaster prevention / crime prevention equipment Traffic signal equipment Transportation equipment (vehicles, trains, ships, etc.) Applications of similar complexity and /or reliability requirements to the applications listed in the above. Storage condition (1) Products should be used in 6 months from the day of WALSIN outgoing inspection. (2) Storage environment condition.        Page 8 of 8 Products should be storage in the warehouse on the following conditions. Temperature : +5 to +40℃ Humidity : 30 to 70% relative humidity Don’t keep products in corrosive gases such as sulfur. Chlorine gas or acid or it may cause oxidization of electrode, resulting in poor solderability. Products should be storage on the palette for the prevention of the influence from humidity, dust and son on. Products should be storage in the warehouse without heat shock, vibration, direct sunlight and so on. Products should be storage under the airtight packaged condition. ASC_TFCPL0605030L18A1U_V08 Jul. 2017
