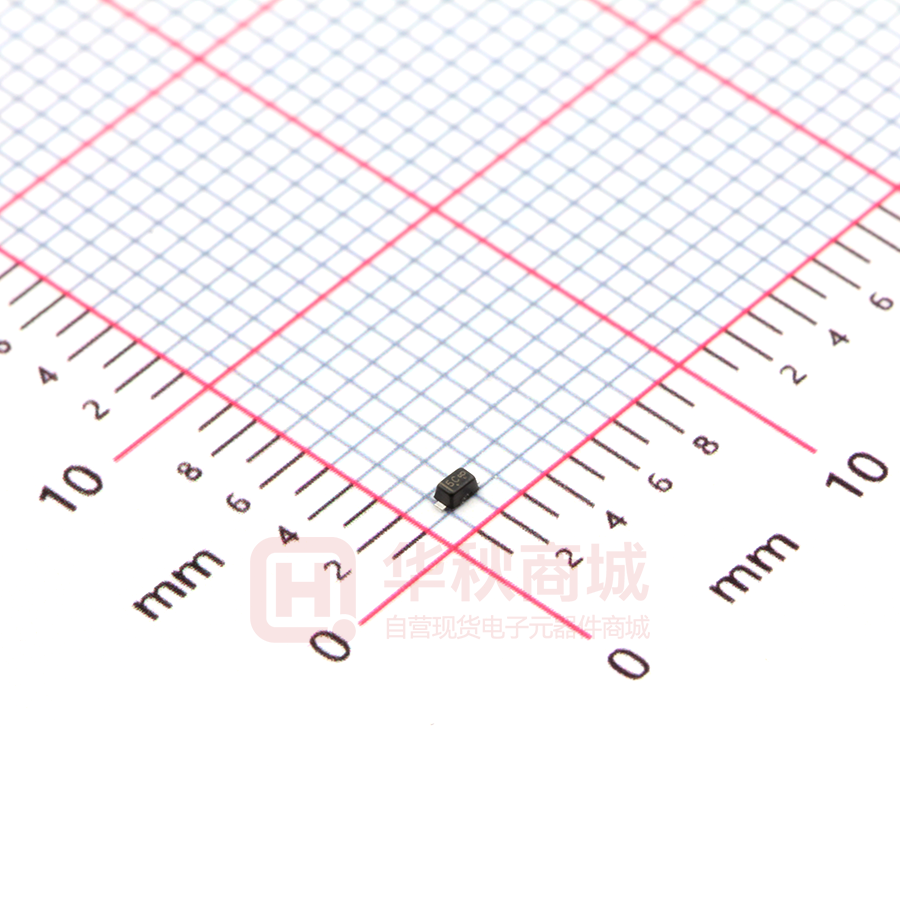

BV-D505ZC

BV-D505ZC Order Code: BV-D505ZC Transient Voltage Suppressor Version: A0 2016-03-14 Features Exterior IEC61000-4-2(ESD)±15KV(air),±8KV(contact) IEC61000-4-5(Lightning) 10A(8/20us) 200 Watts peak pulse power(tp=8/20us) Low operating voltage and low clamping Moisture sensitivity level: level 1 Small package: SOD523 SOD523 Application information Package (Top View) High Speed Line: USB 1.0/2.0,VGA,DVI,SDI Serial and Parallel Ports Cellular handsets and accessories Agency Approvals Schematic Symbol ICoN RoHS HF Description Compliance with 2011/65/EU Compliance with IEC 61249-2-21:2003 Mean lead free Part Number and Electrical Parameter IDRM@VDRM Part Number uA V MAX BV-D505ZC 1.0 VBR@IBR V VC@IPP① mA MIN 5.0 5.6 V VC@IPP① A MAX 1.0 11.6 V A MAX 5.0 18.6 CO② pF MAX 10 15 ○ Absolute maximum rating measured at T=25 C RH=45%-75% (unless otherwise noted). ①Surge Waveform: 8/20us; ②Off-state capacitance is measured in VBR=0V, f=1MHz; 1/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-D505ZC Order Code: BV-D505ZC Transient Voltage Suppressor Version: A0 2016-03-14 Part Number System BV Mark D505ZC (1) (2) (1) Bencent TVS (2) Series: D505ZC etc. 5C: Marking V-I Curve Parameters Definition VC Clamping voltage IPP Peak pulse current VDRM Stand-off Voltage VBR Breakdown Voltage IDRM Reverse Leakage Current IR Test current PPP Peak Pulse Power Dissipation Thermal Considerations Symbol Parameter Value Unit TJ Operating Junction Temperature Range -55 to+150 ℃ TS Storage Temperature Range -55 to+150 ℃ Environmental Characteristics Testing Items High Temperature Reverse Bias Test High Temperature Life Test High-low Temperature Cycle Test High Temperature & High Humidity Test Pressure Cooker Test Resistance of Soldering Heat Technical Standards Temperature:150±3℃,Bias=80%VDRM Time:168H Temperature:150℃ Time:168H Temperature:From-40℃ to 125℃ Dwell time:30min,100 cycles Temperature:85℃ Humidity:85% Test time:168H Temperature:121℃, 2atm. Humidity:100% Test time:24H Temperature:260±5℃ Time of dip soldering:10s, 3 times Note: The above testing items can be specified by customers by contacting Bencent service 2/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-D505ZC Order Code: BV-D505ZC Transient Voltage Suppressor Version: A0 2016-03-14 Product Dimensions SOD523 Reflow Profile Reflow Condition Pre Heat Temperature Min 150℃ Temperature Max 200℃ Time (Min to Max) 20 – 80 secs Average ramp up rate (Liquid) Temperature (TL)to peal TS (Max) to Tl-Ramp-up Rate Reflow Pb-Free Assembly -Temperature (TL)(Liquid) -Temperature (TL) Peak Temperature (TP) Time within 5℃ of actual Peak Temperature (TP) 3℃/s Max. 3℃/s Max. 217℃ 60 –150 secs (260+0/-5)℃ 30 secs Ramp-down Rate 6℃/s Max. Time 25℃ to peak Temperature(TP) 8 min Max Do not exceed 3/4 www.bencent.com.cn 260℃ Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-D505ZC Order Code: BV-D505ZC Transient Voltage Suppressor Version: A0 2016-03-14 Package Reel Information Outline Taping 4/4 Reel Per Carton Reel Diameters (pcs) (pcs) (mm) L W H 3,000 90,000 178 390 370 220 www.bencent.com.cn Carton Size (mm) Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
