BV03CW
Order Code: BV03CW
Version: A2 2016-08-15
Transient Voltage Suppressor
Features
Exterior
IEC 61000-4-2(ESD)±15KV(air), ±8KV(contact)
150Watts peak pulse power (tp=8/20μS)
Ultra low capacitance: 1.5pF maximum
Low clamping voltage
Moisture sensitivity level:Level 1
Weight 5.0 mg

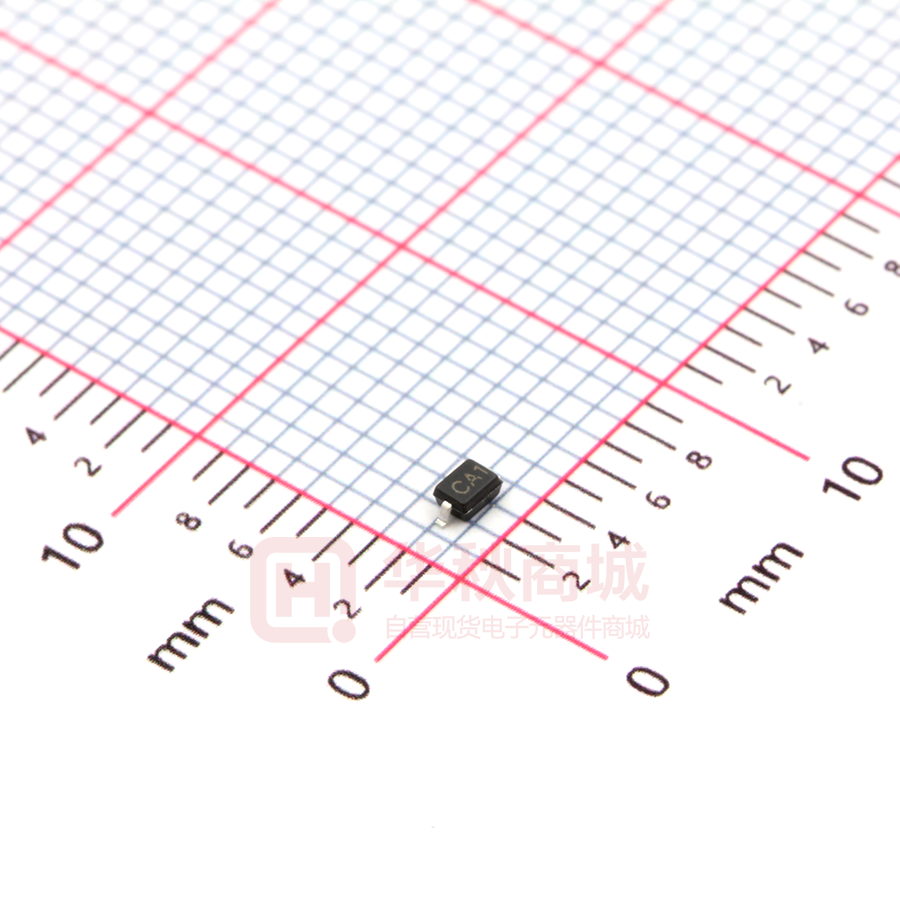

Small package: SOD323
2
1
SOD323
Agency Approvals
Application Information
Ethernet
Icon
Description
Compliance with 2011/65/EU
Compliance with IEC61249-2-21:2003
Mean lead free
Part Number and Electrical Parameter
Number
VBR①@IR
IDRM@VDRM
Part
μA
V
MAX
0.5
BV03CW
V
Vc@Ipp②
mA
MIN
3
3.5
V
A
MAX
1
V
A
MAX
5.8
CO③
Vc@Ipp②
1
15
10
pF
pF
TYP
MAX
0.85
1.5
Absolute maximum ratings measured at T= 25ºC RH = 45%-75% (unless otherwise noted).
① VBR is measured at IR=1mA
②Surge Waveform: 8/20μS.
③Off-state capacitance is measured in VDC=0V,VRMS=1V,f=1MHz
Part Numbering System
BV
03CW
(1)
(2)
(1) Bencent Transient Voltage Suppressor
(2) Series: 03 etc.
1/4
www.bencent.com.cn
Mark
B42LC
CA1
B006U2G
0909
0909
CA1: Part Number
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BV03CW
Order Code: BV03CW
Version: A2 2016-08-15
Transient Voltage Suppressor
V-I Curve
Parameters
Definition
VC
Clamping voltage
Ipp
Surge waveform 8/20μs
VDRM
Stand-off Voltage
VBR
Breakdown Voltage
IDRM
Reverse Leakage Current
IR
Test current
Ppp
Peak Pulse Power Dissipation
IPP
VC VBR VDRM
IR
IDRM
IDRM
IR
V
VDRM VBR VC
IPP
Typical Characteristics
Thermal Considerations
symbol
Parameter
Value
Unit
TJ
Operating Junction Temperature Range
-55 to +150
℃
TS
Storage Temperature Range
-55 to +150
℃
2/4
www.bencent.com.cn
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BV03CW
Order Code: BV03CW
Version: A2 2016-08-15
Transient Voltage Suppressor
Environmental Characteristics
Technical standards
Testing items
High temperature Reverse Bias Test
High Temperature Life Test
High-low Temperature Cycle test
High Temperature &High Humidity Test
Pressure cooker Test
Resistance of soldering heat
Temperature: 150±3℃ Bias=80%VDRM
Time:168H
Temperature: 150℃
Time:168H
Temperature: From -40℃ to125℃
Dwell time :30min,10cycles
Temperature: 85℃Humidity:85%
Time:168H
Temperature: 121℃,2atm. Humidity:100%
Time:24H
Temperature: 260±5℃
Time of dip soldering:10s,3times
Note: The above testing items can be specified by customer’s special request
Product Dimensions
REF
mm
inch
A
1.17(max)
0.046(max)
A1
0.10(max)
0.004(max)
b
0.34±0.10
0.013±0.0039
c
0.17±0.08
0.007±0.0032
D
1.66±0.14
0.065±0.0055
E
1.28±0.17
0.050±0.0067
H
2.5±0.2
0.098±0.0079
L
0.28±0.18
0.011±0.0071
Q1
0.25±0.15
0.010±0.0059
Recommended Soldering Pad
A
D
C
3/4
B
www.bencent.com.cn
REF
mm
inch
A
3.20
0.126
B
1.08
0.043
C
1.06
0.042
D
0.54
0.021
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BV03CW
Order Code: BV03CW
Version: A2 2016-08-15
Transient Voltage Suppressor
Reflow Profile
Reflow Condition
Temperature Min.
+150°C
Temperature Max.
+200°C
Time(Min to Max)
60 – 180 secs.
Average ramp up rate(Liquidus
Temp(TL) to peak)
TS(max) to TL - Ramp-up Rate
- Temperature (TL)
(Liquidus)
Reflow
- Temperature (TL)
Peak Temp (TP)
3°C/sec. Max.
(TP)
+217°C
60 – 150 secs.
Ramp-down
Preheat
TS(min)
TS
25
6°C/sec. Max.
Time 25°C to peak Temp (TP)
8 min. Max.
Do not exceed
+260°C
4/4
TL
TS(max)
TL
25 secs.
Ramp-down Rate
Reel
TL
3°C/sec. Max.
Critical Zone
TL to TP
Ramp-up
+(260+0/-5 )°C
Time within 5°C of actual Peak Temp
Package
TP
TP
Temperature
Pre Heat
Pb-Free Assembly
Time
time to peak temperature
Information
REF
mm
inch
A
1.46+/-0.1
0.057+/-0.004
B
3.10+/-0.3
0.122+/-0.012
d
1.50+/-0.1
0.059+/-0.004
D
178+/-1.0
7.008+/-0.039
D1
55+/-3
2.165+/-0.118
D2
13+/-0.5
0.512+/-0.020
E
1.75+/-0.1
0.069+/-0.004
F
3.5+/-0.2
0.138+/-0.008
P
4.0+/-0.2
0.157+/-0.008
P0
4.0+/-0.2
0.157+/-0.008
P1
2.0+/-0.2
0.079+/-0.008
W
8.0+/-0.2
0.315+/-0.008
W1
12.3+/-1.0
0.484+/-0.039
Outline
Reel
(pcs)
Per Carton
(pcs)
Reel Diameters
(mm)
Taping
3,000
90,000
177
www.bencent.com.cn
Carton Size(mm)
L
W
H
390
370
220
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
