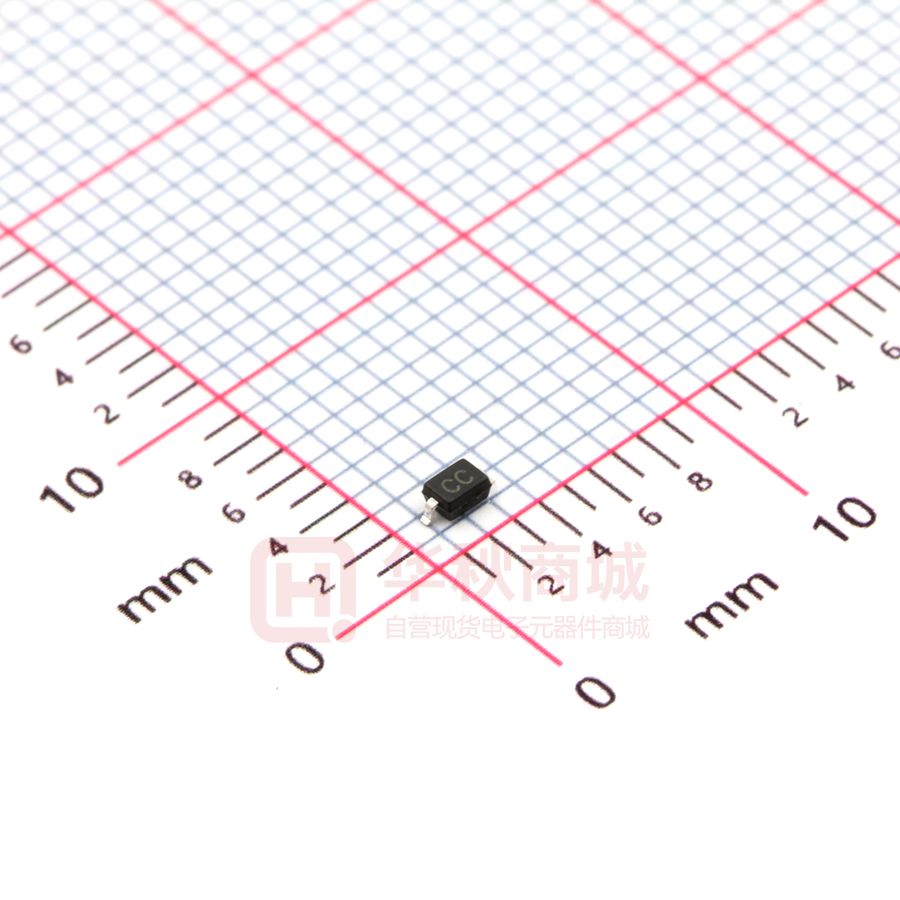

BV03C-H Order Code: BV03C-H Version: A2 2019-07-11 Transient Voltage Suppressor Features Exterior IEC 61000-4-2(ESD)±30KV(air), ±30KV(contact) 350Watts peak pulse power (tp=8/20μs) IEC61000-4-5(Lightning) IppMax=25A@1.2/50-8/20μs Ultra low capacitance: 1.5pF maximum 2 1 Low clamping voltage Moisture sensitivity level：Level 1 Weight 5.0mg Small package: SOD323 SOD323 Agency Approvals Application Information Ethernet secondary side Icon Description Compliance with 2011/65/EU Compliance with IEC61249-2-21:2003 Mean lead free Part Number and Electrical Parameter VBR①@IR IDRM@VDRM Part Number μA V MAX BV03C-H 1 V V MIN TYP 3.8 4 3.3 mA Vc@Ipp② Vc@Ipp② Vc@Ipp② V V V A MAX 1 7 A TYP 1 7 A MAX 5 18.5 CO③ 19 pF TYP MAX 0.8 1.5 Absolute maximum ratings measured at T= 25ºC RH = 45%-75% (unless otherwise noted). ① VBR is measured at IR=1mA ② Surge Waveform: 8/20us. ③ Off-state capacitance is measured in VDC=0V,VRMS=0.3V,f=1MHz. Part Numbering System Mark BV 03 C H (1) (2) (3) (4) (1) Bencent Transient Voltage Suppressor (2) Stand-state Voltage : 3.3V (3) Bidirectional TVS B42LC B006U2G CC 0909 0909 CC: Part Number (4) Bencent intenal code 1/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV03C-H Order Code: BV03C-H Version: A2 2019-07-11 Transient Voltage Suppressor V-I Curve Parameters Definition VC Clamping voltage Ipp Surge waveform 8/20us VDRM Stand-off Voltage VBR Breakdown Voltage IDRM Reverse Leakage Current IR Test current VSB Snapback voltage ISB Test current Ppp Peak Pulse Power Dissipation Typical Characteristics Thermal Considerations symbol Parameter Value Unit TJ Operating Junction Temperature Range -55 to +150 ℃ TS Storage Temperature Range -55 to +150 ℃ 2/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV03C-H Order Code: BV03C-H Version: A2 2019-07-11 Transient Voltage Suppressor Environmental Characteristics Technical standards Testing items High temperature Reverse Bias Test High Temperature Life Test High-low Temperature Cycle test High Temperature &High Humidity Test Pressure cooker Test Resistance of soldering heat Temperature: 150±3℃ Bias=80%VDRM Time:168H Temperature: 150℃ Time:168H Temperature: From -55℃ to 150℃ Dwell time ：30min,10~100cycles Temperature: 85℃Humidity:85% Time:168H Temperature: 121℃，2atm. Humidity:100% Time:24H Temperature: 260±5℃ Time of dip soldering：10s，3times Note: The above testing items can be specified by customer’s special request Product Dimensions REF mm inch A 1.17(max) 0.046(max) A1 0.10(max) 0.004(max) b 0.34±0.10 0.013±0.0039 c 0.17±0.08 0.007±0.0032 D 1.66±0.14 0.065±0.0055 E 1.28±0.17 0.050±0.0067 H 2.5±0.2 0.098±0.0079 L 0.28±0.18 0.011±0.0071 Q1 0.25±0.15 0.010±0.0059 Recommended Soldering Pad A D C 3/4 REF mm inch A 3.20 0.126 B 1.08 0.043 C 1.06 0.042 D 0.54 0.021 B www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV03C-H Order Code: BV03C-H Version: A2 2019-07-11 Transient Voltage Suppressor Reflow Profile Reflow Condition Temperature Min. +150°C Temperature Max. +200°C Time(Min to Max) 60 – 180 secs. Average ramp up rate(Liquidus Temp(TL) to peak) TS(max) to TL - Ramp-up Rate - Temperature (TL) (Liquidus) Reflow - Temperature (TL) Peak Temp (TP) 3°C/sec. Max. (TP) +217°C 60 – 150 secs. Ramp-down Preheat TS(min) TS 25 6°C/sec. Max. Time 25°C to peak Temp (TP) 8 min. Max. Do not exceed +260°C 4/4 TL TS(max) TL 25 secs. Ramp-down Rate Reel TL 3°C/sec. Max. Critical Zone TL to TP Ramp-up +(260+0/-5 )°C Time within 5°C of actual Peak Temp Package TP TP Temperature Pre Heat Pb-Free Assembly Time time to peak temperature Information REF mm inch A 1.46+/-0.1 0.057+/-0.004 B 3.10+/-0.3 0.122+/-0.012 d 1.50+/-0.1 0.059+/-0.004 D 178+/-1.0 7.008+/-0.039 D1 55+/-3 2.165+/-0.118 D2 13+/-0.5 0.512+/-0.020 E 1.75+/-0.1 0.069+/-0.004 F 3.5+/-0.2 0.138+/-0.008 P 4.0+/-0.2 0.157+/-0.008 P0 4.0+/-0.2 0.157+/-0.008 P1 2.0+/-0.2 0.079+/-0.008 W 8.0+/-0.2 0.315+/-0.008 W1 12.3+/-1.0 0.484+/-0.039 Outline Reel (pcs) Per Carton (pcs) Reel Diameters (mm) Taping 3,000 90,000 178 www.bencent.com.cn Carton Size(mm) L W H 390 370 220 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
