BS0300N-C
Order Code: BS0300N-C
Version: A0 2018-1-25
Thyristor Surge Suppresser
Features
Exterior
Excellent capability of absorbing transient surge
Quick response to surge voltage (nS Level)
Eliminates overvoltage caused by fast rising transients
Moisture sensitivity level: Level 1
Non degenerative

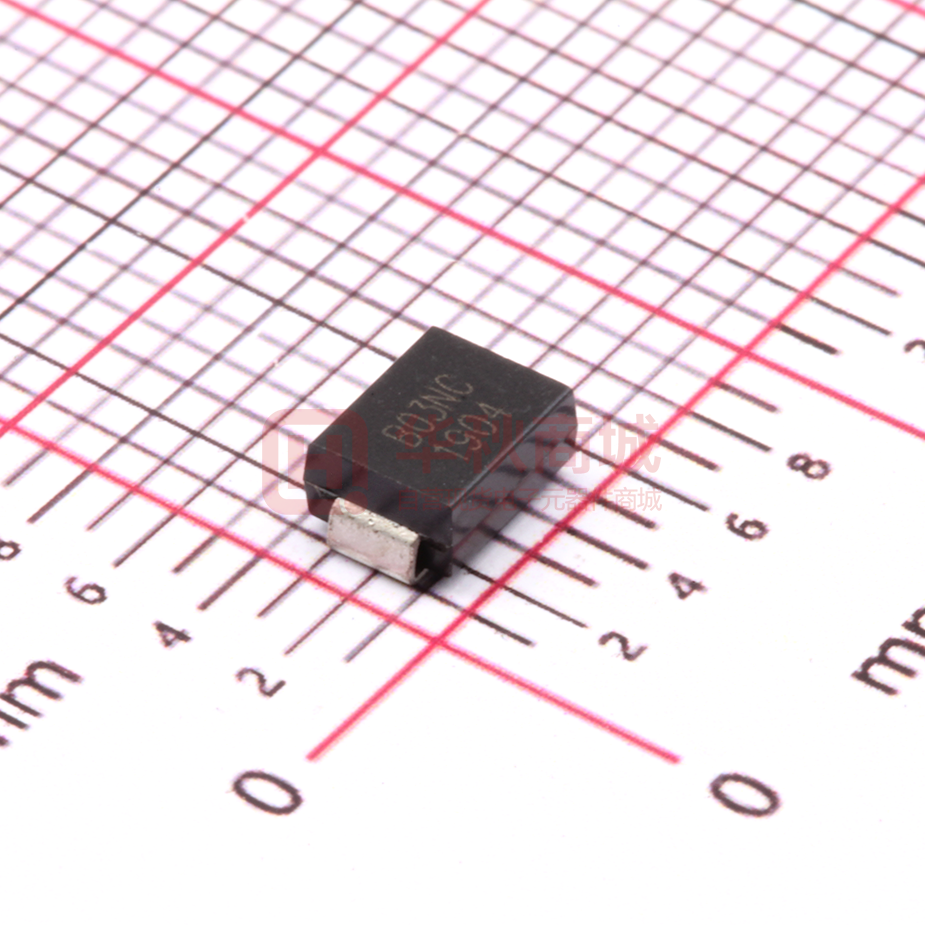

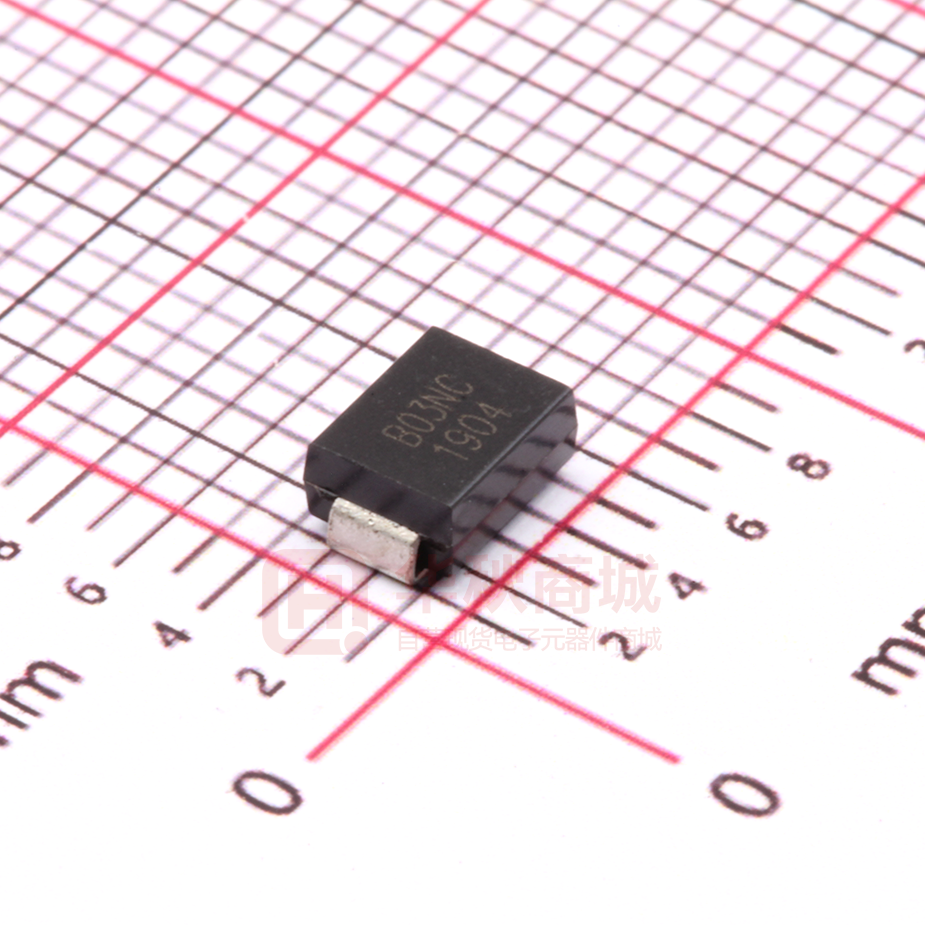

SMB
Application Information
rmation
Package (Top View)
RS485/232/422
`
B03NC
1801
1
Agency Approvals
2
Schematic Symbol
Icon
Description
Compliance with 2011/65/EU
2
1
Compliance with IEC61249-2-21:2003
Compliance with UL497B, Certificated E232249
Part Number and Electrical Parameter
①
VS @ IS
IDRM@ VDRM
Part Number
µA
V
MAX
BS0300N-C
5
V
VT@ IT
mA
MAX
25
40
V
IH
A
MAX
800
4
2.2
CO
②
mA
pF
MIN
MAX
50
100
Absolute maximum ratings measured at TA= 25ºC RH = 45%-75% (unless otherwise noted).
① Vs is measured at 100KV/S
② Off-state capacitance is measured at VDC=2V, VRMS=1V, f=1MHz
1/4
www.bencent.com.cn
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BS0300N-C
Order Code: BS0300N-C
Version: A0 2018-1-25
Thyristor Surge Suppresser
Part Numbering System
Mark
BS
0300
N
C
(1)
(2)
(3)
(4)
B03NC
B006U2G
B42LC
1801
0909
0909
(1) Bencent Semiconductor Surge Arrester
(2) Off-state Voltage, e.g.0300=30×100=30V
(3) Package: SMB
(4) Rating Surge Voltage: 6KV (10/700μs)
B03NC: Part Number
1801: January, 2018
V-I Curve
Parameters
Definition
VDRM
Peak off-state voltage
IDRM
Off-state Current
VS
Switching Voltage
IS
Switching Current
IH
Holding Current
VT
On-state voltage
IT
On-state current
CO
Off-state capacitance
+I
IT
IS
IH
IDRM
-V
+V
VT
VDRM
VS
-I
Surge Ratings
Current Waveform
5/320μs
Voltage Waveform
10/700μs
Ipp
150
-Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product;
Thermal Considerations
Symbol
TJ
TS
2/4
Parameter
Operating Junction
Temperature Range
Storage Temperature
Range
www.bencent.com.cn
Product Characteristics
Characteristics
Value
Unit
-40 to +125
℃
Body Material
-40 to +125
℃
Terminal Finish
Lead Material
Copper Alloy
UL recognized epoxy meeting
flammability classification 94V-0
100% Matte-Tin Plated
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BS0300N-C
Order Code: BS0300N-C
Version: A0 2018-1-25
Thyristor Surge Suppresser
Environmental Characteristics
Testing items
Technical standards
High temperature Reverse Bias Test
Temperature: 125±3℃, Bias=80%VDRM
Time: 168H
High Temperature Life Test
Temperature: 125℃
Time: 168H
High-low Temperature Cycle test
Temperature: From -40℃ to125℃
Dwell time: 30min, 10cycles
High Temperature &High Humidity Test
Temperature: 85℃, Humidity: 85%
Test time: 168H
Pressure cooker Test
Temperature: 121℃, 2atm, Humidity: 100%
Test time: 24H
Resistance of soldering heat
Temperature: 260±5℃
Time of dip soldering: 10s, 3times
Note: The above testing items can be specified by customer’s special request
Product Dimensions
REF
mm
inch
A
1.85--2.15
0.073--0.085
B
3.4--3.8
0.134--0.15
C
4.3--4.9
0.169--0.193
D
2--2.6
0.079--0.102
E
0.15--0.3
0.006--0.012
F
0.80—1.50
0.031--0.059
G
0--0.4
0--0.016
H
5--5.6
0.197--0.220
Recommended Soldering Pad
A
B
C
3/4
www.bencent.com.cn
REF
mm
inch
A
5.45
0.215
B
2.45
0.097
C
2.15
0.085
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
BS0300N-C
Order Code: BS0300N-C
Version: A0 2018-1-25
Thyristor Surge Suppresser
Reflow Profile
Pre Heat
Pb-Free assembly
Temperature Min
150°C
Temperature Max
200°C
Time (min to max)
60 – 180 secs
Average ramp up rate (Liquid) Tamp
(TL) to peal
TS(max) to TL - Ramp-up Rate
- Temperature (TL)
Reflow
(Liquid)
- Temperature (TL)
Peak Temperature (TP)
TP
TP
3°C/second max
3°C/second max
217°C
60 – 150 seconds
TL
TS(max)
Ramp-down
Preheat
TS(min)
TS
260+0/-5 °C
Time within 5°C of actual peak
Temperature (TP)
Critical Zone
TL to TP
Ramp-up
TL
Temperature
Reflow Condition
TL
25 secs
25
Ramp-down Rate
6°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
260°C
Time
time to peak temperature
Package Reel Information
4/4
REF
mm
inch
A
3.75+/-0.3
0.148+/-0.012
B
5.65+/-0.3
0.222+/0-.012
d
1.5+/-0.15
0.059+/-0.006
D
type330.0
type13.0
D1
100+/-3
3.937+/-0.118
D2
13+/-2
0.512+/-0.079
E
1.75+/-0.2
0.069+/-0.008
F
5.5+/-0.5
0.217+/-0.020
P
8.0+/-0.2
0.315+/-0.008
P0
4.0+/-0.2
0.157+/-0.008
P1
2.0+/-0.2
0.079+/-0.008
W
12.0+/-0.3
0.472+/-0.012
W1
18+/-4
0.709+/-0.157
OUTLINE
REEL
(PCS)
PER CARTON
(PCS)
REEL
DIAMETERS
(mm)
L
W
H
TAPING
3,000
48,000
330
360
360
385
www.bencent.com.cn
CARTON SIZE(mm)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
