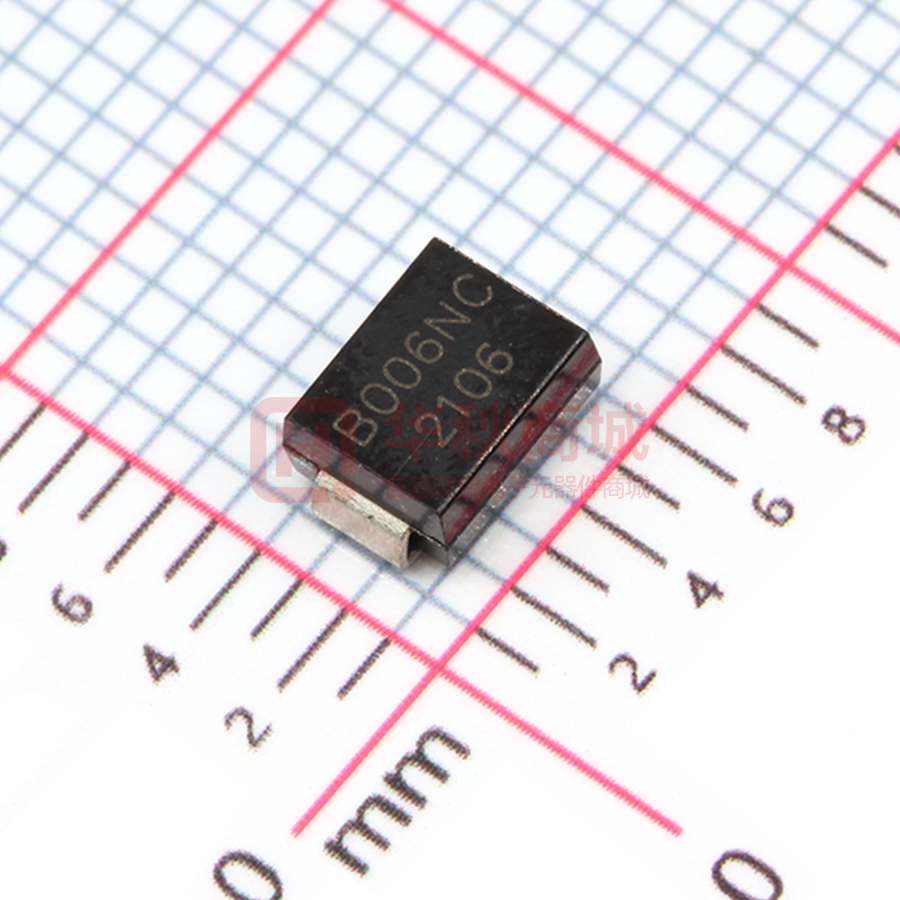

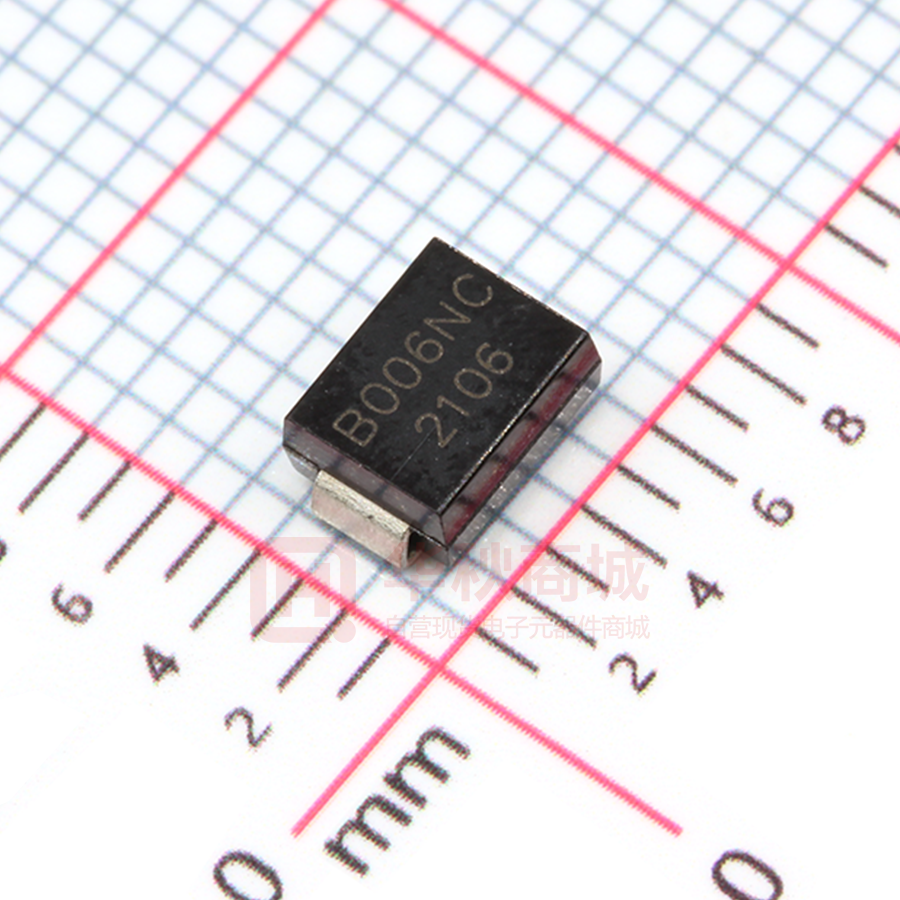

BS0060N-C Order Code: BS0060N-C Version: A1 2017-12-11 Thyristor Surge Suppresser Exterior Features Excellent capability of absorbing transient surge Quick response to surge voltage (nS Level) Eliminates overvoltage caused by fast rising transients Moisture sensitivity level: level 1 Weight: 100mg Non degenerative Bi-directional SMB Application Information rmation Package (top view) Video ` B006NC 1312 1 Agency Approvals 2 Schematic Symbol Icon Description Compliance with 2011/65/EU Compliance withIEC61249-2-21:2003 1 2 Part Number and Electrical Parameter ① VS @ IS IDRM@VDRM Part Number µA V MAX BS0060N-C 5 V mA MAX 6 25 VT@ IT V IH A MAX 800 4 2.2 CO ② mA pF MIN MAX 15 100 Absolute maximum ratings measured at TA= 25ºC RH = 45%-75% (unless otherwise noted). ① Vs is measured at 100KV/S. ② Off-state Capacitance is measured at VDC=2V, VRMS=1V, f=1MHz. 1/5 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS0060N-C Order Code: BS0060N-C Version: A1 2017-12-11 Thyristor Surge Suppresser Part Numbering System Mark BS 0060 N C (1) (2) (3) (4) B006NC B006U2G B42LC 1312 0909 0909 (1) Bencent Semiconductor Surge Arrester (2) Off-state Voltage, e.g.: 0060=6×100=6V (3) Package: SMB B006NC: Part Number (4) Rating Surge Voltage: 6KV (10/700μs) 1312: December, 2013 V-I Curve Parameters Definition VDRM Peak Off-state Voltage IDRM Off-state Current VS Switching Voltage IS Switching Current IH Holding Current VT On-state Voltage IT On-state Current CO Off-state Capacitance +I IT IS IH IDRM -V +V VDRM VT VS -I Surge Ratings Current Waveform 2/10μs 8/20μs 10/160μs 5/320μs* 10/1000μs Voltage Waveform 2/10μs 1.2/50μs 10/160μs 10/700μs* 10/1000μs Ipp 500A 400A 200A 150A 100A -Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product; -Bencent only makes the test for 5/320μs@150A* (10/700μs@6KV), but for other IPP value derived from experience is just for reference only. Bencent will not take any obligation for these parameters, so before applying our parts, please make sure to verify the parameters listed in the above table. Thermal Considerations Symbol TJ TS 2/5 Parameter Operating Junction Temperature Range Storage Temperature Range www.bencent.com.cn Physical Characteristics Characteristics Value Unit -40 to +150 ℃ Body Material -60 to +150 ℃ Terminal Finish Lead Material Copper Alloy UL recognized epoxy meeting flammability classification 94V-0 100% Matte-Tin Plated Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS0060N-C Order Code: BS0060N-C Thyristor Surge Suppresser Version: A1 2017-12-11 Typical Characteristics 3/5 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS0060N-C Order Code: BS0060N-C Version: A1 2017-12-11 Thyristor Surge Suppresser Environmental Characteristics Testing Items High Temperature Reverse Bias Test High Temperature Life Test High-low Temperature Cycle Test High Temperature &High Humidity Test Pressure Cooker Test Resistance of Soldering Heat Technical Standards Temperature: 150±3℃, Bias=80%VDRM Time: 168H Temperature: 150℃ Time: 168H Temperature: From -40℃ to125℃ Dwell time: 30min, 10-100 cycles Temperature: 85℃Humidity: 85% Test time: 168H Temperature: 121℃, 2atm. Humidity:100% Test time: 24H to 168H Temperature: 260±5℃ Time of dip soldering: 10s, 3times Note: The above testing items can be specified by customers by contacting Bencent service t Product Dimensions REF. mm inch A 1.96--2.21 0.077--0.087 B 3.30--3.94 0.130--0.155 C 4.06--4.57 0.160--0.180 D 1.95--2.62 0.077±0.103 E 0.15--0.31 0.006±0.012 F 0.76--1.52 0.030±0.060 G 0.05--0.20 0.002±0.008 H 5.21--5.59 0.205±0.220 REF mm inch A 6.58 0.259 B 2.26 0.089 C 2.75 0.108 Recommended Soldering Pad A B C 4/5 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS0060N-C Order Code: BS0060N-C Version: A1 2017-12-11 Thyristor Surge Suppresser Reflow Profile Reflow Condition Temperature Min. +150°C Temperature Max. +200°C Time (Min to Max) 60 – 180 secs. Average ramp up rate (Liquidus Temp (TL) to peak) TS(max) to TL - Ramp-up Rate 3°C/sec. Max. (Liquidus) - Temperature (TL) Peak Temp (TP) +217°C 60 – 150 secs. TL TS(max) Ramp-down Preheat TS(min) TS +(260+0/-5 )°C Time within 5°C of actual Peak Temp (TP) Critical Zone TL to TP Ramp-up TL 3°C/sec. Max. - Temperature (TL) Reflow TP TP Temperature Pre Heat Pb-Free Assembly TL 8 – 15 secs. Ramp-down Rate 6°C/sec. Max. Time 25°C to peak Temp (TP) 8 min. Max. Do not exceed +260°C 25 Time time to peak temperature Package Reel Information 5/5 Outline Reel (pcs) Per Carton (pcs) Reel Diameters (mm) Taping 3,000 48,000 330 www.bencent.com.cn REF. mm inch A 3.65+/-0.3 0.144+/-0.012 B 5.69+/-0.3 0.244+/0-.012 d 1.5+/-0.1 0.059+/-0.004 D 330.0 13.0 D1 100+/-3 3.937+/-0.118 D2 13+/-0.3 0.512+/-0.012 E 1.5+/-0.2 0.059+/-0.008 F 5.65+/-0.2 0.222+/-0.008 P 8.0+/-0.2 0.315+/-0.008 P0 4.0+/-0.2 0.157+/-0.008 P1 2.0+/-0.2 0.079+/-0.008 W 12.0+/-0.2 0.472+/-0.008 W1 16.8+/-2.0 0.661+/-0.079 Carton Size(mm) L W H 360 360 385 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
