BV-ULC0524PA

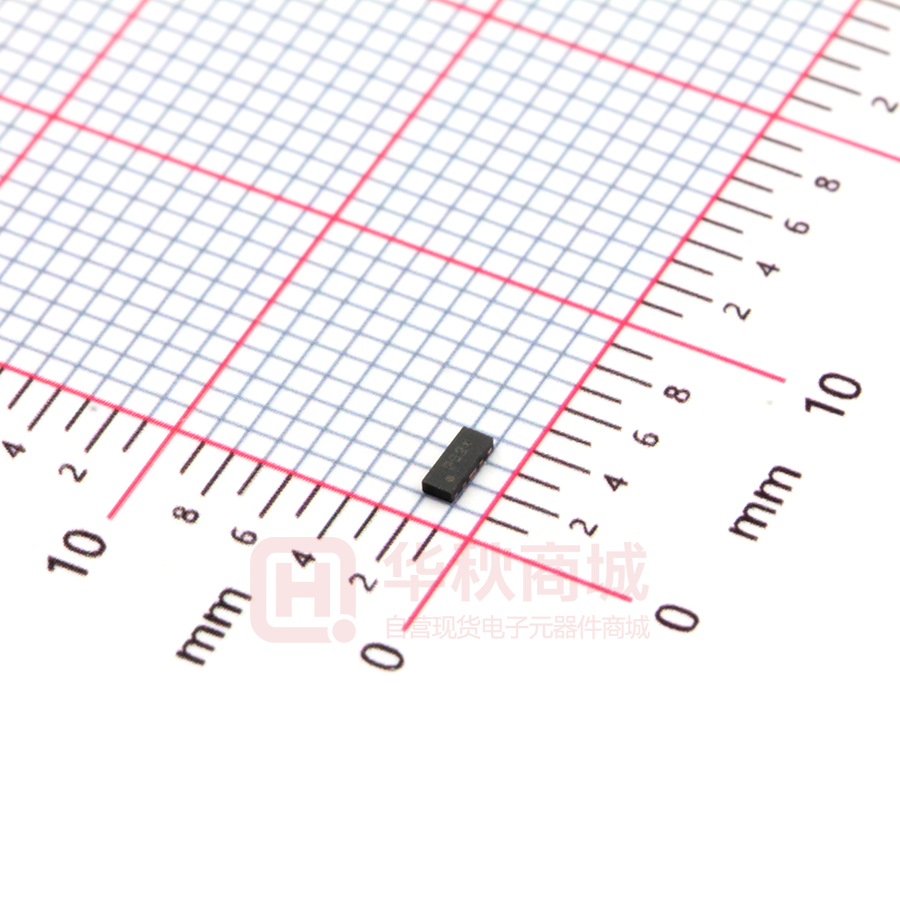

BV-ULC0524PA Order Code:BV-ULC0524PA Version: A2 2018-03-12 Transient Voltage Suppressor Features Exterior IEC61000-4-2(ESD)±15KV(air),±8KV(contact) IEC61000-4-4(EFT) 40A(5/50ns) IEC61000-4-5(Lightning) 4A (8/20us) 100Watts peak pulse power per line (tp=8/20us) Low capacitance:0.6pF typical (I/O to GND) Low operating voltage: 5V Low clamping voltage Moisture sensitivity level: level 1 Small package:DFN2510-10L DFN2510-10L Application information Package (Top View) High Definition Multi-Media Interface (HDMI) Digital Visual Interface (DVI) Unified Display Interface (UDI) Display Port MDDI Ports PCI Express Serial ATA Agency Approvals Schematic Symbol ICoN RoHS Description Compliance with 2011/65/EU Compliance with IEC 61249-2-21:2003 HF Mean lead free Part Number and Electrical Parameter IDRM@VDRM Part Number uA V MAX BV-ULC0524PA 1.0 VBR@IBR V mA MIN 5.0 6.0 VC@IPP① VC@IPP① V V A MAX 1.0 15.0 A MAX 1.0 25.0 4.0 CO② CO③ pF pF TYP TYP 0.6 0.3 ○ Absolute maximum rating measured at T=25 C RH=45%-75% (unless otherwise noted). ① Surge Waveform: 8/20us, Pin1,2,4,5 to Pin3,8; ② Off-state capacitance is measured in VBR=0V, f=1MHz, Pin1,2,4,5 to Pin3,8, any I/O to GND; ③ Off-state capacitance is measured in VBR=0V, f=1MHz, any I/O–I/O; 1/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-ULC0524PA Order Code:BV-ULC0524PA Version: A2 2018-03-12 Transient Voltage Suppressor Part Number System BV Mark ULC0524PA (1) (2) P524 (1) Bencent TVS (2) Series: ULC0524PA etc. P524: Marking V-I Curve Parameters Definition VC Clamping voltage IPP Peak pulse current VDRM Stand-off Voltage VBR Breakdown Voltage IDRM Reverse Leakage Current IR Test current PPP Peak Pulse Power Dissipation Thermal Considerations Symbol Parameter Value Unit TJ Operating Junction Temperature Range -55 to+150 ℃ TS Storage Temperature Range -55 to+150 ℃ Environmental Characteristics Testing Items High Temperature Reverse Bias Test High Temperature Life Test High-low Temperature Cycle Test High Temperature & High Humidity Test Pressure Cooker Test Resistance of Soldering Heat Technical Standards Temperature: 150±3℃ , Bias=80%VDRM Time: 168H Temperature: 150℃ Time: 168H Temperature: From-40℃ to 125℃ Dwell time: 30min, 100 cycles Temperature: 85℃ Humidity: 85% Test time: 168H Temperature:121℃ , 2atm. Humidity: 100% Test time: 24H Temperature: 260±5℃ Time of dip soldering:10s, 3 times Note: The above testing items can be specified by customers by contacting Bencent service 2/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-ULC0524PA Order Code:BV-ULC0524PA Version: A2 2018-03-12 Transient Voltage Suppressor Product Dimensions DFN2510-10L REF mm inch A 0.50±0.05 0.020±0.002 A1 0.03±0.03 0.001±0.001 A2 0.13（Max） 0.005（Max） b 0.20±0.05 0.008±0.002 b1 0.40±0.05 0.016±0.002 D 2.50±0.10 0.098±0.004 E 1.00±0.10 0.039±0.004 e 0.50 0.020 L 0.38±0.05 0.015±0.002 Recommended Soldering Pad 3/4 www.bencent.com.cn REF mm inch C 0.875 0.034 G 0.20 0.008 P 0.50 0.020 P1 1.00 0.039 X 0.20 0.008 X1 0.40 0.016 Y 0.65 0.026 Y1 1.55 0.061 Z 1.55 0.061 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-ULC0524PA Order Code:BV-ULC0524PA Version: A2 2018-03-12 Transient Voltage Suppressor Reflow Profile Reflow Condition Pre Heat Temperature Min 150℃ Temperature Max 200℃ Time (Min to Max) 20 – 80 secs Average ramp up rate (Liquid) Temperature (TL)to peal TS (Max) to Tl-Ramp-up Rate Reflow Pb-Free Assembly -Temperature (TL)(Liquid) -Temperature (TL) Peak Temperature (TP) 3℃ /s Max. 3℃ /s Max. 217℃ 60 –150 secs (260+0/-5)℃ Time within 5℃ of actual Peak Temperature (TP) 8– 15 secs Ramp-down Rate 6℃ /s Max. Time 25℃ to peak Temperature(TP) 8 min Max Do not exceed 260℃ Package Reel Information REF mm inch A 1.2+/-0.1 0.047+/-0.004 B 2.7+/-0.1 0.106+/-0.004 d 1.50+0.1/-0 0.059+0.004/-0 D 178+/-1.0 7.01+/-0.039 D1 55+/-3 2.165+/-0.118 D2 13+/-0.5 0.512+/-0.020 E 1.75+/-0.1 0.069+/-0.004 F 3.6+/-0.2 0.138+/-0.008 P 4.0+/-0.2 0.158+/-0.008 P0 4.0+/-0.2 0.158+/-0.008 P1 2.0+/-0.2 0.079+/-0.008 W 8.0+/-0.2 0.315+/-0.008 W1 14.4+/-0.5 0.567+/-0.020 Outline Reel (pcs) Per Carton (pcs) Reel Diameters (mm) Taping 3,000 90,000 177 4/4 www.bencent.com.cn Carton Size(mm) L W H 390 370 220 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
