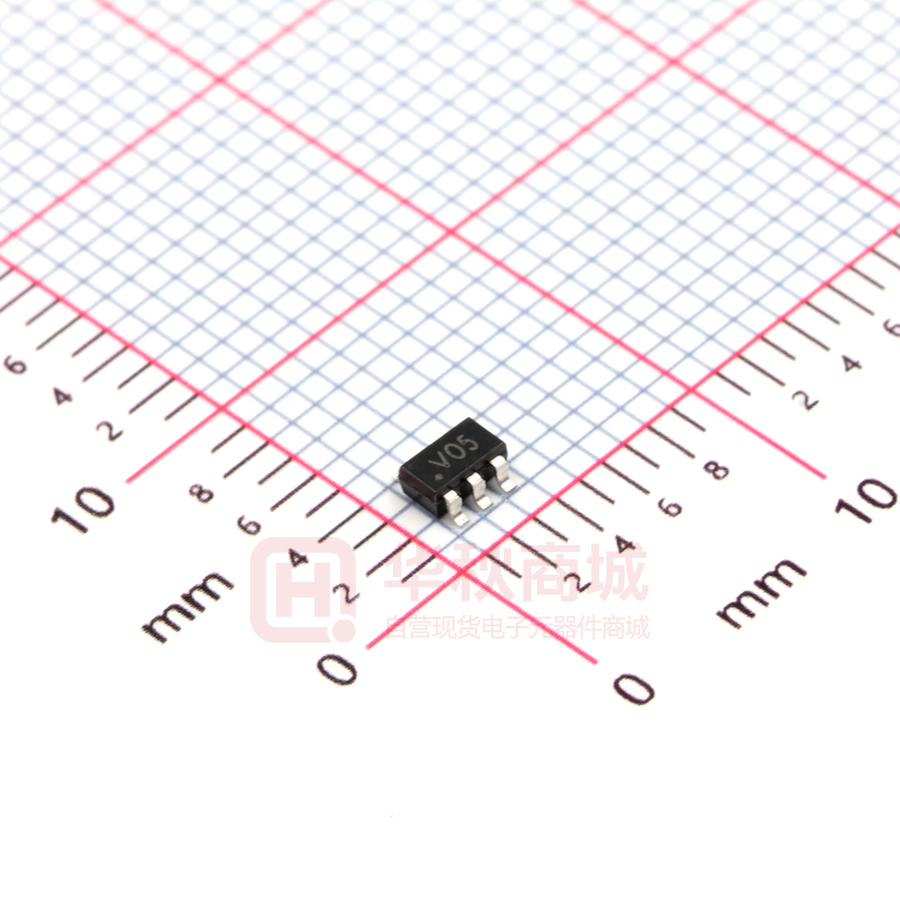

BV-SRV05-4 Order Code: BV-SRV05-4 Version: A2 2016-08-27 Transient Voltage Suppressor Features Exterior IEC 61000-4-2(ESD)±15KV(air), ±10KV(contact) Low leakage current 0.5Ua (Max) at 5V Moisture sensitivity level：Level 1 Small package: SOT23-6 SOT23-6 SOT23-6 Application Information Package (top view) USB 2.0 ` Video Graphics Cards DVI IEEE 1394 Monitors and Flat Panel Displays Notebooks 10/100 Ethernet V05 Agency Approvals Schematic Symbol Icon Description Compliance with 2011/65/EU Compliance withIEC61249-2-21:2003 Part Number and Electrical Parameter Part Number BV-SRV05-4 VBR@IR IDRM@VDRM μA V MAX 0.5 V Vc@Ipp① mA MIN 5.0 6.0 V A MAX 1 15 5 CO② CO③ pF pF MAX MAX 1.8 1.0 Absolute maximum ratings measured at T= 25ºC RH = 45%-75% (unless otherwise noted). ①Surge Waveform: 8/20μ S.Pin 1,3,4,6 to Pin 2. ②Off-state capacitance is measured in VDC=0V, f=1MHz.Pin 1,3,4,6 to Pin 2. ③Off-state capacitance is measured in VDC=0V ,f=1MHz,any I/O to I/O. 1/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-SRV05-4 Order Code: BV-SRV05-4 Version: A2 2016-08-27 Transient Voltage Suppressor Part Numbering System BV Mark SRV05-4 (1) (2) V05 (1) Bencent Transient Voltage Suppressor (2) Series: SRV05-4 etc. V05: Part Number V-I Curve I Parameters Definition VC Clamping Voltage Ipp Surge Waveform 8/20μ s VDRM Stand-off Voltage VBR Breakdown Voltage IDRM Reverse Leakage Current IR Test Current Ppp Peak Pulse Power Dissipation IF VC VBR VDRM VF IDRM IR V IPP Thermal Considerations symbol Parameter Value Unit TJ Operating Junction Temperature Range -55 to+150 ℃ TS Storage Temperature Range -55 to+150 ℃ Environmental Characteristics Testing items High Temperature Reverse Bias Test High Temperature Storage Test High-low Temperature Cycle test High Temperature &High Humidity Test Pressure cooker Test Resistance of soldering heat Technical standards Temperature: 150±5℃ Bias=80%VDRM . Time:168H Temperature: 150℃ Time:168H Temperature: From -55℃ to125℃ Dwell time ：30min,100cycles Temperature: 85℃Humidity:85% Time:168H Temperature: 121℃，2atm. Humidity:100% Time:24H Temperature: 260±5℃ Time of dip soldering：10s，3times Note: The above testing items can be specified by customer’s special request 2/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-SRV05-4 Order Code: BV-SRV05-4 Version: A2 2016-08-27 Transient Voltage Suppressor Product Dimensions REF mm inch A 1.25(max) 0.0492(max) A1 0.000-0.150 0.0000-0.0059 A2 1.000-1.200 0.0394-0.0472 D 2.820-3.026 0.1110-0.1191 E 2.600-3.000 0.1024-0.1181 E1 1.500-1.750 0.0591-0.0689 e 0.900-1.000 0.0354-0.0394 e1 1.800-2.000 0.0709-0.0787 b 0.300-0.500 0.0118-0.0197 c 0.100(min) 0.0039(min) Reflow Profile Pre Heat Pb-Free assembly Temperature Min 150°C Temperature Max 200°C Time （Min to Max） 60 – 180 secs TP TP Average ramp up rate（Liquid） Tamp（TL） to peal 3°C/s Max TS(max) to TL - Ramp-up Rate 3°C/s Reflow Max - Temperature (TL) (Liquid) 217°C - Temperature (TL) 60 – 150 secs Peak Temperature (TP) 260+0/-5 °C Time within 5°C of actual peak Temperature (TP) 30secs Ramp-down Rate 6°C/s Time 25°C to peak Temperature (TP) 8 mins Max. Do not exceed 260°C 3/4 www.bencent.com.cn Max Critical Zone TL to TP Ramp-up TL Temperature Reflow Condition TL TS(max) Ramp-down Preheat TS(min) TS 25 time to peak temperature Time Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV-SRV05-4 Order Code: BV-SRV05-4 Version: A2 2016-08-27 Transient Voltage Suppressor Package Reel Information REF mm inch A0 3.26±0.20 0.128±0.008 B0 3.30±0.20 0.130±0.008 t 0.20±0.02 0.008±0.001 K0 1.05±0.05 0.041±0.002 d 1.55±0.10 0.061±0.004 P 4.00±0.10 0.157±0.004 P0 4.00±0.10 0.157±0.004 P2 2.00±0.05 0.079±0.002 E 1.75±0.10 0.069±0.004 F 3.5±0.05 0.138±0.002 W 8+0.30/-0.10 0.315+0.012/-0.004 A 178±1.0 7.008±0.039 B 54.5REF 2.146REF C 9.4±1.5 0.370±0.059 D 1.5±0.3 0.059±0.012 OUTLINE REEL (PCS) PER CARTON (PCS) REEL DIAMETERS (mm) L W H TAPING 3000 90,000 178 390 370 220 4/4 www.bencent.com.cn CARTON SIZE(mm) Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
