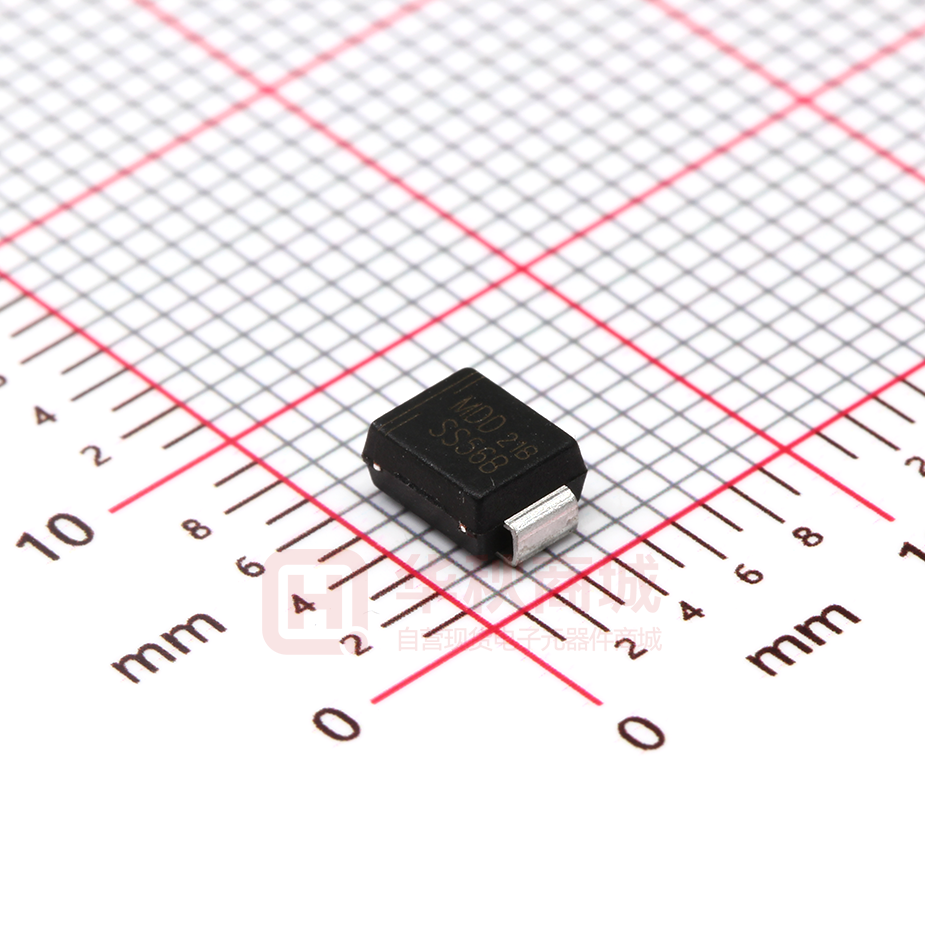

SS56B

SS52B THRU SS5200B Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features DO-214AA/SMB  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Metal silicon junction,majority carrier conduction  Low power loss,high efficiency 0.155(3.94) 0.130(3.30) 0.086 (2.20) 0.071 (1.80)  Built-in strain relief,ideal for automated placement 0.185(4.70) 0.160(4.06)  High forward surge current capability  High temperature soldering guaranteed: 0.012(0.305) 0.006(0.152) 250 °C/10 seconds at terminals 0.096(2.44) 0.084(2.13) 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. Mechanical Data 0.220(5.59) 0.200(5.08) Case: JEDEC DO-214AA/SMB molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight : 0.003 ounce, 0.095 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage VRRM Maximum RMS voltage Maximum DC blocking voltage VRMS VDC SS52B SS53B SS54B SS55B SS56B SS58B SS510B SS5150B SS5200B MDD SS52B MDD SS53B MDD SS54B MDD SS55B MDD SS56B MDD SS58B MDD SS510B MDD SS5150B MDD SS5200B 20 14 20 30 21 30 40 28 40 50 35 50 60 42 60 80 56 80 100 70 100 150 105 150 200 140 200 UNITS V V V Maximum average forward rectified current at TL(see fig.1) I(AV) 5.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 150 A Maximum instantaneous forward voltage at 5.0A VF 0.55 IR 1.0 50 500 Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) CJ Typical thermal resistance (NOTE 2) RJA Operating junction temperature range TJ Storage temperature range TSTG 0.70 0.85 0.3 25 300 50.0 -50 to +150 -50 to +150 V mA pF ℃/W ℃ ℃ Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2 ”(5.0x5.0mm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 SS52B THRU SS5200B Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere Typical Characterisitics Fig.2 Typical Reverse Characteristics Average Forward Current (A) 6.0 5.0 4.0 3.0 2.0 1.0 0.0 25 50 75 100 125 150 Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve 10 4 10 2 SS510B -SS520B 10 1 T J =25°C 10 0 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage（%） Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic T J =25°C Junction Capacitance (pF) 20 10 1 SS52B /SS54B SS56B SS58B /SS520B 0.1 0 0.5 1.0 1.5 500 100 SS52B /SS54B S S 5 46F B/S - SSS552200FB 20 10 0.1 10 1 100 Instaneous Forward Voltage (V) Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance 175 150 125 100 75 50 25 1000 2.0 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 Number of Cycles at 60Hz 100 Transient Thermal Impedance（ °C / W） Instaneous Forward Current (A) T J =75°C SS52B /SS56B Case Temperature (°C) Peak Forward Surage Current (A) T J =100°C 10 3 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 SS52B THRU SS5200B Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere Packing information unit:mm P0 P1 Item Symbol Tolerance SMB Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 3.81 5.41 2.42 1 50 . 330.00 50.00 13.00 1.75 5.55 8.00 4.00 2.00 0.30 12.00 12.30 d E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) BOX (pcs) INNER BOX (mm) REEL DIA, (mm) SMB 13" 3,000 4.0 6,000 190*190*41 330 CARTON SIZE (mm) 365*365*360 CARTON (pcs) 48,000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout http://www.microdiode.com Unit (inch) Symbol Unit (mm) A 2.8 0.110 B 0.094 C 2.4 4.6 0.181 D 2.2 0.086 E 7.0 0.276 Rev:2024A2 Page :3
