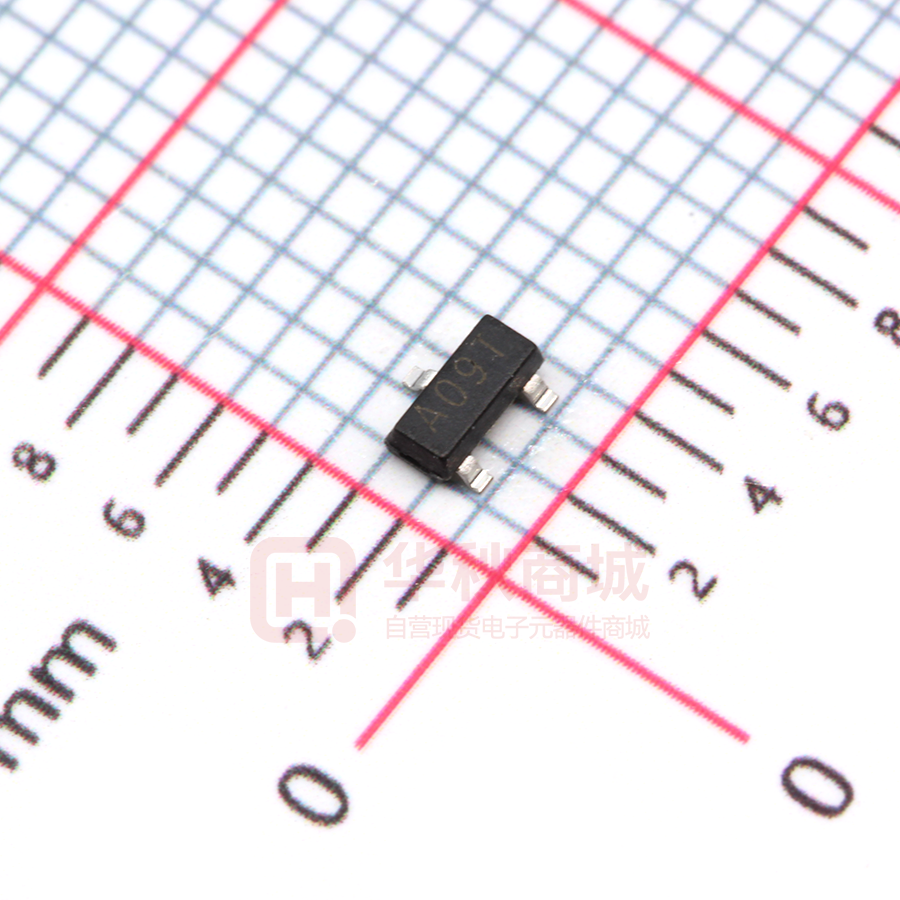

AO3400

AO3400 N-Channel MOSFET »Features V = 30V ID = 5A DS R @V = 10V, TYP =35mΩ R @V = 4.5V, TYP =40mΩ DS(ON) DS(ON) »Pin Configurations GS GS »General Description  Advanced trench process technology  High Density Cell Design For Ultra Low On-Resistance  SOT-23 for Surface Mount Package. »Absolute Maximum Ratings @T =25℃ unless otherwise noted A Characteristic Symbol Max Unit Drain-Source Voltage BVDSS 30 V Gate- Source Voltage VGS +12 V Drain Current (continuous) ID 5 A Drain Current (pulsed) IDM 18 A Total Device Dissipation TA=25℃ PD 1400 mW Junction TJ 150 ℃ Storage Temperature Tstg -55to+150 ℃ Revision 2018 www.born-tw.com 1/5 AO3400 »Electrical Characteristics @T =25℃ unless otherwise noted A Characteristic Symbol Min Typ Max Unit Drain-Source Breakdown Voltage (ID = 250uA,VGS=0V) BVDSS 30 — — V Gate Threshold Voltage (ID = 250uA,VGS= VDS) VGS(th) 0.6 — 1.4 V Diode Forward Voltage Drop (IS= 1.25 A,VGS=0V) VSD — 0.7 1 V Zero Gate Voltage Drain Current (VGS=0V, VDS= 30V ) Gate Body Leakage (VGS=+12V, VDS=0V) IDSS — — 1 uA IGSS — — +100 nA RDS(ON) — 35 41 mΩ RDS(ON) — 40 45 mΩ RDS(ON) — 50 55 mΩ CISS — 545 — pF COSS — 66 — pF t(on) — 9.6 — ns t(off) — 39 — ns Static Drain-Source On-State Resistance (ID= 5 A,VGS= 10V ) Static Drain-Source On-State Resistance (ID= 3.5 A,VGS= 4.5 V) Static Drain-Source On-State Resistance (ID= 3 A,VGS= 2.5 V) Input Capacitance (VGS=0V, VDS= 15 V,f=1MHz) Output Capacitance (VGS=0V, VDS= 15 V,f=1MHz) Turn-ON Time (VDS= 15 V, VGS=10 V, RGEN=6Ω) Turn-OFF Time (VDS= 15 V, VGS=10 V, RGEN=6Ω) Notes : *Pulse Test : Pulse Width ≤300µs, Duty Cycle ≤2%. Revision 2018 www.born-tw.com 2/5 AO3400 »Typical Performance Characteristics（(TJ = 25 °C, unless otherwise noted)） Transfer Characteristics Output Characteristics 24 5 VGS=7V~3V Ta=25℃ Ta=25℃ Pulsed Pulsed 20 VGS=2.5V (A) (A) 4 ID ID 16 DRAIN CURRENT DRAIN CURRENT 3 12 VGS=2V 8 2 1 4 VGS=1.5V 0 0 2 4 6 8 DRAIN TO SOURCE VOLTAGE RDS(ON) VDS 0 0.0 10 (V) 0.5 1.0 RDS(ON) ID —— 1.5 GATE TO SOURCE VOLTAGE 200 —— 2.0 VGS 2.5 (V) VGS 500 Ta=25℃ Ta=25℃ Pulsed Pulsed (m) RDS(ON) 100 ON-RESISTANCE ON-RESISTANCE RDS(ON) (m) 400 150 VGS=2.5V VGS=4.5V 50 300 ID=5A 200 100 VGS=10V 0 0 0 5 10 15 DRAIN CURRENT Revision 2018 20 ID 25 0 2 4 6 GATE TO SOURCE VOLTAGE (A) www.born-tw.com 8 VGS 10 (V) 3/5 AO3400 IS —— VSD 10 Ta=25℃ Pulsed SOURCE CURRENT IS (A) 1 0.1 0.01 1E-3 0.0 0.3 0.6 SOURCE TO DRAIN VOLTA VOLTAGE Revision 2018 0.9 SD 1.2 (V) www.born-tw.com 4/5 AO3400 »Package Information SOT-23 »Ordering information Order code AO3400 Revision 2018 Package SOT-23 Marking A09T www.born-tw.com Base qty Delivery mode 3K Tape and reel 5/5
