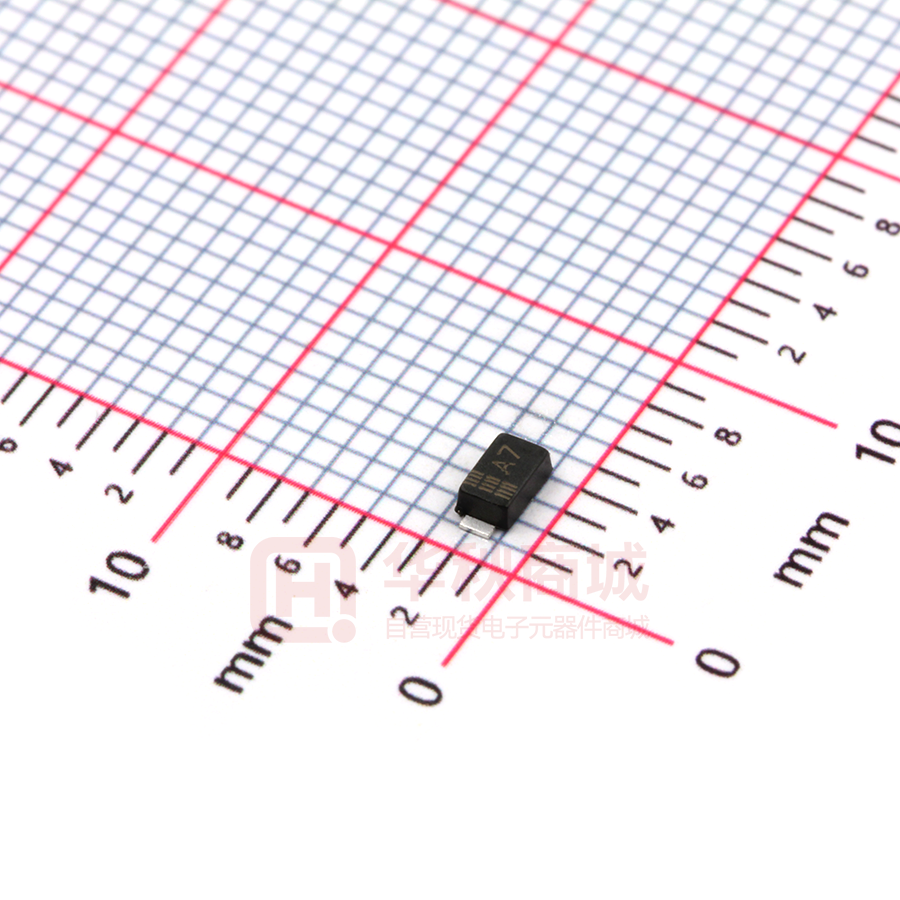

A7

A7 SOD123FL Plastic-EncapsulateGeneral-purpose Rectifiers RECTIFIER SOD-123FL ROHS Features  Low reverse leakage  High Forward surge capability  High reliability  High temperature soldering guaranteed: 260℃/10S  Lead and body according with Rohs standard Mechanical Data  SOD-123FL small outline plastic package Polarity: Color band denotes cathode end  Epoxy UL: 94V-0 Mounting Position: Any MARKING: SM Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Parameters Symbol A7 Unit Maximum repetitive peak reverse voltage VRRM 1000 V Maximum RMS voltage VRMS 700 V VDC 1000 V IF(AV) 1.0 A IFSM 30 A RθJA 45 ℃/W Tj,TSTG -55-+150 ℃ Maximum DC blocking voltage Maximum current average forward rectified Non-repetitive Peak forward surge current 8.3 ms single half sine-wave Typical thermal resistance Operation junction and Storage temperature range Electrical Characteristics ( Ratings at 25℃ ambient temperature unless otherwise specified). Parameters @IF=1.0A Max. forward voltage @VDC TA=25℃ Max. reverse current TA=100℃ VR=4.0V, f=1MHz Type junction capacitance Rev 8: Nov 2014 Symbol A7 Unit VF 1.1 V IR 5 100 uA Cj 15 pF www.born-tw.com Page 1 of 2 S07M RECTIFIER SOD123FL Plastic-EncapsulateGeneral-purpose Rectifiers ROHS Characteristic Curves SOD-123FL PACKAGE OUTLINE Plastic surface mounted package Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
